221

Bulb Renewal

R

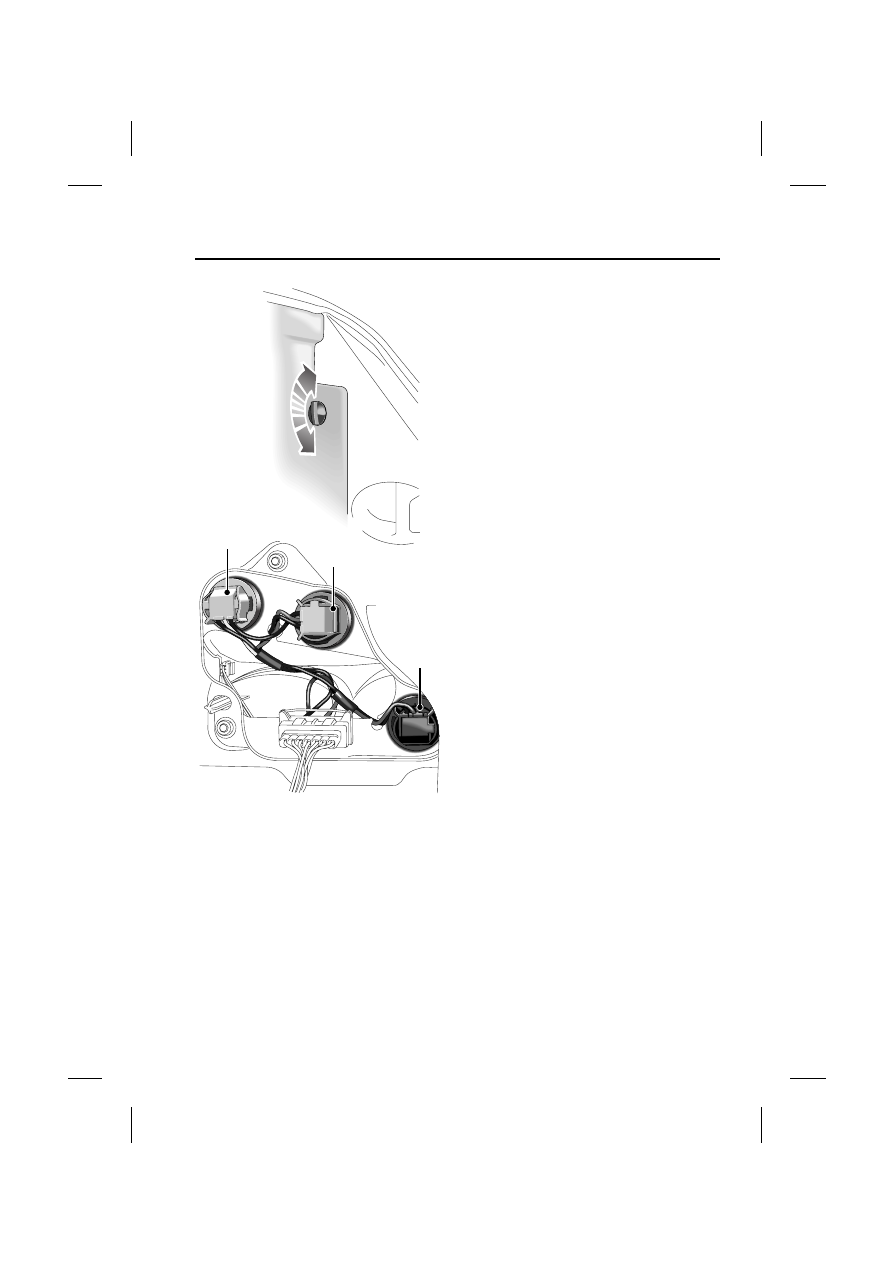

Rotate the side carpet trim fastener a
quarter turn and remove. Pull back the
side carpet trim to access the rear of the
lamp assembly.

The bulb positions are:

1. Reverse lamp, type P21W.

2. Direction indicator, type PY21W.

3. Fog lamp, type P21W.

Rotate the bulb/connector and withdraw
it from the assembly. Remove the faulty
bulb and fit a new one of the correct type,
as illustrated on the bulb holder. It is
essential to fit the correct type.

Reposition the bulb/connector and turn it
to secure.

Carefully refit the side carpet trim. Fit
fastener and rotate a quarter turn.

Close the luggage compartment floor
panel.

1

2

3

E86323

Fuses

222

L

Fuses

FUSES AND FUSE BOXES

Do not fit a new fuse if the wiring is
damaged; contact a Jaguar Dealer. After
renewing a fuse have the circuit checked
by a Jaguar Dealer.

Two types of fuses are fitted in the fuse
boxes, ATO-type and Midi type.

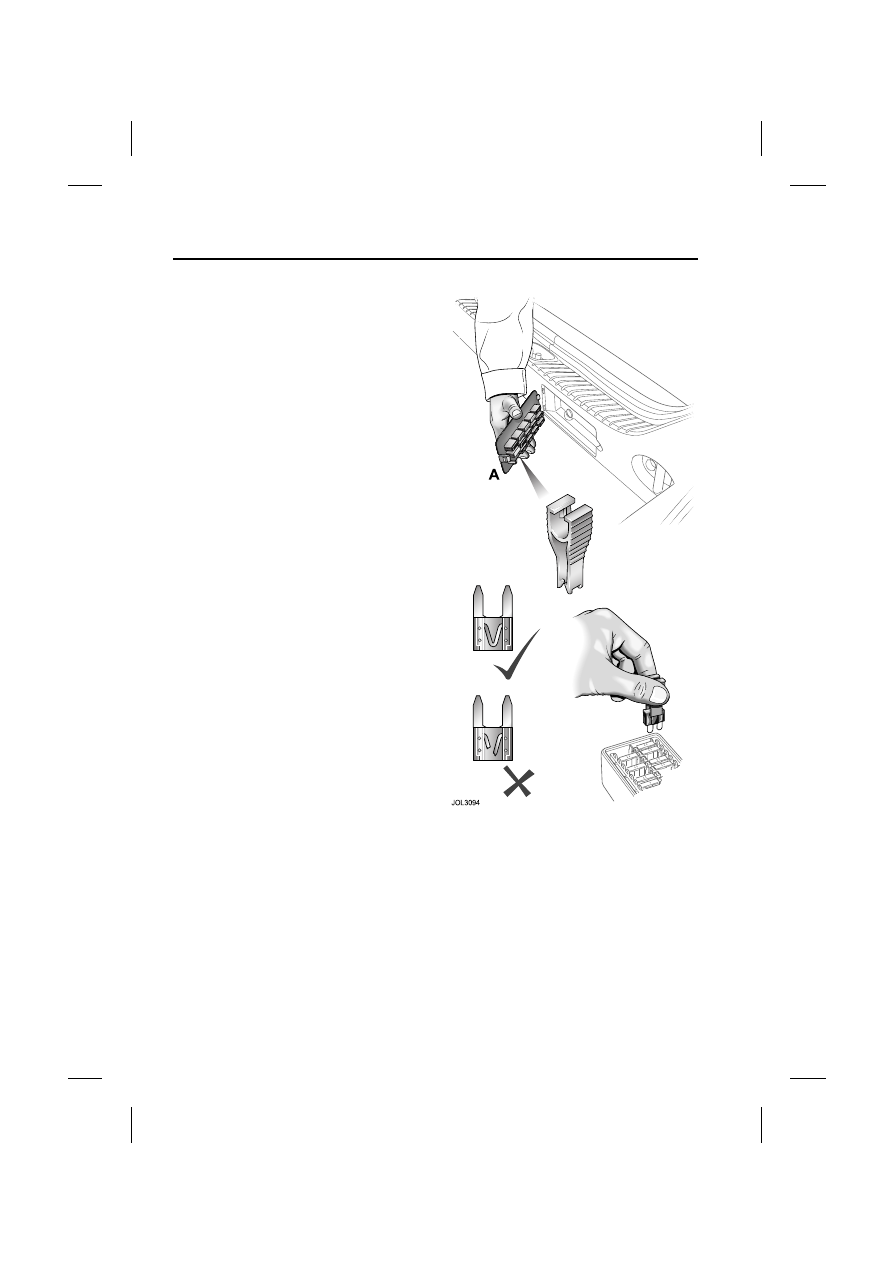

Spare fuses and a special tool for
removing and replacing fuses are located
on a removable panel clipped to the rear
of the luggage compartment (A).

RENEWING A BLOWN FUSE

Caution: Always turn off the starter
switch, and the affected electrical
circuit, before replacing a fuse.

Caution: Fit Jaguar approved
replacement fuses of the same rating
and type, or fuses of matching
specification. Using an incorrect fuse
may result in damage to the vehicle's
electrical system, and can result in a
fire.

Caution: If the replacement fuse blows
after installation, the system should be
checked by your Jaguar Dealer.

Caution:  No attempt should be made to
repair a fuse that has blown.

Make sure the new fuse is the correct
rating (amperage).

Fuses are colour coded according to the
amperage and the rating is also marked
on each fuse.

Caution: When a fuse box lid is
removed, take care to protect the box
from moisture, and refit the lid at the
earliest opportunity.

ATO-fuse replacement

Push the tool onto the suspect ATO-fuse
and withdraw the fuse. If the wire in the
fuse is broken, the fuse has blown.

Fit a new fuse using the tool.

223

Fuses

R

Midi-fuse replacement (not shown)

Unscrew the two nuts and remove the
fuse. Note that the fuse is supplied
directly from the battery positive; take
care not to short a spanner or other metal
tool to the chassis when removing the
nuts.

FUSE BOX LOCATIONS

There are three separate fuse boxes fitted
to the vehicle, each one containing fuses
protecting a different group of circuits:
• Engine compartment fuse box.
• Cabin fuse box.
• Luggage compartment fuse box.

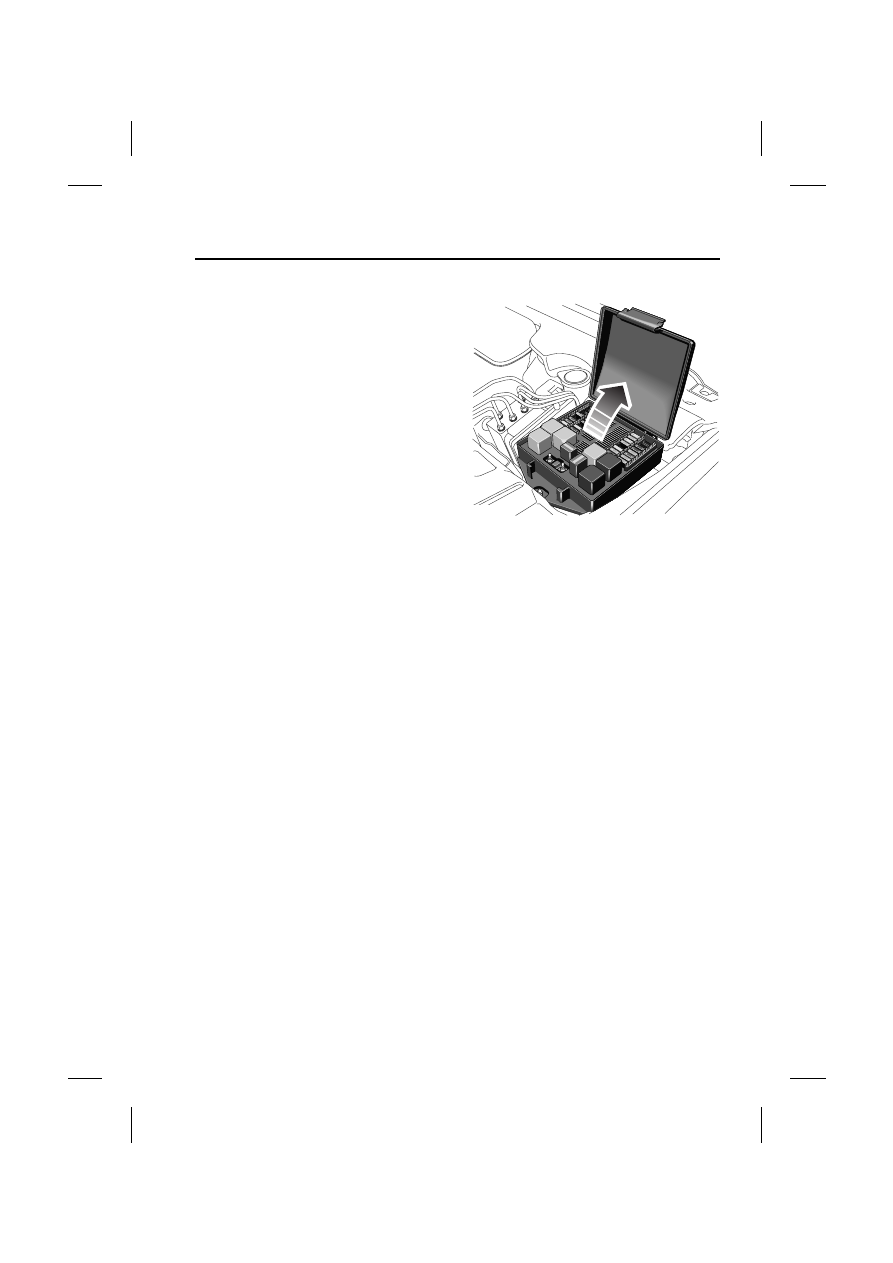

Engine compartment fuse box

The fuse box is located in the engine
compartment on the right-hand side,
adjacent to the windshield wash reservoir.

Remove the fuse box lid by pressing the
spring catch and lifting.

When refitting, press the fuse box lid in
the area of the retaining lugs until the lid
engages.

E86410

Fuses

224

L

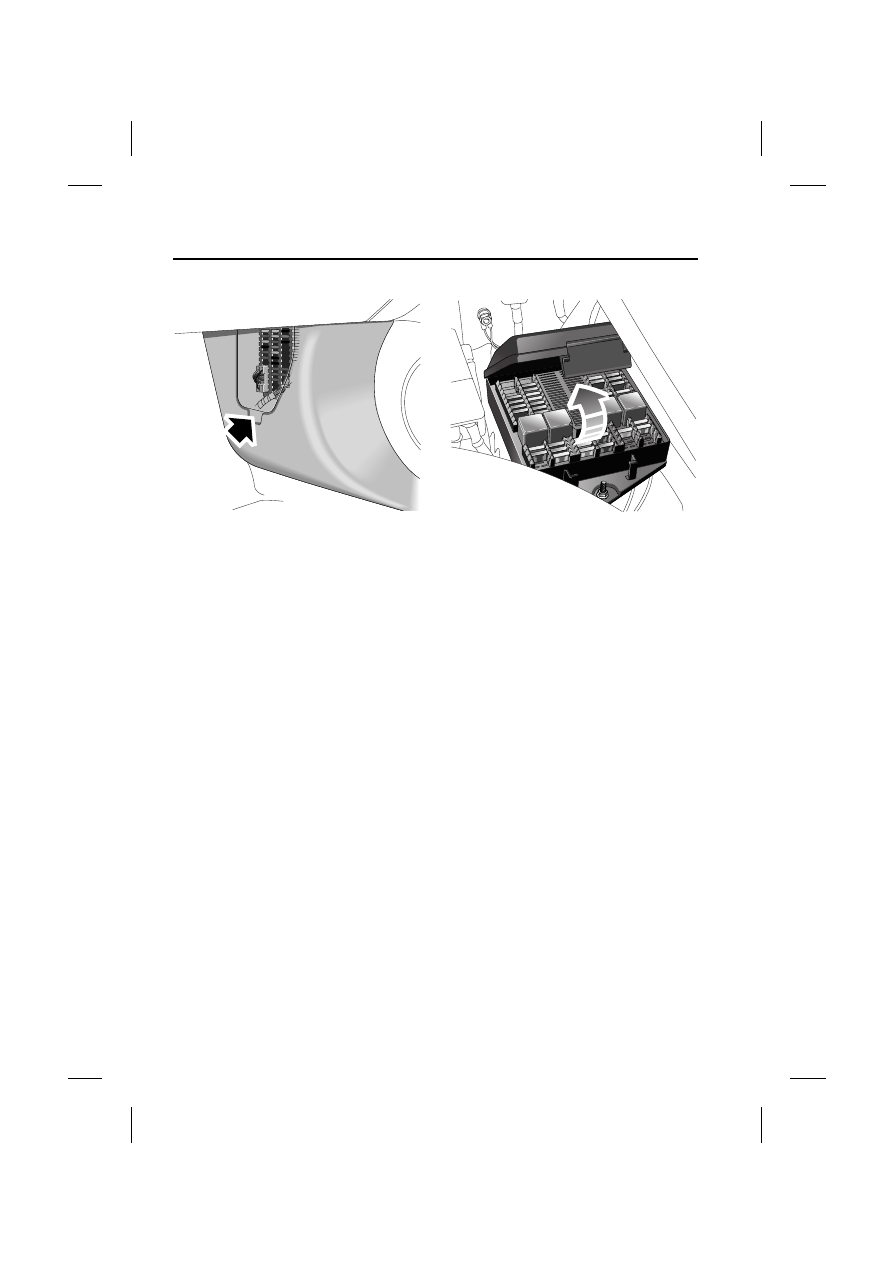

Cabin fuse box

The cabin fuse box is located behind the
right-hand side trim panel in the footwell.

To access the fuse box, pull out the
bottom of the trim panel (arrowed), slide
the panel down slightly and remove.

Luggage compartment fuse box

This fuse box is located in the luggage
compartment, situated behind the
battery.

Open the luggage compartment floor
panel to gain access to the fuse box.

Remove the fuse box lid by pulling the
retaining clips and pulling the lid upwards.

Reposition the lid and press down until
the retaining clips engage.

Replace the floor panel.

E86412

E86414
