Jaguar XJ (2008 year). Manual - part 56

225

Fuses

R

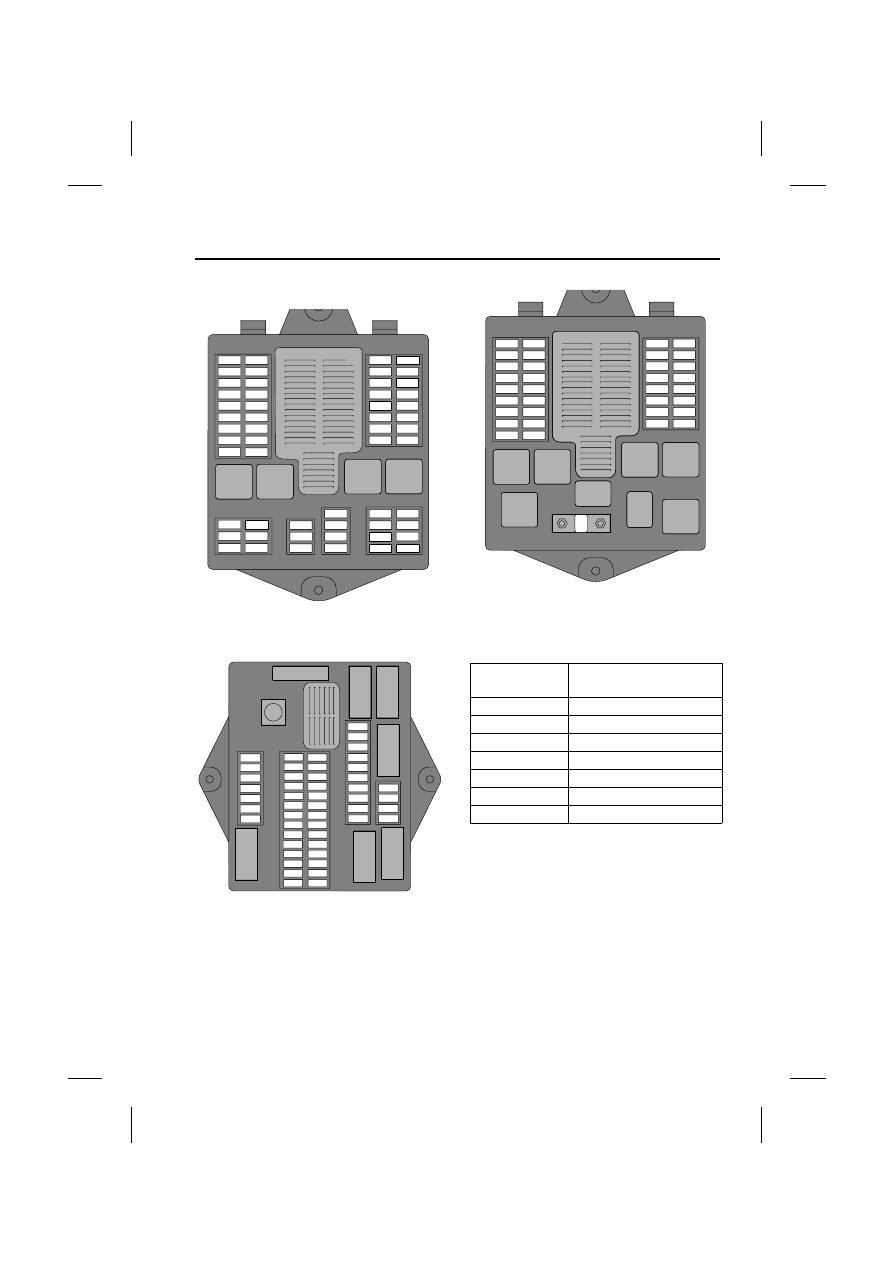

FUSE POSITIONS

Luggage compartment fuse box.

Cabin fuse box.

Engine compartment fuse box

Fuse ratings and colour

F2

F1

F3

F4

F5

F6

F7

F8

F9

F11

F10

F12

F13

F14

F15

F16

F17

F18

F20

F19

F21

F22

F23

F24

F25

F26

F47

F48

F49

F50

F51

F52

F53

F 54

F55

F43

F44

F45

F46

F39

F40

F41

F42

F35

F36

F37

F38

F28

F27

F29

F30

F31

F32

F33

F34

JAG0657

F2

F1

F3

F4

F5

F6

F7

F8

F9

F11

F10

F12

F13

F14

F15

F16

F17

F18

F20

F19

F21

F22

F23

F24

F25

F26

F47

F48

F49

F43

F44

F45

F46

F39

F40

F41

F42

F35

F36

F37

F38

F28

F27

F29

F30

F31

F32

F33

F34

JAG0658

Rating
(amps)

Colour

5A

TAN

10A

RED

15A

BLUE

20A

YELLOW

25A

NATURAL

30A

GREEN

40A

ORANGE

F22

F23

F24

F25

F26

F27

F28

F29

F34

F35

F30

F31

F32

F33

F15

F12

F13

F14

F9

F10

F11

F6

F7

F8

F1

F2

F16

F17

F18

F19

F20

F21

F3

F4

F5

JAG0659

Fuses

226

L

Engine compartment fuse box

Fuse
No.

Rating
(amps)

Circuit

F1

5A

Front ignition, UHEGO, fuel pump, rear ignition relay coils

F2

10A

Throttle

F3

5A

DSC ECU

F4

30A

Powerwash pump

F5

Not used

F6

40A

Air suspension compressor

F7

40A

Right-hand front screen heater or wiper park zone heater

F8

20A

Right-hand low beam

F9

20A

Left-hand low beam

F10

15A

Horns

F11

Not used

F12

10A

Engine control module, VVT solenoids

F13

10A

Fuel injectors

F14

10A

Purge valve, EGR valve, DMTL, MAFS, air filter solenoid,
radiator fan controller

F15

Not used

F16

20A

Right-hand high beam, left-hand high beam

F17

10A

Engine control module, transmission control module

F18

15A

Front fog lamps, instrument panel front fog status

F19

25A

Starter solenoid

F20

40A

ABS module (pump)

F21

Not used

F22

20A

ABS module

F23

Not used

F24

20A

Intercooler water pump (supercharged engines)

F25

Not used

F26

40A

Wiper system, front electronics module (FEM)

F27

5A

Secondary air injection

F28-F29

Not used

F30

15A

Ignition coils

F31

Not used

F32

40A

Left-hand front screen heater

F33

30A

A bank heated oxygen sensors

F34

30A

B bank heated oxygen sensors

F35

80A

Radiator cooling fan

227

Fuses

R

Cabin fuse box

Fuse
No.

Rating
(amps)

Circuit

F1

10A

Climate control unit, fan, screen heaters and wiper relay coils,
smog sensor

F2

5A

Cruise control switch, adaptive cruise control

F3

5A

Rear outer seat, electrochromic mirror, driver seat heater, electric
parkbrake, left-hand and right-hand HID lamps levelling,
left-hand and right-hand seat belt switches, passenger seat
heater switch, rear seat heater switchpack

F4

5A

Instrument panel

F5, F6

Not used

F7

5A

Cigar lighter, sunroof module, sunblind motor, electric parkbrake
switch illumination, accessory relays (luggage compartment fuse
box)

F8

5A

Instrument panel

F9

10A

Left-hand direction indicator and door mirror repeater

F10

10A

Glove compartment door motor and lamps

F11

5A

Radio muting (engine start), ignition feed

F12

10A

Front electronic module (FEM), passenger mirror

F13

20A

Rear electronic module (REM), door locks

F14

10A

Climate control, footwell lamps, FEM, autolamp module

F15

5A

ECM, FEM, instrument panel air bag fault lamp, instrument panel
ignition (run/start)

F16

5A

Diagnostic connector

F17

5A

ABS module

F18

Not used

F19

5A

Ignition relay, ECM, REM, fuel pump relay, start relay

F20

5A

Telephone transceiver, TV module, VICS (Japan), voice module,
rear telematics

F21

20A

Passenger’s ventilated seat

F22- F23

Not used

F24

5A

PATS transponder

F25

10A

Right-hand direction indicator and door mirror repeater,
right-hand front lamp, left-hand and right-hand sunvisor lamps,
left-hand and right-hand sidemarkers

F26

15A

Screenwash pump

F27

10A

ACC module

F28

10A

Climate control modules (front and rear), driver’s door module
(DDM)

Fuses

228

L

F29

10A

Air bag module, occupancy sensing module, passenger weight
sensor, PAD lamp

F30

20A

Driver’s ventilated seat

F31

15A

Sunroof, phone transceiver

F32

5A

Front/rear parking aid, trailer tow module, battery-backed
sounder, voice module, telephone receiver

F33

5A

Transmission control, J-gate, generator

F34

5A

Navigation system, remote power amp

F35

10A

Passenger seat movement

F36

40A

Passenger seat movement, DSM

F37

25A

Driver window

F38

15A

Radio head unit

F39

5A

Transit relay (removed before customer delivery)

F40

10A

Security LED, yaw rate sensor

F41

20A

Ignition switch

F42

10A

FEM, REM, DDM, EPB logic

F43

5A

Diagnostic connector

F44

5A

Brake switch

F45

10A

Passenger seat movement

F46

25A

Passenger window

F47

5A

Instrument pack

F48

20A

Instrument pack (steering column tilt and reach)

F49

40A

Driver seat movement

Fuse
No.

Rating
(amps)

Circuit
