Fuses

176

L

Luggage compartment fuse box

A fuse box is located in the luggage
compartment, situated forward of the
battery.

Fold the luggage compartment floor panel
to gain access to the fuse box. Remove
the fuse box lid by pulling the retaining
clips and pulling the lid upwards.

When removing and replacing mini-fuses,
use the special tool provided in the engine
compartment fuse box lid, together with
spare fuses.

Reposition the lid and press down until
the retaining clips engage.

Refit the floor panel.

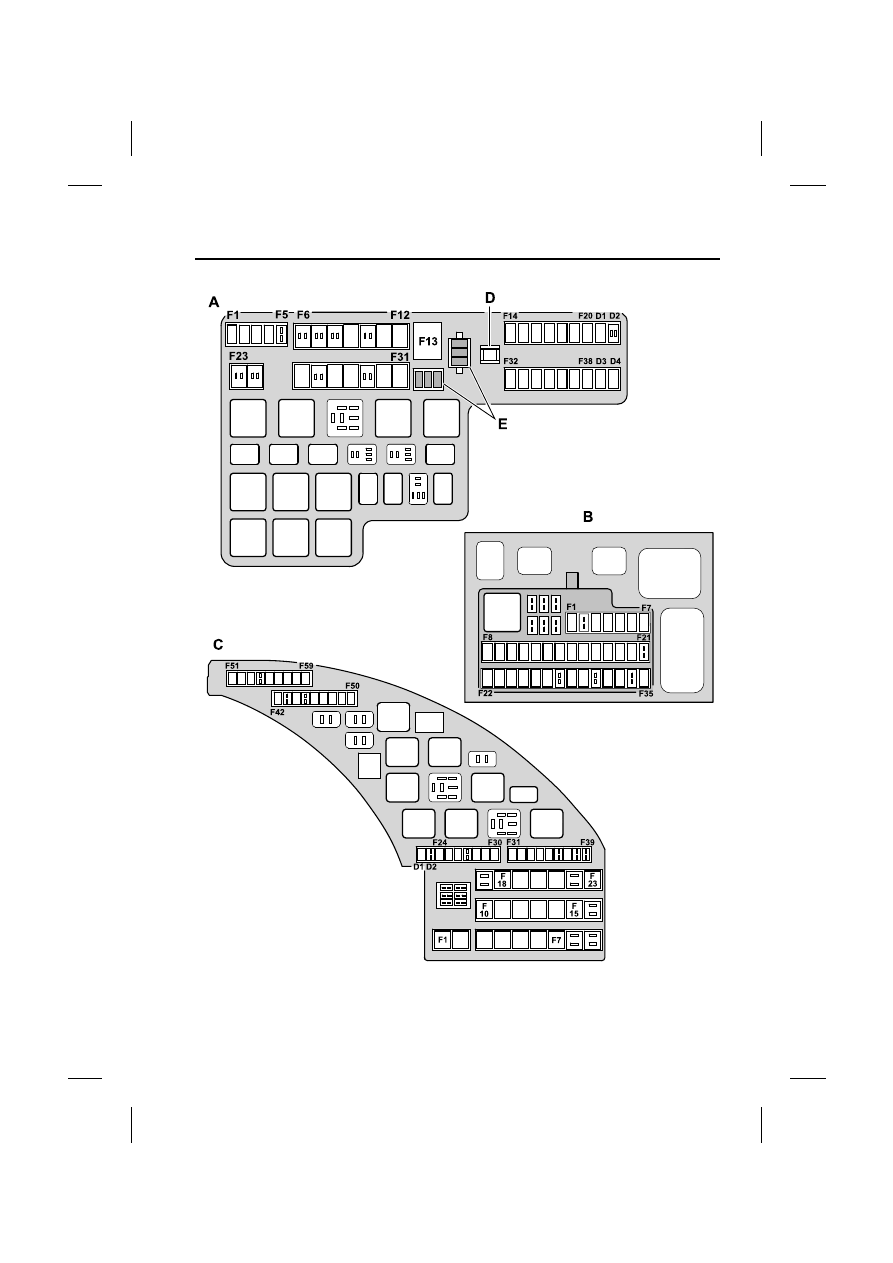

FUSE AND RELAY POSITIONS

See the illustration on the following page:

A. Engine compartment fuse box.

B. Passenger compartment fuse box.

C. Luggage compartment fuse box.

D. Fuse removal tool.

E. Spare fuses.

177

Fuses

R

JAG0583

Fuses

178

L

Engine compartment fuse box
(A) - fuses

Fuse
No

Rating
(amps)

Circuit

F1

5A

ABS B+.

F2

5A

Engine Management System (EMS) Engine Control Module.
Vacuum solenoid.

F3

20A

Auxiliary fuel fired heater.

F4

20A

ABS valves, vbatt.

F5

Not used.

F6

Not used.

F7

Not used.

F8

Not used.

F9

50A

Heated Exhaust Gas Oxygen sensors, ignition EMS relays.

F10

Not used.

F11

40A

Headlamp powerwash.

F12

20A

Wipers.

F13

80A

Cooling fan.

F14

15A

Right-hand dipped beam high intensity discharge (HID) light.

F15

15A

Front fog lamp.

F16

15A

Horns.

F17

15A

Fuel injectors.

F18

10A

Engine management ignition supply.

F19

15A

Ignition coil on plugs supply.

F19

10A

Not used.

F20

20A

Right-hand Oxygen Sensor Heaters.

F20

30A

Not used.

F21/
D1

5A

Rain sense module.

F22/
D2

Not used.

F23

Not used.

F24

Not used.

F25

40A

Right-hand windshield heater.

F26

Not used.

F27

30A

Starter motor solenoid.

F28

30A

ABS pump motor.

F29

Not used.

F30

40A

Left-hand windshield heater.

179

Fuses

R

Passenger compartment fuse
box (B) - fuses

F31

50A

SAI relay.

F32

10A

Air compressor clutch, auxiliary coolant pump.

F33

10A

Engine Control Module and Transmission Control Module battery
supply.

F34

15A

Left-hand dipped beam High Intensity Discharge (HID) lamp.

F35

20A

Left-hand Oxygen Sensor Heaters.

F36

15A

Intercooler pump (supercharged model).

F37

10A

Air flow meter, purge valve, inlet manifold tuning valves (V6 only),
EGR valve (V8 only), air filter solenoid (V8 S/C only), MAF
sensors, VGT, canister close valve.

F38

10A

Engine control module, ignition supply, cooling fan module, air
conditioner clutch relay.

D3

Ignition relay.

D4

Not used.

Fuse
No

Rating
(amps)

Circuit

Fuse
No

Rating
(amps)

Circuit

F1

5A

Engine Control Module/crankshaft sensor.

F2

Not used.

F3

5A

ABS/Dynamic Stability Control module, ACC module.

F4

5A

Inertia switch, Engine Management System, fuel pump relay,
ignition relay, rear electronics module, instrument pack, brake
pedal, cruise control cancel.

F5

10A

Restraint control module, airbag occupant sensor, passenger
airbag de-activation lamp.

F6

10A

OBDII connector.

F7

5A

Driver’s door module, battery backed sounder, security LED.

F8

5A

Front right turn indicator, side marker, park, repeater lamp.

F9

10A

Right-hand dipped beam, left-hand HID relay coil.

F10

5A

Front left- turn indicator, side marker, park, repeater lamp.

F11

10A

Left-hand main beam.

F12

15A

Screenwash pump.

F13

5A

Instrument pack.

F14

10A

Climate control system, two stage adaptive damping control
module.
