Fuses

180

L

F15

5A

Ignition switch feed (RUN) to alternator, J-gate, transmission
control module.

F16

10A

Passenger and driver heated seat modules, electrochromatic
mirror, rain sense module, headlamp levelling and HID, Tire
Pressure Module.

F17

5A

Instrument pack (air bag warning lamp, alternator warning lamp,
seat belt chime).

F18

20A

Radio head unit, touch-screen and display unit.

F19

15A

Steering column tilt and reach motors.

F20

10A

Logic supply to instrument pack, climate control system, front
electronic module, rear electronic module, electric parkbrake.

F21

Not used.

F22

10A

Driver’s door module battery supply (driver’s door mirror, locks).

F23

10A

Right-hand main beam.

F24

5A

Passive anti-theft system.

F25

10A

Left-hand dipped beam, right-hand HID relay coil.

F26

5A

Electric parkbrake switch illumination, AM/FM antenna amplifier,
sunblind motor, cigar lighter and power point relay.

F27

10A

Radio head unit, touch-screen and display unit, navigation
module, center console switchpack, voice control, phone
transceiver.

F28

Not used.

F29

5A

Reversing aid module, telephone transceiver, front electronic
module, voice control.

F30

10A

Front electronic module power.

F31

Not used.

F32

10A

Accessory relay and socket.

F33

10A

Front electronic module (instrument dimming, fuel and luggage
compartment switchpack.)

F34

Not used.

F35

5A

Brake on and off switch, bottom of clutch switch.

Fuse
No

Rating
(amps)

Circuit

181

Fuses

R

Luggage compartment fuse box
(C) - fuses

Fuse
No

Rating
(amps)

Circuit

F1

40A

Passenger compartment fusebox - battery supply.

F2

30A

Cigar lighter and power point relay.

F3

20A

Ignition switch.

F4

20A

Left-hand rear window raise and lower.

F5

20A

Driver’s window raise and lower.

F6

20A

Front passenger’s window raise and lower.

F7

20A

Right-hand rear window raise and lower.

F8

Not used.

F9

Not used.

F10

30A

Blower motor.

F11

20A

Passenger seat.

F12

30A

Switch system power 1 relay.

F13

30A

Switch system power 2 relay.

F14

30A

Switch system power 3 relay.

F15

20A

Driver’s seat.

F16

Not used.

F17

Not used.

F18

20A

Driver’s seat.

F19

20A

Passenger’s seat.

F20

30A

Switch system power 4 relay.

F21

30A

Heated rear window, heated mirrors.

F22

Not used.

F23

30A

Fuel pumps.

D1

Fuel pump relay.

D2

Not used.

F24

5A

Tire Pressure Module.

F25

5A

CD player.

F26

15A

Adaptive damping.

F27

Not used.

F28

30A

Remote audio power amplifier.

F29

10A

Telephone, Navigation.

F30

5A

Alternator sense (V8 S/C only).

F31

20A

Sunroof control module.

F32

10A

Driver’s seat.

F33

5A

Transit relay.

Fuses

182

L

F34

20A

Left -hand and right-hand heater seat module.

F35

30A

Electric parkbrake.

F36

Not used.

F37

10A

Passenger seat.

F38

Not used.

F39

Not used.

F40

Not used.

F41

Not used.

F42

10A

Driver and passenger heated door mirrors.

F43

Not used.

F44

10A

Left-hand rear reverse lamp, direction indicator, side marker,
trailer tow relay and module.

F45

Not used.

F46

10A

Luggage compartment lid and interior lights, fuel filler flap
solenoid.

F47

15A

Rear electronic module, fuel pump driver.

F48

10A

Right-hand rear reverse lamp, direction indicator, side marker,
license plate lamp.

F49

15A

Secondary fuel pump module (Supercharged only).

F50

5A

Transit relay.

F51

5A

ACC.

F52

5A

Electric parkbrake.

F53

10A

Right-hand rear stop, tail and fog lamps, high mounted stop lamp.

F54

Not used.

F55

10A

Footwell lamps, roof courtesy lamps, map lamps, visor lamp,
puddle lamp, glove compartment lamp, garage door opener.

F56

15A

Cigar lighter.

F57

10A

Left-hand rear stop, tail and fog lamps.

F58

20A

Power point.

F59

15A

Rear electronic module, rear and passenger door locks, boot
solenoid.

Fuse
No

Rating
(amps)

Circuit

183

Fire Extinguisher

R

Fire Extinguisher

DEALER FITTED FIRE
EXTINGUISHER

Many countries make it compulsory to
carry a fire extinguisher. Your Jaguar
Dealer can supply and fit one.

FACTORY FITTED FIRE
EXTINGUISHER

Mexican vehicles have a factory fitted fire
extinguisher which contains 1.1 kg (2.2 lb)
of BC powder pressurised with nitrogen
to a working pressure of 12 bar (180 psi)
at 20°C (68°F).

This extinguisher can be used on liquid
fires, electrical equipment fires and, if no
explosion risk, gasoline fires.

!

WARNING:

• Do not test the fire extinguisher

prior to use. Partial discharge will
render the extinguisher inoperative.

• Do not use the fire extinguisher

closer than 2.4 m (8 feet) to the
base of a liquid fire, as the force
may splatter the burning liquid to
the surrounding area.

Operating the fire extinguisher

1. Unclip and remove the extinguisher

from the bracket.

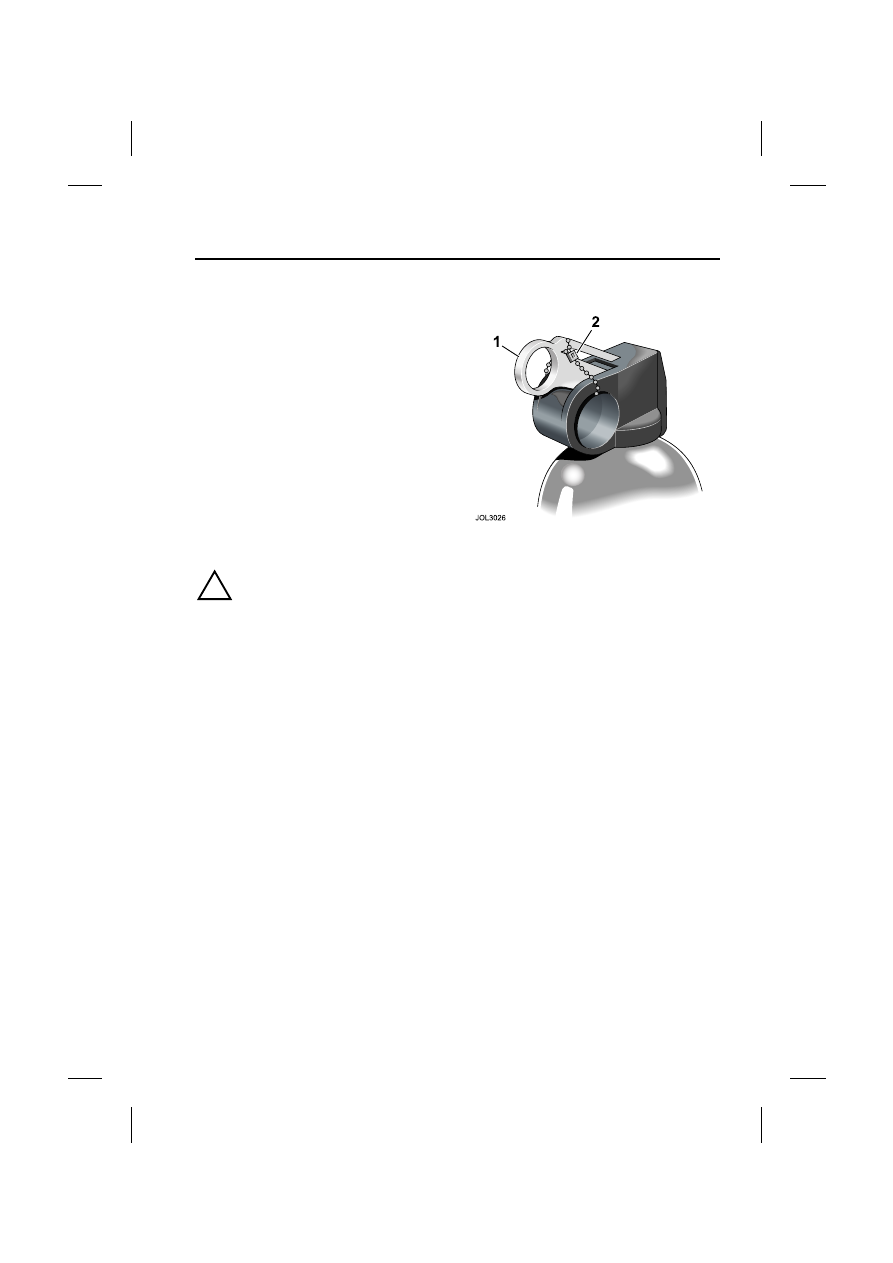

2. Put your finger through the yellow

safety wedge ring (1) and pull hard to
remove the wedge. The operating
lever will be exposed.

3. Hold the extinguisher upright and aim

at the base of the fire.

4. Press the lever down firmly.

5. Release the lever to stop the flow of

powder.

Maintenance

Every six months:
• Remove the extinguisher from its

bracket and check that the nozzle is
clear.

• Check that the safety wedge strap (2)

is secure.

Check the pressure gauge on the base of
the extinguisher. If the gauge is in the red
area, report it to your Jaguar Dealer
immediately, as the extinguisher may not
work in an emergency.
