Bulb Renewal

168

L

HEADLAMP

Halogen bulbs are used in the main beam
(inner headlamp) positions.

Either halogen bulbs or the optional High
Intensity Discharge (HID) Xenon lamp
system are fitted in the dipped beam
(outer) headlamp positions.

Where HID lighting is fitted, refer to your
Jaguar Dealer if the headlamp fails to
operate.

Caution: Halogen bulbs will be
damaged if touched by hand or
contaminated with oil or grease. It is
important to use clean gloves or a cloth
when handling a bulb which is to be
used again. A contaminated bulb may
be cleaned with methylated spirit
before refitting.

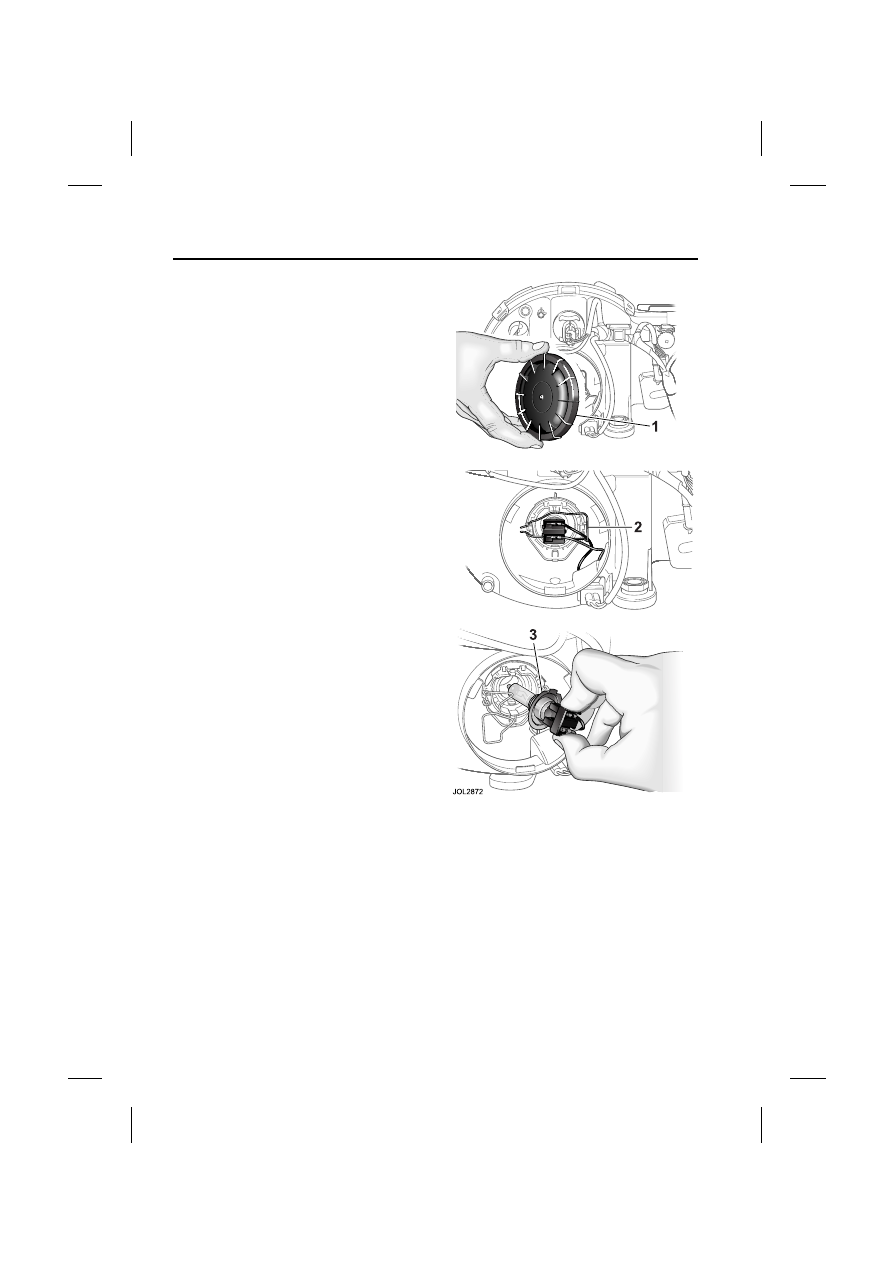

Low beam (outer) headlamp

Open the hood.

Remove the top cover as shown on
page 167.

Turn the circular cover (1)
counter-clockwise and remove.

Press the spring clip (2) towards the bulb
and downwards to release the bulb.
Remove the bulb and connector (3) from
the headlamp assembly. Pull the
connector from the bulb.

Attach the connector to the new bulb,
type H7 for low beam, and fit to the
headlamp. The bulb will only correctly fit
in one position.

Engage the spring clips to retain the bulb
and then fit the circular cover.

Refit the top cover and close the hood.

It is advisable to have the headlamp aim
checked by a Jaguar Dealer after bulb
renewal.

Note: High Intensity Discharge (HID)
Xenon lamp units, type D2S 35W, are not
renewable; contact your Jaguar Dealer if
the headlamp fails to operate.

169

Bulb Renewal

R

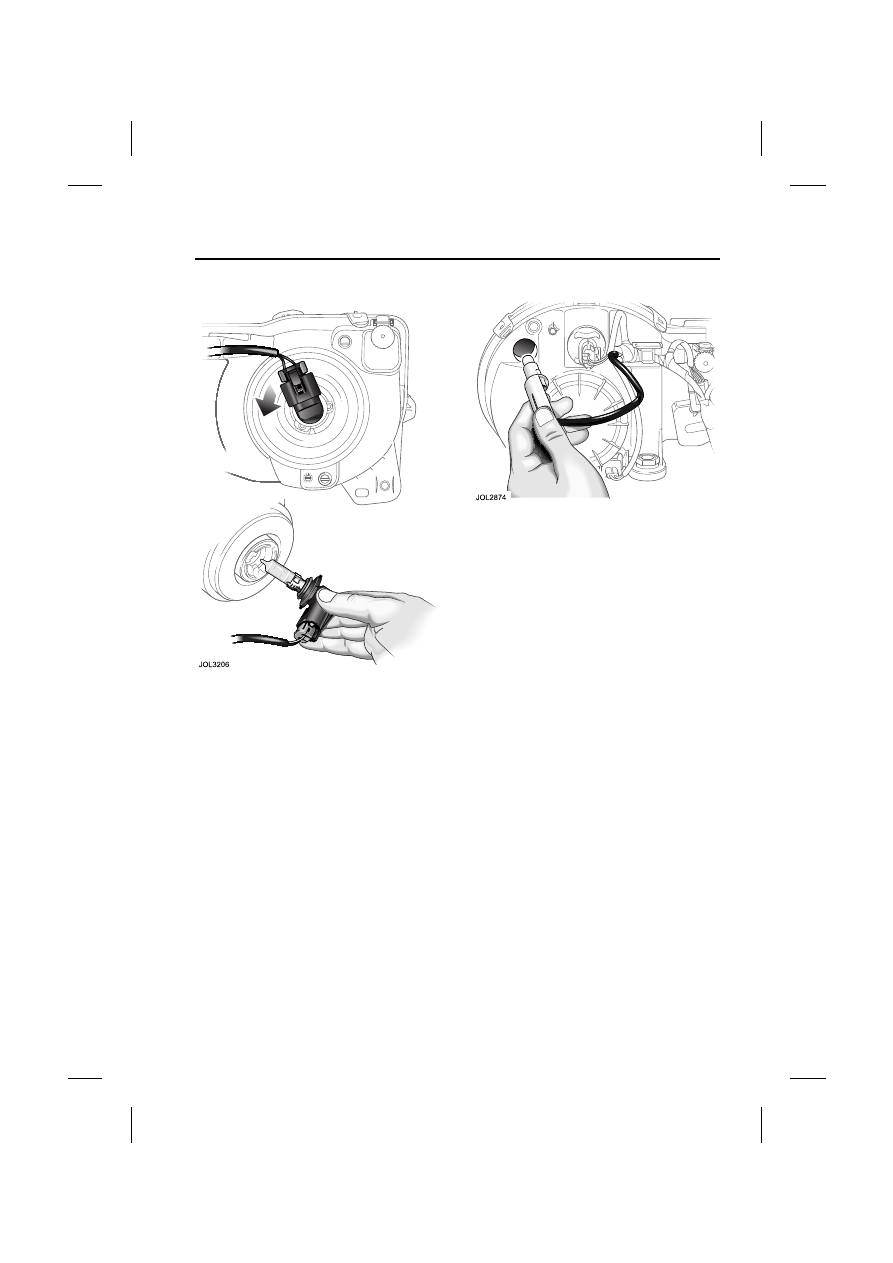

High beam (inner) headlamp

Open the hood.

Remove the top cover as shown on
page 167.

Turn the bulb holder a quarter-turn
counter-clockwise and remove the bulb
and holder from the lamp unit.

Fit a new bulb to the holder, type HB3 for
high beam.

Fit the holder to the lamp unit, the bulb will
only correctly fit in one position.

Refit the top cover and close the hood.

FRONT SIDE LAMP

Open the hood.

Remove the top cover as shown on
page 167.

The front side lamps are contained within
the outer headlamp units.

Rotate the bulb holder counter-clockwise
and remove from the headlamp.

Pull the capless bulb from the holder and
fit a new one of the correct type, W5W.

Reposition the bulb holder in the
headlamp unit and turn clockwise.

Refit the top cover and close the hood.

Bulb Renewal

170

L

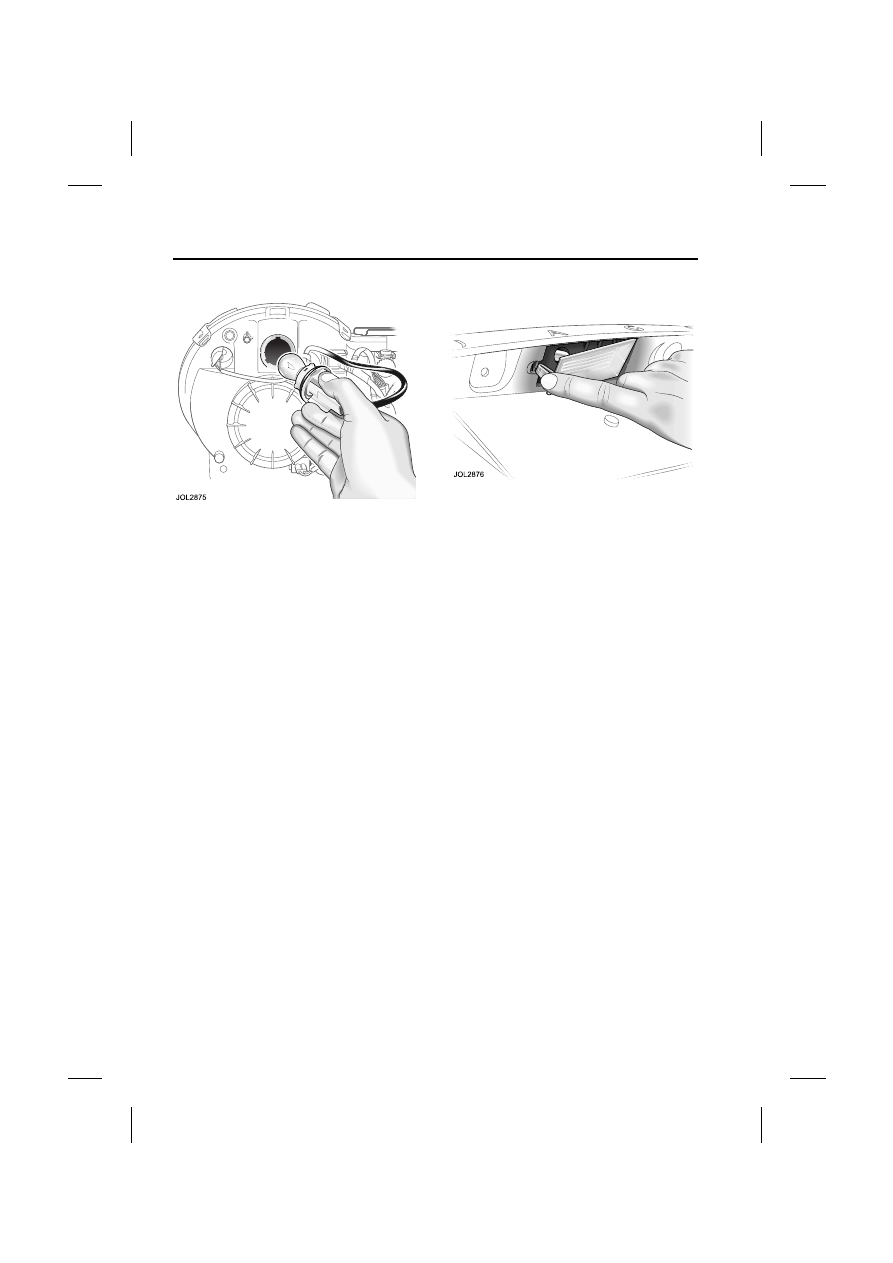

FRONT DIRECTION INDICATOR

Remove the top cover as shown on
page 167.

The bulb is contained within the outer
headlamp. Turn the holder a quarter-turn
counter-clockwise and remove the bulb
and holder.

Remove the bulb and fit a new one of the
correct type, PY21W.

Fit the holder to the lamp unit, it will only
fit in one position.

Refit the top cover and close the hood.

LICENSE PLATE LAMP

Push the lens clip sideways and remove
the lens from the vehicle.

Remove the bulb and fit a new one of the
correct type, W5W.

Refit the lens by pressing it firmly into the
recess until it clicks into place.

171

Bulb Renewal

R

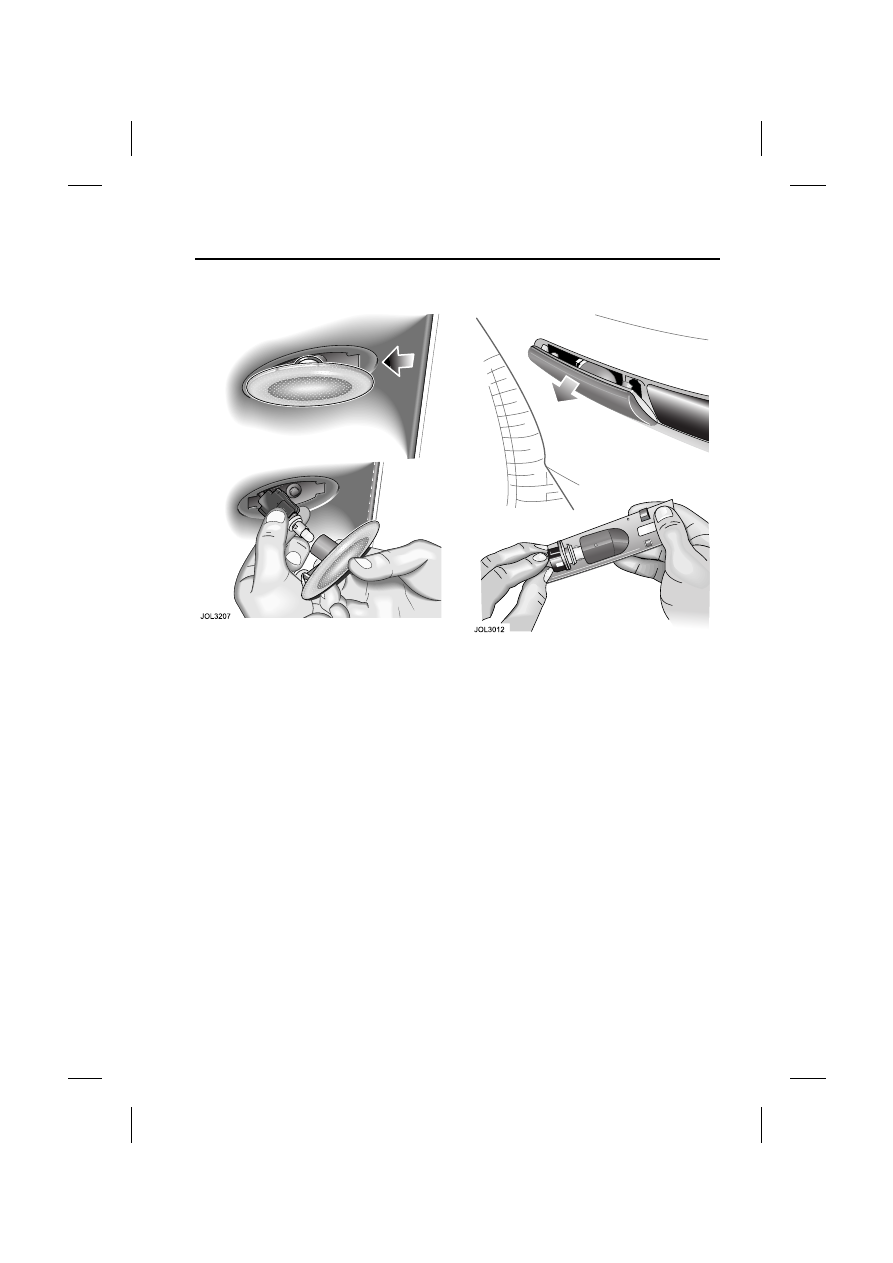

SIDE REPEATER INDICATOR

Remove the lamp unit from the front
fender panel by pressing the unit forwards
or rearwards to compress the spring clip
and remove the complete unit.

Twist the bulb counter-clockwise and
remove.

Fit a new bulb of the correct type, W5W.

Press the unit into the recess until it clicks
into place.

SIDE MARKER

Remove the lamp unit by pressing the
lens downwards to compress the spring
clips. Gently ease the top of the lens from
the bumper and remove the complete
unit.

Twist the bulb holder counter-clockwise
and remove the holder and bulb from the
lens.

Fit a new bulb of the correct type, W5W.

Refit the bulb holder, complete with bulb,
to the lens unit.

Press the unit into the recess until it clicks
into place.
