Jaguar XJ (X350). Manual - part 729

Accessory Drive Belt Idler Pulley - 3.0L,
VIN Range: G45704->G99999 (12.10.43)

Removal

1 . Disconnect the battery ground cable.

For additional information, refer to Battery Disconnect and Connect

2 . Remove the air cleaner outlet pipe.

For additional information, refer to Air Cleaner Outlet Pipe (19.10.31)

Detach the accessory drive belt.

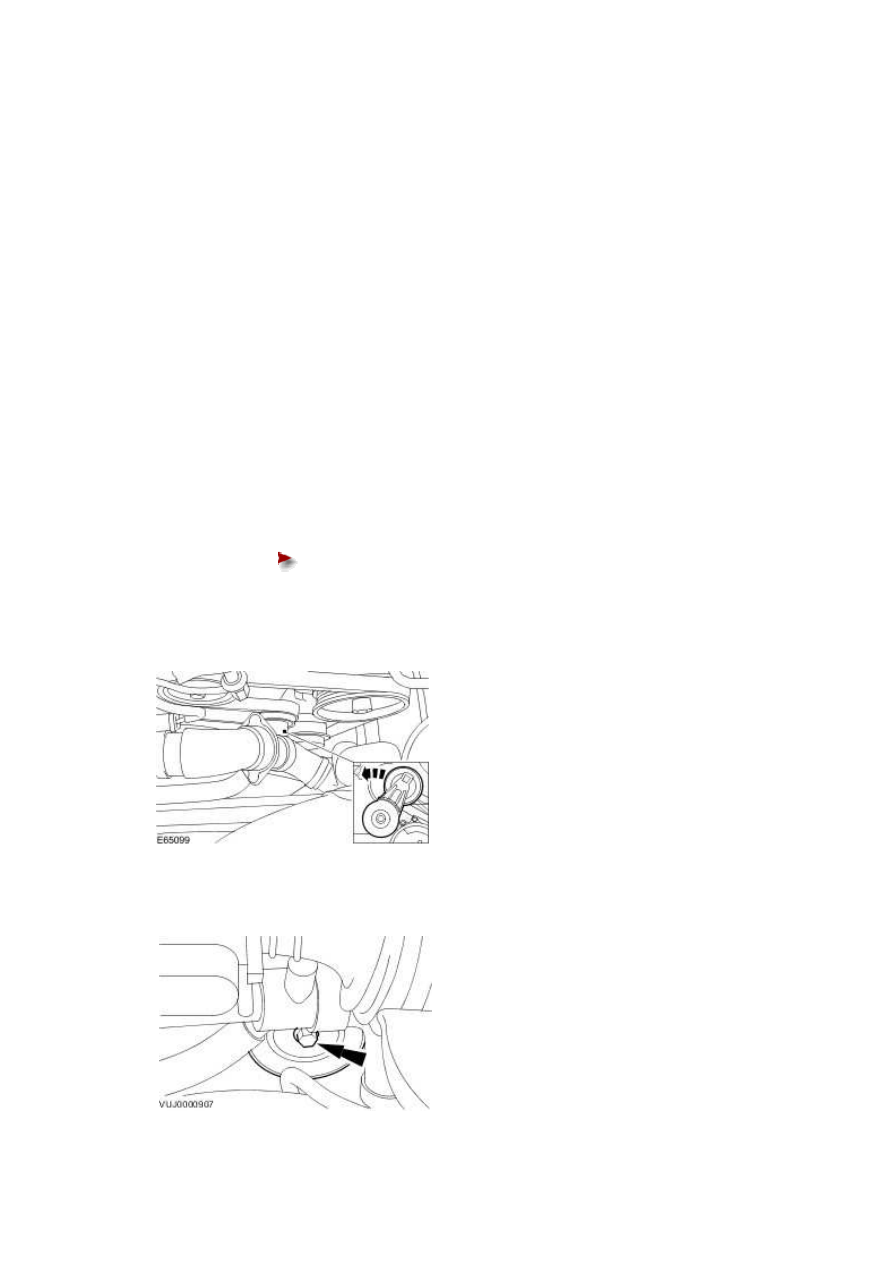

1) Rotate the accessory drive belt tensioner counter-clockwise.

Use a 3/8 inch square drive bar or a 1 inch open ended wrench to

rotate the accessory drive belt tensioner.

2) Detach the accessory drive belt.

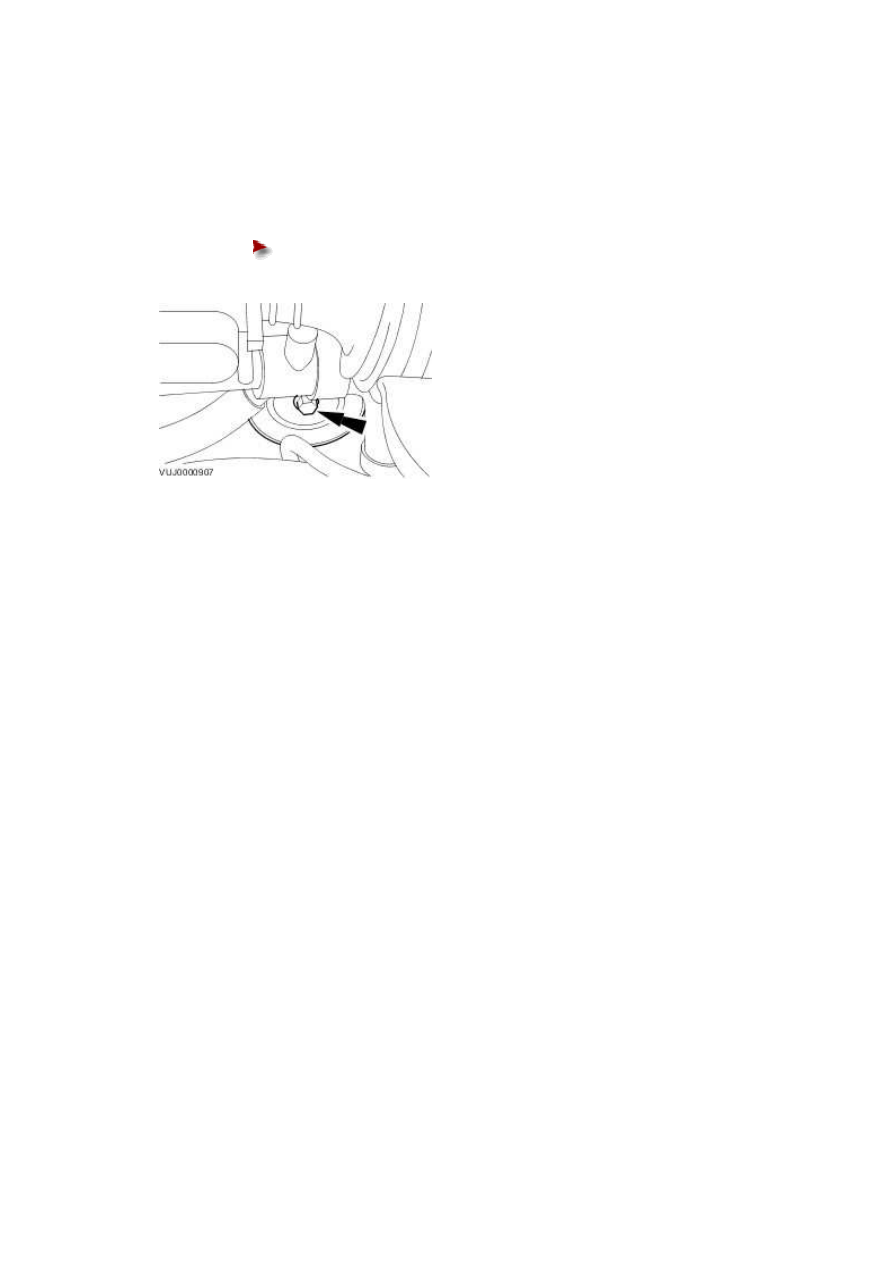

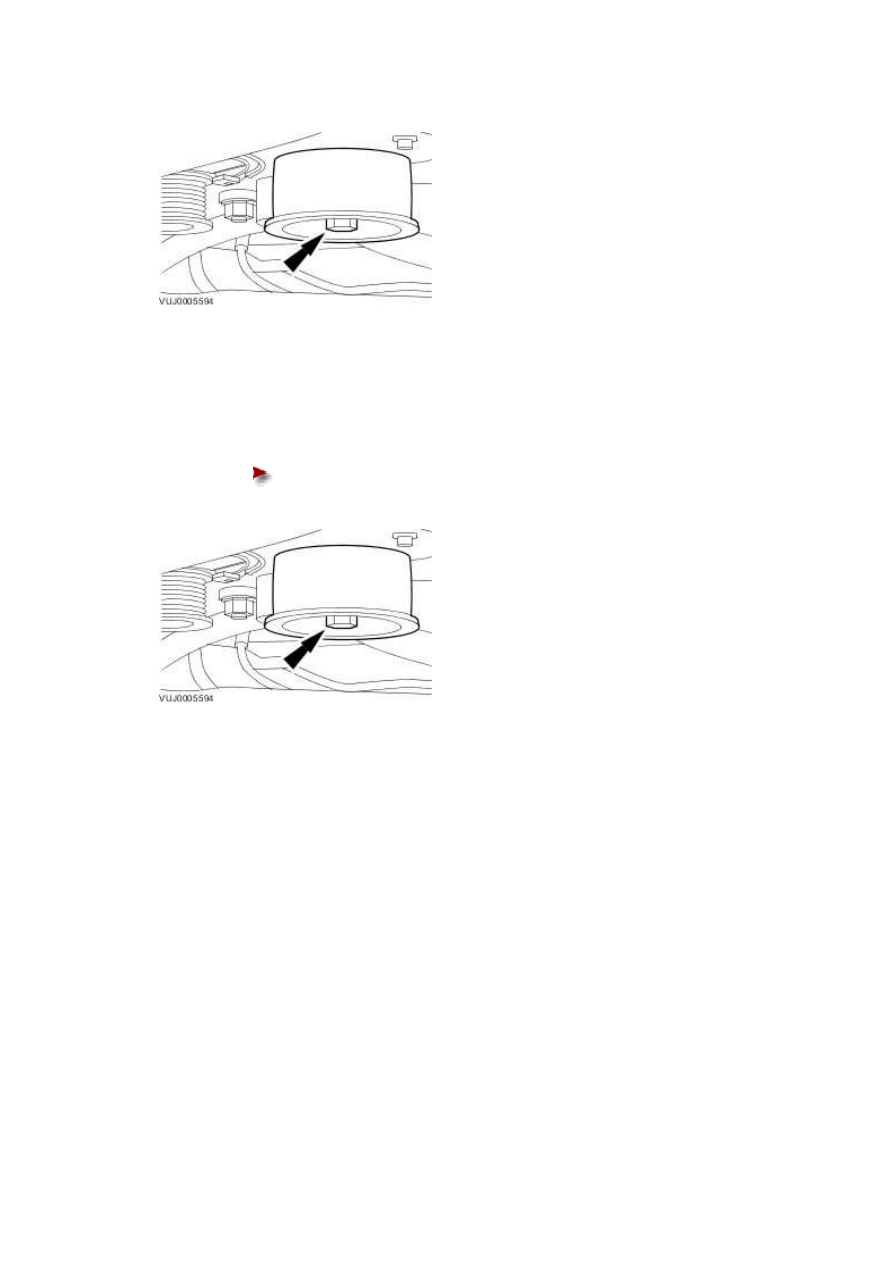

4 . Remove the accessory drive belt idler pulley.

Installation

1 . To install, reverse the removal procedure.

Tighten to 25 Nm.

www.

Accessory Drive Belt Idler Pulley -
3.5L/4.2L, VIN Range: G00442->G45703
(12.10.43)

Removal

All vehicles

1 . Disconnect the battery ground cable.

For additional information, refer to

2 . Remove the air cleaner outlet pipe.

For additional information, refer to Air Cleaner Outlet Pipe (19.10.31)

Vehicles with supercharger

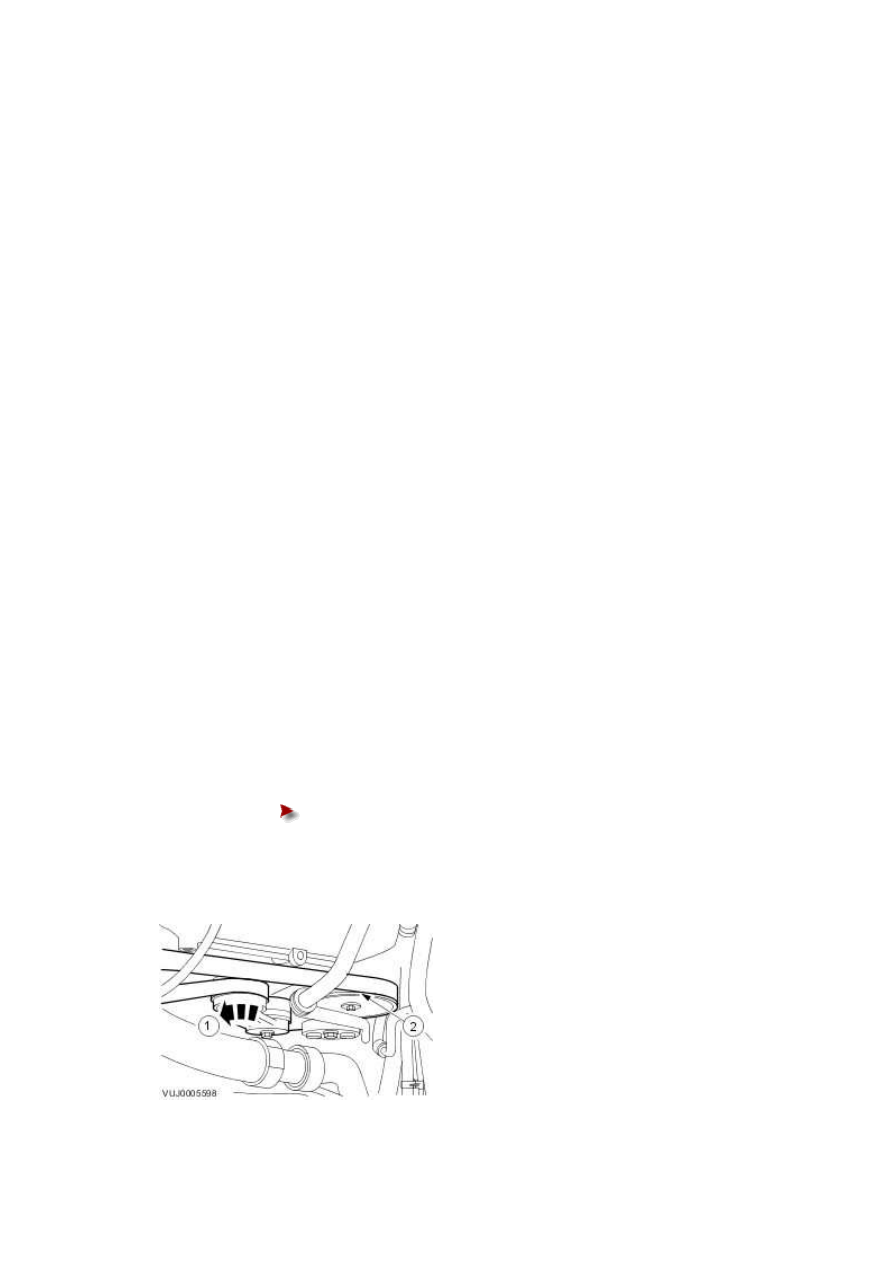

Remove the supercharger belt.

For additional information, refer to Supercharger Belt - VIN Range: G00442->G45703

(18.50.08)
