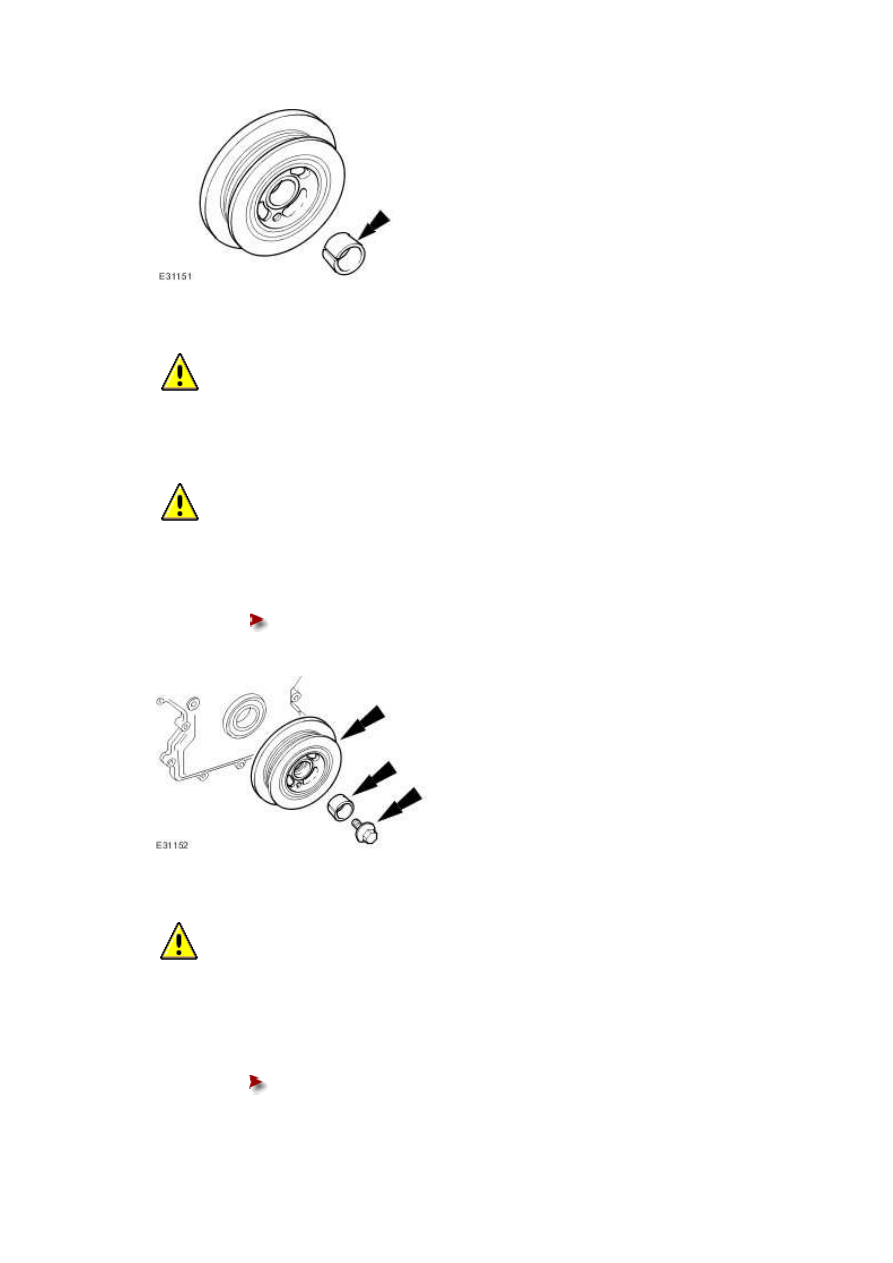

CAUTION: The screw thread in the crankshaft must be cleaned out before a new

crankshaft pulley bolt is installed.

CAUTION: A new crankshaft pulley bolt must be used.

Install, but do not tighten, a new crankshaft pulley retaining bolt.

Install the crankshaft pulley and locking ring to the crankshaft.

CAUTION: Under no circumstances should the crankshaft setting peg 303-645 be

used in the following operations to lock the crankshaft.

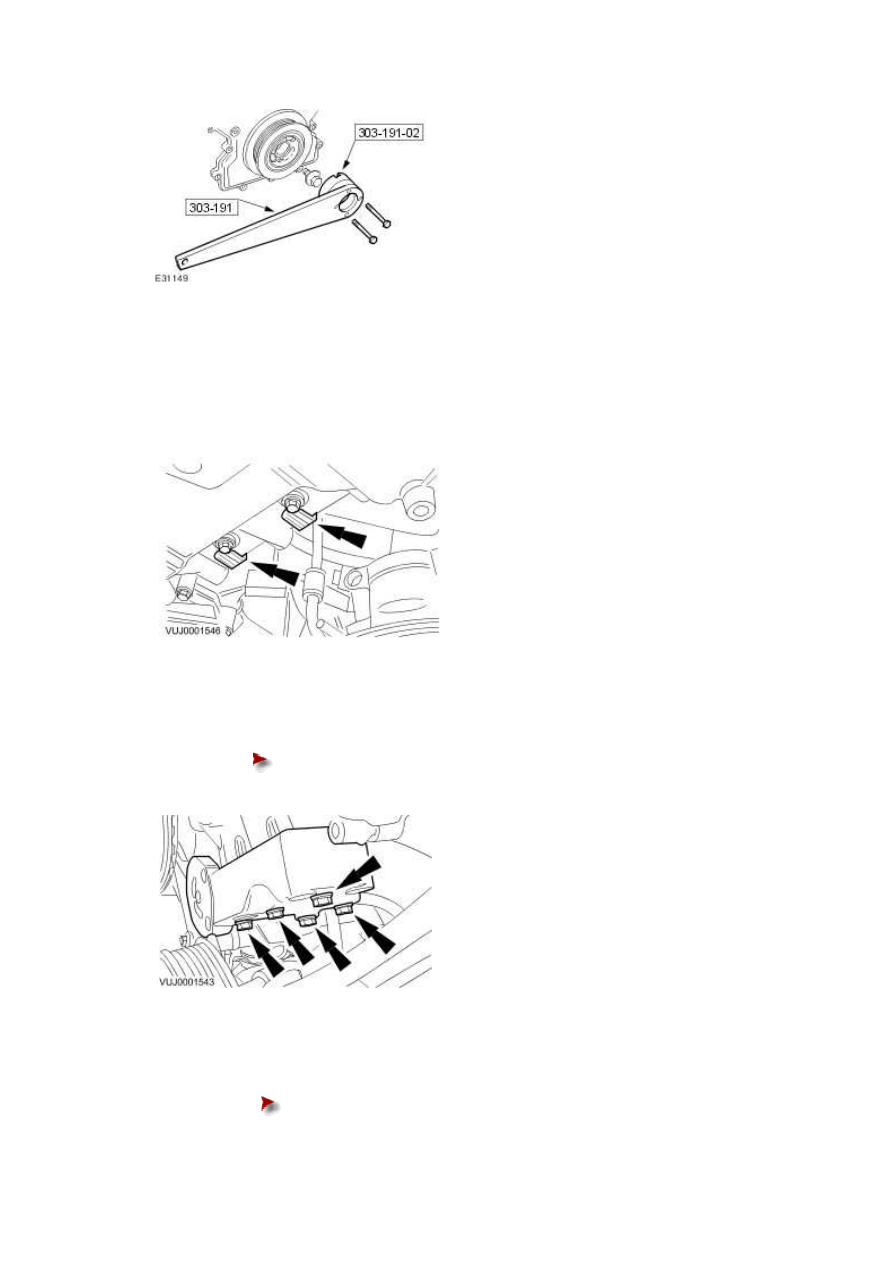

Using special tools, retain the crankshaft pulley.

Tighten the crankshaft pulley retaining bolt to 375 Nm.

7 . Remove the special tools.

8 . Attach the engine harness.

9 . Install the power steering pump mounting bracket.

Tighten to 25 Nm.

10 . Install the accessory drive belt idler pulley.

Tighten to 25 Nm.

www.

Vehicles with supercharger

11 . Install the supercharger drive belt tensioner. <<303-05>>

All vehicles

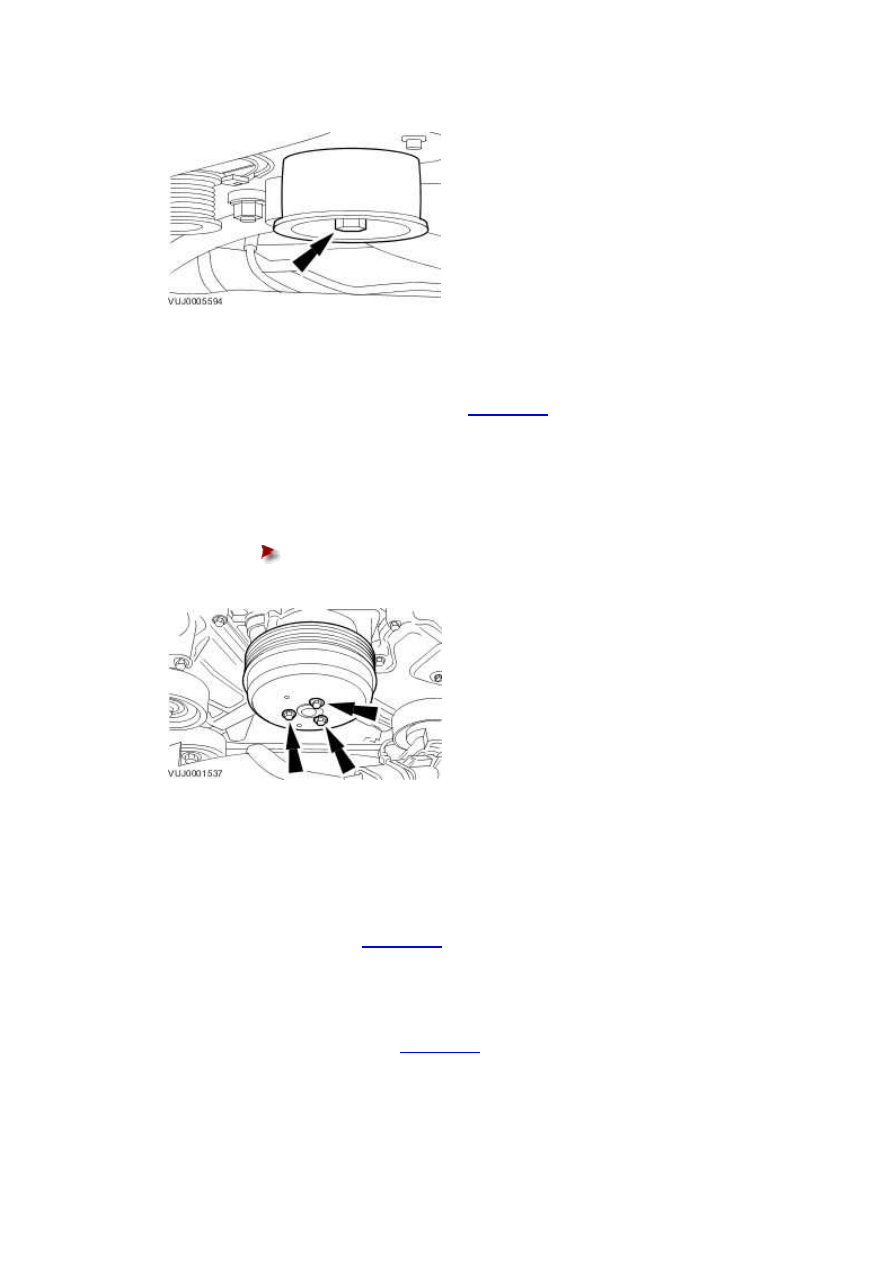

12 . Install the water pump pulley.

Tighten to 10 Nm + 45°.

13 . Install the air conditioning compressor. <<412-03>>

14 . Install power steering pump. <<211-02>>

Vehicles with supercharger

15 . Install the supercharger drive belt. <<303-05>>

Vehicles without supercharger

16 . Install the oil cooler.

For additional information, refer to

All vehicles

17 . Install the left-hand valve cover.

For additional information, refer to

18 . Install the right-hand valve cover.

For additional information, refer to

19 . Install the cooling fan motor and shroud. <<303-03A>>
