5 .

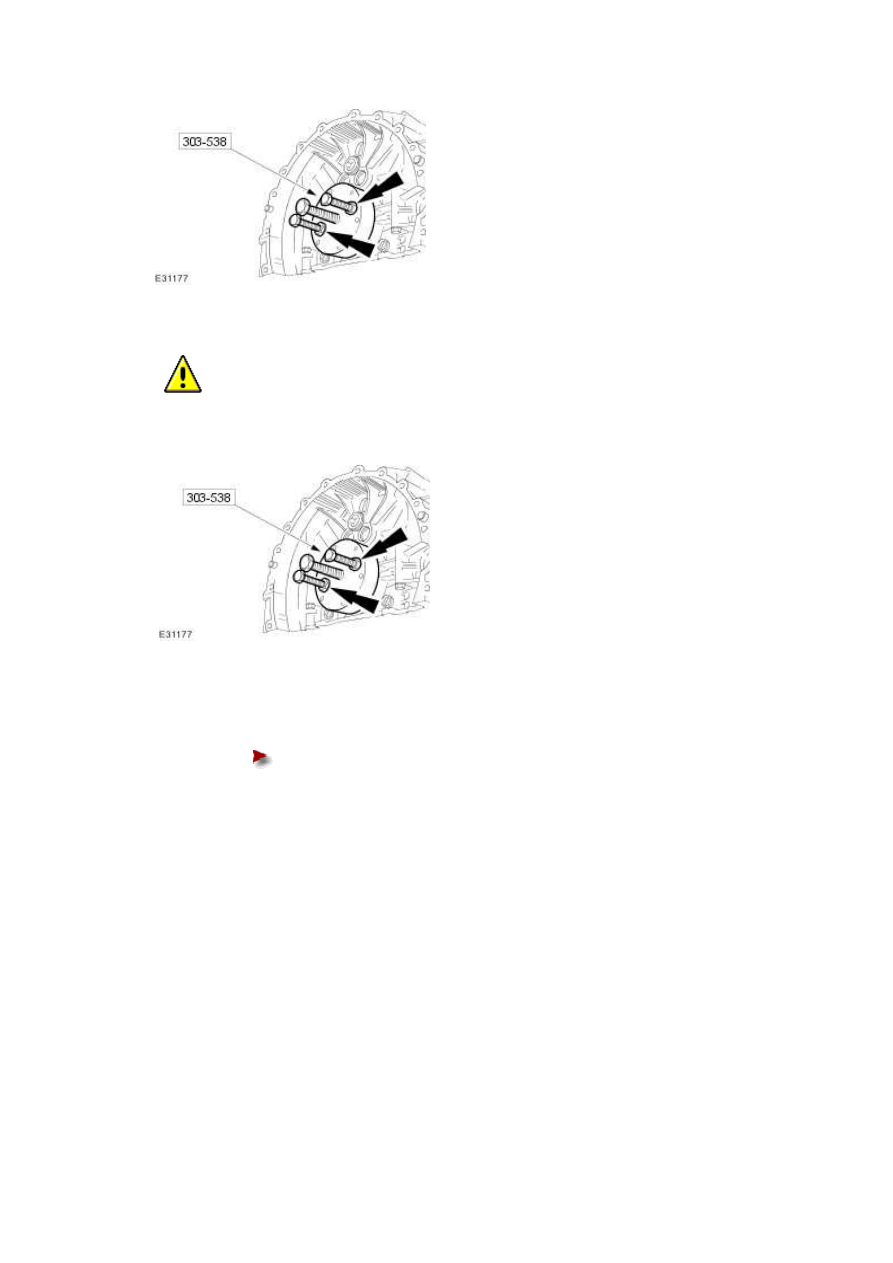

CAUTION: Alternate nut tightening to correctly seat the crankshaft rear seal.

Using the special tool, install the crankshaft rear seal.

6 . Remove the special tool from the crankshaft.

Check that the seal is located correctly.

7 . Install the flexplate.

For additional information, refer to Flexplate (12.53.13)

Cylinder Head LH - VIN Range: G00442-
>G45703 (12.29.02)

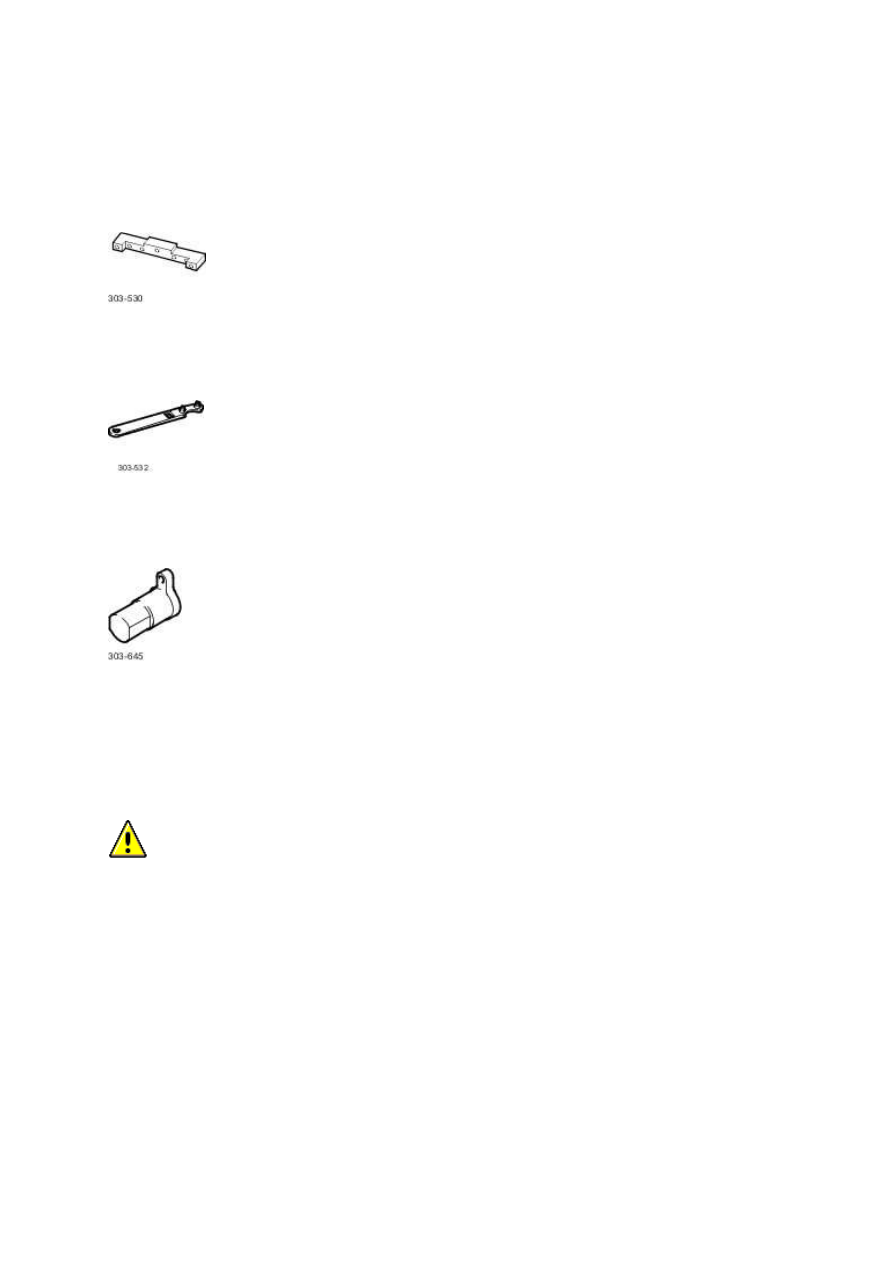

Special Service Tools

Camshaft setting/locking Tool

303-530

Timing chain tensioning tool

303-532

Crankshaft setting, main tool

303-645

Removal

All vehicles

CAUTION: If a replacement cylinder head is to be installed to a vehicle with variable

camshaft timing (VCT) the cylinder head must have the oil gallery blind rivet removed before

installation.

1 . Remove the air deflector.

For additional information, refer to Air Deflector (76.11.41)

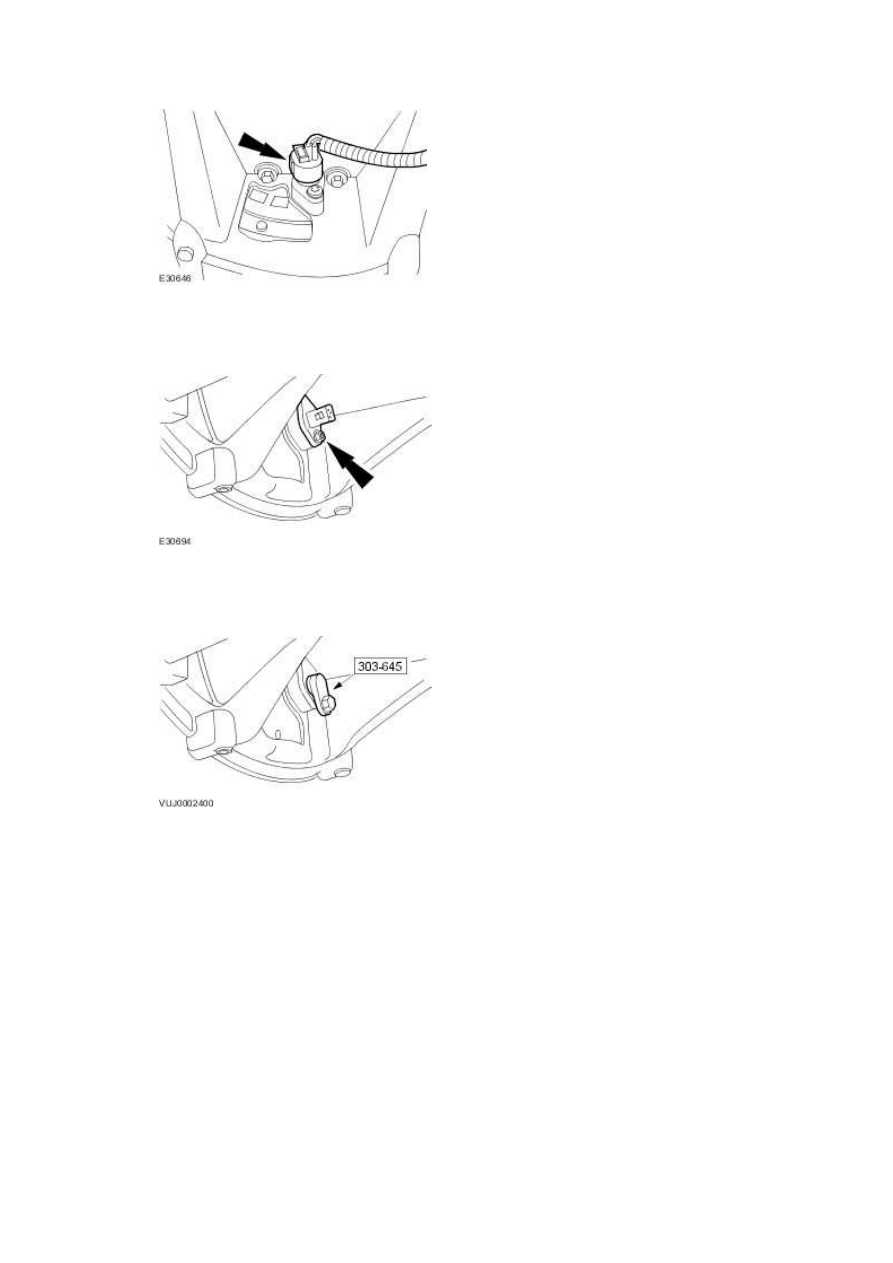

2 . Disconnect the crankshaft position sensor electrical connector.

www.

3 . Remove the crankshaft position sensor.

4 . Install the special tool.

Vehicles without supercharger

5 . Remove the intake manifold.

For additional information, refer to Intake Manifold - VIN Range: G00442->G45703 (30.15.01)

Vehicles with supercharger

6 . Remove the charge air cooler.

For additional information, refer to Charge Air Cooler

7 . NOTE:

Left-hand shown, right-hand similar.

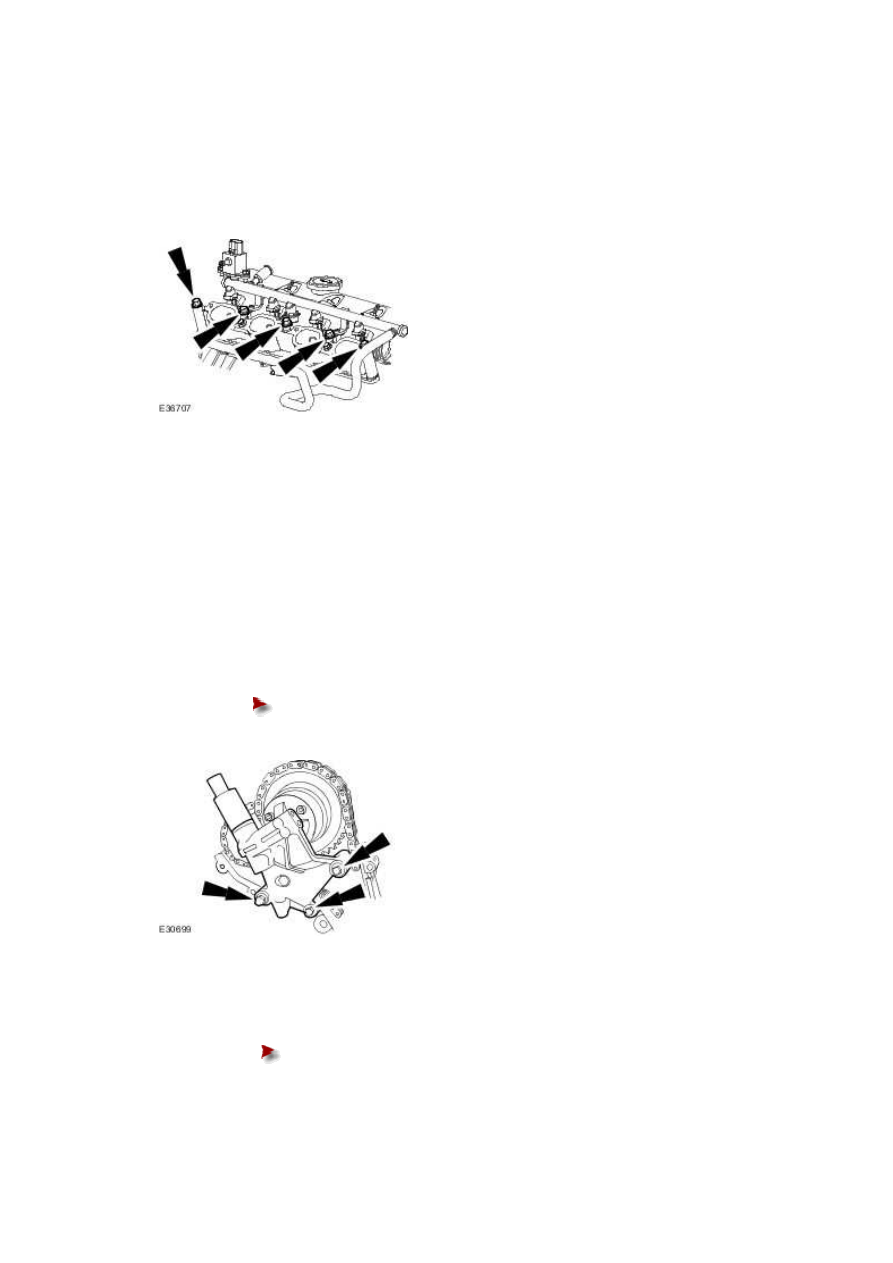

Remove the lower intake manifold.

All vehicles

Remove the engine front cover.

For additional information, refer to Engine Front Cover - VIN Range: G00442->G45703

(12.65.01)

Vehicles without supercharger

9 . Remove the right-hand variable camshaft timing oil control unit housing.

Remove and discard the O-ring seals.

10 . Remove the left-hand variable camshaft timing oil control unit housing.

Remove and discard the O-ring seals.
