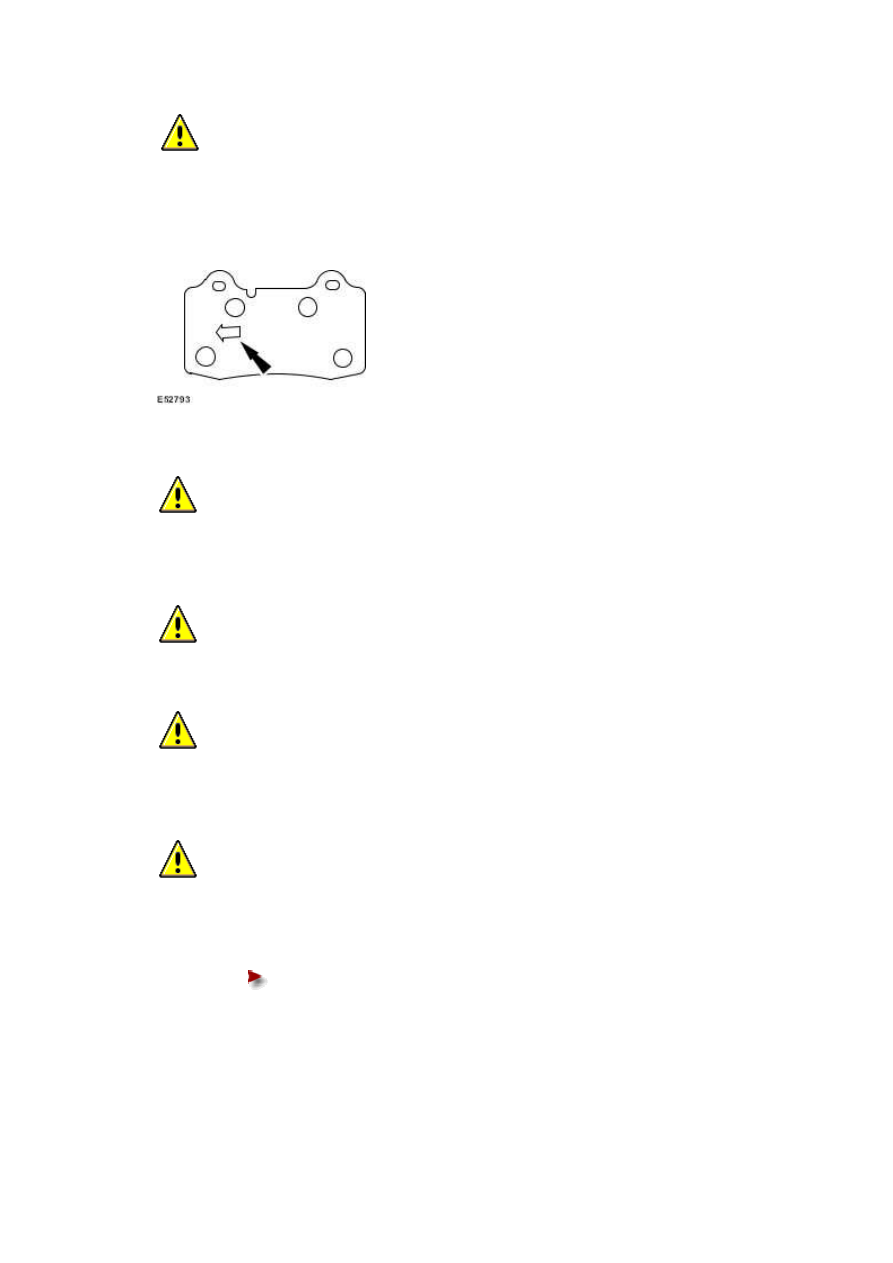

CAUTION: Make sure the brake pads are fitted with the direction arrow following

the direction of wheel rotation.

Make sure the brake pads are fitted with the direction arrow following the direction of wheel

rotation.

CAUTION: Retracting the caliper piston may cause the fluid reservoir to over-flow.

Remove brake fluid spillage immediately from paint work, with clean water.

CAUTION: Make sure the brake pads are installed to the correct orientation.

CAUTION: Make sure the brake pads are fitted with the direction arrow following

the direction of wheel rotation.

CAUTION: Note condition of pins and 'R' clips and replace if necessary.

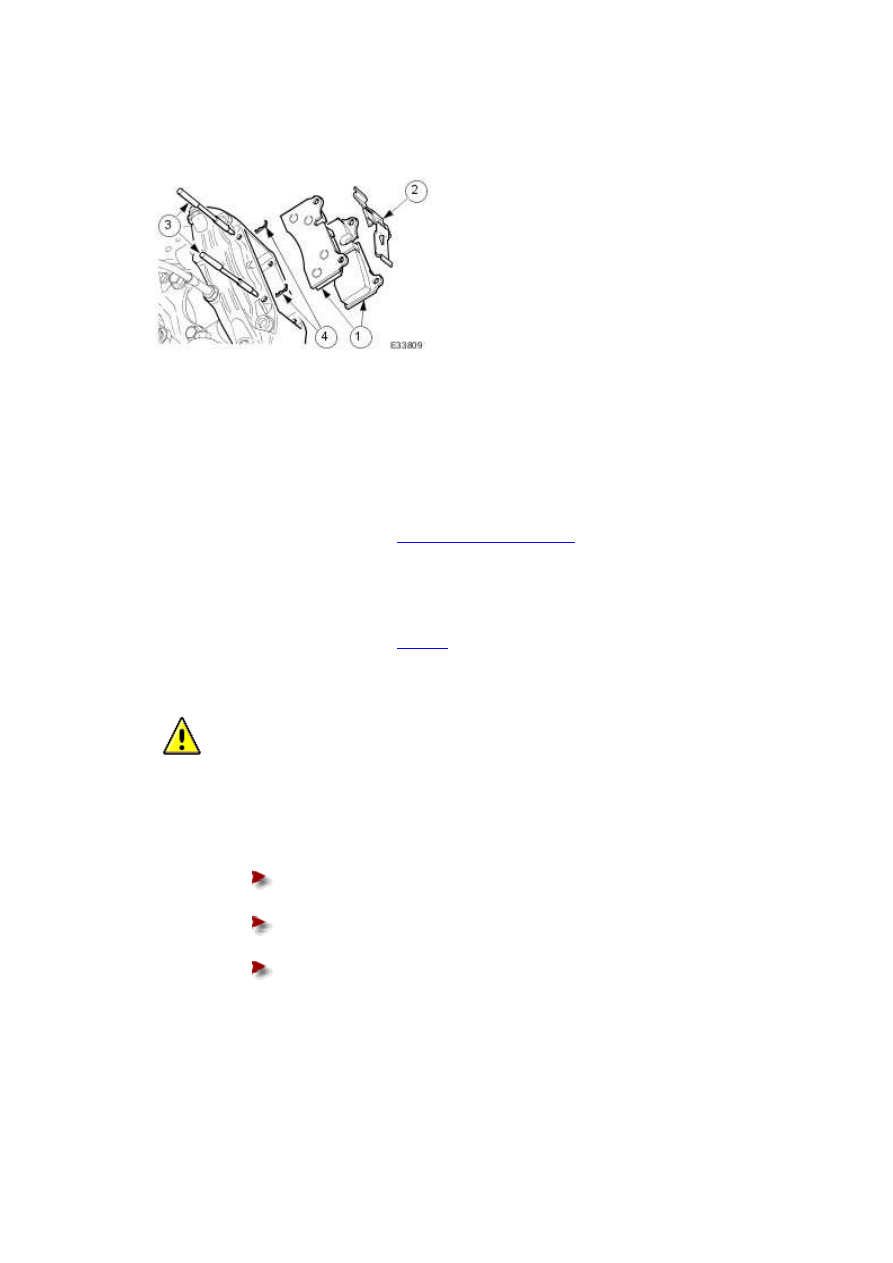

Install brake pads into caliper.

Slowly retract caliper pistons into caliper.

2) Install pads.

3) Position anti-rattle spring.

4) Install pins.

5) Install 'R' clips.

4 . Repeat above procedure to install opposite side brake pads.

5 . Fit wheels.

For additional information, refer to

Wheel and Tire (74.20.05)

6 . Remove stands and lower vehicle.

For additional information, refer to

Jacking

CAUTION: Remove brake fluid spillage immediately from paint work, with clean

water.

Check brake fluid level.

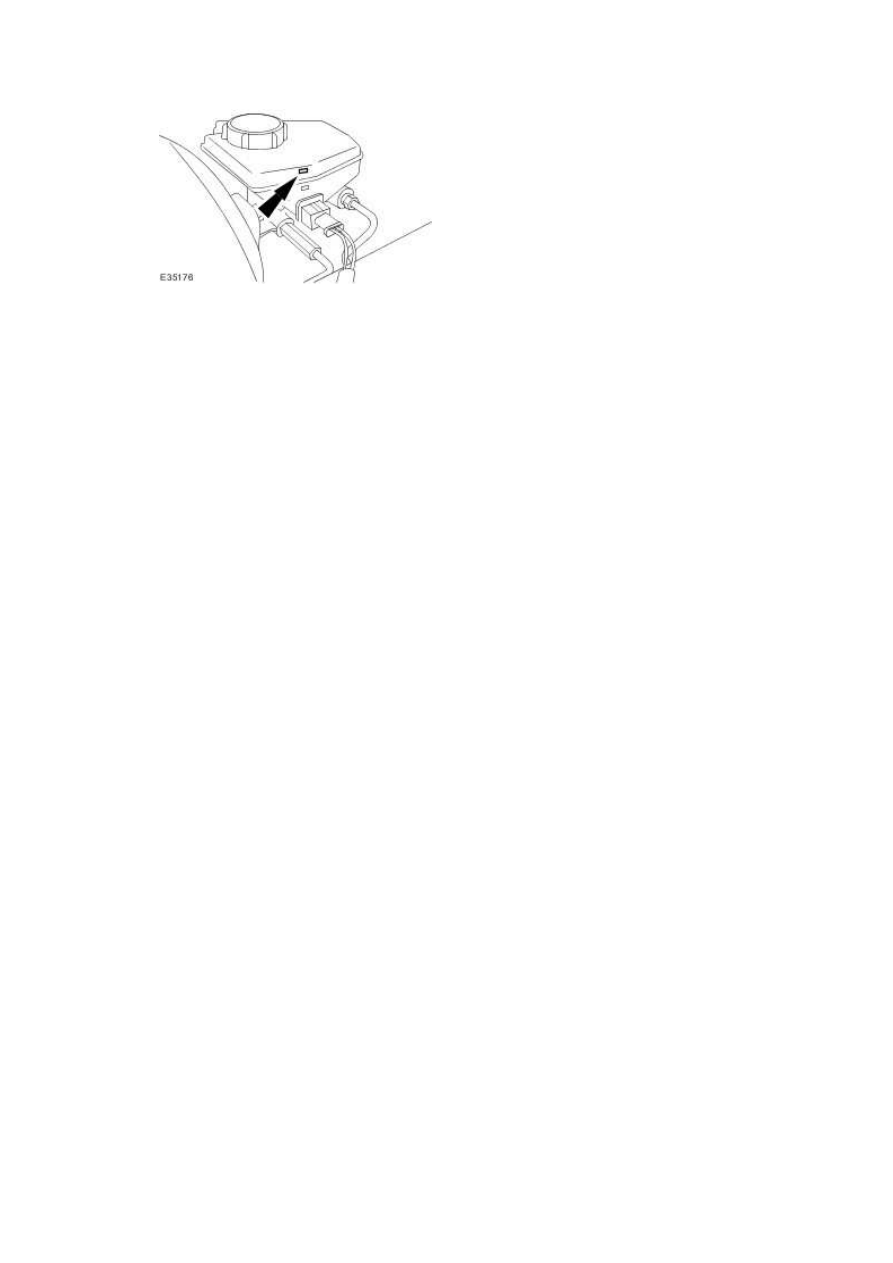

Check brake fluid level is at the maximum mark.

Remove cloth.

Fit cap.

www.

8 . Remove paint work protection covers, and close engine compartment.

9 . Start the engine and repeatedly press the brake pedal until brake pressure is evident.

Brake Pads - Vehicles With: High
Performance Brakes, VIN Range: G45704-
>G99999 (70.40.02)

Removal

1 . Remove both front wheels and tires.

For additional information, refer to

Wheel and Tire (74.20.05)

2 . NOTE:

Left-hand shown, right-hand similar.

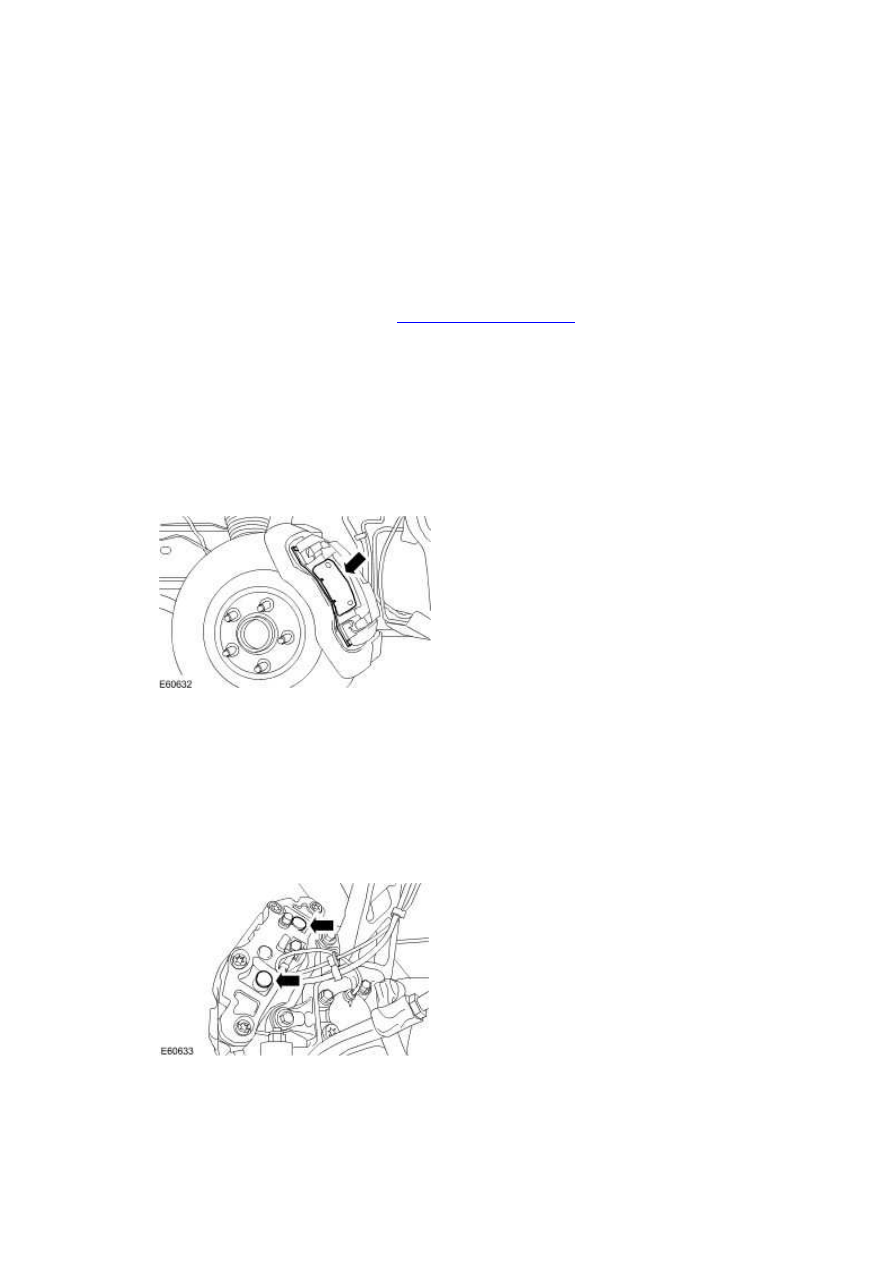

Remove the anti-rattle spring.

3 . NOTE:

Left-hand shown, right-hand similar.

Remove the brake caliper retaining bolt dust covers.
