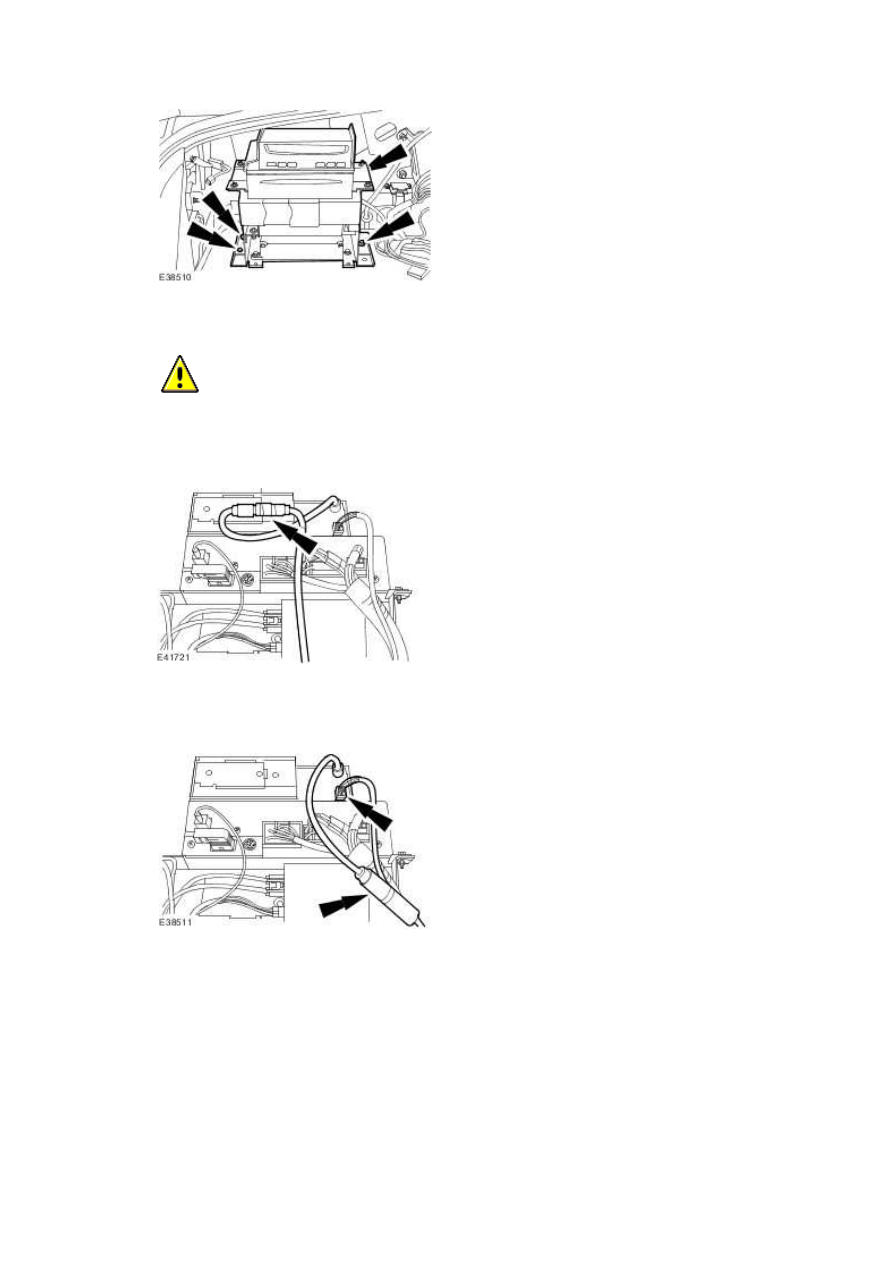

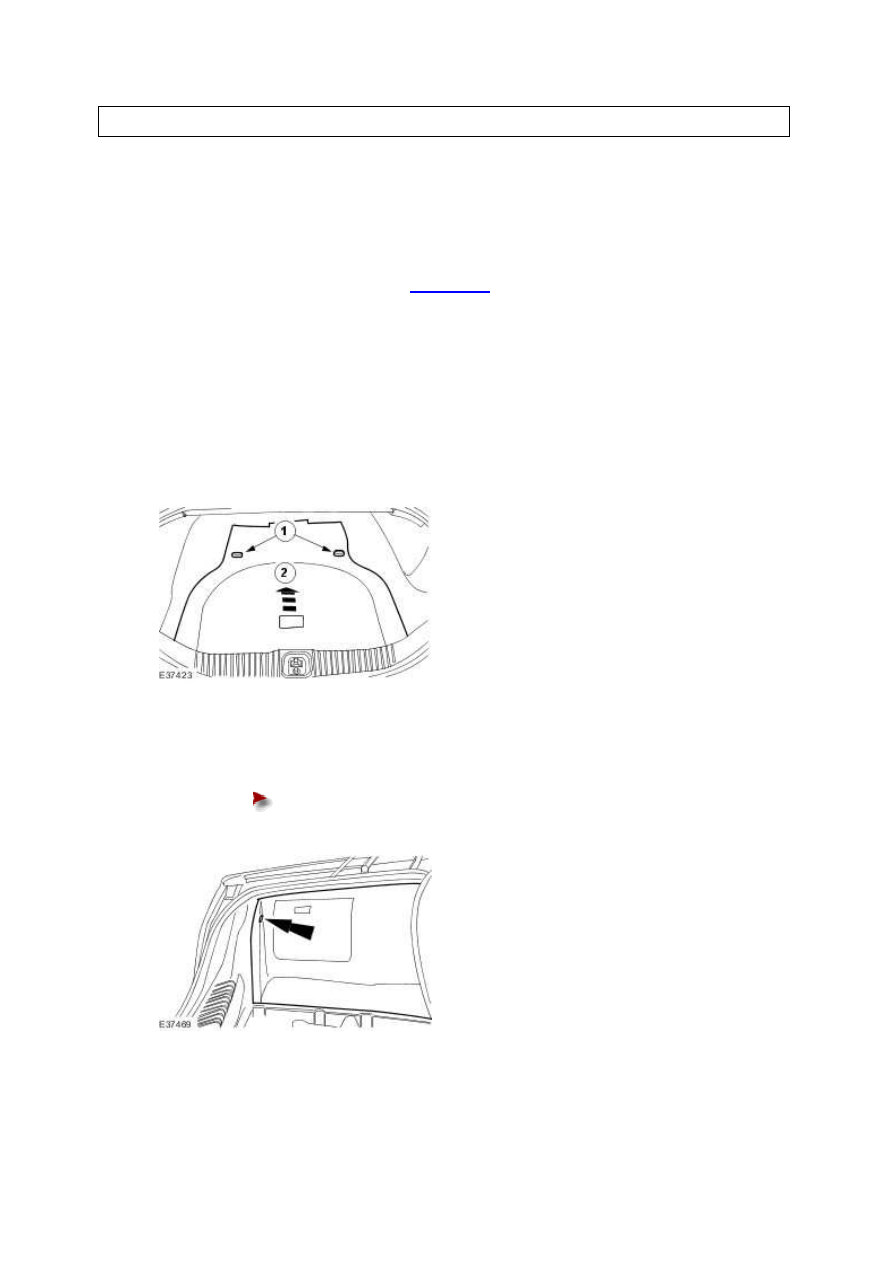

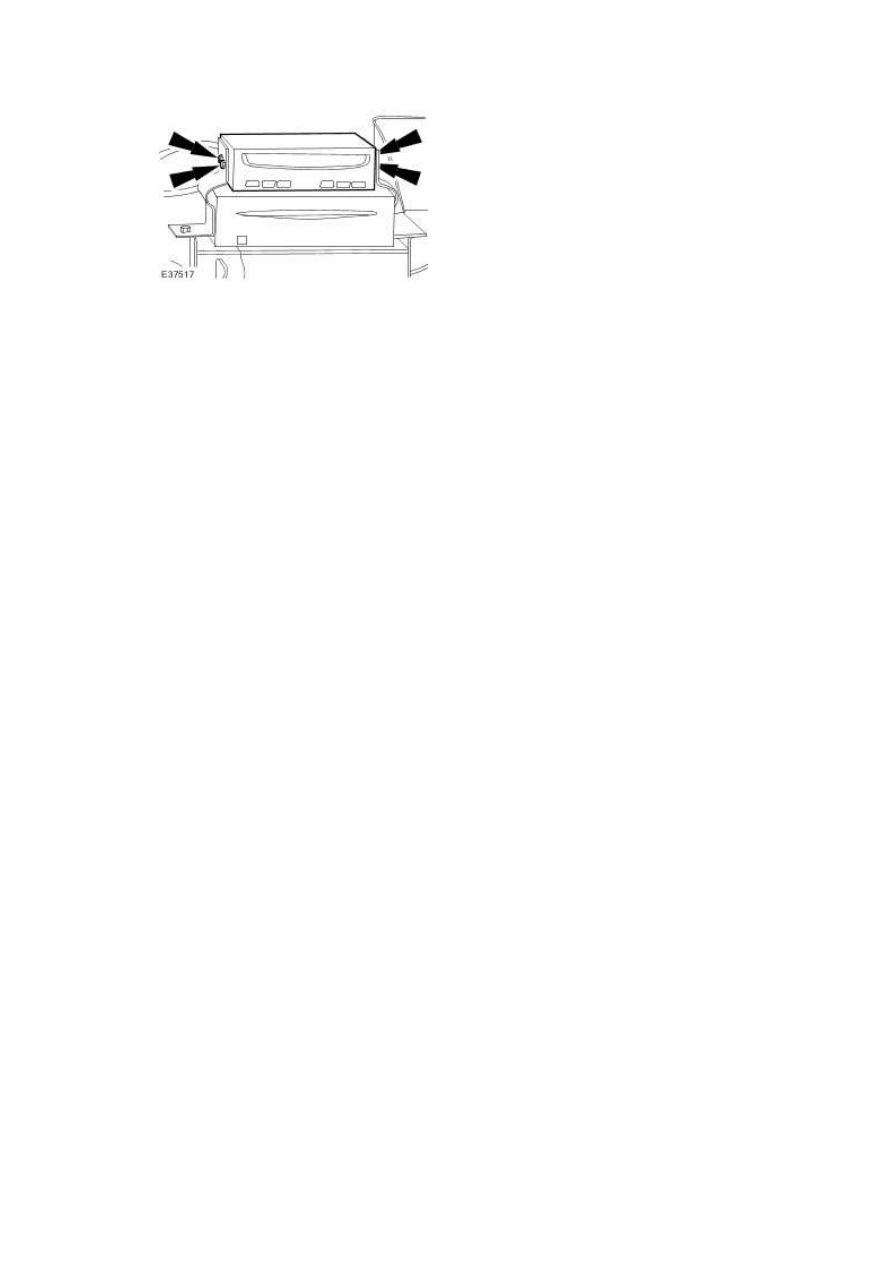

G240121t187 : CHECK THE CIRCUIT BETWEEN CC11 AND INTERMEDIATE 1. Disconnect intermediate connector, CC02. 2. Measure the resistance between CC11, pin 07 (W) and CC02, pin 18 (W). •
Is the resistance greater than 5 ohms? -> Yes INSTALL a new harness between CC02 and CC11. TEST the system for normal operation.
-> No INSTALL a new harness between CC02 and TL20. TEST the system for normal operation. G240121t188 : CHECK THE CIRCUIT BETWEEN CC11 AND INTERMEDIATE 1. Disconnect intermediate connector, CC02. 2. Measure the resistance between CC11, pin 07 (W) and GROUND. •
Is the resistance less than 10,000 ohms? -> Yes INSTALL a new harness between CC02 and CC11. TEST the system for normal operation.
-> No INSTALL a new harness between CC02 and TL20. TEST the system for normal operation. G240121t189 : CHECK THE CIRCUIT BETWEEN CC11 AND INTERMEDIATE 1. Measure the voltage between CC11, pin 07 (W) and GROUND. •
Is the voltage greater than 3 volts? -> Yes
INSTALL a new harness between CC02 and CC11. TEST the system for -> No
INSTALL a new harness between CC02 and TL20. TEST the system for
|
