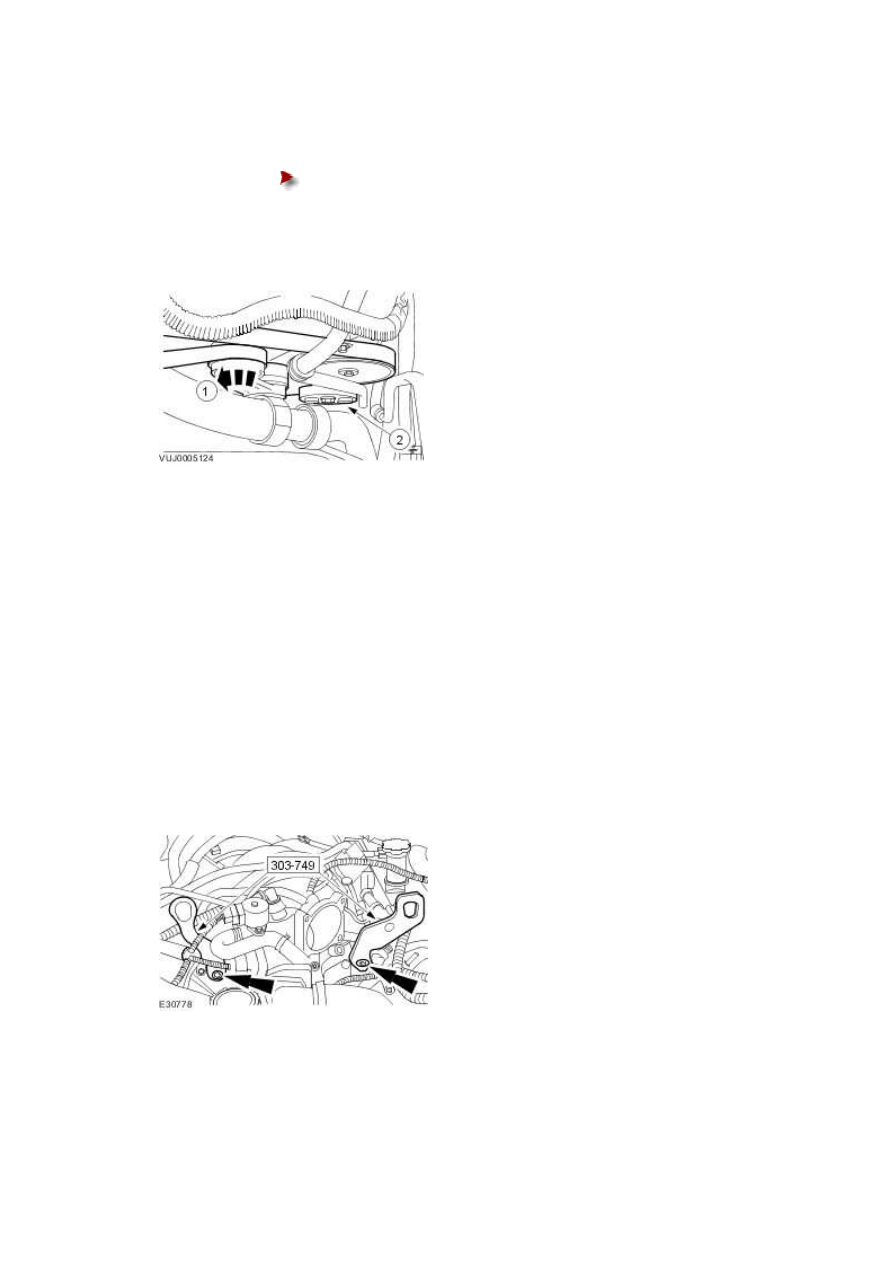

1) Rotate the accessory drive belt tensioner counter-clockwise.

Use a 3/8 inch square drive bar to rotate the accessory drive belt

tensioner.

2) Detach the accessory drive belt.

Vehicles without supercharger

Remove the throttle body.

For additional information, refer to Throttle Body - 4.2L NA V8 - AJV8/3.5L NA V8 - AJV8, VIN

Range: G45704->G99999 (19.70.04)

All vehicles

6 . NOTE:

Vehicles without supercharger shown, vehicles with supercharger similar.

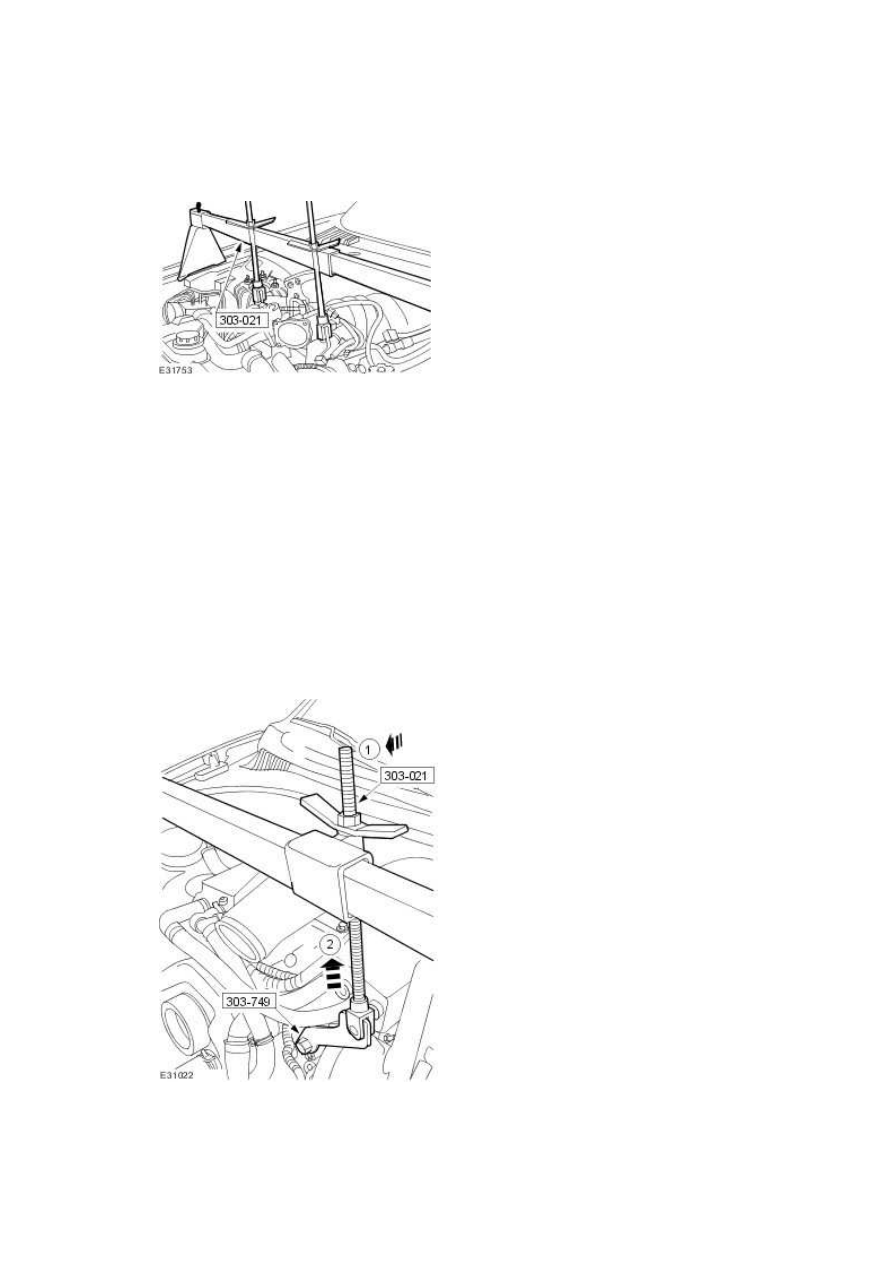

Install the special tools.

Vehicles without supercharger shown, vehicles with supercharger similar.

Install the special tool.

8 . NOTE:

Vehicles with supercharger shown, vehicles without supercharger similar.

Using the special tool, raise the engine to a suitable height.

1) Adjust the engine support beam (clockwise).

2) Raise the engine to a suitable height.

7 . NOTE:

www.

9 . Remove the left-hand front wheel and tire assembly.

For additional information, refer to Wheel and Tire (74.20.05)

10 . Remove the air deflector.

For additional information, refer to Air Deflector (76.11.41)

Left-hand drive vehicles

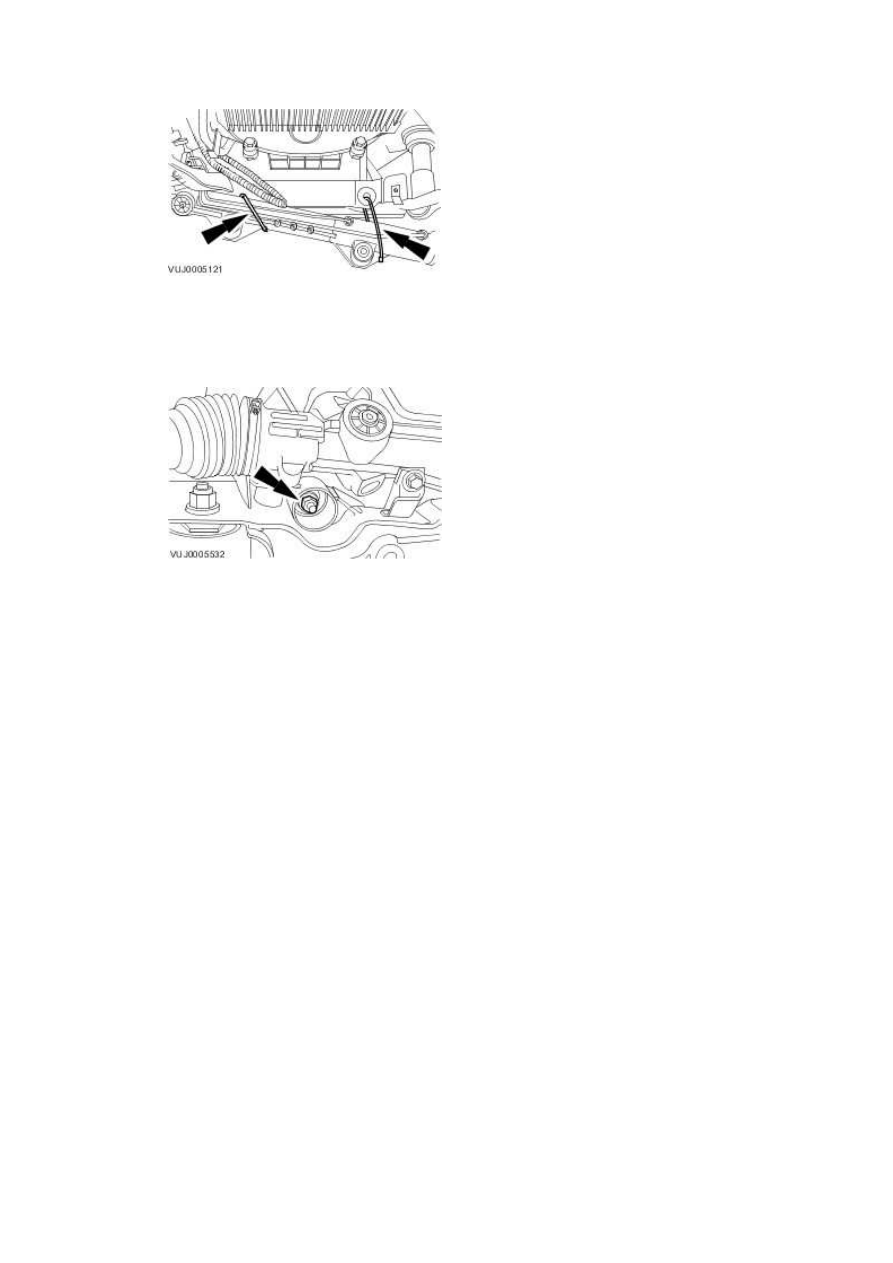

11 . Remove the steering gear shaft pinch bolt.

12 .

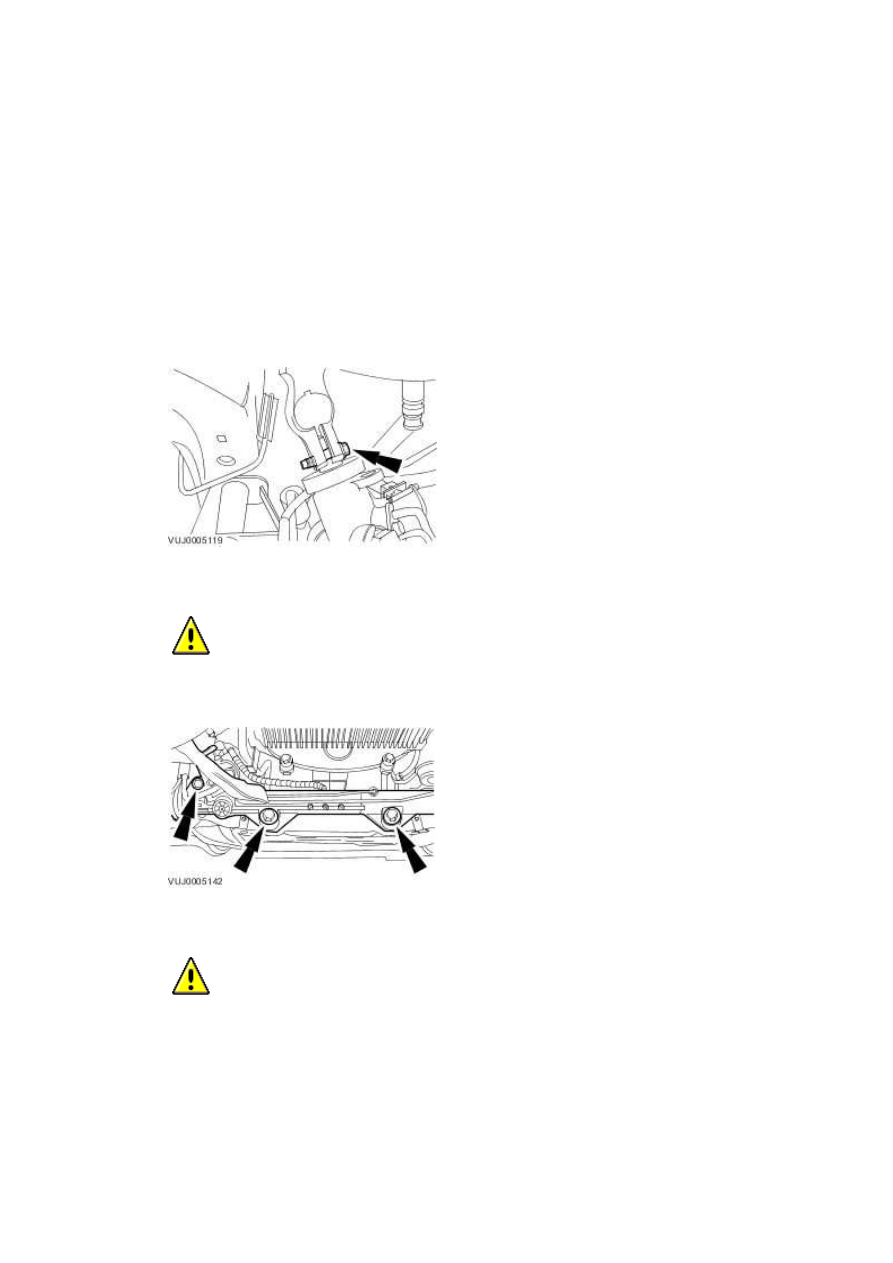

CAUTION: The steering gear must be supported at all times.

Detach the steering gear.

13 .

CAUTION: The steering gear must be supported at all times.

Using suitable tie straps, secure the steering gear.

All vehicles

14 . Remove the left-hand engine mounting lower retaining nut.

15 . Lower the vehicle.

NOTE:

Vehicles with supercharger shown, vehicles without supercharger similar.

Lift the engine to a suitable height to access the A/C compressor retaining bolts.

1) Adjust the engine support beam.

Lift the engine to a suitable height to access the A/C compressor retaining

bolts.
