Jaguar XJ (X350). Manual - part 1045

Removal

Transmission - 3.0L NA V6 - AJ27
(44.20.01)

Special Service Tools

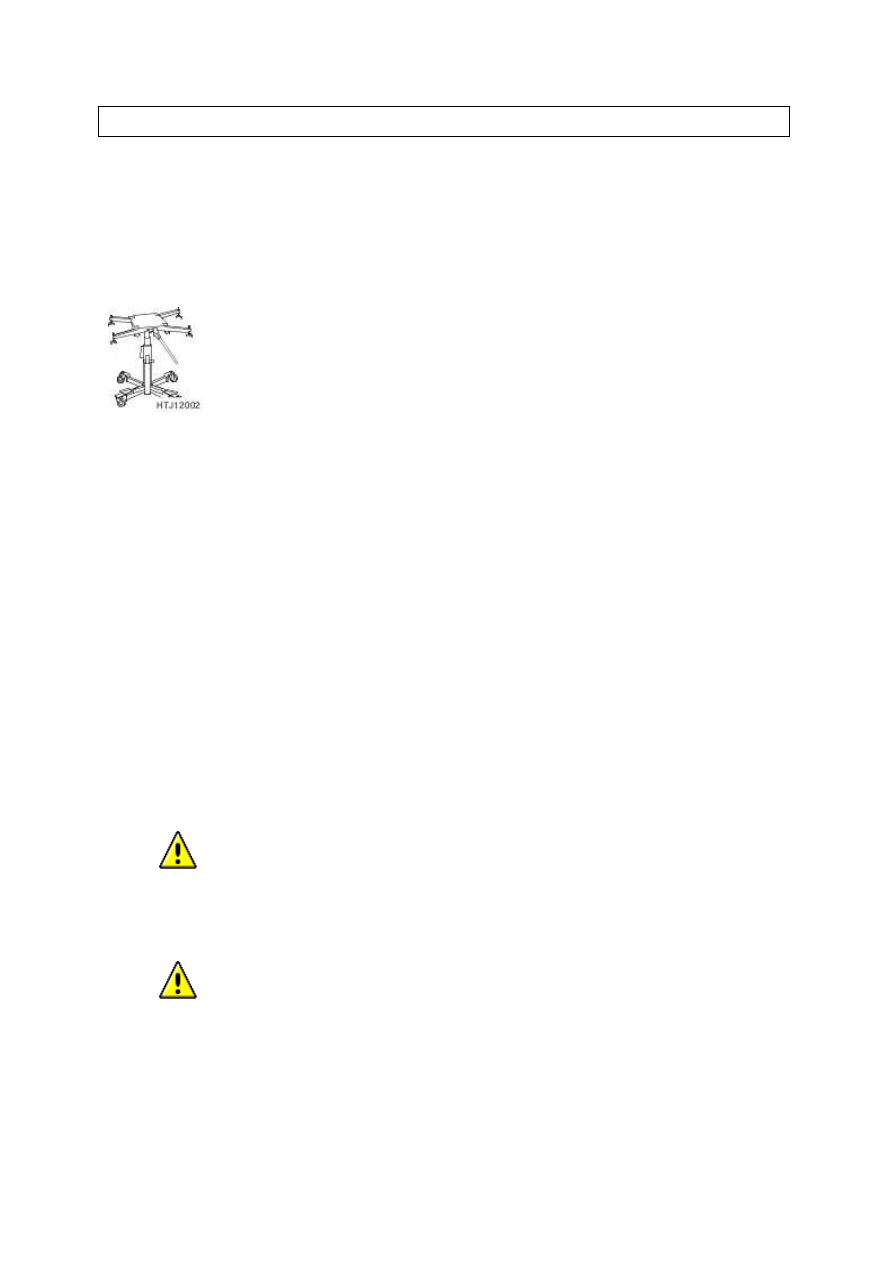

Powertrain Assembly Jack

HTJ1200-2

Removal

1 . Place the selector lever in the N position.

2 . Disconnect the battery ground cable.

For additional information, refer to

3 . Remove the exhaust system.

For additional information, refer to

CAUTION: Under no circumstances must the flexible coupling (or its fixings) be

loosened or removed from the driveshaft.

CAUTION: Make sure the front of the driveshaft does not put an excessive load on

the center bearing. Failure to follow this instruction may result in damage to the vehicle.

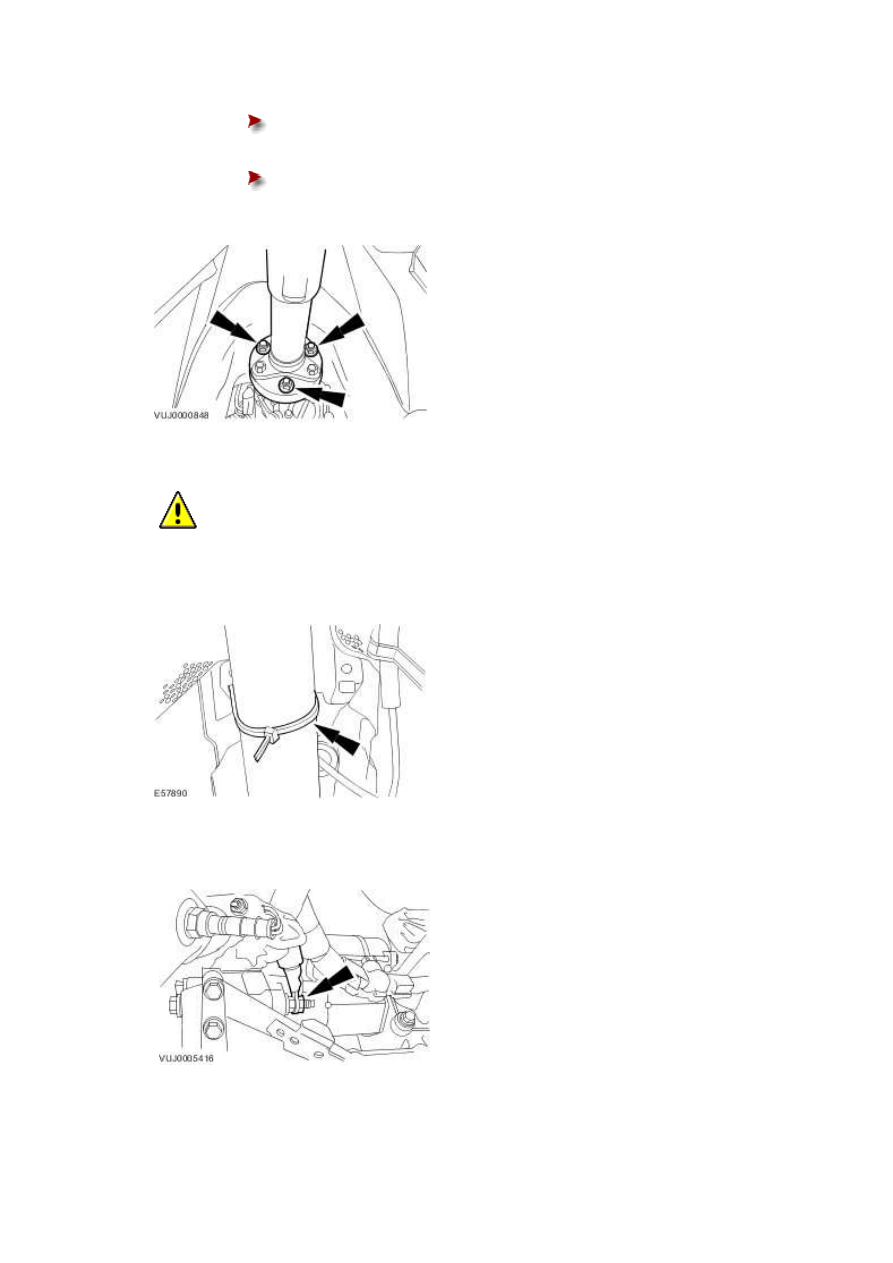

Detach the driveshaft from the transmission flange.

Mark the position of the driveshaft in relation to the transmission flange.

Mark the position of each nut and bolt in relation to the transmission

flexible joint.

CAUTION: Make sure the front of the driveshaft does not put an excessive load on

the center bearing. Failure to follow this instruction may result in damage to the vehicle.

Using a suitable securing strap, reposition and support the driveshaft to the vehicle body.

6 . Detach the engine ground cable.

www.

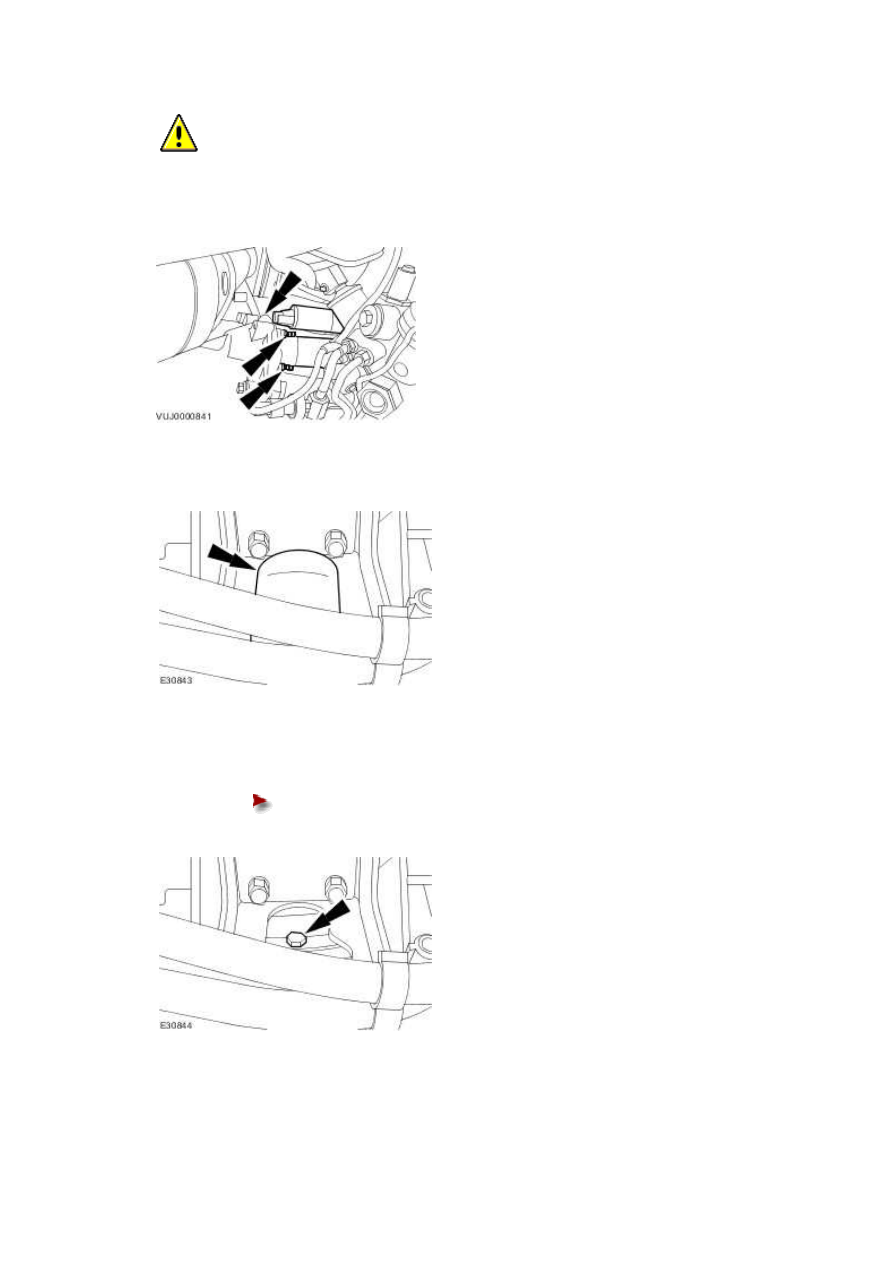

CAUTION: Make sure the starter motor is supported. Failure to follow this

instruction may result in damage to the vehicle.

Detach the starter motor.

8 . Remove the rubber access cover.

9 . Remove the torque converter retaining bolts.

Rotate the torque converter to gain access to the remaining bolts.

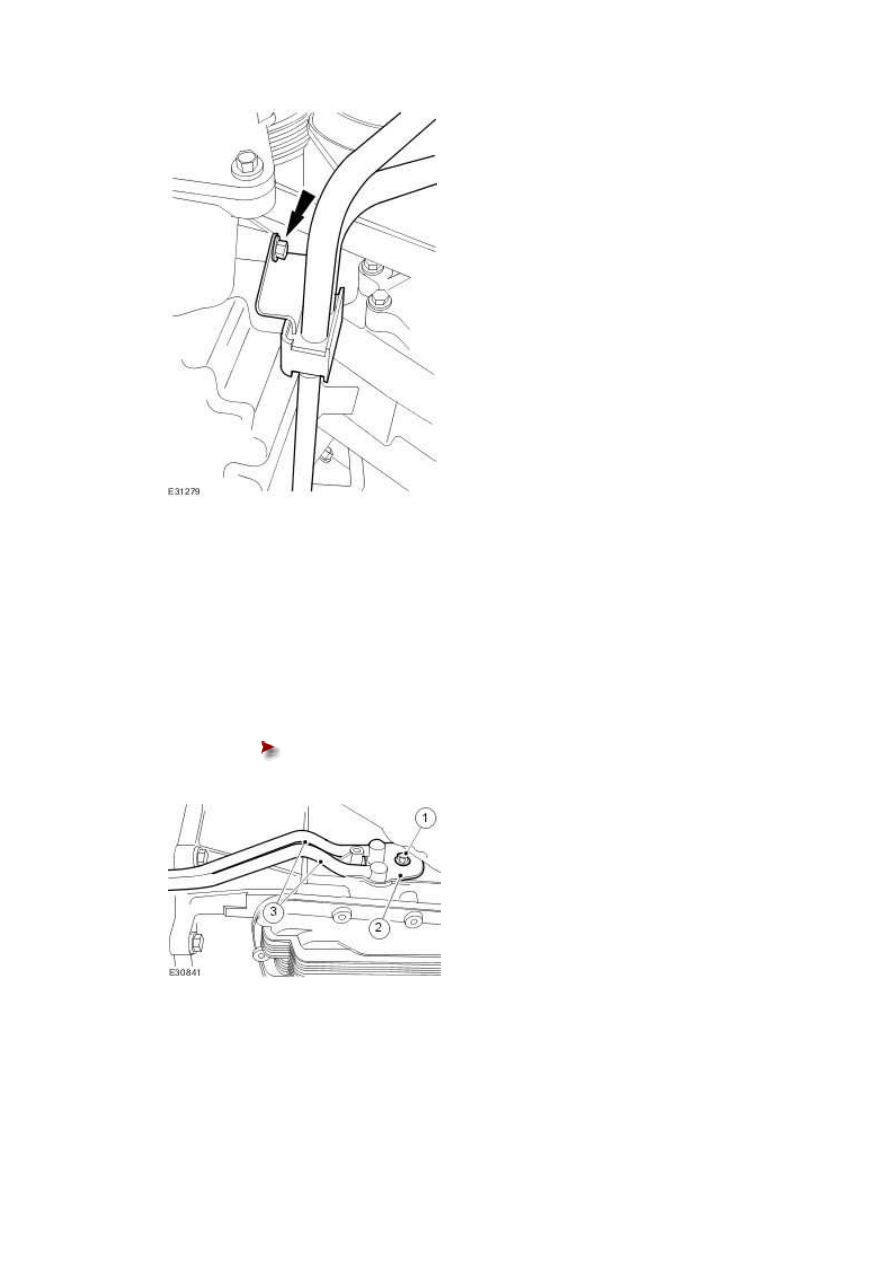

10 . Detach the transmission fluid cooler tubes from the oil pan.

11 . Detach the transmission fluid cooler tubes.

1) Remove the retaining bolt.

2) Remove the retaining plate.

3) Detach the transmission fluid cooler tubes.

Allow the transmission fluid to drain into a suitable container.

12 . Remove the torque converter rubber inspection cover.

www.
