Jaguar XJ (X350). Manual - part 1002





Circuit



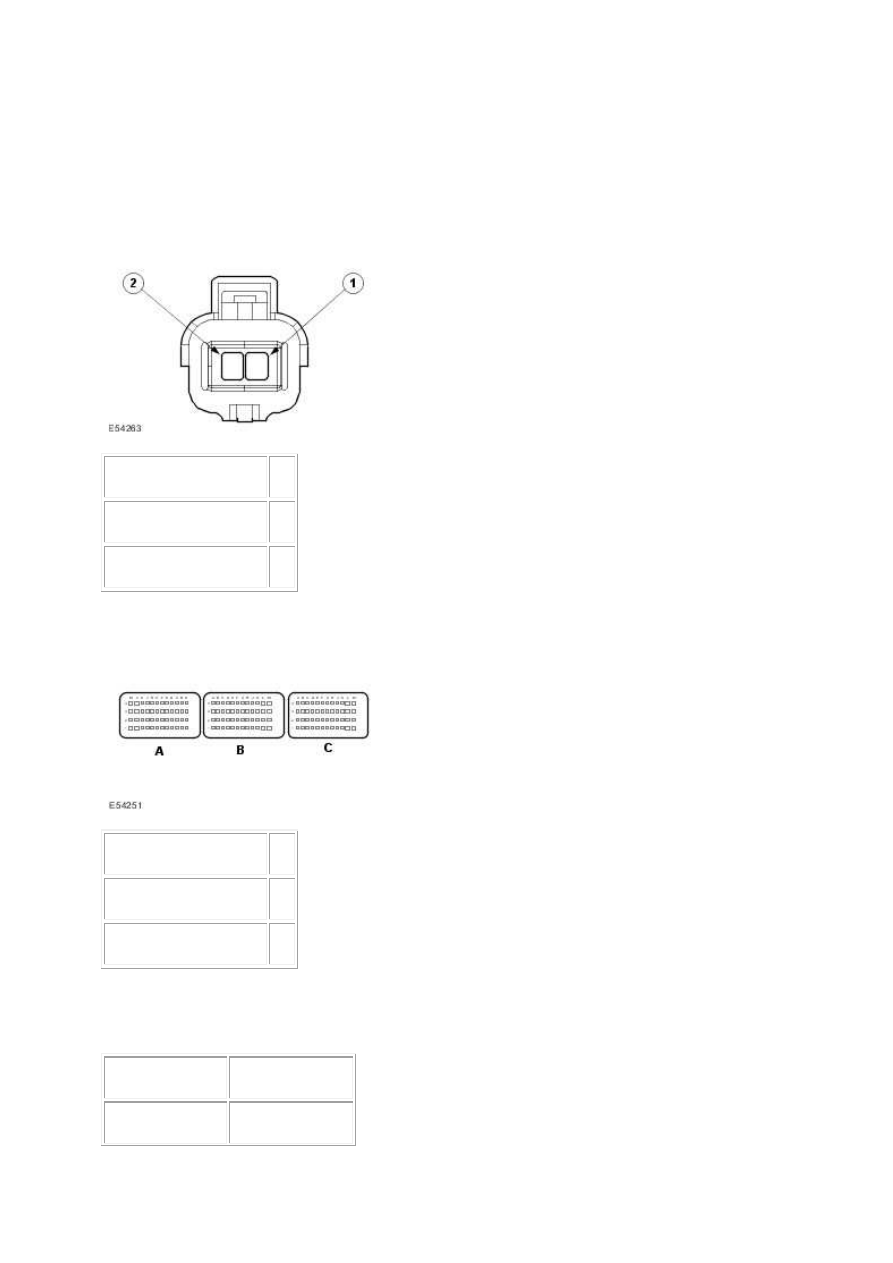

Pin

Knock sensor - positive



E4



Knock sensor - negative  D4





3. Key off. 4. Disconnect the right hand bank KS connector, C87. 5. Disconnect the ECM connector,

C100. 6. Measure the resistance between:

C87, harness side

Battery



Pin 01



Negative terminal

Pin 02



Negative terminal



Are the resistances greater than 100 Kohms?

-> Yes

GO to Pinpoint Test  G549822t62.





-> No

REPAIR the short circuit. For additional information, refer to the wiring diagrams. Clear any DTCs, test

the system for normal operation.

G549822t62 : CHECK THE KS CIRCUIT(S) FOR SHORT CIRCUIT TO POWER

1. Key on, engine off. 2. Measure the resistance between:

C87, harness side

Battery



Pin 01



Positive terminal

Pin 02



Positive terminal



Are the resistances greater than 100 Kohms?

-> Yes

GO to Pinpoint Test  G549822t63.





-> No

REPAIR the short circuit. For additional information, refer to the wiring diagrams. Clear any DTCs, test

the system for normal operation.

G549822t63 : CHECK THE KS SIGNAL AND RETURN CIRCUITS FOR SHORT
CIRCUIT TO EACH OTHER

1. Measure the resistance between:

C87, harness side  C87, harness side

Pin 01



Pin 02





Is the resistance greater than 100 Kohms?

-> Yes

GO to Pinpoint Test  G549822t64.





-> No

REPAIR the short circuit. For additional information, refer to the wiring diagrams. Clear any DTCs, test

the system for normal operation.

G549822t64 : CHECK THE KS CIRCUIT(S) FOR HIGH RESISTANCE

1. Measure the resistance between:

C87, harness side  C100, harness side

Pin 01



Pin E4



Pin 02



Pin D4





Are the resistances less than 10 ohms?

-> Yes

An intermittent fault may be present in the wiring harness. Visually check for chaffed wires or other

physical damage to the harness. If no fault is found in the circuit, suspect the following

component(s): - KS connector - KS sensor - ECM connector - ECM



-> No

REPAIR the high resistance circuit. For additional information, refer to the wiring diagrams. Clear any

DTCs, test the system for normal operation.
