6

.



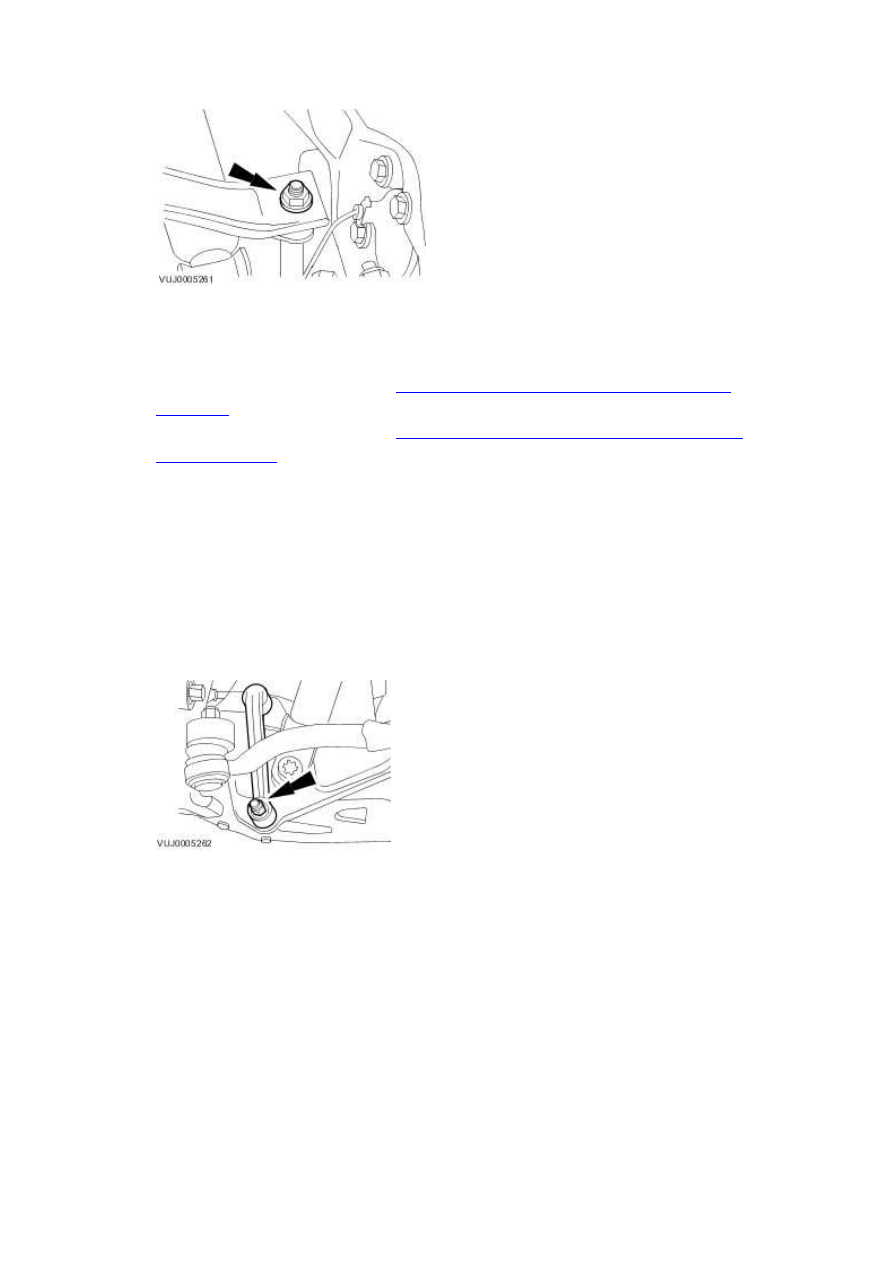

Install the brake disc shield.

For additional information, refer to

Brake Disc Shield - Vehicles With: Standard Brakes

(70.10.18)



For additional information, refer to

Brake Disc Shield - Vehicles With: High Performance

Brakes (70.10.18)









7

.



NOTE:





The final tightening of the stabilizer bar link retaining nut and bolt must be carried out

with the vehicle on its wheels.





Tighten to 70 Nm.












Shock Absorber and Spring Assembly (60.30.02)  – Armoured vehicles

Removal

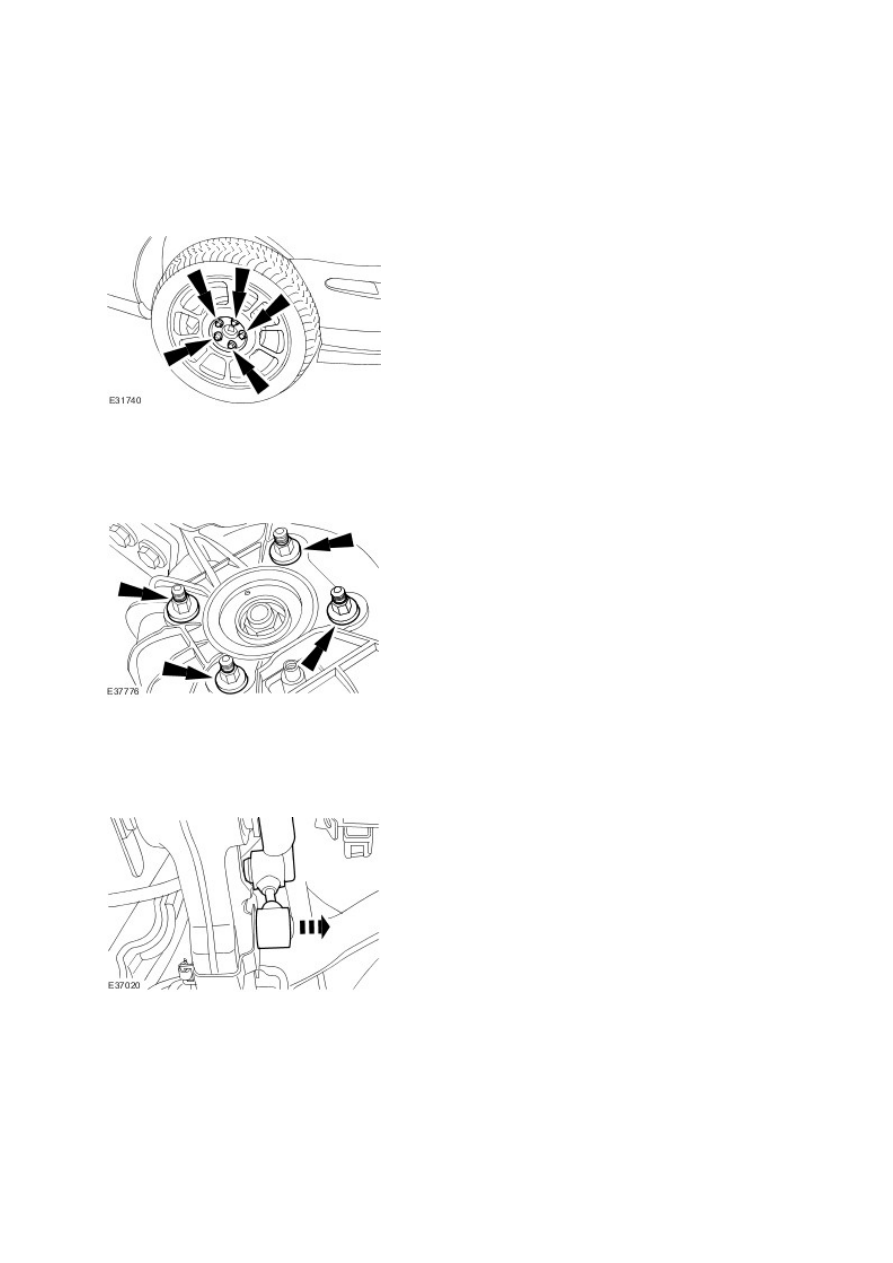

1 . Remove the wheel and tire assembly.

For additional information, refer to





2 . NOTE:



Left-hand shown, right-hand similar.


Remove the shock absorber and spring assembly retaining nuts.







3 . Remove the stabilizer bar link.

For additional information, refer to





4 . Detach the headlamp leveling sensor link rod.





5 . Detach the brake line from the inner fender securing clips.






Published: Mar 12, 2014

www.



6 . NOTE:



Left-hand shown, right-hand similar.


Detach the shock absorber and spring assembly.







7
.

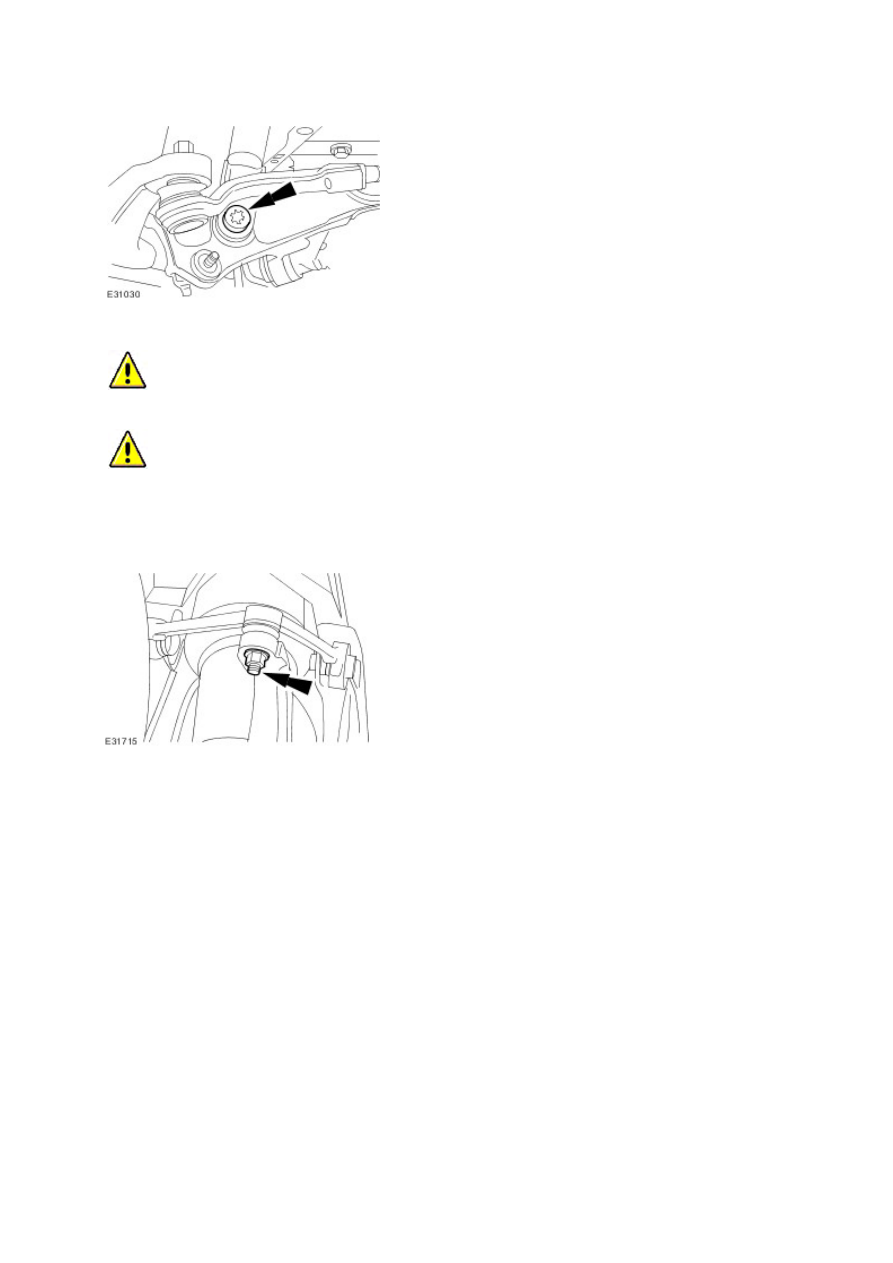

 CAUTION: Prevent the upper ball joint ball pin hexagon from rotating. Failure to do so may result in

damage to the upper ball joint boot.



 CAUTION: Make sure the wheel knuckle is supported. Failure to follow these instructions may result in

damage to the vehicle.


NOTE:



Left-hand shown, right-hand similar.


Detach the upper arm.







8 . Remove the shock absorber and spring assembly.




Installation



1
.

NOTE:

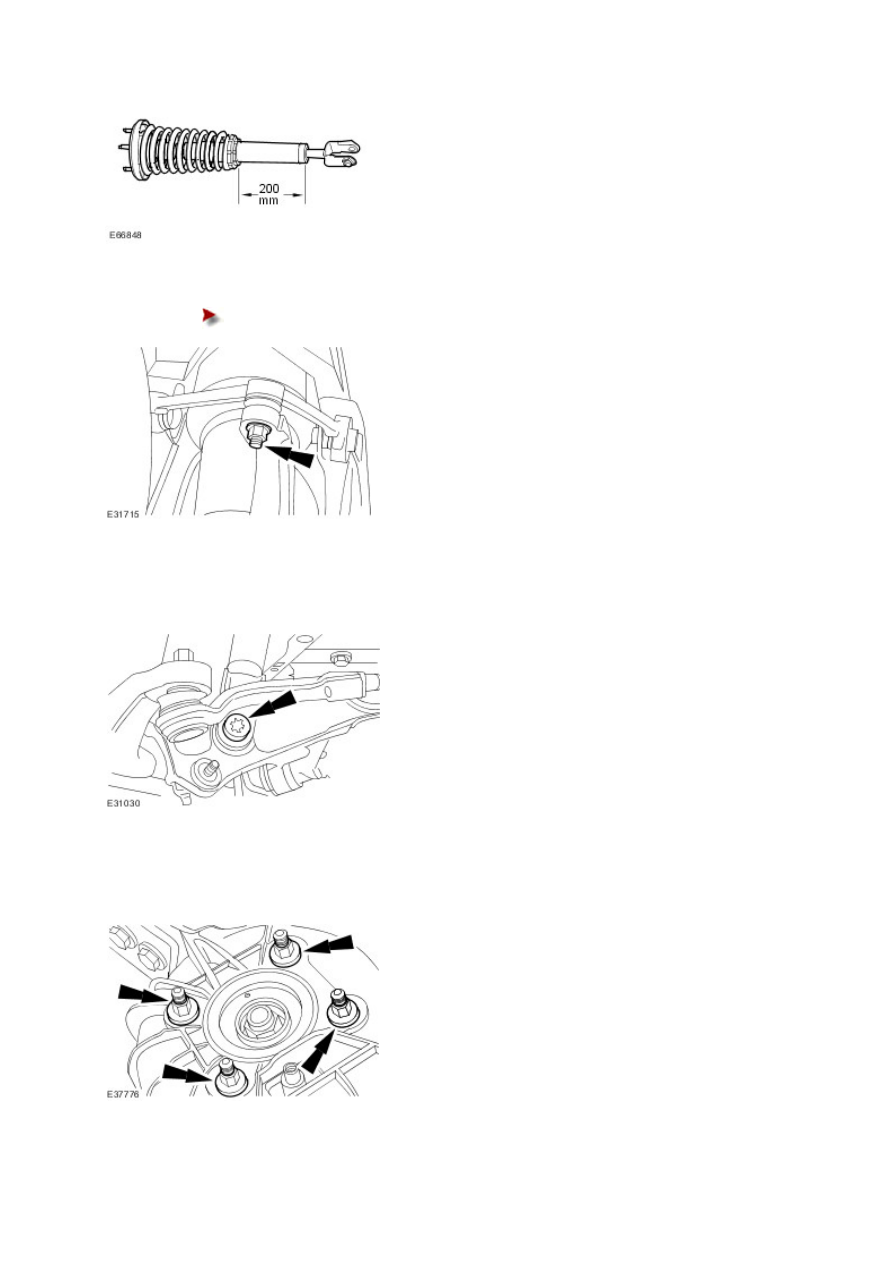

If a new shock absorber and spring assembly is to be installed, make sure the ride height adjustment retaining nuts
are set to the correct measurement.


NOTE:



The shock absorber and spring assembly ride height measurement is taken from the lower side of the lock nut to the
lower body of the shock absorber.


Adjust the shock absorber and spring assembly to the correct setting.

For additional information, refer to







2 . To install, reverse the removal procedure.





Tighten to 90 Nm.







3 . NOTE:



Left-hand shown, right-hand similar.


Tighten to 175 Nm.





4 . NOTE:



Left-hand shown, right-hand similar.


Tighten to 25 Nm.





5 . Carry out the ride height adjustment procedure.
