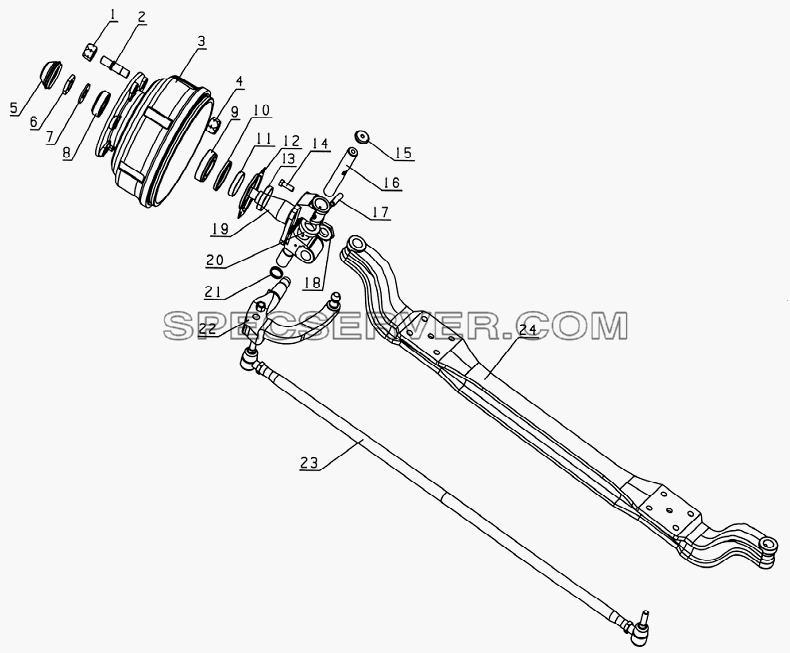

| 1 |
|
3103056D8 |
tire-right nut |
| 1 |
|
3103057D8 |
tire-left nut |
| 2 |
|
3103051D8 |
front wheel hub left bolt |
| 2 |
|
3103052D8 |
front wheel hub right bolt |
| 3 |
|
3103200D8 |
left&front wheel hub and brake drum assy |
| 3 |
|
3103201D8 |
front wheel hub |
| 3 |
|
3103300D8 |
right&front wheel hub and brake drum assy |
| 3 |
|
3501007D8 |
front drum |
| 4 |
|
3103058D8 |
front tire bolt inner nut |
| 5 |
|
3103090D8 |
wheel hub cover |
| 6 |
|
3103124D8 |
steering knuckle nut |
| 7 |
|
3103107D8 |
lock plate |
| 8 |
|
30306 |
wheel hub-outer bearing |
| 9 |
|
32209 |
wheel hub-inner bearing |
| 10 |
|
BJ136-3103080 |
oil seal |
| 11 |
|
3103104D8 |
oil seal seat |
| 12 |
|
3103106D8 |
oil retainer plate |
| 13 |
|
3103105D8 |
oil retainer plat bushing |
| 14 |
|
3001109D8 |
bolt |
| 15 |
|
3001208D8 |
keen pin cover |
| 16 |
|
3001105D8 |
keen pin |
| 17 |
|
3001106D8 |
keen pin -lock bolt |
| 18 |
|
Q341B08 |
nut |
| 19 |
|
3001300D8 |
steering knuckle assembly |
| 19 |
|
3001301D8 |
left steering knuckle |
| 19 |
|
3001400D8 |
steering knuckle assembly |
| 19 |
|
3001401D8 |
right steering knuckle |
| 19 |
|
BJ136-3001016 |
steering knuckle sleeve |
| 20 |
|
3001500N |
thrust bearing |
| 21 |
|
3001208D8 |
keen pin cover |
| 22 |
|
3103311D8 |
steering knuckle-crank arm |
| 22 |
|
3103312D8 |
steering straight arm |
| 23 |
|
3003500D8 |
tie rod assy |
| 23 |
|
3003501D8 |
tie rod |
| 23 |
|
3003502N |
tie rod left nut |
| 23 |
|
3003510N |
tie rod right joint assembly |
| 23 |
|
30035520N |
tie rod lft joint assembly |
| 24 |
|
3001101D8 |
front axle |
