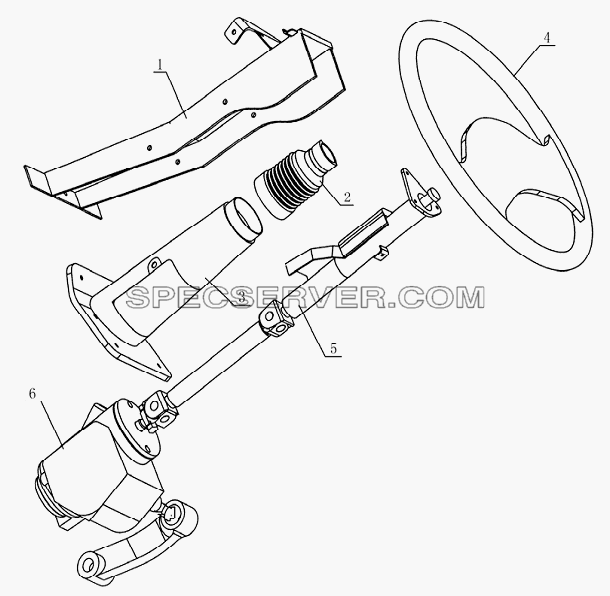

№	Номер детали	Наименование запчасти
1	3402020D0	Steering gear adjust rack unit
2	3412105E0	Dustproof cover
3	3412100E0	Steering shaft cover
4	3402010D2	Steering wheel
5	3404000E0	Steering shaft&gimbal assy
6	3401000D0	Steering assy

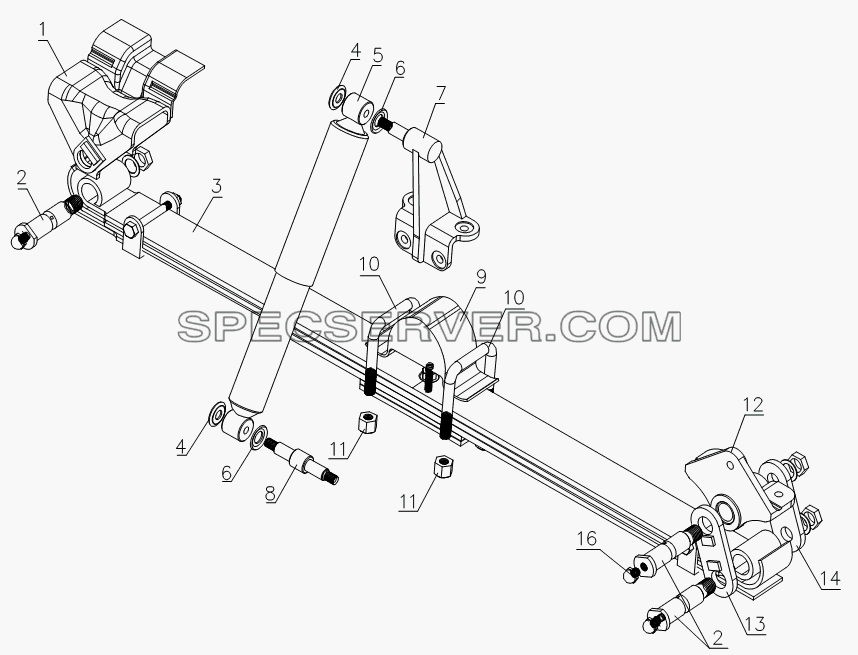

Запчасти: 2901D200 Front suspension assembly для HFC 1020KR-D127

2901D200 Front suspension assembly для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	2901160D4	front spring support assembly
2	2901478J1	front steel spring pin
3	2902010D200	front steel plate spring leaf bracket unit
3	2902020D200	front steel plate spring leaf bracket unit
4	2905157D4-sg0	absorber ring rubber sleeve washer
5	2905010D2	absorber
6	2905156D4-sg0	absorber ring rubber sleeve washer
7	2905151D4-sg0	front absorber support assembly
7	2905152D4-sg0	front absorber support assembly
8	2905158D2	absorber shaft
9	2901070B6	front buffer block unit
10	2901021B1	front U bolt
11	2911038Z	front U bolt and nut
12	2901170D4-sg0	front spring suspend support assembly
13	2901143D4-sg0	front steel spring suspend inner plate
14	2901140D4-sg0	front steel spring suspend outer plate
15	2901479D4-sg0	front steel spring suspend pin
16	Q700B01	lubricate nib

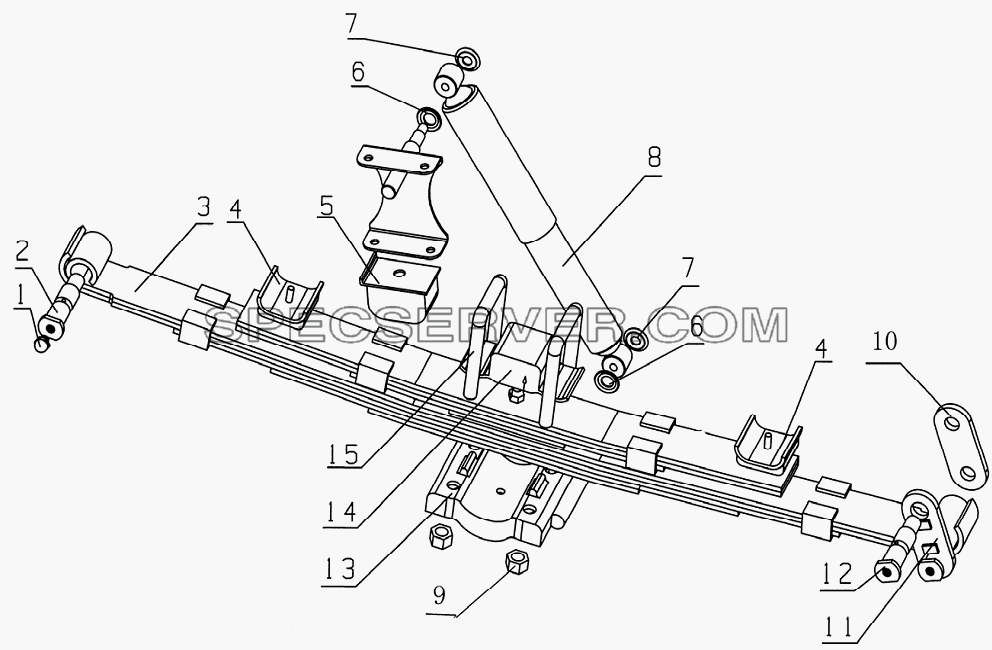

Запчасти: 2911D4JC Rear suspension assembly для HFC 1020KR-D127

2911D4JC Rear suspension assembly для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	Q700B01	lubricate nib
2	2911033E0	rear steel spring front pin
3	2912010D4JC	rear steel spring unit
4	2911930B1CHA0	rear additional tray rubber mat unit
5	2911120D4	rear buffer block unit
6	2905156D4-sg0	absorber ring rubber sleeve washer
7	2905157D4-sg0	absorber ring rubber sleeve washer
8	2905010D2	absorber
9	2911038Z	front U bolt and nut
10	2911031B6	rear spring left lifting eye unit
11	2911030B6	rear spring left lifting eye bracket unit
12	2901052N	spring pin
13	2911212D0	rear spring U-shape bolt nut plate
14	2911218D0	rear spring cover board
15	2911051B1	rear U-shape bolt nut

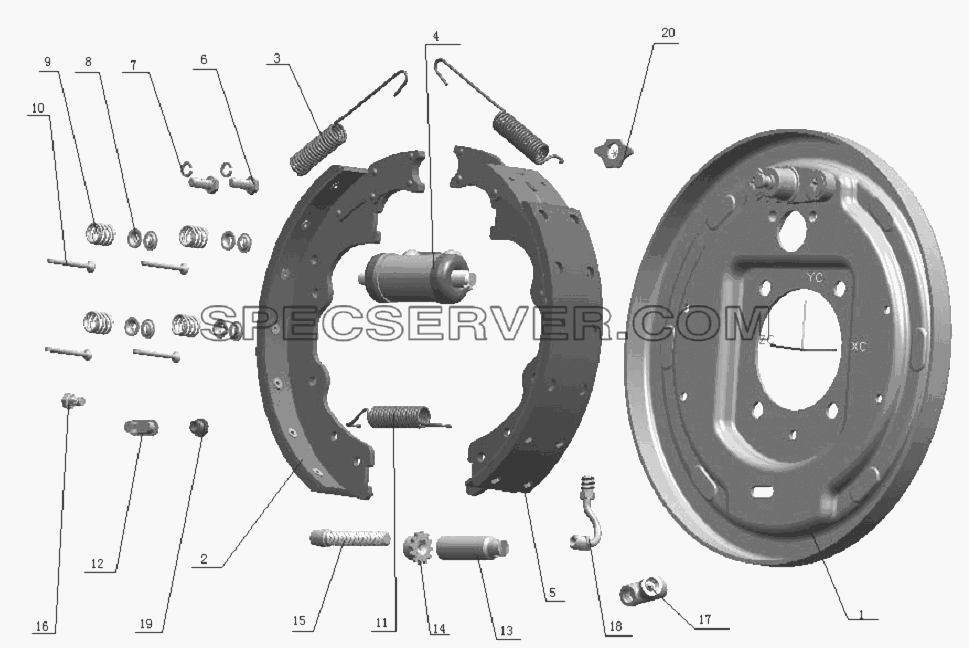

Запчасти: 3501D4XZ Front brake для HFC 1020KR-D127

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	XH1036-3501030-03	bottom plate,front brake ,left
1	XH1036-3501040-03	bottom plate,front brake ,light
2	XH1036-3501050	front brake shoe
3	1022EZC2E-3501021	return spring ,brake shoe
4	XH1036-3501040B	wheel cylinder
5	XH1036-3501060	rear brake shoe
6	Q150B0820	hexagon bolt
7	Q40308	spring washer
8	760-3501032	spring seat
9	BJ130-3501037B	pressure seat
10	BJ130-3501034C	lever,pressure seat,brake shoe
11	XZ1034-3502019	return spring
12	3C11-40-20	adjusting block
13	1.5D11-40-08	adjusting sleeve
14	XZ1032-3501016	nut
14	XZ1032-3501017	nut
15	XZ1032-3501018	bolt
15	XZ1032-3501019	bolt
16	Q151B0814	hex-bolt
17	XZ1020-3501051-01B	jiont
18	XZ1032-3501014	oil hose,left
18	XZ1032-3501015	oil hose,right
19	Block	dust dender block
20	213-3502188	baffle

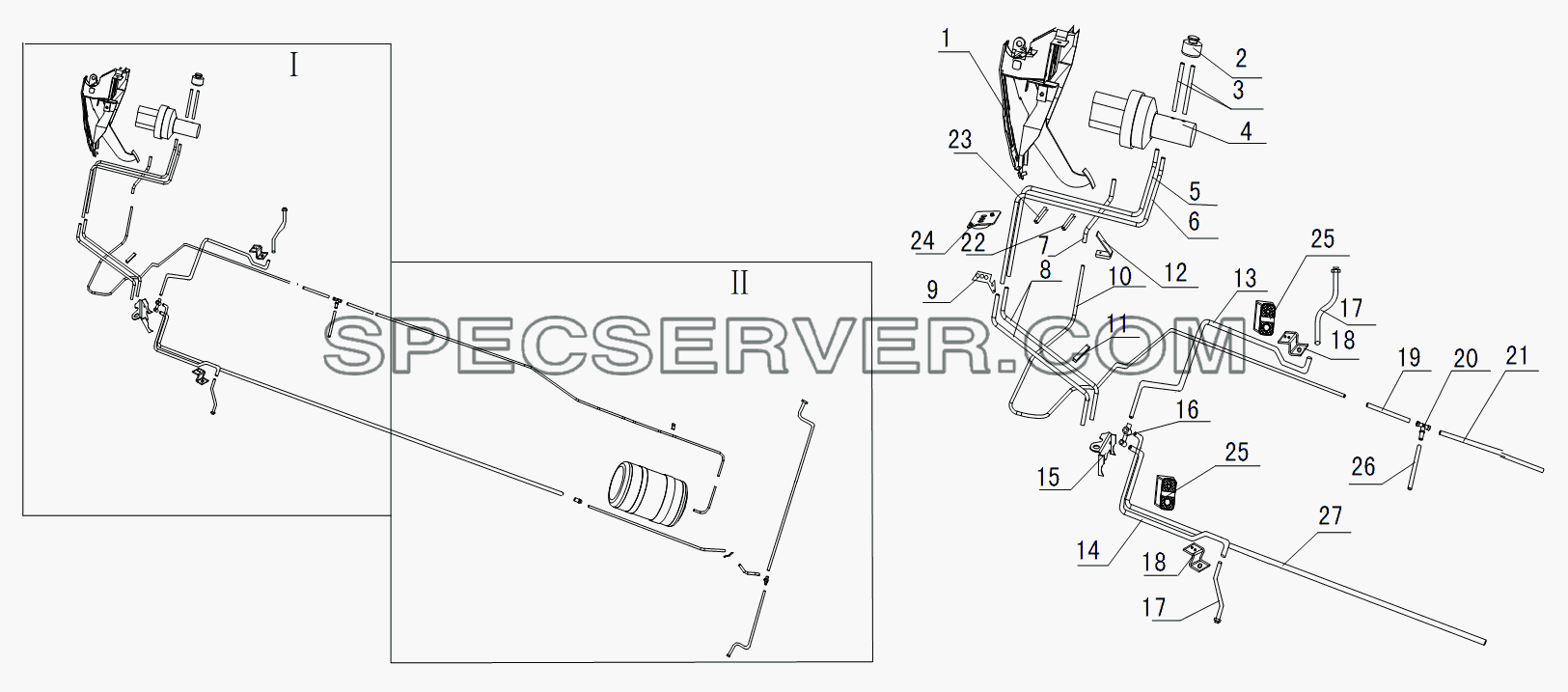

Запчасти: 3506D4JC Brake pipe system для HFC 1020KR-D127

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	3504020D2	clutch master pedal and bracket noumenon unit
2	3506100E0	oil storage boat
3	3506261E0	master pump oil inlet hose
4	3510010D2	vacuum booster with brake main jar unit
5	3506120D2	brake master pump rear brake pipe unit
6	3506110D2	brake master pump front brake pipe unit
7	3506156E0	vacuum soft hose
8	3506030E0	master brake soft hose unit
9	3506420B6	brake hose bracket unit
10	3506155E0	vacuum soft hose
11	3506263E0	clip
12	3506270E0	vacuum soft hose connector unit
13	3506070D4	right front brake pipe unit
14	3506060D4	left front brake pipe unit
15	3506010E0	five-way bracket unit
16	3506120Z1	diffluence tie-in unit
17	3506140D4	front brake pipe unit
18	3506018B6	front brake soft hose bracket
19	3506019Z1	vacuum hose ?
20	3506151E0	three-way
21	3524014D4	vacuum pipe
22	3506262E0	clip
23	3506264E0	clip
24	3506150B6	seal board unit
25	3506018B6	front brake soft hose bracket
26	3524019Z1	vacuum hose
27	3506060D4	left front brake pipe unit

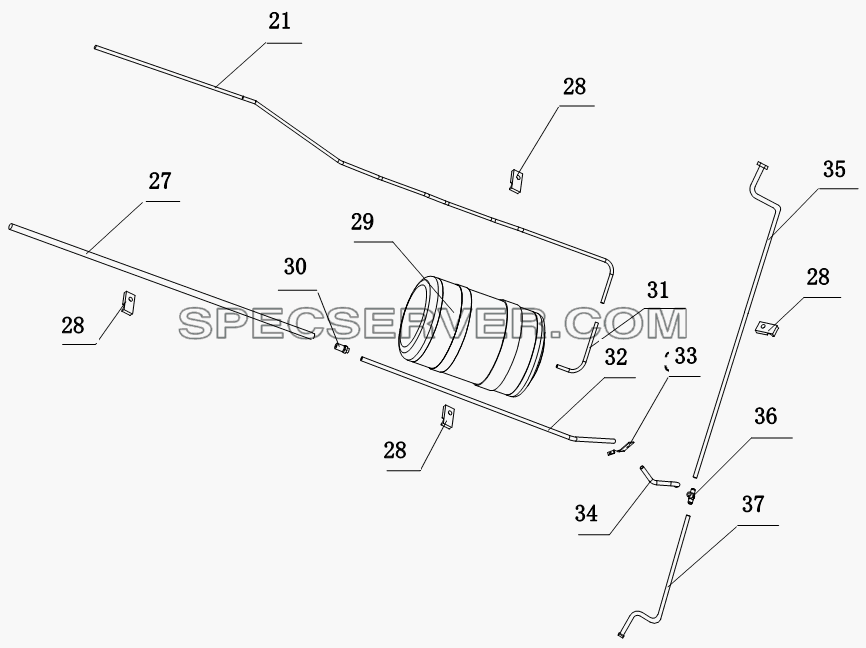

3506D120 Bbrake pipe system для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей
