№	Номер детали	Наименование запчасти
1	LG520-1702055E27	gear shift rock arm combination
2	LG520-1702061K28	oil sealing assy
3	LG520-1702051B21	gear shift control seat
4	LG520-1702075E27	gear selection rock arm combination
5	GB1235-76	O ring
6	LG525-1702079-11	Gasket
7	LG520-1702028B2	Patch
8	GB308-84	steel ball 6
9	LG525-1702053-11	positioning pin
10	LG520-1702081K28	gear selection fork head
11	GB97.2-85	Washer 8
12	Q38108	throttled nut M8x1
13	GB91-86	Split pin 2x20
14	LG520-1702060	Spring
15	LG520-1702054K28	Gasket
16	LG525-1702058-11	gear shift head
17	LG520-1702060	Spring
18	LG520-1701011E27	front shell

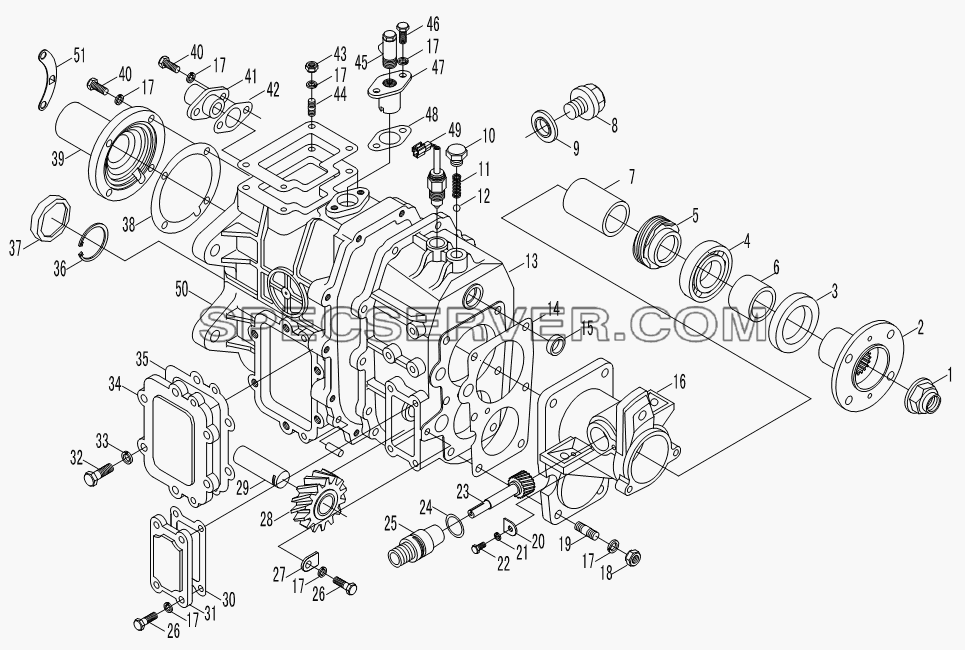

Запчасти: Main case shell and it’s attachment для HFC 1020KR-D127

Main case shell and it’s attachment для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	LG520-1701354B1	nut
2	LG520-1701352E16	ring flange
3	LG520-1701350E16	2nd-shaft oil seal
4	6007	ball bearing
5	LG525-1701344-11	odograph driving gear
6	LG520-1701371E16	spacing sleeve
7	LG520-1701343E16	spacing sleeve
8	LG520-1701020B1	plug assy
9	LG520-1701015B1	washer combination
10	515Q-1701372	plug
11	LG520-1702029B1	self-lock spring
12	GB308-89	Steel ball
13	LG520-1701012N2	rear shell
14	LG520-1701357B1	sealing gasket
15	LG5-20-1702036B1	plug
16	LG520-1701356E27Q	rear end cover of the 2nd shaft
17	GB6176-86	Nut M8X1
18	GB93-87	Spring washer
19	M10-M10X1X25	stud
20	LG520-1701363Y2	lock chip
21	GB93-87	Spring washer
22	GB5783-86	Bolt
23	LG525-1701346-11	speedometer driven gear
24	22X2.4	seal ring
25	LG525-1701347-11	connector
26	GB5783-86	Bolt
27	LG520-1701416B1	lock chip
28	LG520-1701410B1	idle wheel of the reverse gear
29	LG520-1701413B1	idler shaft
30	LG520-1701418B1	sealing gasket
31	LG520-1701417B1	cover plate
32	GB5783-86	Bolt
33	GB93-87	Spring washer
34	LG520-1701019N2	hole cover of PTO
35	LG520-1701018N2	sealing gasket
36	GB893.1-86	retainer ring 62
37	LG520-1701216B1B1	plug cover
38	LG525-1701142-11	sealing gasket of the 1st shaft
39	LG525-1701141-11	1st shaft cover
40	GB5783-86	Bolt
41	LG5-20-1702031B1	axle sleeve
42	LG520-1702032B1	sealing gasket
43	GB6176-86	Nut M8X1
44	GB898-88	stud M8--M8X1X22
45	LG520-1702091B1	ventilation plug
46	GB5783-86	Bolt
47	LG520-1702034	limit block
48	LG520-1702032B1	sealing gasket
49	LG520-1702040B1	reverse signal switch
50	LG520-1701011E27	front shell
51	130-1602057	return spring clip

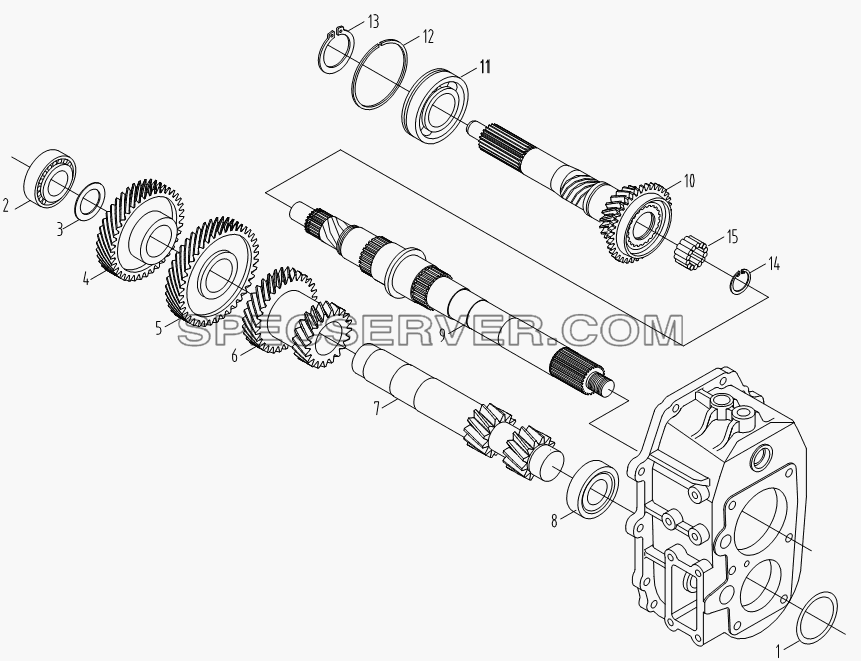

Запчасти: 1st Shaft and intermediate shaft для HFC 1020KR-D127

1st Shaft and intermediate shaft для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

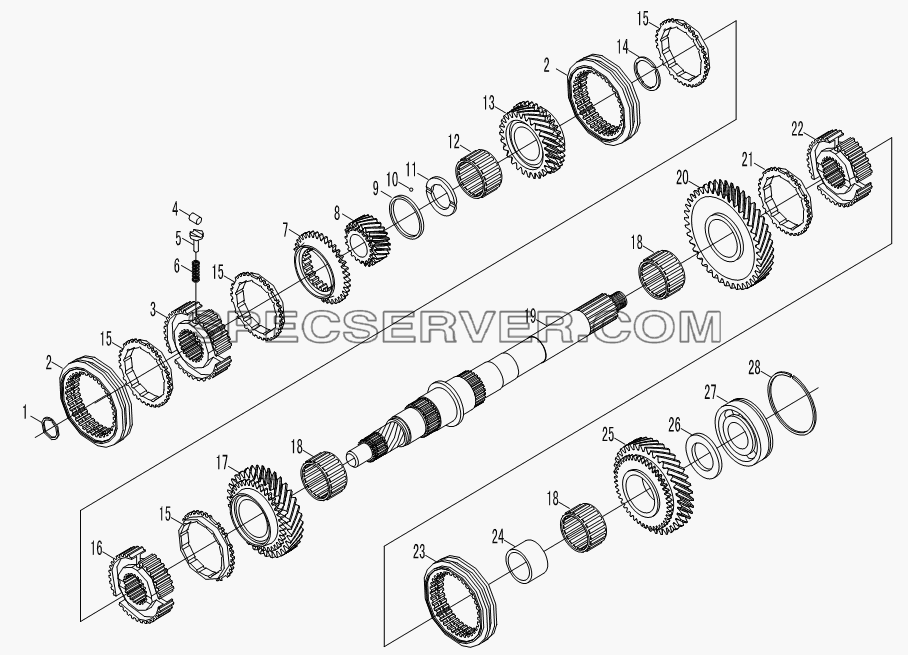

2nd Shaft assembly для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	LG520-1701333B1	lock ring
2	LG520-1701307B1	synchronizer gear bush
3	LG520-1701321B1	synchronizer socket
4	LG520-1701308B1	synchronizer slide
5	LG520-1701311B1	spring seat
6	LG520-1701312B1	spring
7	LG5-20-1701322B1	5-speed synchronizer cone
8	LG5-20-1701318QN	5-speed gear
9	LG5-20-1701366B3	collar
10	GB308-89	Steel ball
11	LG5-20-1701364B1	thrust washer
12	K384425	roller bearing
13	LG520-1701315Q2	3-speed gear & cone
14	LG5-20-1701317B1	lock ring
15	LG5-20-1701306B1	synchronizer cone
16	PTJ5-20-1701303B1	synchronizer socket
17	LG5-20-1701305Q2	2-speed gear
18	K455027	needle bearing
19	LG5-20-1701301B1	2nd shaft
20	LG5-20-1701340Q	1st speed gear combination
21	LG520-1701304Q3	synchronizer cone
22	LG5-20-1701309Q3	synchronizer socket
23	LG5-20-1701339Q3	1st reverse synchronizer gear bush
24	LG520-1701316B1	bearing race
25	LG520-1701338Q3	reverse gear
26	LG520-1701341B1	thrust washer
27	GB277-89	Bearing 50307
28	GB305-89	Stopper ring 80/86.6

Fork shaft assembly для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

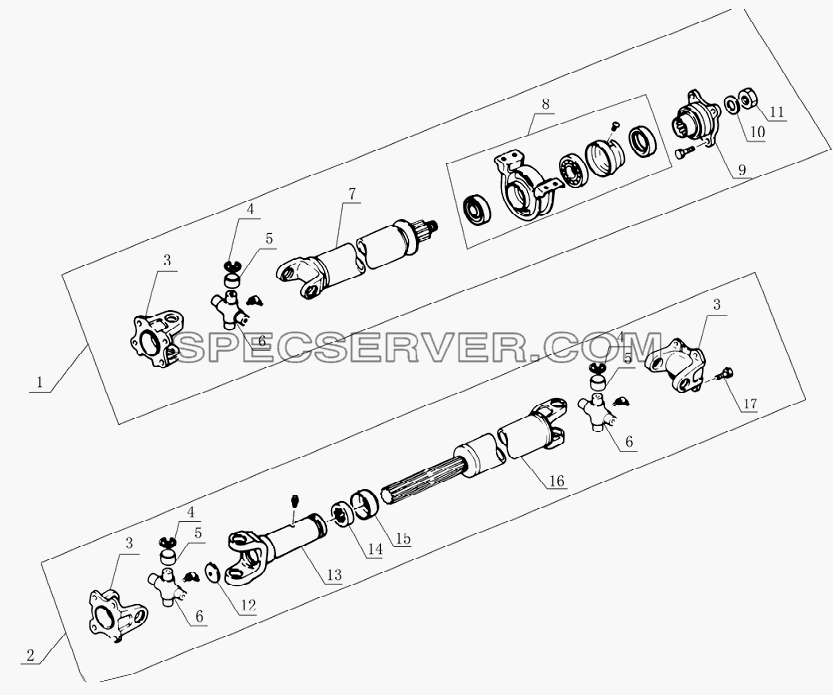

2200D2 Transmission equipment для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	2201000D2	rear axle transmission shaft
2	2201021N57	universal joint glide fork
3	2201022N57	blocking
4	2201023N57	oil seal
5	2201024N57	dustproof cover
6	2201031N57	flange yoke
7	2201041N57	crossing axis
8	2201042N57	slide grease nib
9	2201050N57	needle bearing
10	2201061N57	universal joint bearing retainer ring
11	2201062N57	universal joint bearing retainer ring
12	2201063N57	universal joint bearing retainer ring
13	Q700B01	lubricate nib
14	2201072Z8	rear axle transmission shaft bolt
15	Q341B10	Nut
16	Q40310	spring washer
