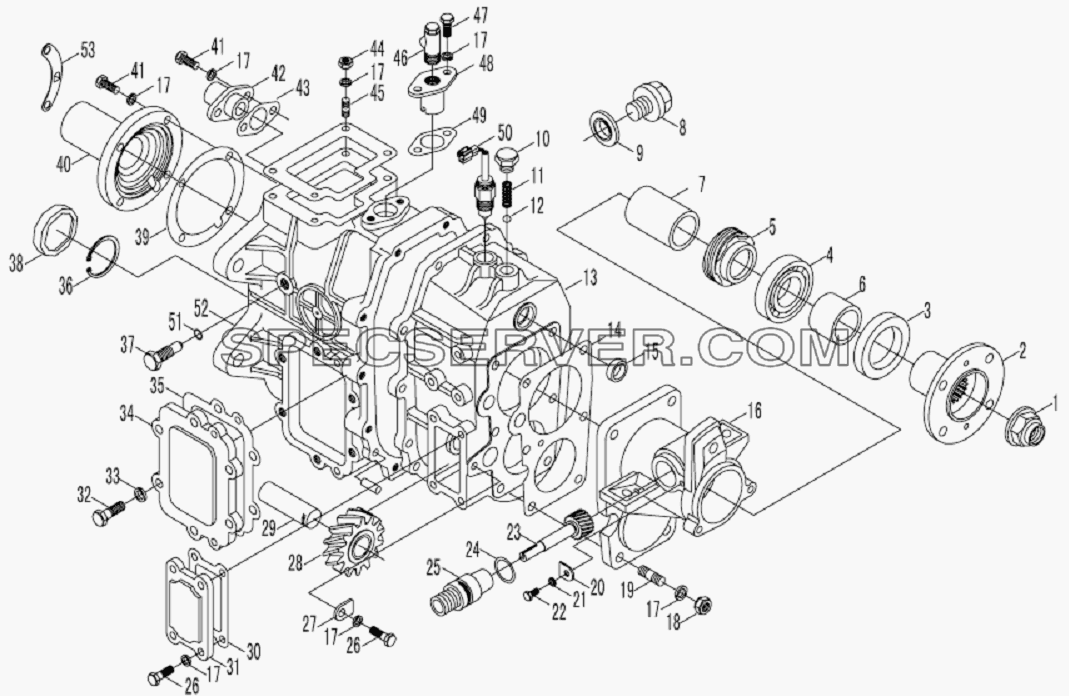

№		Номер детали	Наименование запчасти
1		LG520-1701354B1	nut
2		LG520-1701352E16	ring flange
3		LG520-1701350E16	2nd-shaft oil seal
4		6007	ball bearing
5		LG525-1701344-11	odograph driving gear
6		LG520-1701371E16	spacing sleeve
7		LG520-1701343E16	spacing sleeve
8		LG520-1701020B1	plug assy
9		LG520-1701015B1	washer combination
10		515Q-1701372	plug
11		LG520-1702029B1	self-lock spring
12		GB308-89	Steel ball
13		LG520E30-1701012	rear shell
14		LG520-1701357B1	sealing gasket
15		LG5-20-1702036B1	plug
16		LG520-1701356E27Q	rear end cover of the 2nd shaft
17		Washer10	Spring washer 10
18		NutM10X1	Nut M10X1
19		M10-M10X1X25	stud
20		LG520-1701363Y2	lock chip
21		GB93-87	Spring washer
22		GB5783-86	Bolt
23		LG525-1701346-11	speedometer driven gear
24		22X2.4	seal ring
25		LG525-1701347-11	connector
26		GB5783-86	Bolt
27		LG520-1701416B1	lock chip
28		LG520-1701410B1	idle wheel of the reverse gear
29		LG520-1701413B1	idler shaft
30		LG520-1701418B1	sealing gasket
31		LG520-1701417B1	cover plate
32		GB5783-86	Bolt
33		GB93-87	Spring washer
34		LG520-1701019N2	hole cover of PTO
35		LG520-1701018N2	sealing gasket
36		GB893.1-86	retainer ring 62
37		LG520B-1702031A	shaft position bolt
38		LG520-1701216B1B1	plug cover
39		LG525-1701142-11	sealing gasket of the 1st shaft
40		LG525-1701141-C1	1st shaft cover
41		GB5783-86	Bolt
42		LG5-20-1702031B1	axle sleeve
43		LG520-1702032B1	sealing gasket
44		GB6176-86	Nut M8X1
45		GB898-88	stud M8--M8X1X22
46		LG520-1702091B1	ventilation plug
47		GB5783-86	Bolt
48		LG520-1702034	limit block
49		LG520-1702032B1	sealing gasket
50		LG520-1702040B1	reverse signal switch
51		GB1235-76	O ring
52		LG520E30-1701011	front shell
53		130-1602057	return spring clip

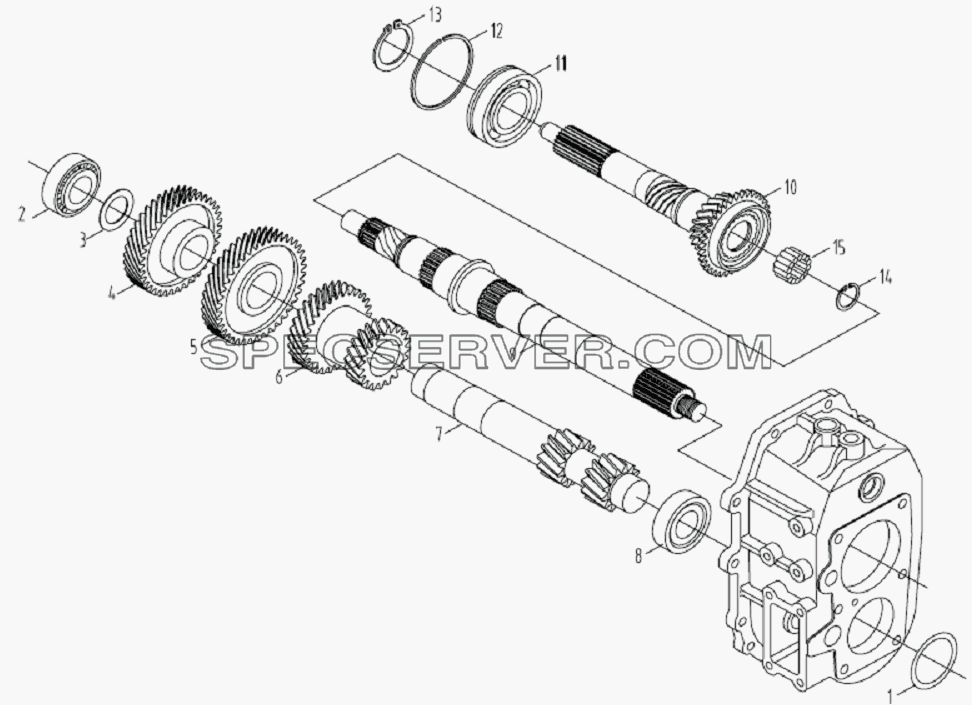

1st Shaft and intermediate shaft для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		LG520-1702026B1	Adjusting shim
2		GB297-84	Bearing
3		LG520-1701226B1	Adjusting shim
4		LG520-1701212Q	1st speed reduction gear
5		LG520-1701213Q	5-speed gear
6		LG520-1701214Q2	2nd,3rd speed reduction gear
7		LG520-1701211Q	Intermediate shaft
8		GB297-84	Bearing
9		LG520-1701301B1	2nd shaft
10		LG520-1701129E27Q	1st shaft and cone
11		6208	Non-standard bearing
12		GB305-89	Stopper ring 80/86.6
13		Q43146	Circlip for shaft
14		LG520-1701332B1	Retainer ring
15		LG520-1701334B1	Short column roller

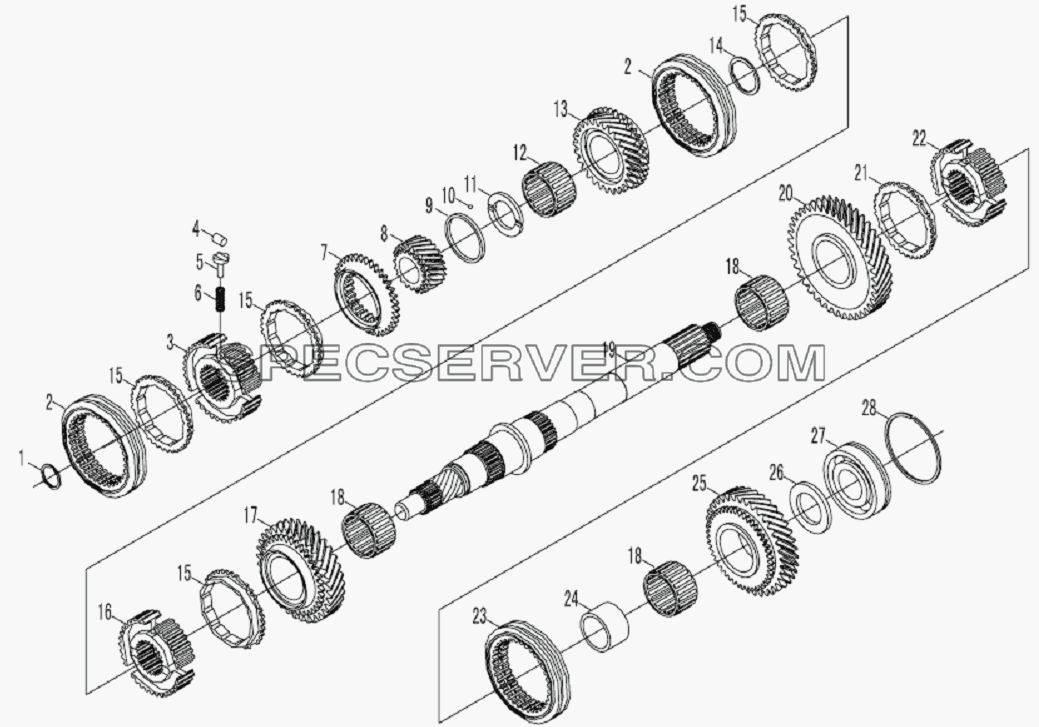

2nd Shaft assembly для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		LG520-1701333B1	lock ring
2		LG520-1701307B1	synchronizer gear bush
3		LG520-1701321B1	synchronizer socket
4		LG520-1701308B1	synchronizer slide
5		LG520-1701311B1	spring seat
6		LG520-1701312B1	spring
7		LG5-20-1701322B1	5-speed synchronizer cone
8		LG5-20-1701318QN	5-speed gear
9		LG5-20-1701366B3	collar
10		GB308-89	Steel ball
11		LG5-20-1701364B1	thrust washer
12		K384425	roller bearing
13		LG520-1701315Q2	3-speed gear & cone
14		LG5-20-1701317B1	lock ring
15		LG5-20-1701306B1	synchronizer cone
16		PTJ5-20-1701303B1	synchronizer socket
17		LG5-20-1701305Q2	2-speed gear
18		K455027	needle bearing
19		LG5-20-1701301B1	2nd shaft
20		LG5-20-1701340Q	1st speed gear combination
21		LG520-1701304Q3	synchronizer cone
22		LG5-20-1701309Q3	synchronizer socket
23		LG5-20-1701339Q3	1st reverse synchronizer gear bush
24		LG520-1701316B1	bearing race
25		LG520-1701338Q3	reverse gear
26		LG520-1701341B1	thrust washer
27		GB277-89	Bearing 50307
28		GB305-89	Stopper ring 80/86.6

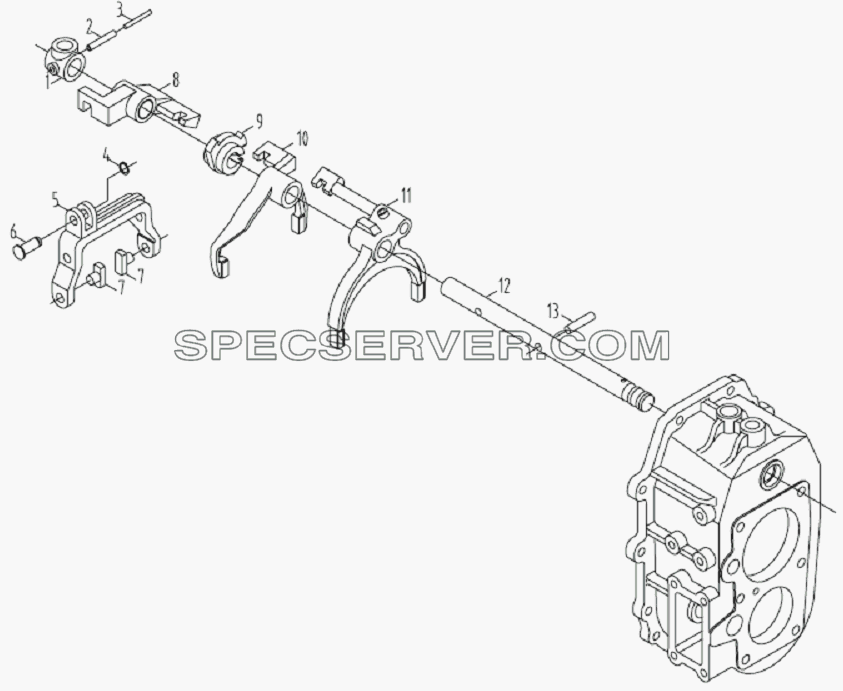

Fork shaft assembly для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		LG520-1702027B1	shift fork pad
2		Q5280436	elastic column pin
3		Q5280636	elastic column pin
4		GB894.1-86	Retainer ring 10
5		LG520B-1702024	4-5 speed fork
6		LG520B-1702027	4-5 speed fork pin
7		LG520B-1702029	fork pad
8		LG520E30-1702023	4-5 speed block
9		LG520-1702033Z/J	inter-lock plate
10		LG520E30-1702024	2-3 speed fork
11		LG520E30-1702026	fork, 1st speed reverse
12		LG525-1702021Q	gear shift fork shaft
13		LG520-1702022B1	gear shift pin

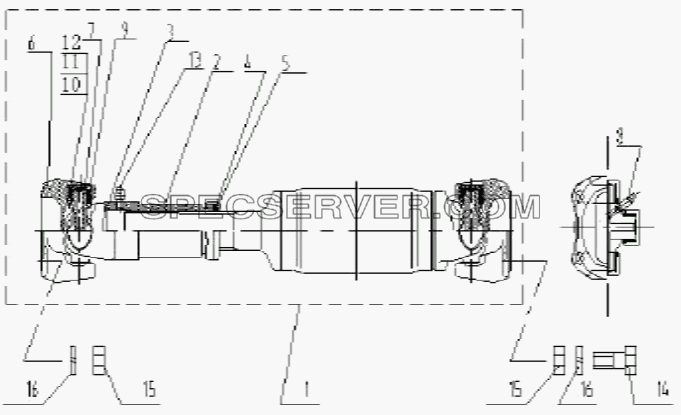

Transmission equipment для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		2201000D4	rear axle transmission shaft
2		2201021N57	universal joint glide fork
3		2201022N57	blocking
4		2201023N57	oil seal
5		2201024N57	dustproof cover
6		2201031N57	flange yoke
7		2201041N57	crossing axis
8		2201042N57	slide grease nib
9		2201050N57	needle bearing
10		2201061N57	universal joint bearing retainer ring
11		2201062N57	universal joint bearing retainer ring
12		2201063N57	universal joint bearing retainer ring
13		Q700B01	lubricate nib
14		2201072Z8	rear axle transmission shaft bolt
15		Q341B10	Nut
16		Q40310	spring washer

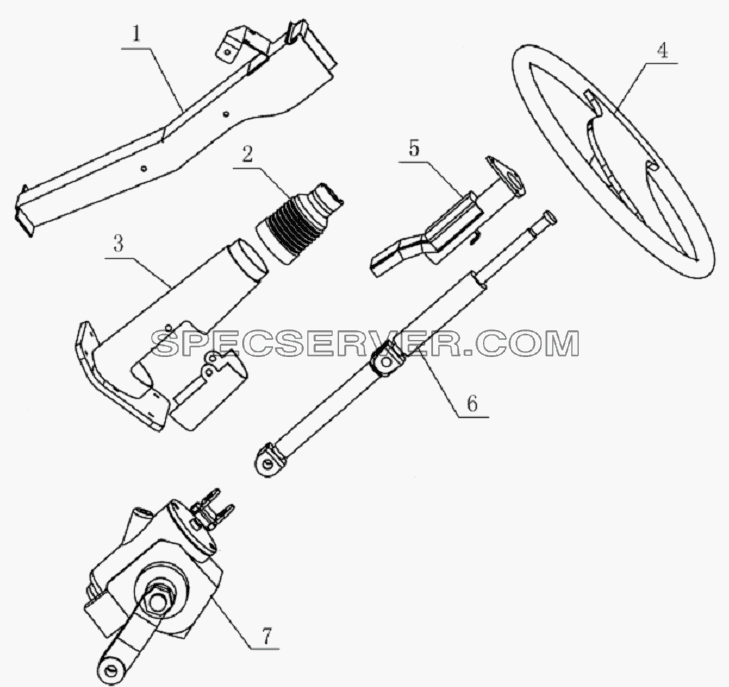

Steering system для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		3402020D0	Steering gear adjust rack unit
2		3412105E0	Dustproof cover
3		3412100E0	Steering shaft cover
4		3402010D2	Steering wheel
5		3404400E0	steering column unit
6		3404000D0	steering shaft and universal joint
7		3401000DF4JC	steering assembly
