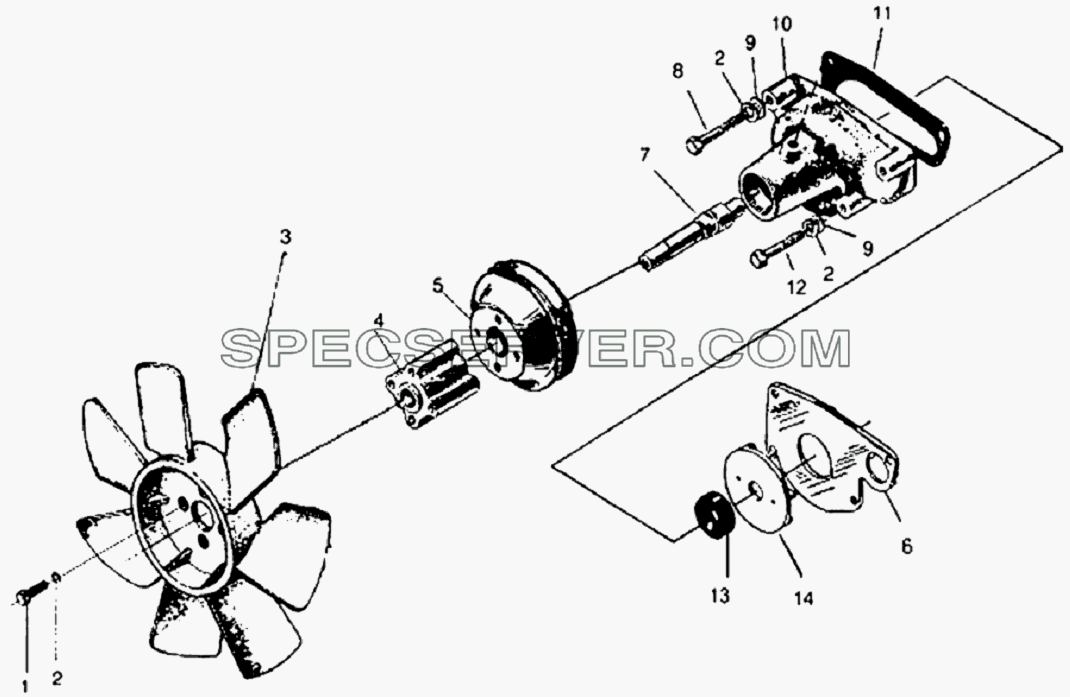

№		Номер детали	Наименование запчасти
1		GB5782-86	Bolt
2		GB93-87	Spring washer
3		Y480Q-78-11200	Fan
4		YSD490Q-11001	Spacer
5		YSD490Q-11112A	Pulley
6		YSD490Q-11108	Lining plate
7		YSD490Q-11106A	Axie links bearing
8		GB5783-86	Bolt
9		GB848-85	Washer
10		YSD490Q-11103A	Pump housing
11		YSD490Q-11107	Gasket
12		GB5783-6	Bolt M8x55
13		YSD490Q-11110A	Water assigned
14		YSD490Q-11105A	Pump inipeller

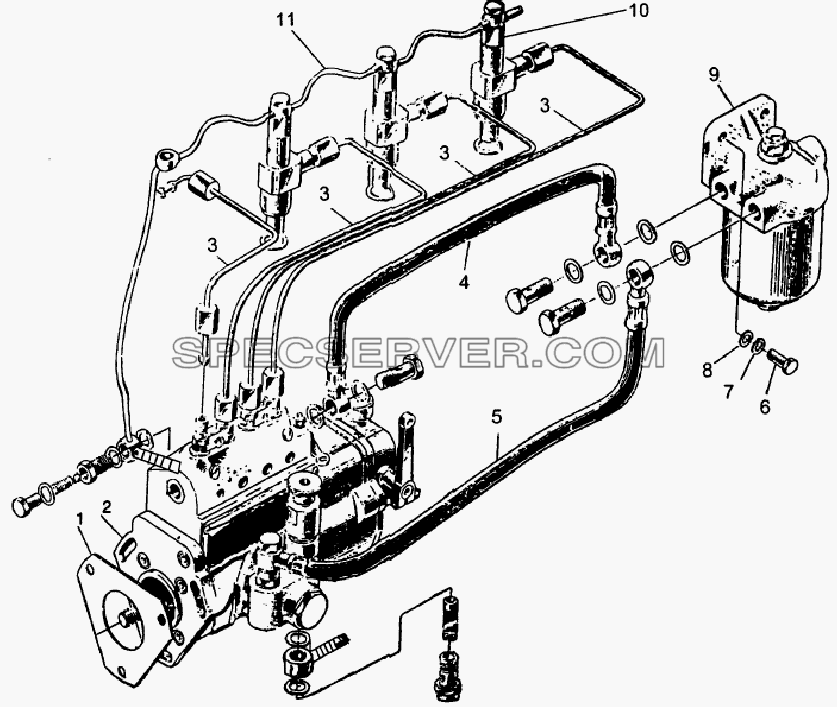

FUEL SUPPLY SYSTEM для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		Y480G-02002	Furl injection pump gasdet
2		YSD490Q-5-10100	Fuel injection pump
3		YSD490Q-10500	High pressure fuel pipe
4		YSD490Q-10800a	Fuel feed pipe from fuel filter to fuel injection p
5		YSD490Q-10900a	Fuel feedfrom fuel supply pump to fuel filter
6		GB5783-86	Bolt
7		GB93-87	Spring washer
8		GB848-85	Washer
9		YSD490Q-10600a	Fuel filter
10		YSD490Q-10700	Fuel injector
11		YSD490Q-47-10400	Fuel return pipe

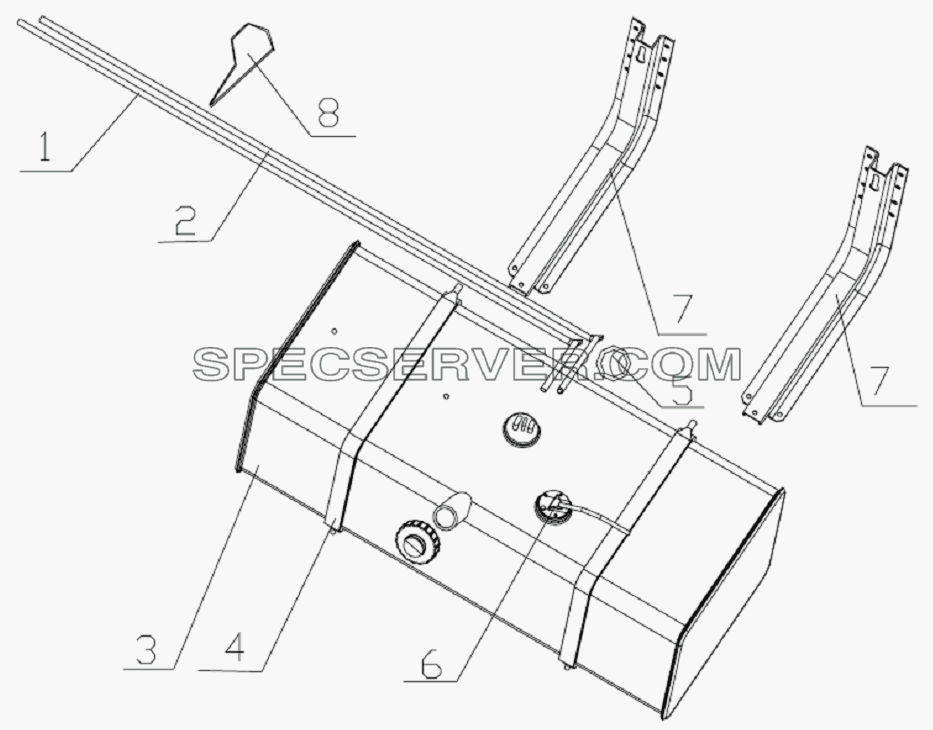

1100D4 Fuel supply system equipment для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1101070H2	fuel tank clamping collar
1		1104022D4	inlet soft hose
2		1104024D4	cycling soft hose
3		1101010B10JC	fuel-box with cover
4		1101021H2	fuel tank gaset
5		3703042Z1	rubber protect ring
6		3806920D4JC	fuel sensor
7		1101104H2	fuel tank bracket
8		1104041B6-Hh	hose nip

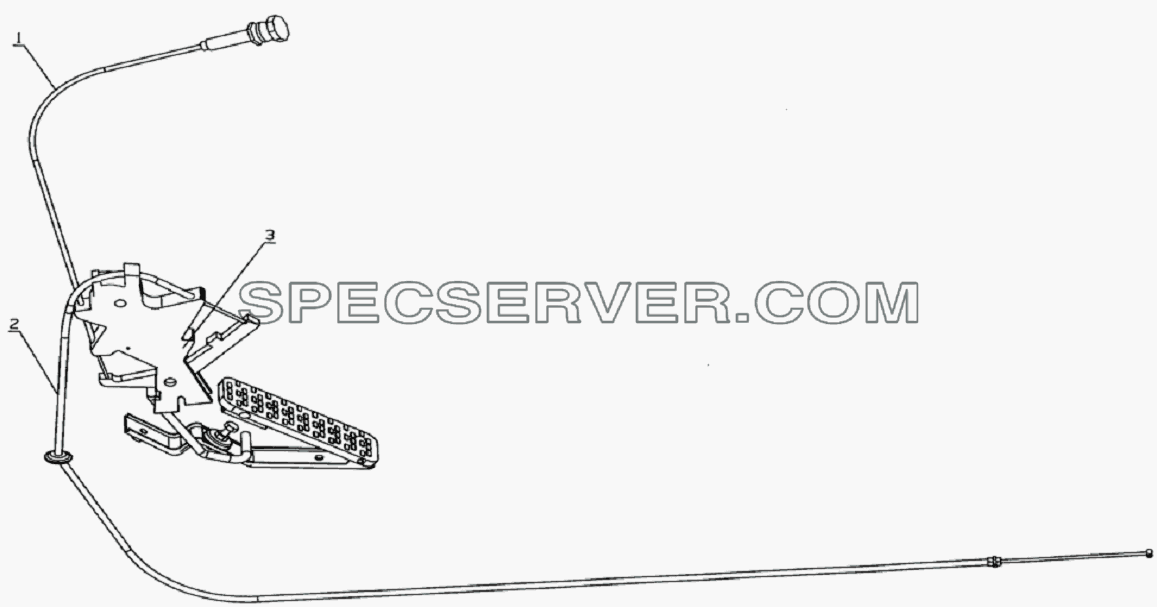

1108D102 Speedup gearing для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1108110E0	Hand accelerograph drawbench unit
2		1108050D102	Speedup drawbench unit
3		1108010B6	Accelerograph set and pedal unit

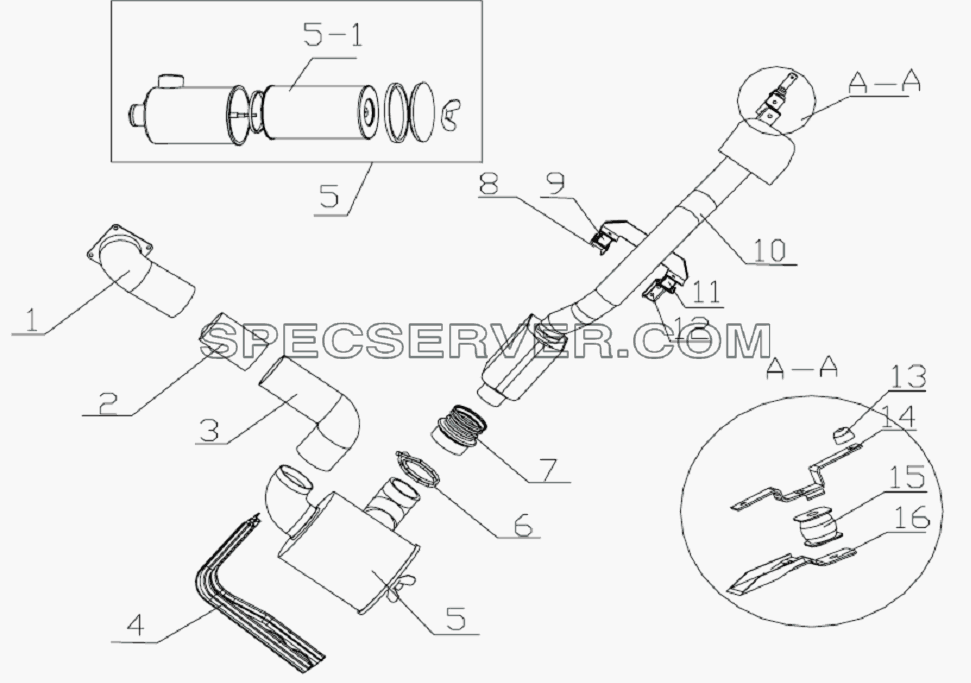

1109DF4JC Air-cleaner equipment для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1109010B10JC	air-cleaner unit
-		1109010B10JC-1	air filter element
-		1109012DF4JC	air-cleaner outlet hosepipe
-		1109014DF4JC	air-cleaner outlet hosepipe
-		1109014E0	connecting tube
-		1109020B10JC	air-cleaner intake pipe unit
-		1109021B10JC	air-cleaner cover
-		1109021DF4JC	cushion padel
-		1109022B10JC	erection air intake lower bracket
-		1109023B10JC	erection air intake lower bracket
-		1109024B10JC	seal cushion
-		1109030B10JC	erection air intake cushion unit
-		1109030B10JC	erection air intake cushion unit
-		1109040B10JC	erection air intake cushion unit
-		1109050B10JC	erection air intake upper bracket
-		1109060B10JC	erection air intake upper bracket
-		1109120DF4JC	middle connecting pipe unit
-		Q672110	double steelwire loop

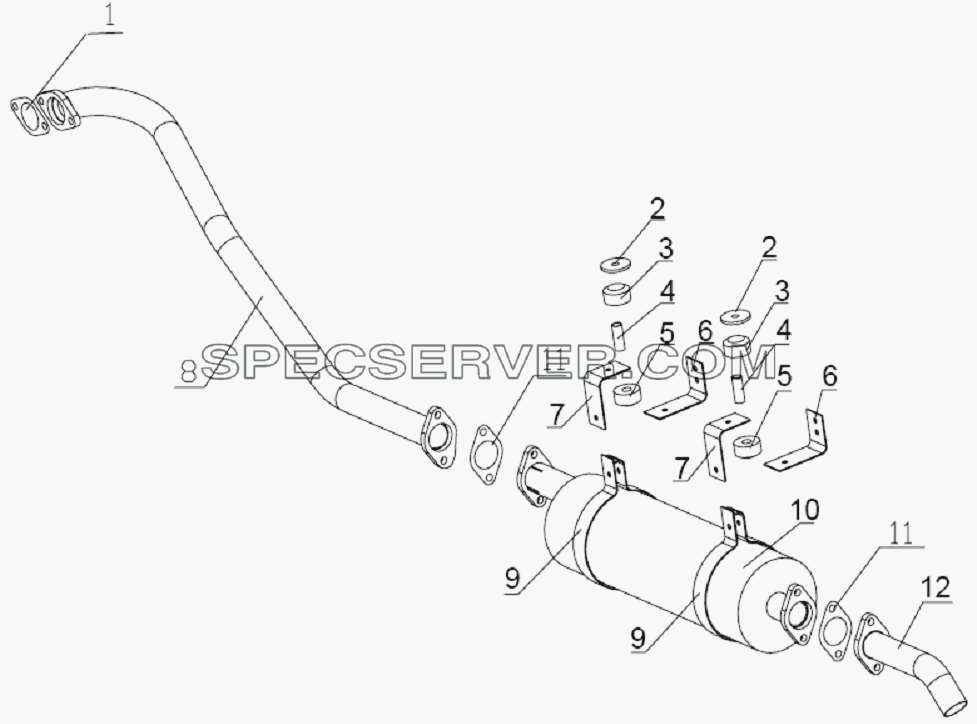

1200D126 Exhaust system для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1203012D4-hcG	seal cushion
2		1203025E0	washer
3		1203022E0	lower glue tray
4		1203024E0	upper glue tray
5		1203023E0	partition block
6		1203011B6	bracket
7		1203012Z28	hanger
8		1203010D126	front vent-pipe unit
9		1203111D100XZ	clip
10		1201100D100XZ	three-way catalytic converter
11		1203070E0	seal cushion
12		1203030Z12	tail pipe
