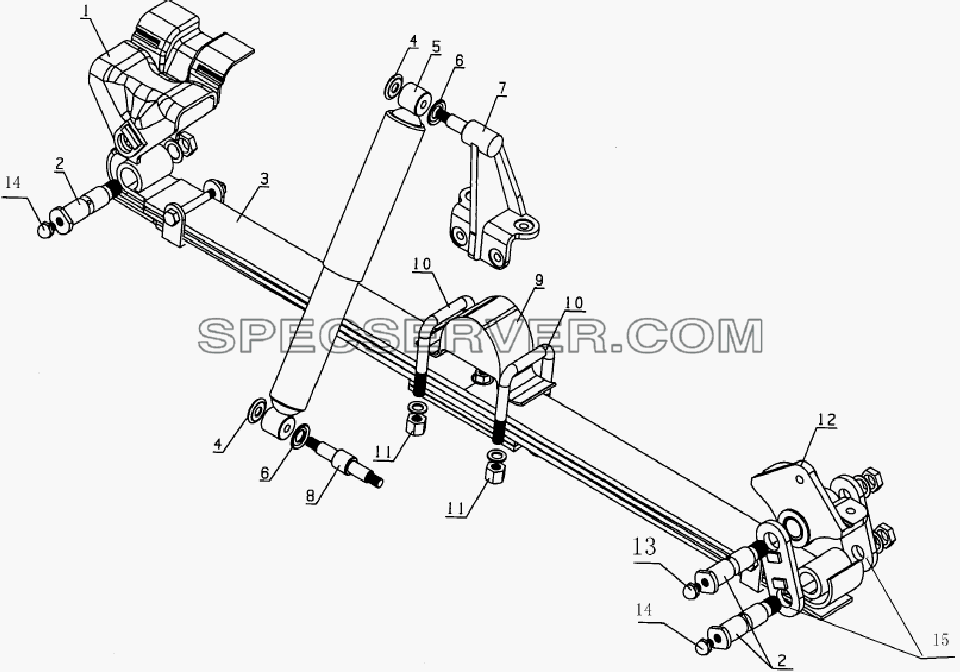

№		Номер детали	Наименование запчасти
1		2902160D4	front spring leaf bracket unit
2		2901478J1	front steel spring pin
3		2902010D2	front steel plate spring leaf bracket unit
3		2902020D2	front steel plate spring leaf bracket unit
4		2905157D2	absorber rubber sleeve washer
5		2905010D2	absorber
6		Q40116	plate washer
7		2905150D4	front absorber bracket unit
7		2905160D4	front absorber bracket unit
8		2905158D2	absorber shaft
9		2901070D4	front buffer block unit
10		2901021D4XZ	front U-shape bolt
11		2911038Z	front U bolt and nut
12		2901150J1	front spring left lifting eye bracket unit
12		2901170	front spring lifting eye bracket unit
13		Q701B45	slide grease nib
14		Q700B01	lubricate nib
14		Q700B01	lubricate nib
15		2901140J1	front spring right lifting eye bracket unit

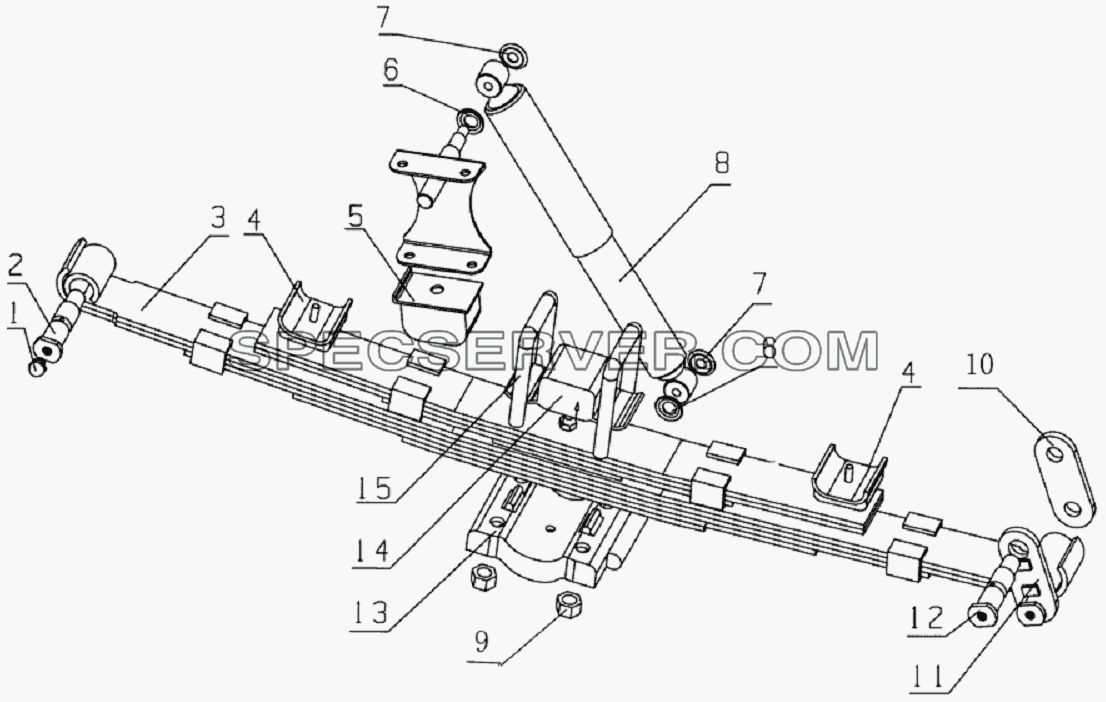

Rear suspension assembly для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		Q700B01	lubricate nib
2		2911033E0	rear steel spring front pin
3		2912010D4JC	rear steel spring unit
4		2911930B1CHA0	rear additional tray rubber mat unit
5		2911120D4	rear buffer block unit
6		2905156D4-sg0	absorber ring rubber sleeve washer
7		2905157D4-sg0	absorber ring rubber sleeve washer
8		2905010D2	absorber
9		2911038Z	front U bolt and nut
10		2911031B6	rear spring left lifting eye unit
11		2911030B6	rear spring left lifting eye bracket unit
12		2901052N	spring pin
13		2911212D0	rear spring U-shape bolt nut plate
14		2911218D0	rear spring cover board
15		2911051B1	rear U-shape bolt nut

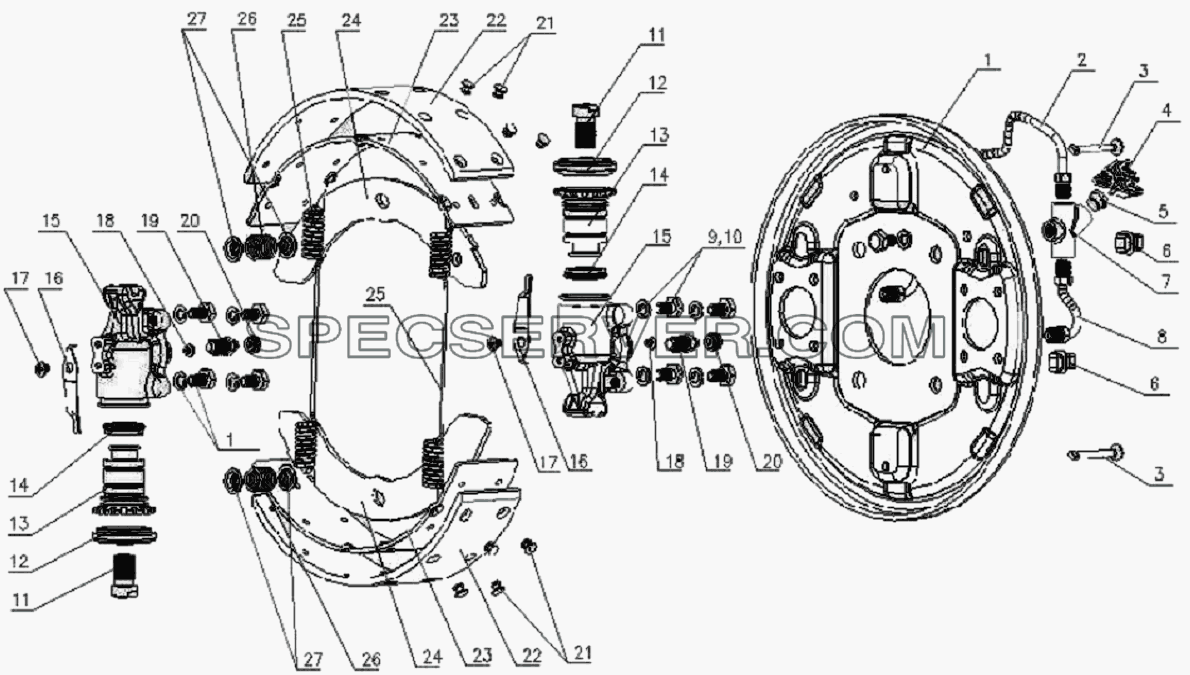

3501D120XZ Front brake assembly для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		HFC1020-3501010	front left brake unit
-		HFC1020-3501020	front right brake unit
-		HFC1020-3501031	front left brake floor
-		HFC1020-3501051	front left wheel cylinder body
-		XH1026-3501060B	front left brake rear-placed oil pipe unit
-		XH1026-3501070B	front left brake front-placing oil pipe unit
1		HFC1020-3501032	front right brake floor
2		XH1026-3501075B	front right brake front-placing oil pipe unit
3		BJ130-3501034B	brake shoe press spring pull rod
4		ZQ3501172-07	hose clip
5		Plug	dustproof plug
6		ZQ3501017-07	adjust gap hole rubber plug
7		XH1026-3501059B	three-way joint
8		XH1026-3501065B	front right brake rear-placed oil pipe unit
9		Q150B0814	hew screw
10		Q40308	spring washer
11		NPR3501304-01	wheel cylinder adjust gap screw
12		D120-3501212	front wheel cylinder protect cover
13		NPR3501302-02	wheel cylinder adjust gap piston
14		NPR3501303-02	front wheel cylinder rubber cup
15		HFC1020-3501061	front right wheel cylinder body
16		D120-3501033	adjust gap lock spring
17		D120-3501034B	cross-recessed flat-head screw
18		NO.3Seat	NOx3 connect pipe conical seat
19		Screw	air bleed screw
20		Plug	dustproof plug
21		Q4760508	rivet
22		XH1026-3501057	brake facing
23		XH1026-3501056	brake shoe
24		D120-3501023	brake shoe reinforcing rib
25		ZQ3501018-07	brake shoe return spring
26		XH1026-3501034	brake shoe press spring
27		760-3501031	brake shoe press spring seat

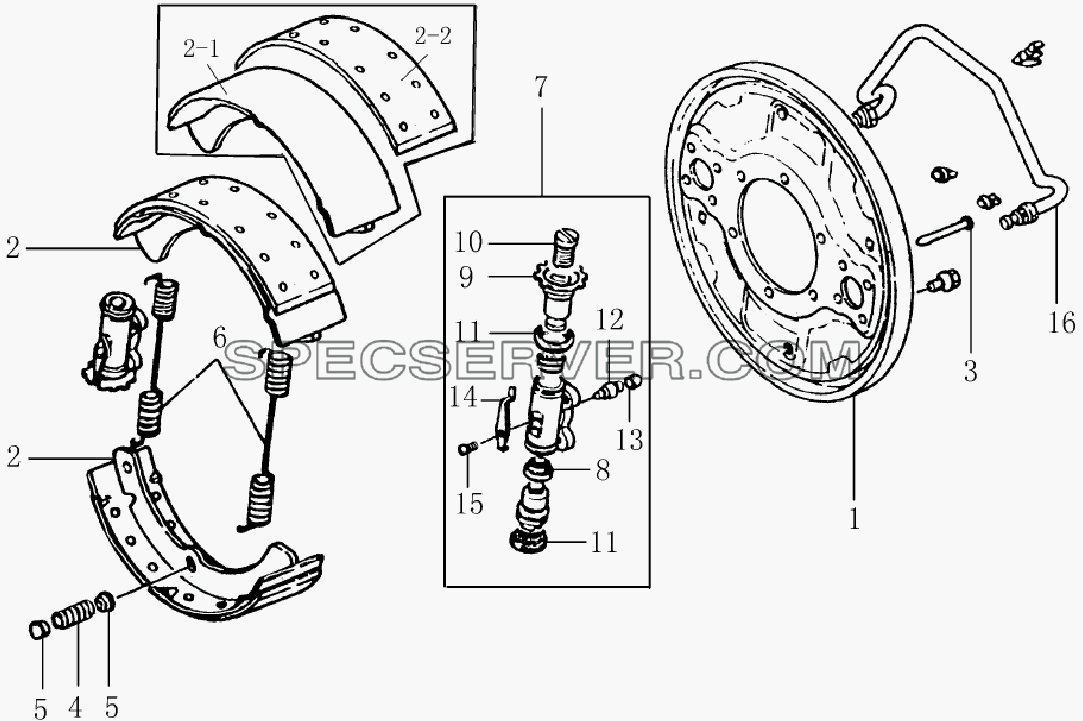

3502D120 Rear brake assembly для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		3501010-D120	rear left brake unit
-		3501020-D120	rear right brake unit
-		HF324-01-02-001	brake shoe
-		HF324-01-02-002	brake facing
-		HF324-03-01	rear left brake floor
-		HF324-03-03	rear wheel-brake cylinder body unit
-		HF324-04-03	rear wheel-brake cylinder body unit
-		HF324-04-04	rear wheel-brake cylinder body unit
1		HF324-04-01	rear right brake floor
2		HF324-01-02	brake shoe with friction linging unit
3		BJ1032-01-08	brake shoe press spring rod
4		BJ130-01-10	brake shoe press spring
5		BJ130-01-09	brake shoe press spring seat
6		HF324-01-03	brake shoe pull spring
7		HF324-03-04	rear wheel-brake cylinder body unit
8		ZQ3502053A	wheel-brake cylinder rubber cup
9		HF324-03-03-03	rear wheel-brake cylinder piston
10		HF324-03-03-04	adjusting bolt
11		136-3501047A	wheel-brake cylinder dustproof cover
12		PlugM10x1	thread plug
13		RingM10x1	sealing ring
14		HF324-03-03-05	lock piece
15		Q2140508	cross-recessed flat-head screw
16		HF324-03-02	rear brake oil pipe

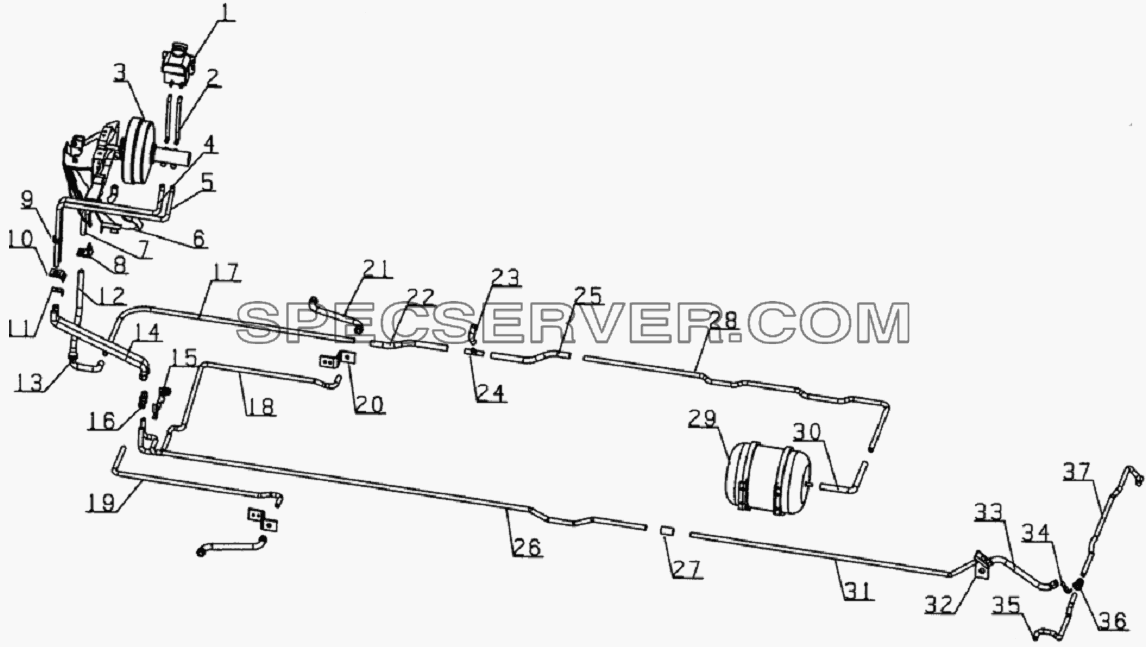

3506D126 Brake pipe system для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		3506100E0	oil storage boat
2		3506261E0	master pump oil inlet hose
3		3510010D2	vacuum booster with brake main jar unit
4		3506110D2	brake master pump front brake pipe unit
5		3506120D2	brake master pump rear brake pipe unit
6		3504020E0	clutch master pedal and bracket noumenon unit
7		3506156E0	vacuum soft hose
8		3506270E0	vacuum soft hose connector unit
9		3506150B6	seal board unit
10		3506420B6	brake hose bracket unit
11		3506219E0	clip
12		3506155E0	vacuum soft hose
13		3524052Z4	vacuum pipe guard ring
14		3506030E0	master brake soft hose unit
15		3506010E0	five-way bracket unit
16		3506120Z1	diffluence tie-in unit
17		3506012D4	front vacuum pipe
18		3506070D4	right front brake pipe unit
19		3506060D4	left front brake pipe unit
20		3506018B6	front brake soft hose bracket
21		3506140D4	front brake pipe unit
22		3506156E0	vacuum soft hose
23		3524019Z1	vacuum hose
24		3506151E0	three-way
25		3506152E0	vacuum soft hose
26		3506040D4	rear brake pipe unit
27		3506028Z1	two-way
28		3524014D4	vacuum pipe
29		3506170D4	vacuum pipe unit
30		3524019Z1	vacuum hose
31		3506050D4	rear brake pipe unit
32		3506016Z1	rear brake oil pipe bracket
33		3506140D4	front brake pipe unit
34		3506219E0	clip
35		3506080D120	rear axle left brake pipe unit
36		3506014Z1	three-way
37		3506090D120	rear axle right brake pipe unit

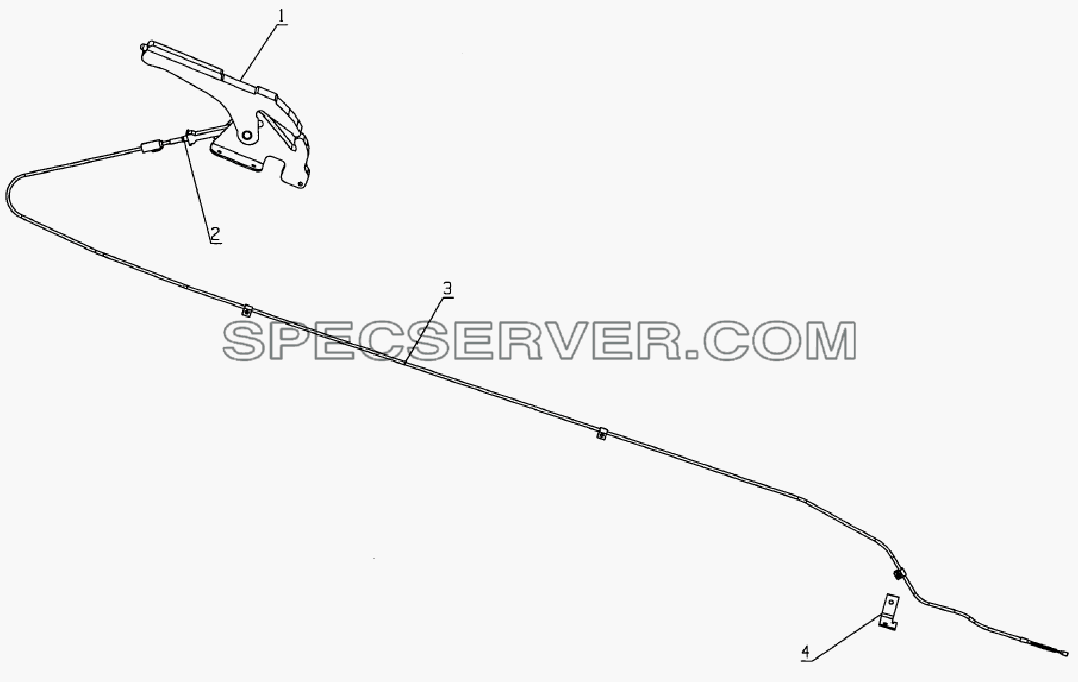

3508D4 Parking brake control system для HFC 1020K-D126 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		3508200E0	Parking brake control handle
2		3508102E0	Parking cable front joint nut
3		3508100D2	Parking brake control cable
4		3508013E0	parking cable rack
