5 S 200 - 5 S 270 - 5 S 300 - TRANSMISSIONS

D

AILY

Base - May 2004

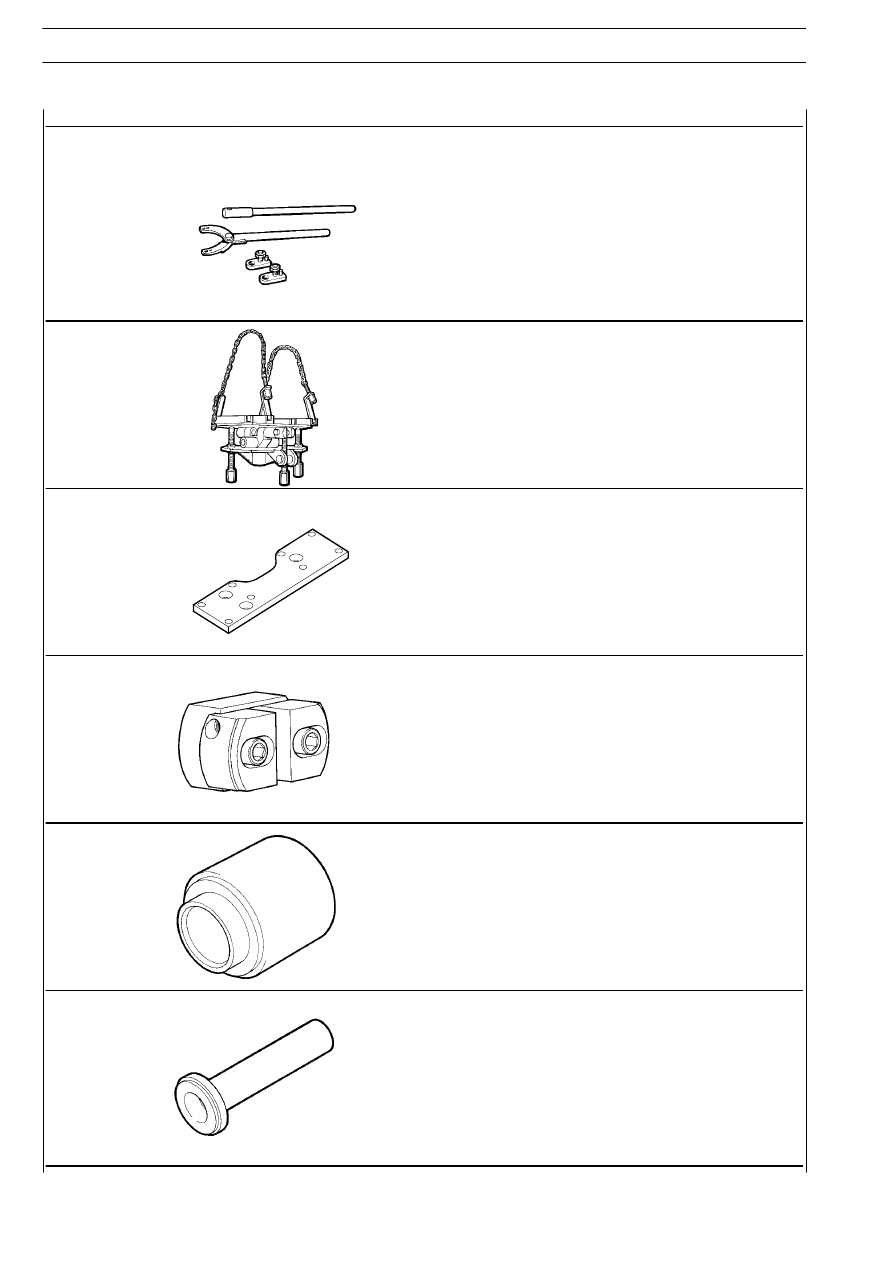

TOOL NO.

DESCRIPTION

99370317

Reaction lever with extension for holding flange

99370629

Transmission support during removal from and refitting to vehicle

99371057

Bracket for supporting gearbox during overhaul
(use with 99322205-99322225)

99374091

Punch for fitting bearing external races (dia. 55

÷ 69 mm)

(use with 99370007)

99374452

Keying device to fit gasket on transmission rear cover
(use with 99370006)

99374453

Keying device to fit gasket on transmission

47369

47371

Figure 9

Figure 10

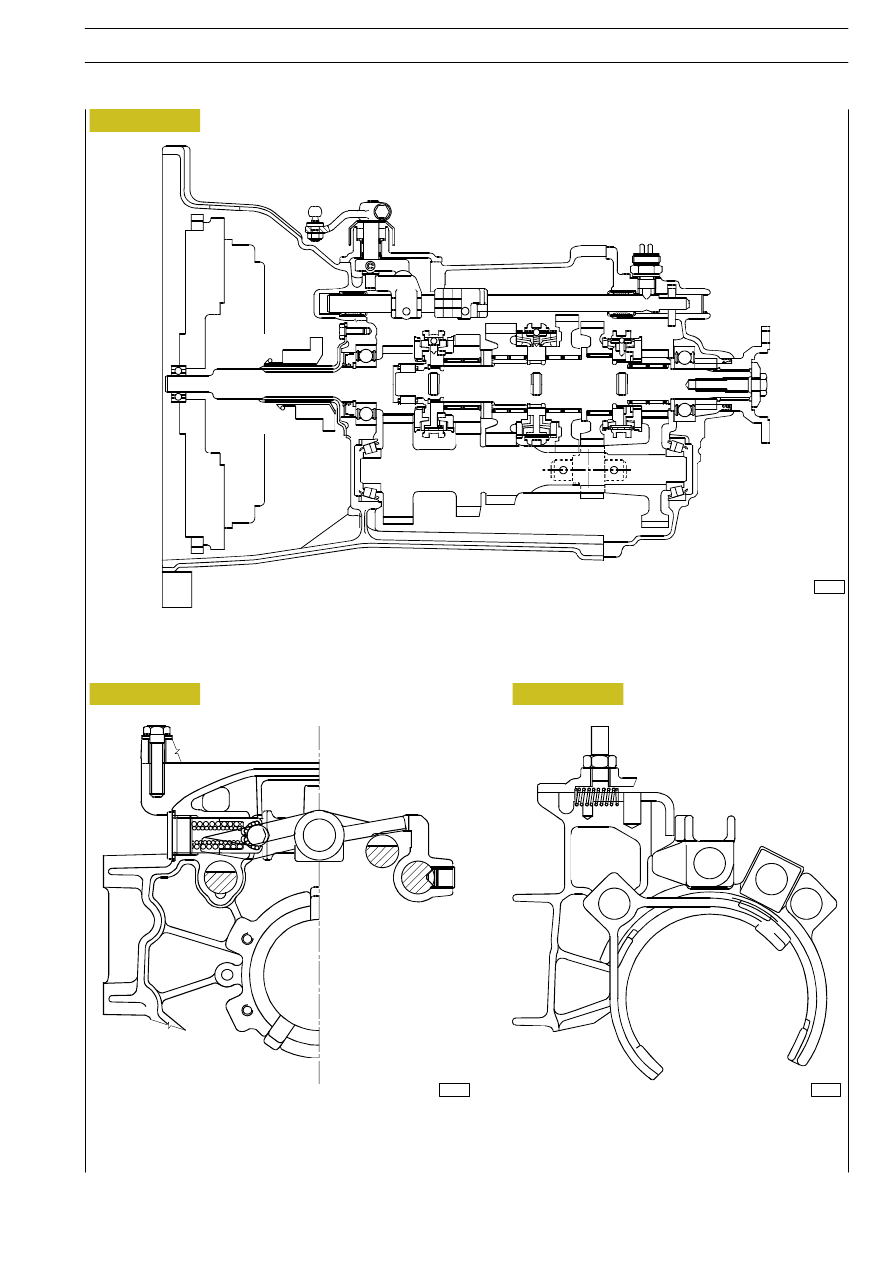

TRANSVERSE SECTION ON THE REVERSE GEAR

ANTI-ENGAGEMENT DEVICE

TRANSVERSE SECTION ON THE GEAR

SELECTION/ENGAGEMENT ROD

POSITIONING PUSH ROD

Figure 8

75420

LONGITUDINAL SECTION

Revi - February 2005

5 S 200 - 5 S 270 - 5 S 300 - TRANSMISSIONS

21

D

AILY

49368

49364

Figure 11

Figure 12

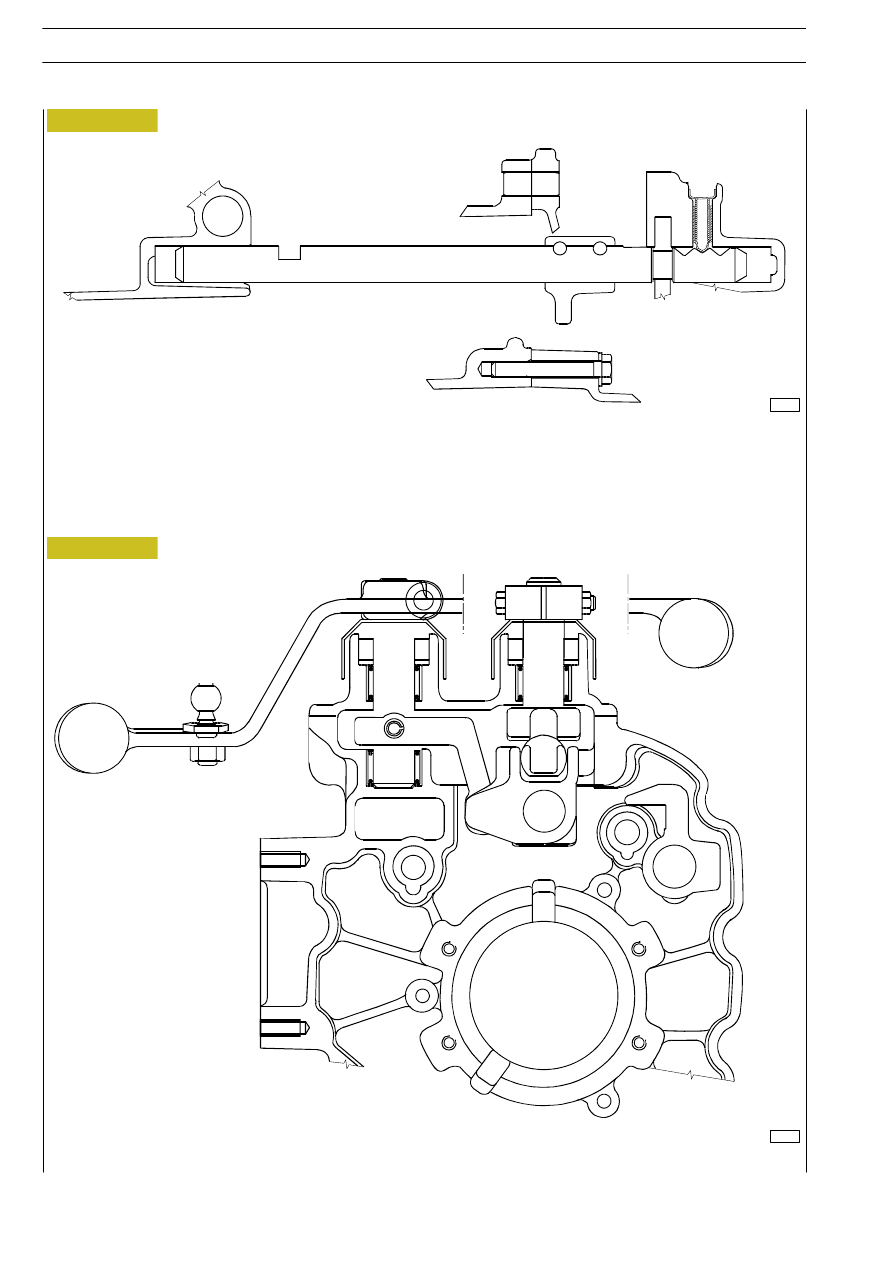

TRANSVERSE SECTION ON INTERNAL CONTROL BOX

SECTION ON GEAR ENGAGEMENT ROD POSITIONING PAWLS

Revi - February 2005

22

5 S 200 - 5 S 270 - 5 S 300 - TRANSMISSIONS

D

AILY

Base - May 2004

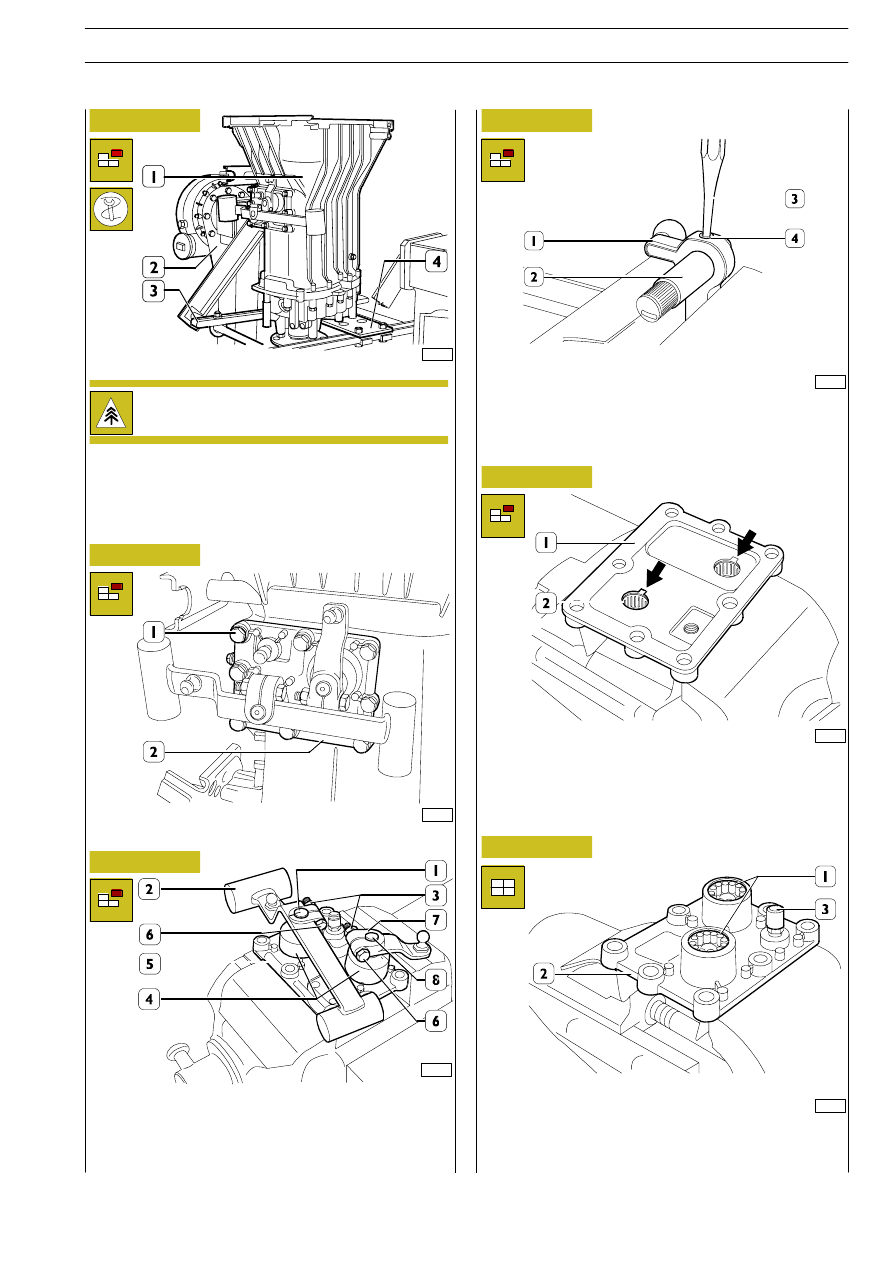

Fit the gearbox (1) with the bracket 99371057 (4) and secure
this to the brackets 99322225 (3) on the rotary stand
99322205 (2).

74954

51384

51383

51385

51386

51387

Figure 13

Figure 14

Figure 15

Figure 16

Figure 17

Figure 18

Take out the fixing screws (1) and remove the gear control box (2).

Mark the assembly position of the levers (2 and 7) on their
respective shafts (1 and 8). Loosen the nuts (3) for the
retaining screws (6).
Extract the levers (2 and 7) from the shafts (1 and 8) and
extract these from the box (5). Take off the caps (4).

With a punch (3), remove the spring pin (4) and extract the
shaft (2) from the internal lever (1).
Repeat these steps for the other shaft.

Use a punch on the point shown by the arrow and eject the
O-rings and roller bushes (2) from the box (1).

Assembly

Thoroughly clean the oil vapour vent (3).
With a suitable punch, mount the roller bearings (1) in the box
(2).

530220

Gear control box

Disassembly

Remove the plug and drain off the lubricating oil.

The used oil must be disposed of according to the law
in force.

Revi - February 2005

5 S 200 - 5 S 270 - 5 S 300 - TRANSMISSIONS

23

D

AILY

530210

OVERHAULING THE TRANSMISSION
