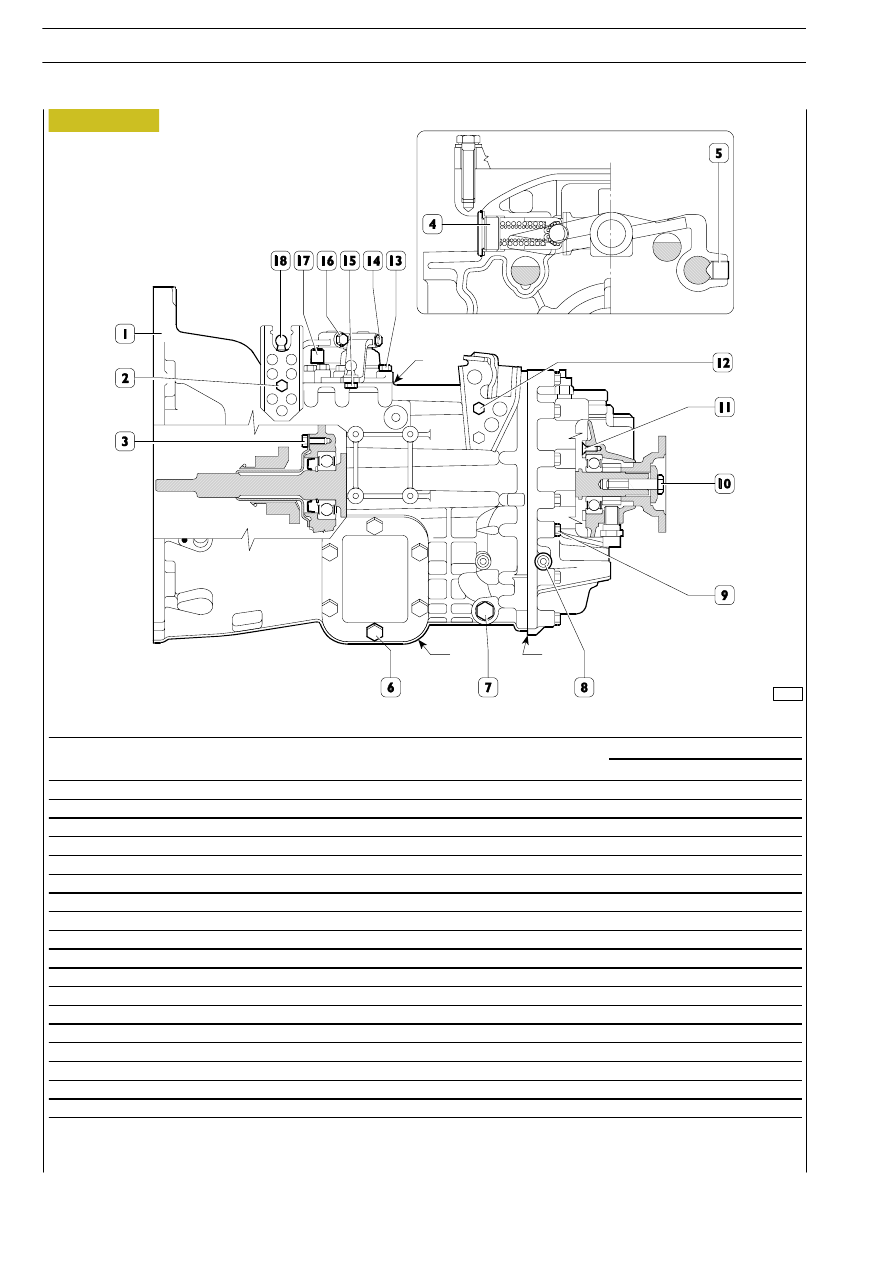

Figure 7
*
*
*
Revi - February 2005
16
5 S 200 - 5 S 270 - 5 S 300 - TRANSMISSIONS
D
AILY
Base - May 2004
DESCRIPTION
TORQUE
DESCRIPTION
Nm
kgm
1
Clutch housing, screw to fasten clutch housing to chassis
80
8
2
Screw to fasten clutch housing to box
23
±15%
2.3
±15%
3
Constant mesh shaft cover fastening screw
23
±15%
2.3
±15%
4
Spring retaining plug
32
±10%
3.2
±10%
5
Grub screw securing gear selection sector to rod
60
±15%
6
±15%
6**
Screw securing p.t.o. side cover
46
±15%
4.6
±15%
7
Plug
28
÷ 30 ±15% 2.8 ÷ 3 ±15%
8
Screw securing reverse gear shaft
22
±15%
2.2
±15%
9
Screw securing rear cover
23
±15%
2.3
±15%
10
Screw locking sleeve for transmission coupling on main shaft
120
±15%
12
±15%
11D
Screw securing ball bearing retaining ring
9.5
±15%
0.9
±15%
12
Screw securing control cable bracket
23
±15%
2.3
±15%
13
Screw securing gear control mounting
23
±15%
2.3
±15%
14
Nut for screw securing lever to control rod
34
±15%
3.4
±15%
15
Nut securing articulation pin to control lever
23
±15%
2.3
±15%
16
Nut for screw securing lever to control rod
34
±15%
3.4
±15%
17
Oil vapour breather
10
±15%
1
±15%
18
Nut to secure articulation pin to control lever
23
±15%
2.3
±15%
*
Spread LOCTITE 5206 sealant on the contact surfaces
D
Spread LOCTITE 242 on the thread
** Spread LOCTITE 510 on the thread
