Iveco Daily Euro 4. Manual - part 231





8

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

E

URO

4

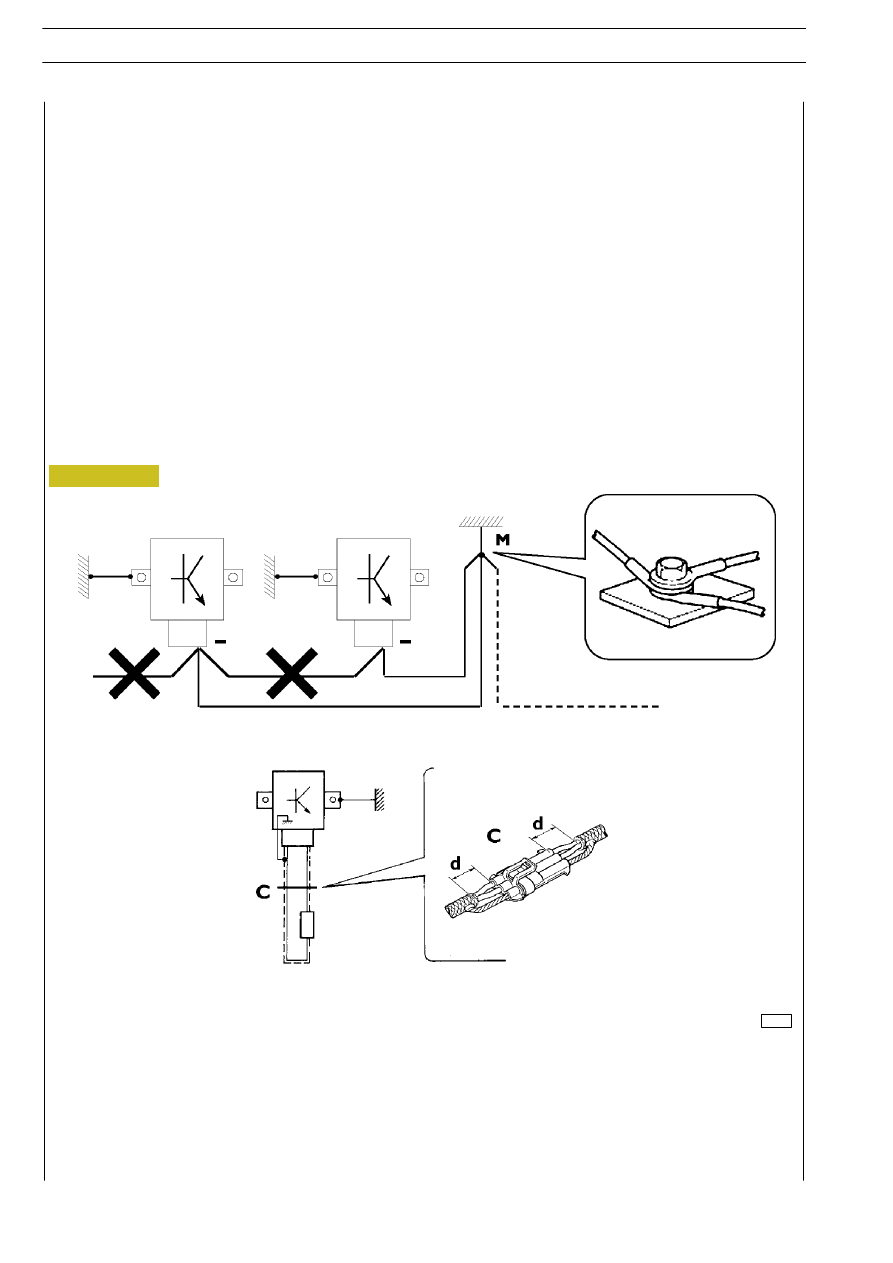

The negative cables connected to an earth point must be as short as possible and connected to one another in a ”star” connection,
trying to tighten them neatly and adequately.

Additionally, for electronic components the following instructions should absolutely be followed:

- Electronic control units must be connected to the system earth when they have a metal container.

- The negative cables of electronic control units must be connected to both a system earth point, for example the dashboard

earth (avoiding ”serial” or ”chain” connections), and to the negative terminal of the battery/ies.

- Though they are not connected to the system earth/battery negative terminal, analogue earths (sensors) must be perfectly

insulated. Therefore, particular care should be given to the parasite resistances of the terminals: oxidation, clinching defects,
etc.

- In the presence of jointing connectors the unscreened section d, near them, should be as short as possible.

- The cables should be laid on parallel with the reference plane, i.e. as near as possible to the frame/body structure.

- Additional electromechanical systems should be carefully connected to the system earth and must not be set at the side

of the cables of electronic components.

SCREENING BY METAL BRAID OF A CABLE TO AN ELECTRONIC COMPONENT

C. Connector - d. Distance ! 0

Figure 2

88039

ELECTRIC/ELECTRONIC SYSTEM

9

D

AILY

E

URO

4

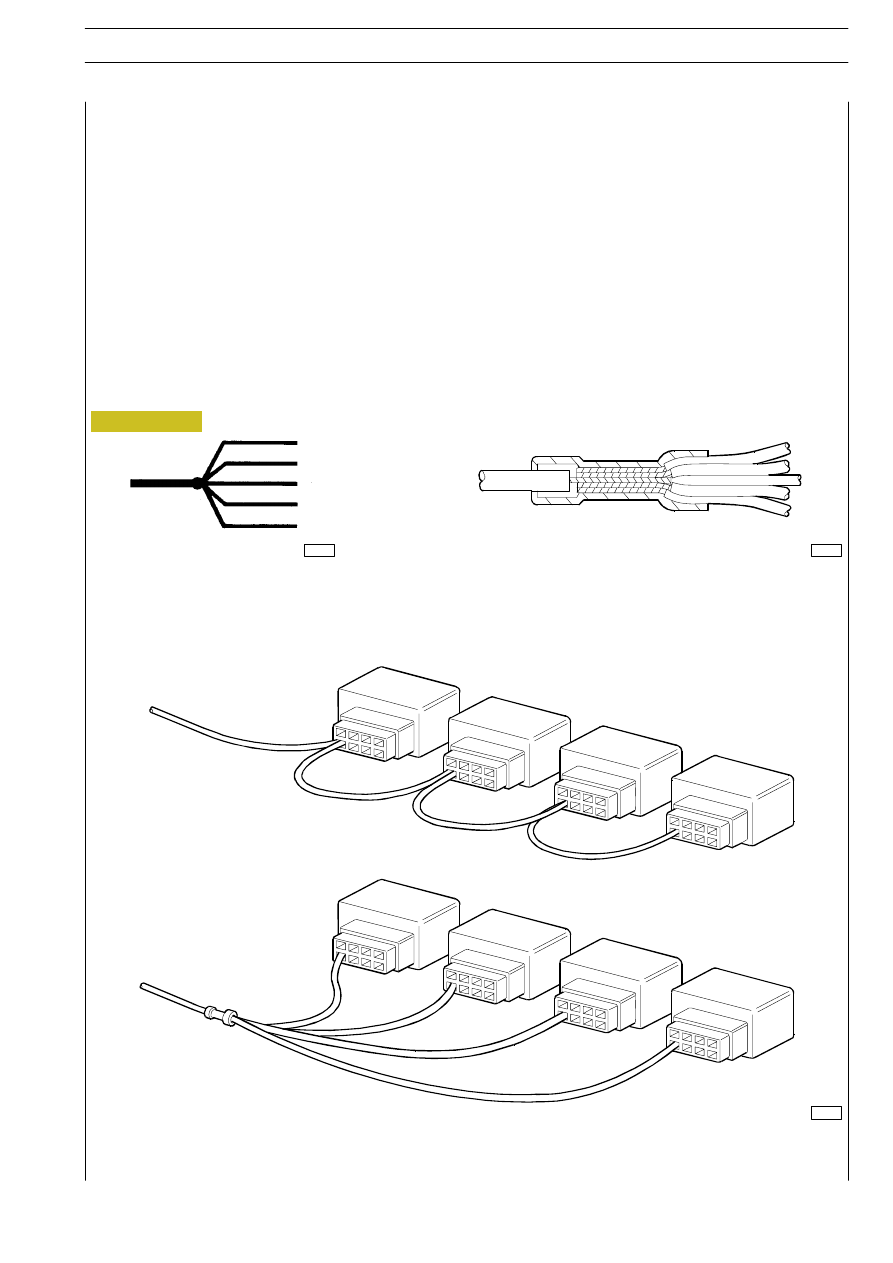

In order to eliminate earth, supply, outer/inner lighting bridges between components, ultrasonic welding points have been used.

These are not easily identifiable as they appear along the cables inside the corrugated tube of the various harnesses and they are
isolated from the cables through heat-shrinking sheaths or insulating plastic.

Generally, the cables of the components converge on one side in the different welding points, while on the other only one cable
connects them with the earth or supply.

It is also possible to have several welding points connected to one another in which several cables converge on both sides of
the welding. In this case, the earth or supply cable will be connected to the last weld of the series.

Ultrasonic welding brings considerable advantages, including:

- reduction of electromagnetic interference outside the vehicle

- the almost total reliability of the electric system, due to elimination of the bridges, with lower possibility of faults.

ULTRASONIC WELDING

A. Wiring diagram - B. Technical layout

CONNECTION BETWEEN COMPONENTS

A. Connection through bridges - B. Connection through ultrasonic welding point

B

A

B

A

Figure 3

4886

8576

8577

10

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

E

URO

4

03000

Self-rectifying alternator with built in voltage regulator

08000

Starter motor

12006

Motor for adjustable mirrors

12010

Motor for locking right door

12011

Motor for locking left door

12012

Compressor for air conditioning system

12025

Power takeoff motor

12026

Motor, winch control

12027

Motor for opening or closing left side door lock

19005

Thermal starter

19010

Heater plug

20000

Starter battery

22001

Horn

22039

Bell for parking lights on signal

25003

Relay for switching on fog lights

25006

Brake lights relay

25014

Relay for enablement of parking lights with engine off

25023

Relay for disconnection of low beam lights with parking lights on

25104

Relay for switching off Retarder with ABS engaged

25209

Relay for switching off services during starting

25222

Relay for allowing connection of thermal starter

25223

Relay for allowing connection of thermal starter fuel tank with atmosphere

25307

Relay for controlling air conditioning compressor

25336

Relay for engine cooling electromagnetic joint

25337

Relay for disconnecting air-conditioning system compressor

25340

Relay, compressor operation, signal to EDC

25620

Relay for fuel filter clogged signal

25704

Relay for switching NC/NO signal for third steering axle

25705

Relay for enabling point switching on

25810

Relay for controlling diesel heating circuit

25811

Ignition timer relay (KSB)

25818

Relay for switching on heated windscreen

25837

Relay for connection of fuel pump

25858

Relay for EDC connection

25926

Relay for enablement of suspension lifting and stopping of suspension lowering function

25927

Relay for enablement of suspension lowering and stopping of suspension lifting function

25928

Relay, rear window heating

28002

Engine stopping electromagnet

30003

Multifunctional side headlight

30011

Fog light

32002

Front direction indicator

33001

Side direction indicator

33004

Side marker lamp

34000

Multifunctional rear light

34007

Stop light

34009

Rear fog lamp

35000

Number plate light

37001

Front dimensions light

39020

Ashtray light

39022

Courtesy light for cabin interior with adjustable spot light

ELECTRIC/ELECTRONIC SYSTEM

11

D

AILY

E

URO

4

Lamp for lighting rear hatch

39026

Lamp for lighting side hatch

40011

Electronic tachograph

40030

Sender unit for electronic tachometer

40031

Sender unit for electronic tachograph

40046

Inductive type chassis height sensor (rear axle)

42035

Absolute pressure sensor

42102

Switch signalling handbrake applied

42350

Switch signalling body tilted

42351

Switch signalling air filter blocked

42354

Switch for air suspension system failure

42374

EDC clutch switch

42550

Switch signalling engine oil pressure

42552

Fuel filter clogged indicator switch

42608

Coolant pressure signalling 3-switch assembly

44031

Sender unit, fuel level indicator with w/lamp contact

44033

Insufficient brake fluid level gauge control

44036

Insufficient radiator coolant level gauge control

44037

Insufficient power assisted steering fluid level gauge control

44044

Engine oil low level indicator control

47034

Engine coolant temperature sensor (EGR)

47035

Engine coolant temperature sensor

47104

Switch for engaging engine cooling electromagnet coupling

47106

Switch for engaging diesel fuel heating

47109

Switch for connection of ignition timer (KSB)

47207

Switch/sender unit, engine water temperature indicator

48035

Engine rpm sensor

48042

Engine rpm sensor (on timing gear)

52005

Switch with built in w/l for heated rear view mirrors

52036

Switch with built in w/l for engaging windscreen heater

52082

Switch with built-in w/lamp, fog lights

52083

Switch with built-in w/lamp, hazard lights

52084

Switch with incorporated warning light for switching on rear differential lock

52090

Suspension levelling switch (ECAS)

52091

Switch with incorporated warning light for switching on rearscreen heating

52093

Switch for tail hatch locking safety

52310

Switch for adjustable mirrors

52312

Switch controlling headlamp alignment adjustment

52502

Ignition switch for services with starting

53004

Switch for headlamp washer

53041

Switch for checking EDC system

53051

Suspension lifting switch

53052

Suspension lowering switch

53300

Switch for driver’s side electric window

53302

Switch for passenger side electric window

53501

Switch signalling vehicle stopped

53503

Switch signalling reversing lights

53505

Rear differential lock engaged indicator switch

53509

Switch for switching on interior lights

53565

Switch for signalling brake pedal fully pressed

53590

Switch for bonnet open signal
