Isuzu N-Series. Manual - part 938





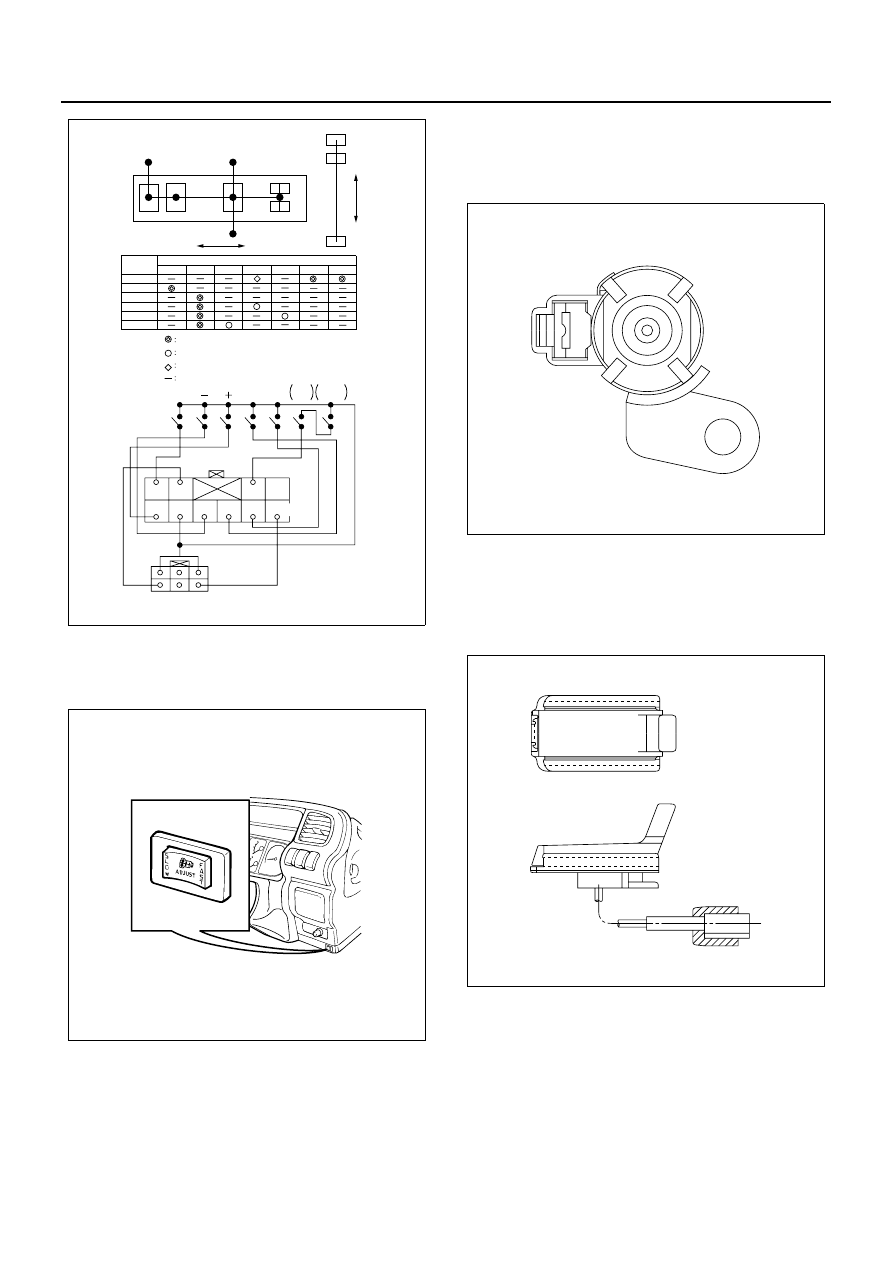

Transmission Control System (Smoother) 7A-207

Half-clutch Adjustment Switch

The half-clutch adjustment switch is used to adjust the
half-clutch point.

Geagshift clutch Solenoid Valve

The gearshift clutch solenoid valve is installed in the oil
pump. It operates during shifting, and when the gearshift
clutch is engaged or disengaged.

Door Switch

The door switch is used to detect the door open/closed
condition. The transmission control module (TCM)
interprets the condition when the door switch is on
(contact closed) as door open.

Economy Mode Indicator Lamp

When the economy mode switch is “ON” during
automatic shifting, the lamp lights. The lamp is out in the
normal mode.

R

7

N

D

A

1

2

3

+

+

-

R

-

5

4

6

R

1

2

3

4

5

6

7

N
D

+

-

A

Economy mode switch
& 1st gear start switch

GND

+

-

D

N

1

4

2

5

3

6

(A)

(

)

(

)

(D)

(N)

Select

Position

Circuit CLOSE (Switch ON)

Circuit CLOSE momentarily (Switch ON)

Switch ON when there is continuity

Circuit OPEN (Switch OFF)

Select

R

Shift

R

A

1st gear

start

R

Shift

Economy
           mode

N7A2016E

N7A2008E

N7A2024E

N7A2029E

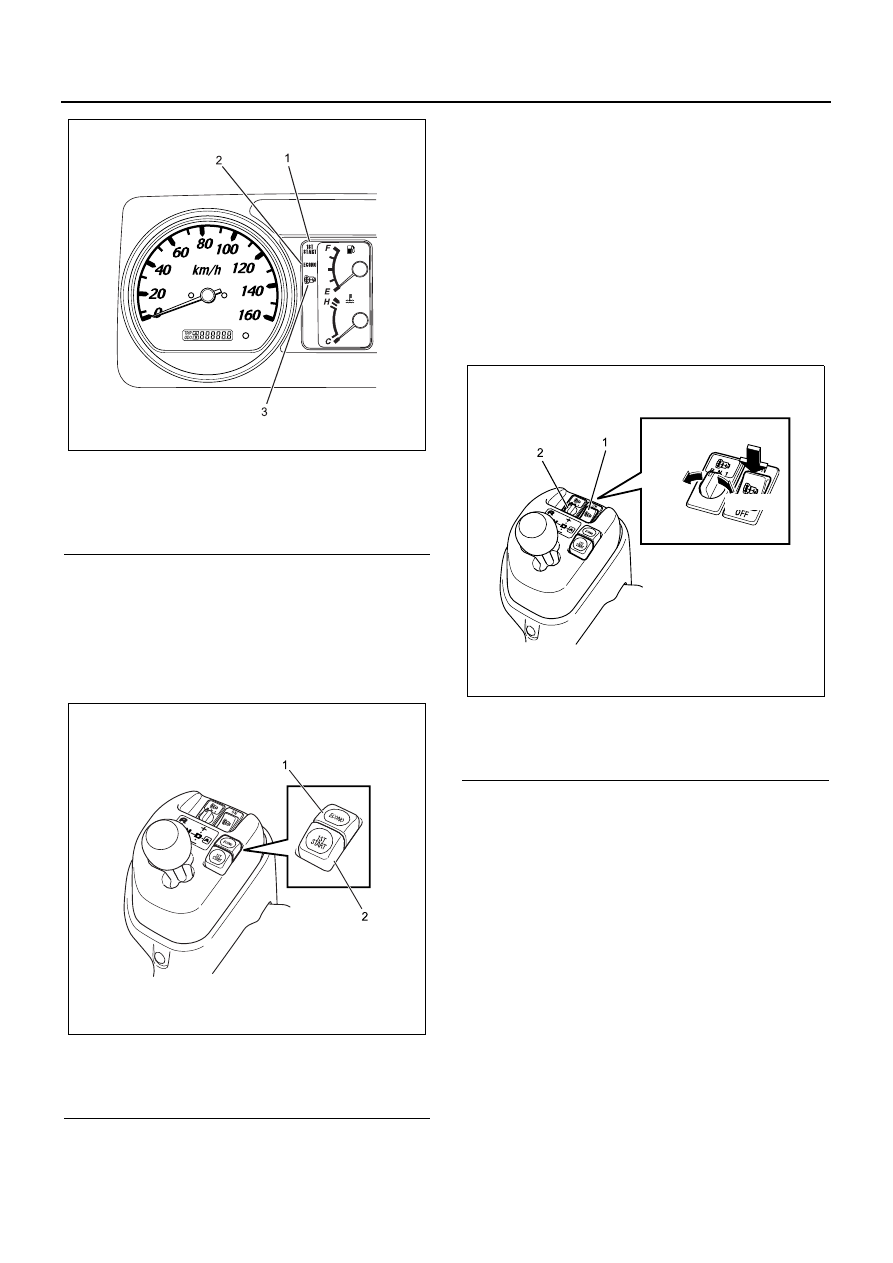

7A-208 Transmission Control System (Smoother)

Economy Mode Switch

Automatic shift control characteristics are switched by
the switch position. If you want to conserve fuel while
running in the normal mode, press the switch to change
to the economy mode. In the economy mode, the shift
timing is earlier than in the normal mode.

Emergency Shift Switch

The emergency switch is used when there is a problem
with the Smoother system. When the emergency switch
is ON, the emergency shift switch can be operated to
shift gears to R, N, or 1.

Emergency Switch

The emergency switch is used when there is a problem
with the Smoother system. Normally the emergency
switch should be left in the OFF position. Turning on the
emergency switch allows the engine to be started
regardless of the transmission gear position, and
enables the emergency shift switch.

Legend

1. 1st Gear Start Indicator Lamp
2. Economy Mode Indicator Lamp
3. Transmission Warning Lamp

Legend

1. Economy Mode  Switch
2. 1st Gear Start Switch

N7A2011E

N7A2012E

Legend

1. Emergency Switch
2. Emergency Shift Switch

Backward

Forward

N7A2013E

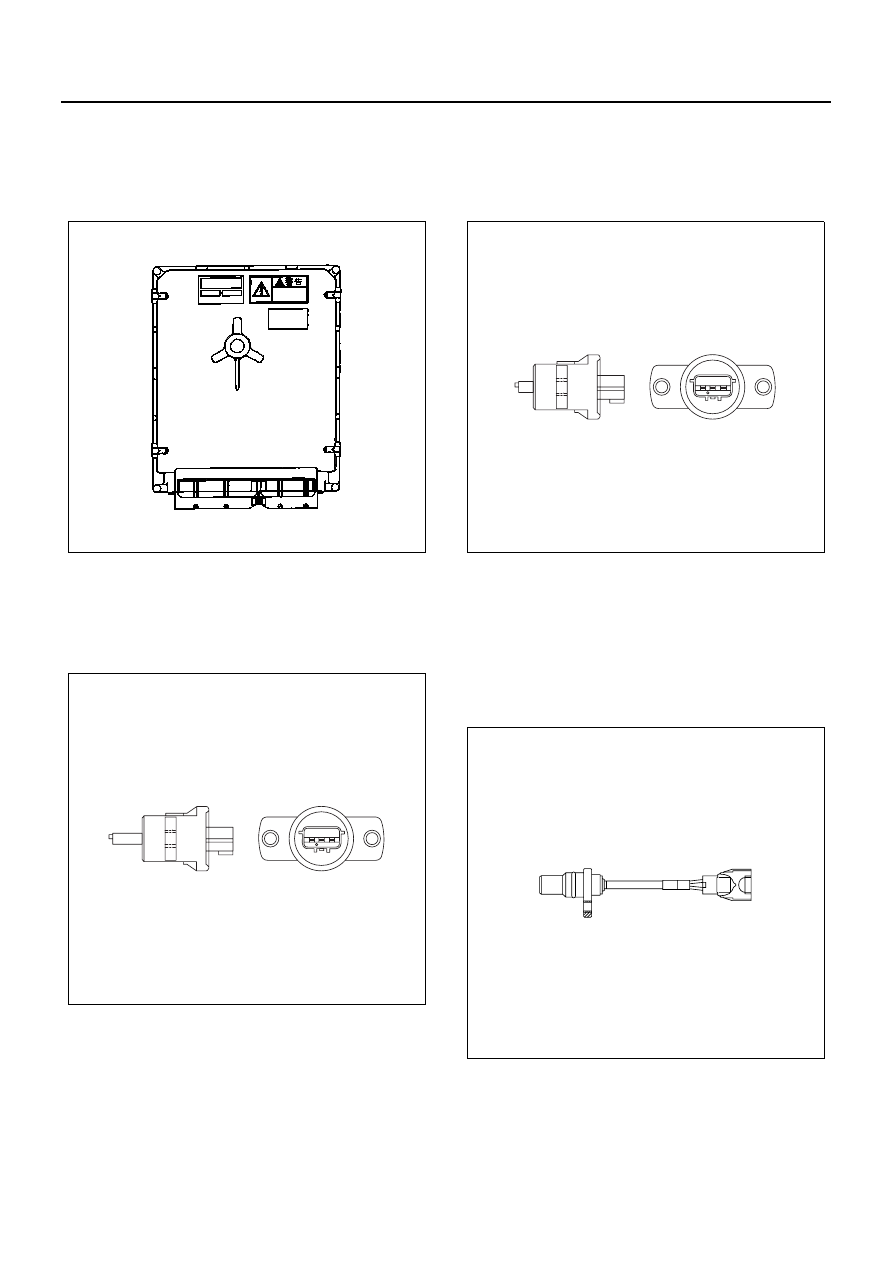

Transmission Control System (Smoother) 7A-209

Engine Control Module (ECM)

The engine control module (ECM) uses CAN
communication to send and receive engine speed,
accelerator opening angle, vehicle speed, and switch
signals.

Gear Select Position Sensor

The gear select position sensor uses a hall IC type
sensor to detect the shift stroke of the T/M installed in
the shift control box, and outputs to the transmission
control module (TCM).

Gear Shift Position Sensor

The gear shift position sensor is the hall IC type sensor
and is installed to shift control box. It detects the shift
stroke amount of T/M and outputs to transmission
control module (TCM).

Input Shaft Speed Sensor

The input shaft speed sensor is a pickup type sensor
installed in the transmission, which generates a signal
when it is passed by the input shaft pulser. The input
shaft speed sensor signal is used for gear shift control
(lockup control, clutch control, etc.) based on signals
input from the turbine speed sensor, vehicle speed
sensor, etc.

N7A2030E

N7A2020E

N7A2019E

N7A2022E

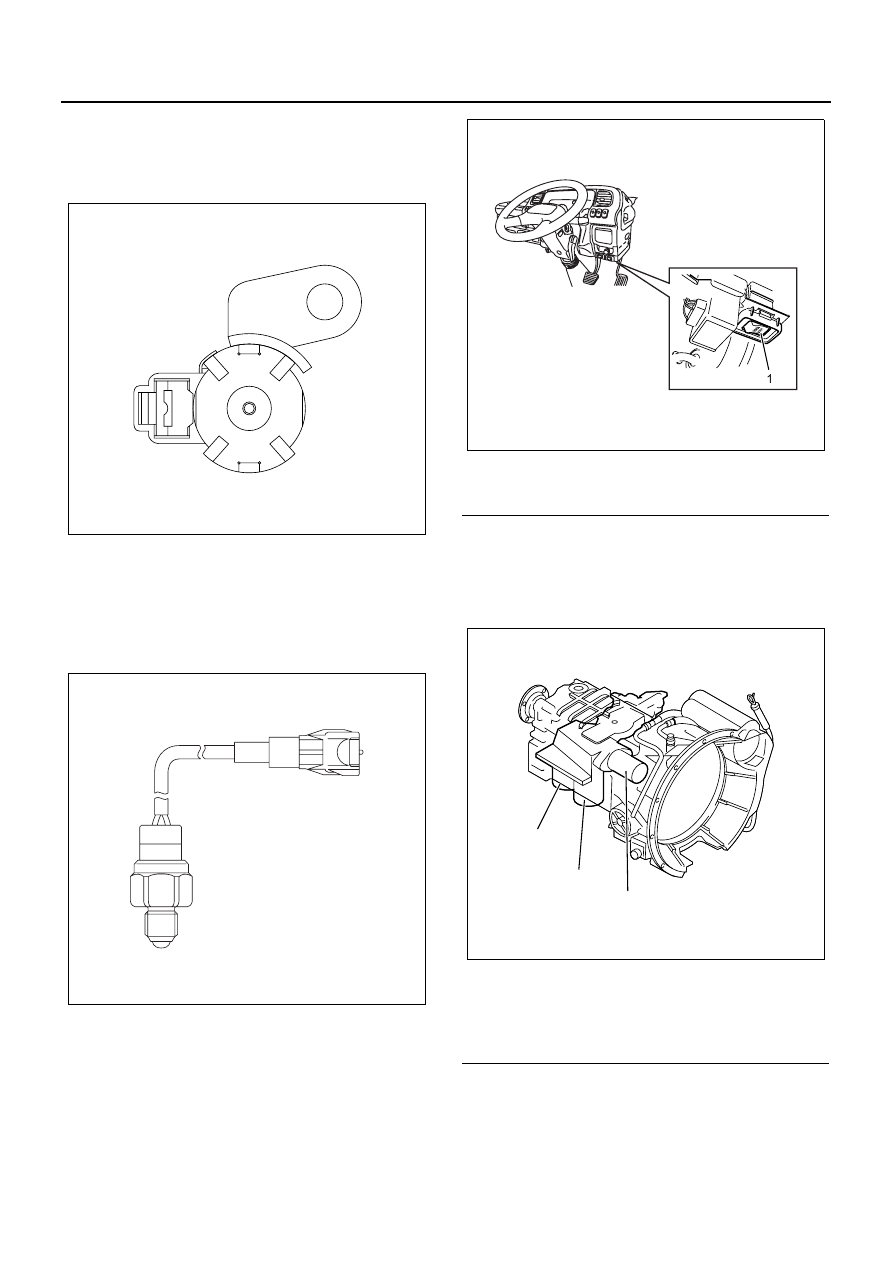

7A-210 Transmission Control System (Smoother)

Lock up Clutch Solenoid Valve

The lock up clutch solenoid valve is installed in the oil
pump. It operates in response to engine speed and fluid
coupling operation.

Neutral Switch

The neutral switch is installed in the gearshift control
box, and it used to detect when the transmission is in
neutral. The transmissin control module (TCM)
interprets the condition when the neutral switch is on
(contact closed) as neutral gear.

Reset Switch

The reset switch is used during transmission position
learning and clutch position learning, or to clear DTC/
Smoother learning values.

Select Solenoid Valve

This select solenoid valve is installed in the gearshift
control box. The shaft inside the solenoid operates
during shifting and the select operation is performed.

Gearshift Control Box

The gearshift control box has shift solenoids (two), a
select solenoid (one), a gear shift position sensor, and a
gear select position sensor, and performs shift
operations (control) in accordance with signals from the
transmission control module (TCM).

N7A2025E

N7A2027E

Legend

1. Reset Switch

Legend

1. 1-3-5 Shift Solenoid Valve
2. 2-4-6-R Shift Solenoid Valve
3. Select Solenoid Valve

N7A2014E

2

3

1

N7A2021E
