Transmission Control System (Smoother) 7A-203

9.5.Select Service Programming System.
9.6.Select the Program TCM on the Tech 2.
9.7.Follow the on-screen instructions and select

Continue.

9.8.Programming in Process will appear until the

progress bar reaches 100%.

Important:
Some warning lamp may turn ON or blink while
programming the TCM since communication between
the TCM and other modules are interrupted. Clear DTC
in any module after programming.

9.9.Select Continue and exit the program after the

Tech 2 displays Programming Was Successful.

10. Turn OFF the ignition.
11. Turn OFF the Tech 2.
12. Disconnect the Tech 2 from the vehicle.

Service Programming System (SPS) (Pass-
Thru Procedure)

Pass-Thru programming allows the Tech 2 to remain
connected to the terminal and to the vehicle throughout
the programming process. The vehicle must be in close
proximity to the terminal while using Pass-Thru.

Important:
The TIS supports service programming with the Tech 2
scan tool only.

1. Launch the TIS application at the terminal.
2. Select the Service Programming System at the

main screen.

3. Highlight the following information on the Select

Diagnostic Tool and Programming Process
screen:

• Select Diagnostic Tool-Select Pass-Thru
• Select Programming Process-Identify whether

as existing transmission control module (TCM)
is being reprogrammed or a TCM is being
replaced with a new one.

• Select TCM Location-Select Vehicle.

4. Select Next.
5. Complete all vehicle data on the Preparing for

Communication/Determine Vehicle screen until
Next is highlighted.

6. Select Next.
7. Follow the instruction on the Preparing for

Communication screen.

Important:
In order to reduce the potential for signal loss, the RS-
232 cable should not be more than 25 feet long.

8. Select Next.
9. Verify the VIN on the Validate Vehicle Identification

Number (VIN) screen and select Next.

Important:
If the TCM is replaced to new one, VIN does not
displayed. Input correct VIN reading from stamped VIN
or affixed VIN plate on the vehicle. If the TCM from
another vehicle is installed, input correct VIN by same
way.

10. Highlight Engine on the System Type screen and

select Next, if requested.

11. Complete the following information based on the

service ID plate on the Validate Vehicle Data
screen until Next is highlighted:

• Model
• Model Year
• Engine
• System Type
• Model Designator

12. Select Next.
13. Verify your selection on the Summary screen.

Important:
Refer to Service Bulletins before service programming
is performed if the bulletins are listed along with the
calibration files.

Important:
Select Cancel if you receive a message stating that the
calibration selected is already the current calibration in
the Tech 2 and reprogramming with the same download
is not allowed.

14. Select Reprog.
15. The Transfer Data screen will appear until the

progress bar reaches 100%.

Important:
Some warning lamp may turn ON or blink while
programming the TCM since communication between
the TCM and other modules are interrupted. Clear DTC
in any module after programming.

16. Select Close on the Programming Complete

screen.

17. Turn OFF the Tech 2.
18. Disconnect the Tech 2 from the vehicle.

7A-204 Transmission Control System (Smoother)

Description and Operation

Transmission Control Module (TCM)
Description

The TCM constantly monitors the information sent from
various sensors and controls the solenoid valves and
other systems. The TCM controls the output circuits by
controlling the ground or power supply circuit through a
transistor and other devices. The TCM performs the
diagnostic function of the system, detects operational
problems of the system, warns the driver with a
Smoother warning lamp and buzzer and memorizes
DTC (diagnostic trouble codes). It also has a system
backup function when trouble occurs.

TCM and Components

The TCM is designed to provide outstanding driveability
and fuel efficiency. The TCM monitors the transmission
and other vehicle functions using operational
information it obtains via various speed sensors,
switches, magnetic (solenoid) valves, etc.

TCM Voltage Descriprion

The TCM impresses reference voltage to various
switches and sensors. The TCM is able to impress
voltage like this because the TCM resistance value is
very high, and the voltage actually applied to the circuit
is low. The test light may not light, even when it is
connected to the circuit. The voltmeter usually used in a
service shop may not indicate a correct reading because
its input impedance is too low. A digital voltmeter whose
input impedance is at least 10 M

Ω (e.g. 5-8840-2691-0)

should be used to obtain a correct voltage reading. The
input/output devices of the TCM have an analog-digital
converter, a signal buffer, a counter, a special driver,
etc. The TCM uses an electrical switch to control most
of the components.

Important:
Replacement TCM must be programmed and learned.

Transmission Control Component
Description

1st Gear Start Indicator Lamp

When the 1st gear start switch is “ON”, the lamp lights.

N7A2009E

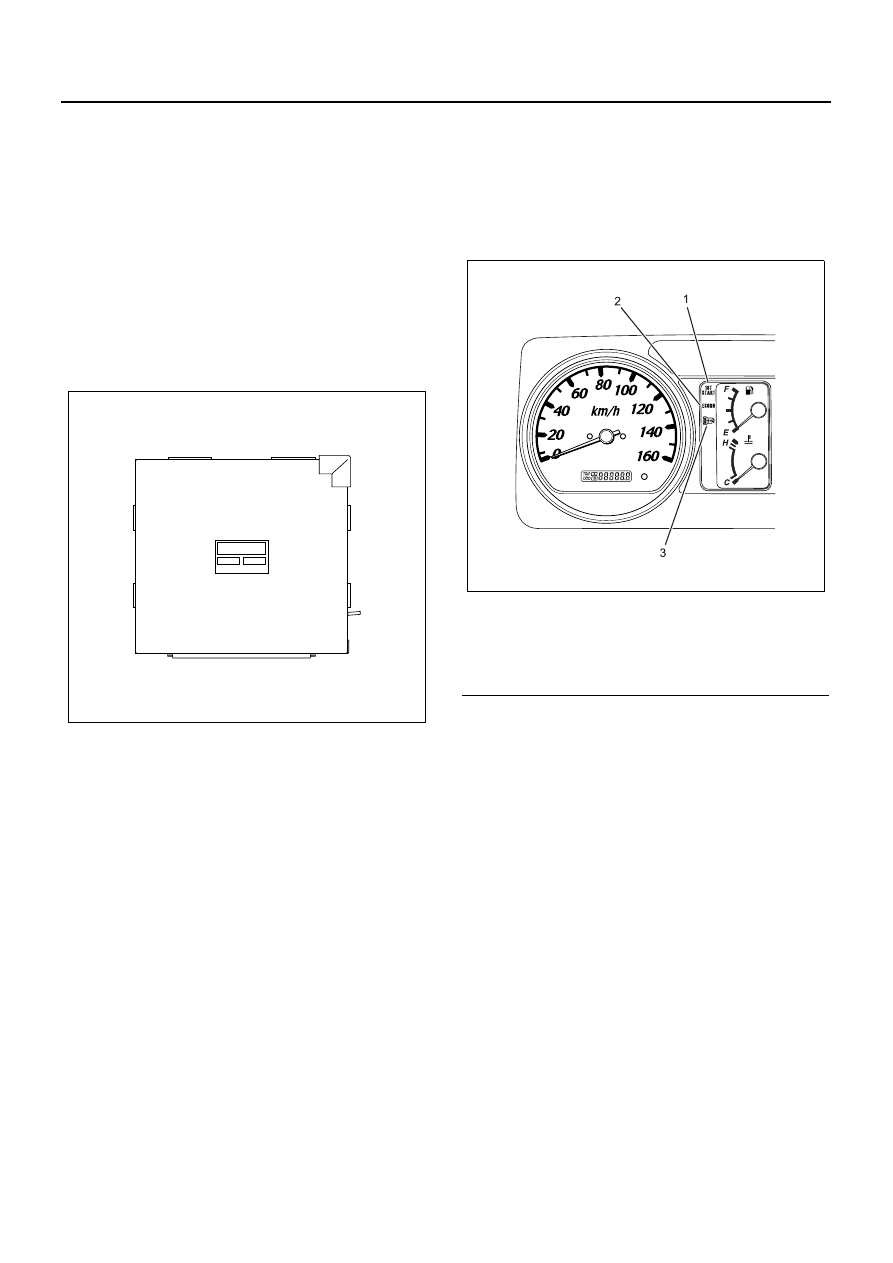

Legend

1. 1st Gear Start Indicator Lamp
2. Economy Mode Indicator Lamp
3. Transmission Warning Lamp

N7A2011E

Transmission Control System (Smoother) 7A-205

1st Gear Start Switch

Turning on the 1st gear start switch causes the normal
start gear (2nd) to change to 1st gear. This can be used
when power is required due to payload and inclines.

1-3-5 Shift Solenoid Valve

This shift solenoid valve is installed in the shift control
box. The shaft inside the solenoid operates during
shifting and the shift operation is performed.

2-4-6-R Shift Solenoid Valve

This shift solenoid valve is installed in the shift control
box. The shaft inside the solenoid operates during
shifting and the shift operation is performed.

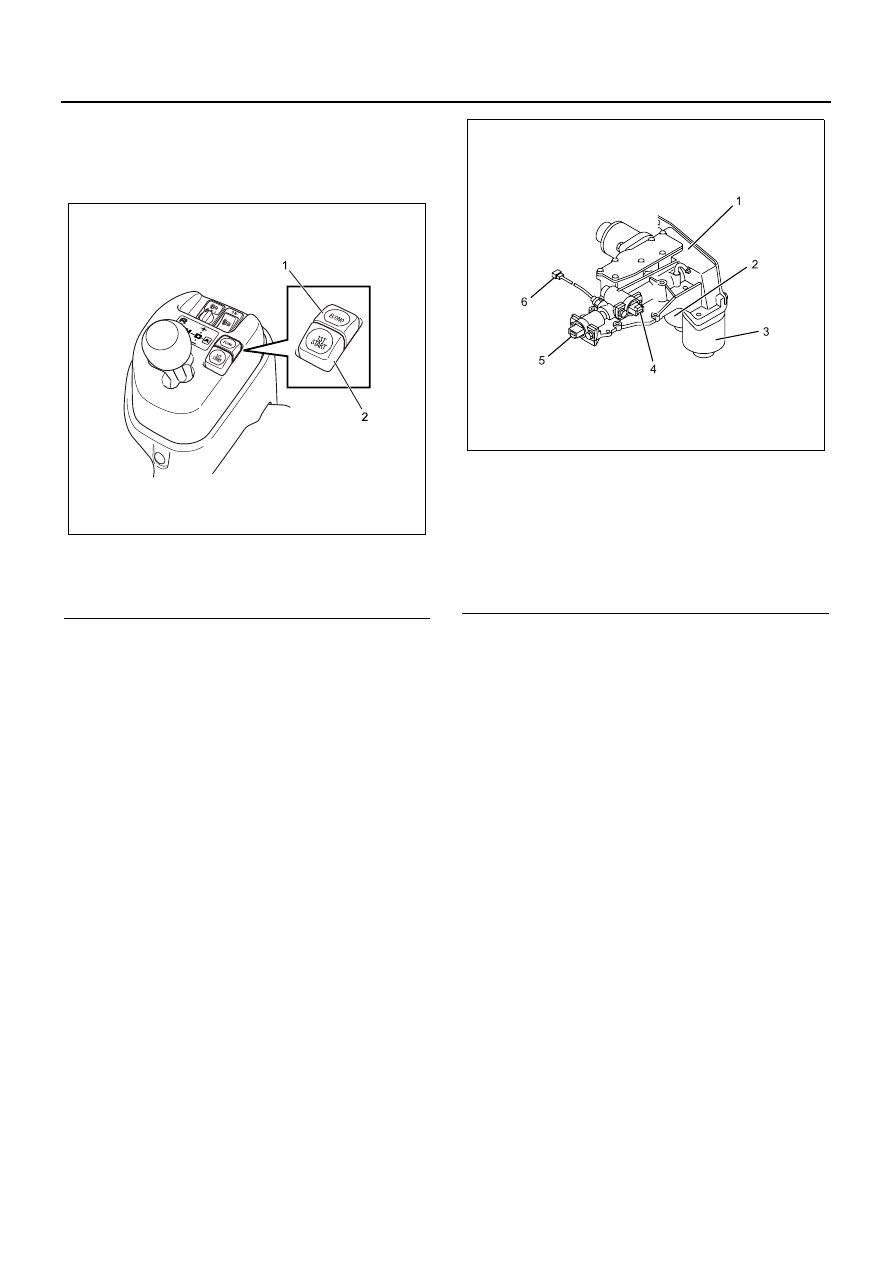

Legend

1. Economy Mode  Switch
2. 1st Gear Start Switch

N7A2012E

Legend

1. Gearshift Control Box
2. 1-3-5 Shift Solenoid Valve
3. 2-4-6-R Shift Solenoid Valve
4. Gear Select Positin Sensor
5. Gear Shift Position Sensor
6. Neutral Switch

N7A2018E

7A-206 Transmission Control System (Smoother)

Transmission Fluid Temperature (TFT) Sensor

The transmission fluid temperature (TFT) sensor is used
to detect the clutch fluid temperature inside the
transmission. Clutch fluid temperature is determined by
detecting changes in thermistor resistance.

Brake Switch

The brake switch is used to detect brake pedal
depression. The transmission control module (TCM)
interprets the condition when the brake switch is on
(contact closed) as the brake pedal being pressed.

Buzzer

The buzzer sounds when trouble is detected in the
Smoother system, when learning is being performed,
when shift control is prohibited, etc.

Selector Lever Unit

The selector lever unit is used during selector lever
operation to communicate the lever position to the TCM,
for shift control, etc. The change lever unit also has a
position detection switch built in.

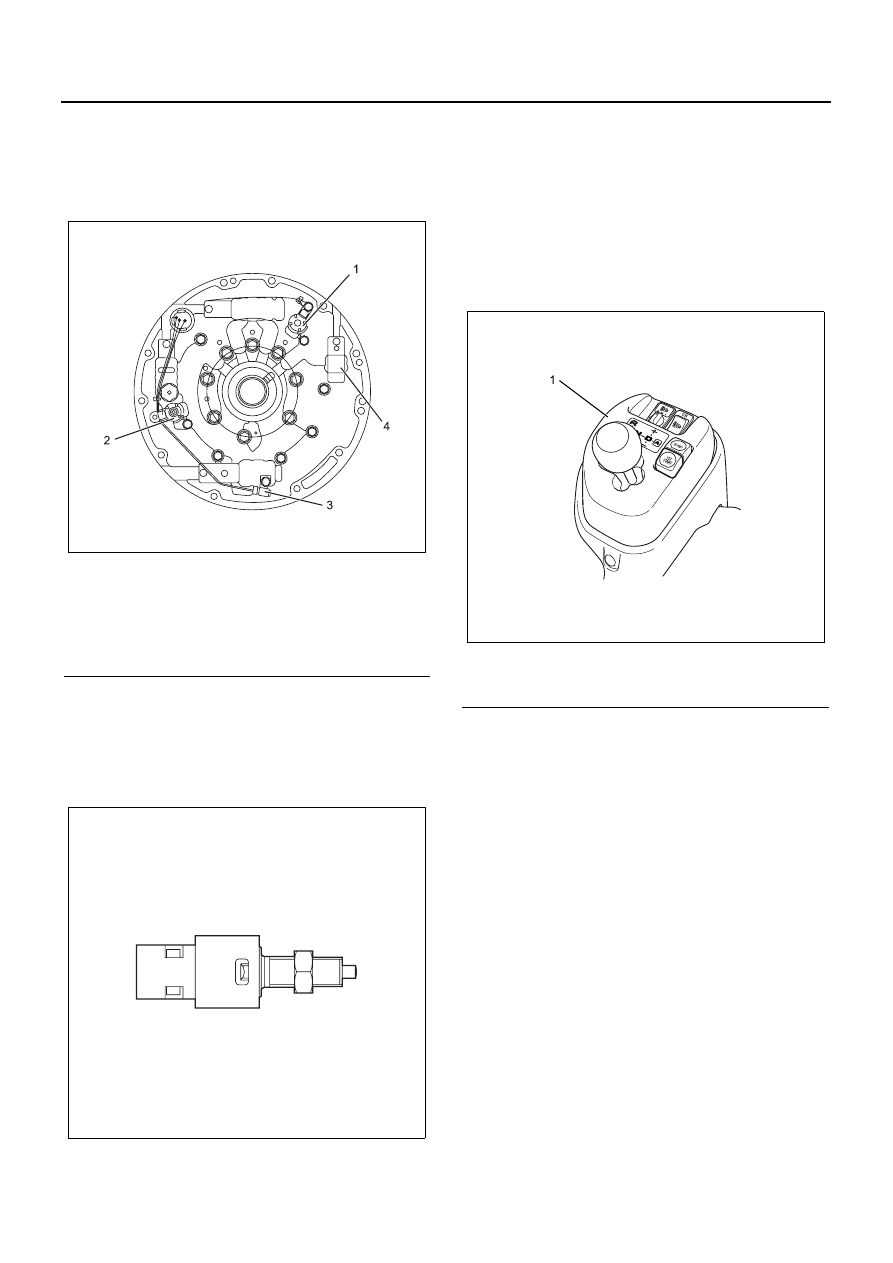

Legend

1. Lock Up Clutch Solenoid Valve
2. Gearshift Clutch Solenoid Valve
3. Transmission Fluid Temperature (TFT) Sensor
4. Bypass Valve

N7A2026E

N7A2028E

Legend

1. Selector Lever Unit

N7A2015E
