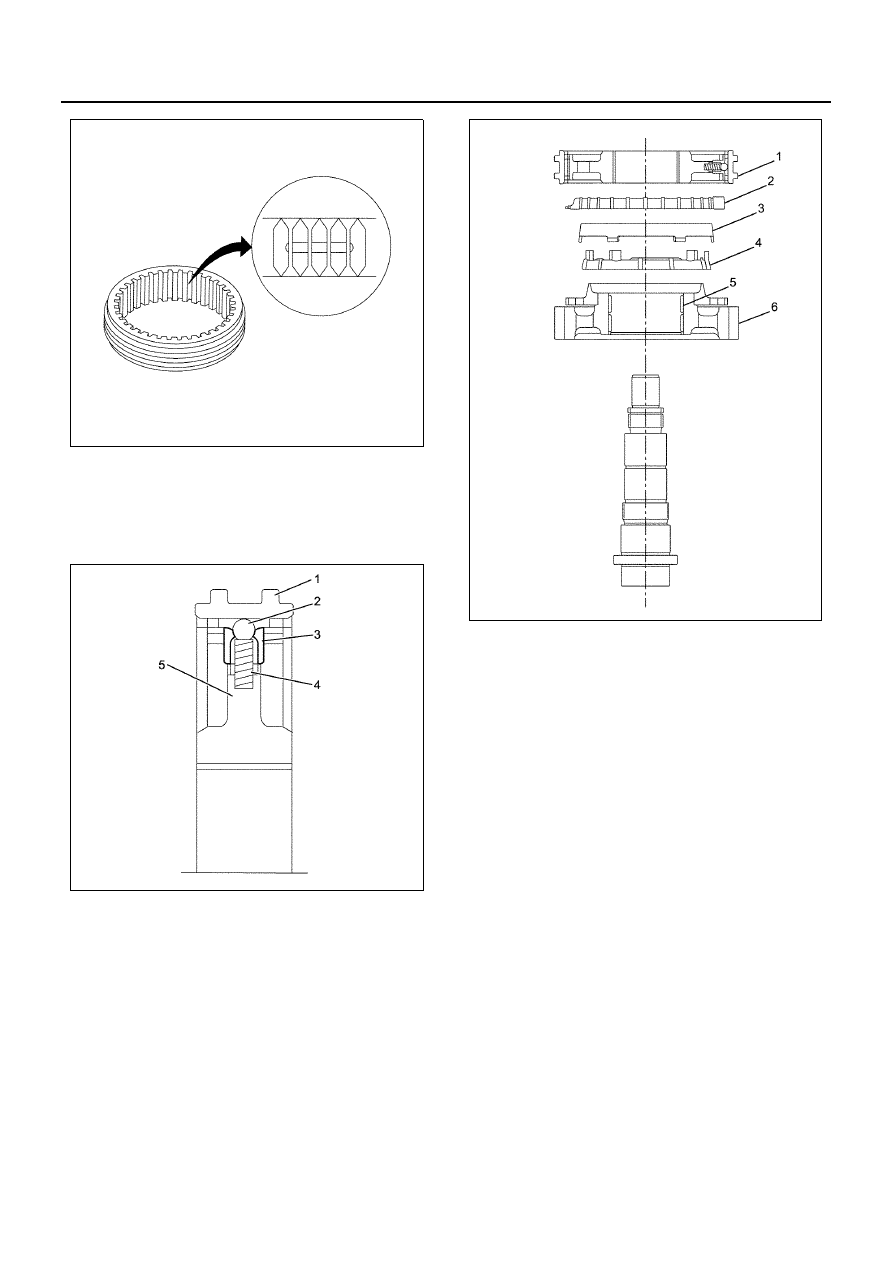

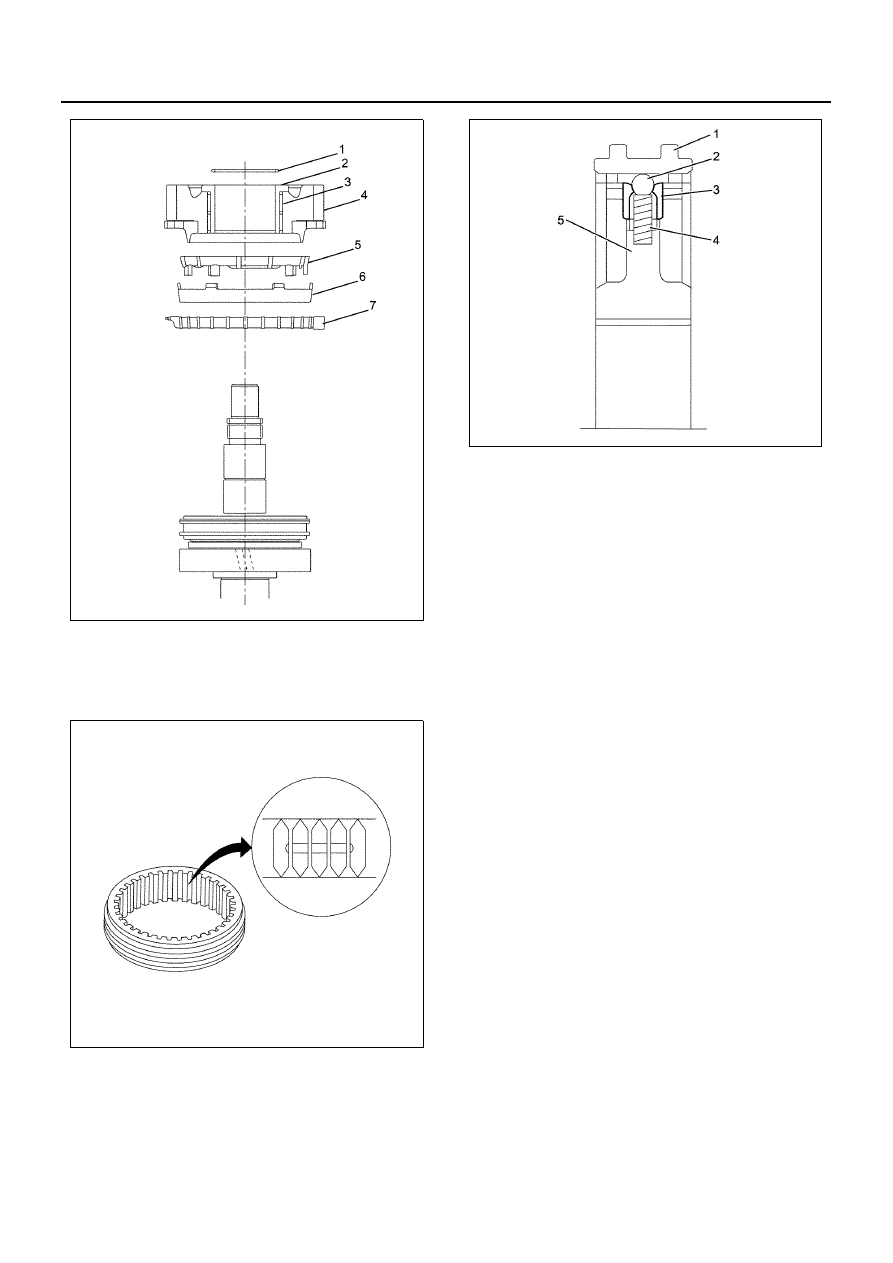

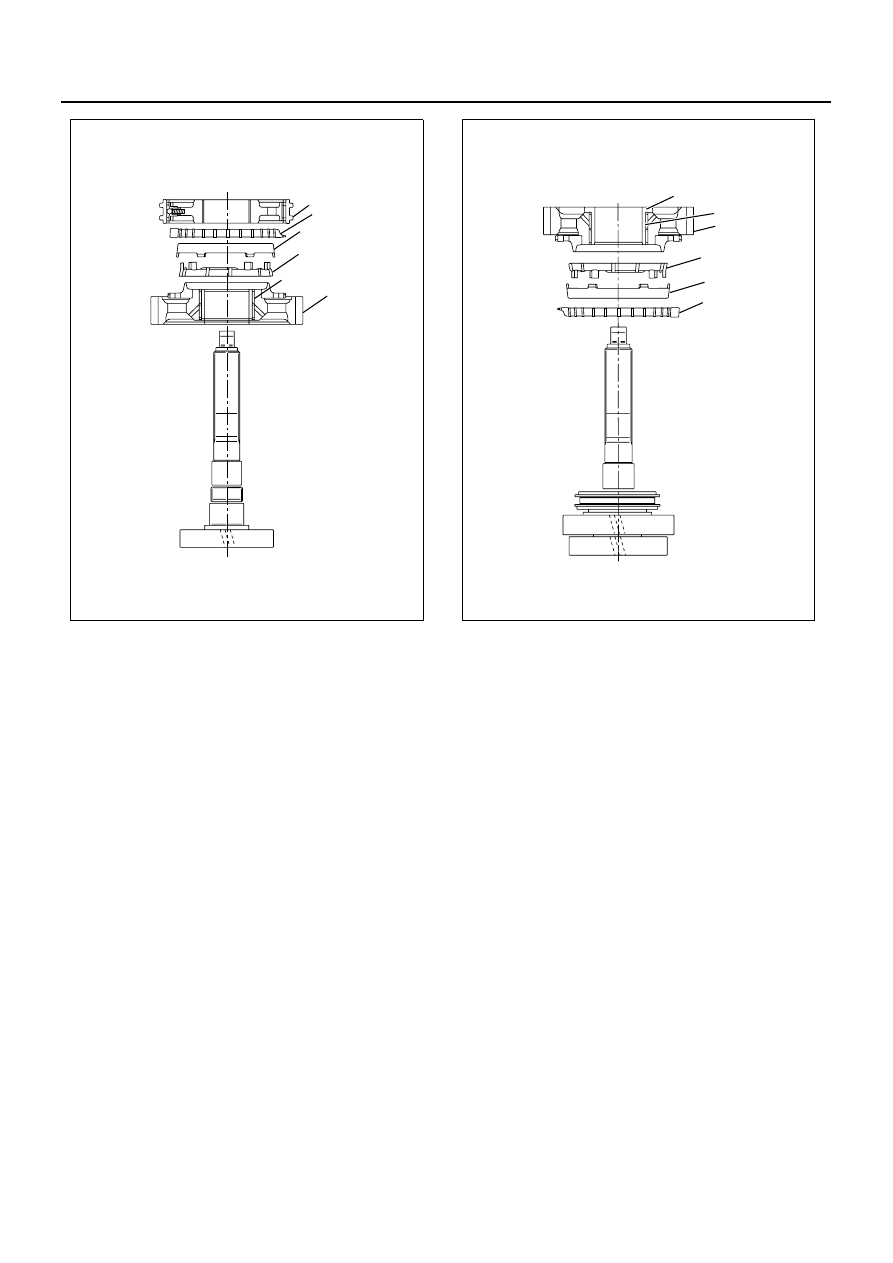

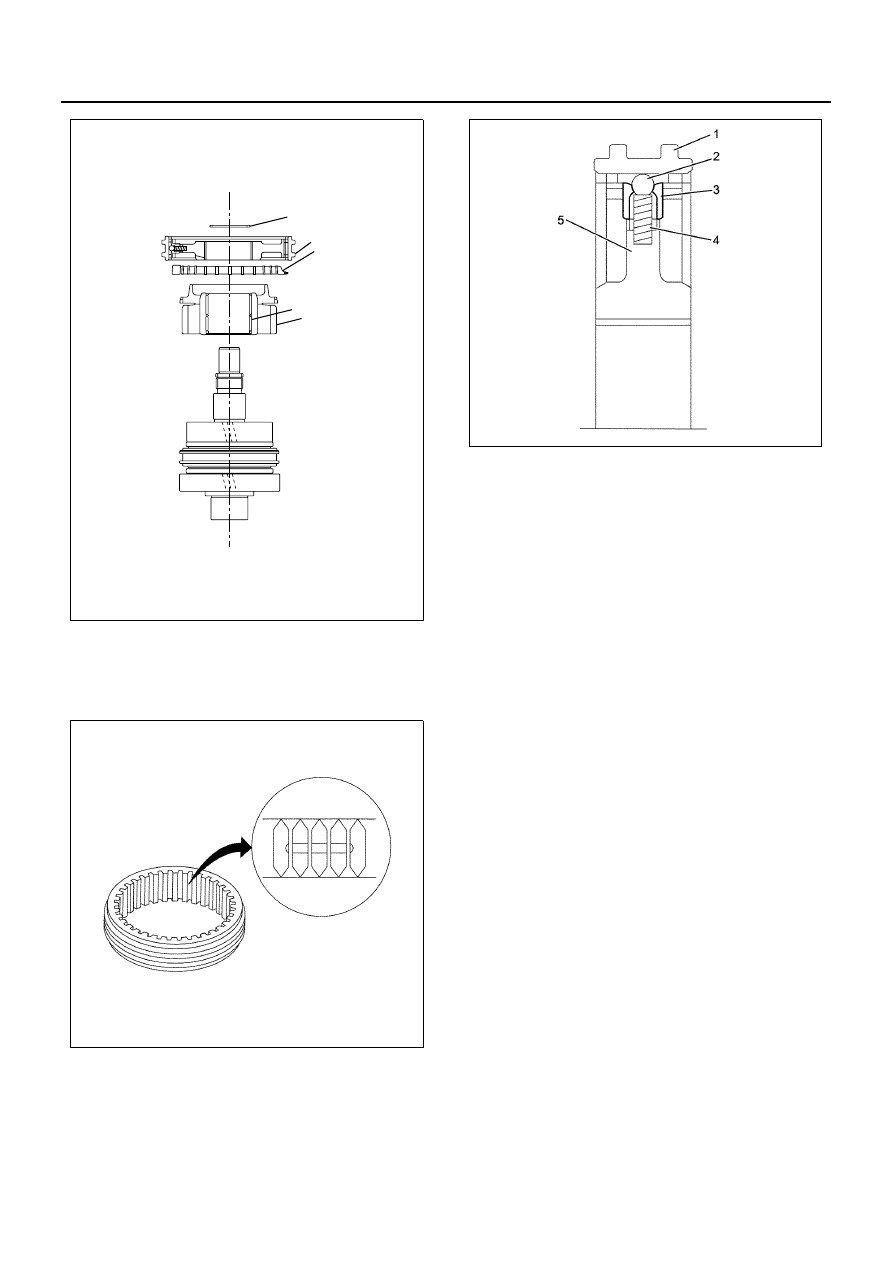

7B1-36 MANUAL TRANSMISSION (MZZ) 5. Install the sleeve (1) to the clutch hub (5). The sleeve should press slightly against the block. 6. Press on the ball (2), the block (3), and the spring (4). Insert the sleeve into the ball groove until it 7. Apply 5W-30 engine oil to the needle bearing, 2nd gear thrust surface, and the tapered surface of the 8. Attach the 2nd-gear inside ring (4), 2nd-gear out- side ring (3), and 2nd-gear block ring (2) so that the 9. Insert the 6 pawls on the inside ring into the holes in the hub. 10. Use the installer (5-8840-2345-0) to press the 2nd / 3rd clutch hub assembly and sleeve (1) into place. 11. Attach the 3rd-gear block ring (7), 3rd-gear outside ring (6), 3rd-gear inside ring (5) so that the six teeth 12. Apply 5W-30 engine oil to the needle bearing, 3rd- gear thrust surface, and the tapered surface of the 13. Use a pair of pliers to install the snap ring (1). Caution: • If the snap ring is bent or otherwise damaged, it must be replaced with a new one. • Be sure that the snap ring is completely installed to the snap ring groove. N7A1210E N7A1211E N7A1212E |
