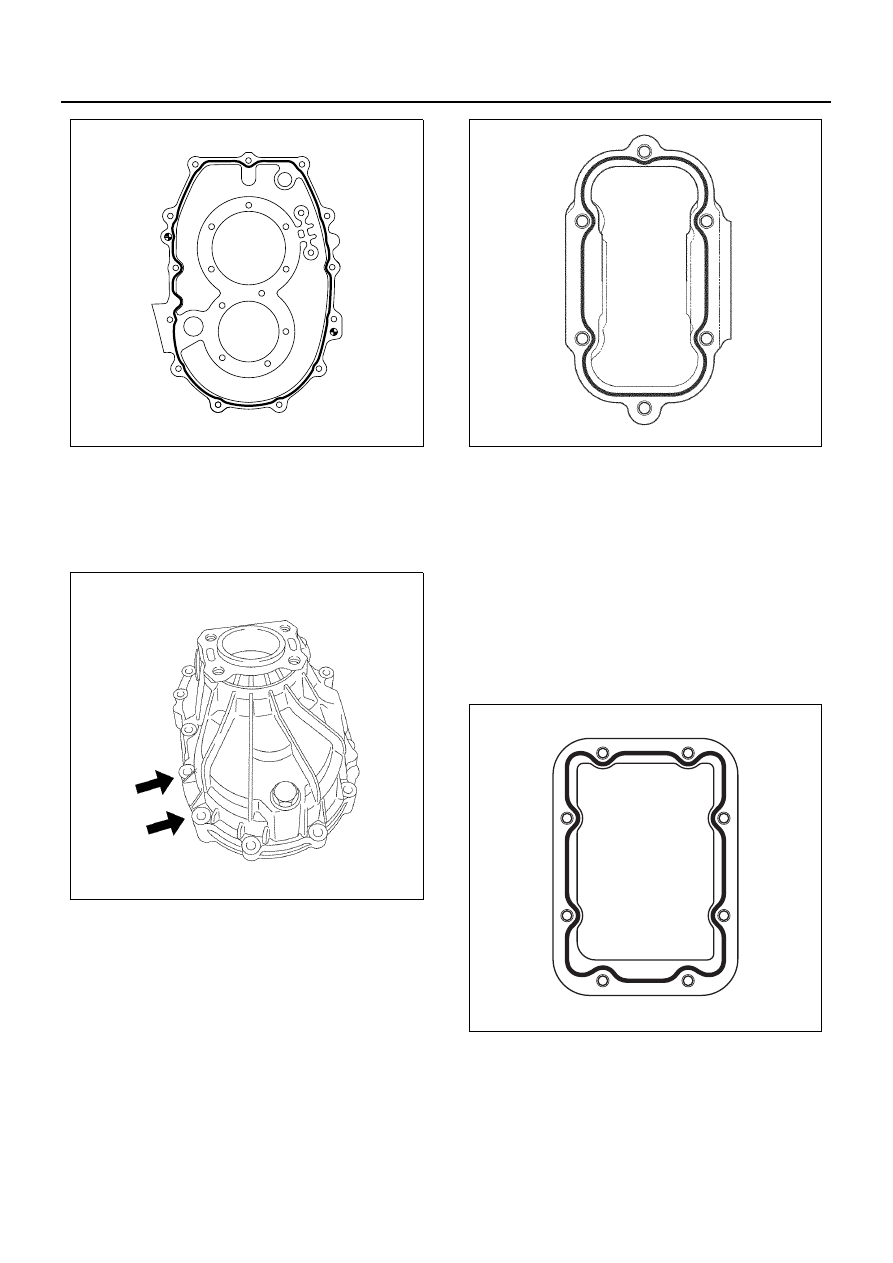

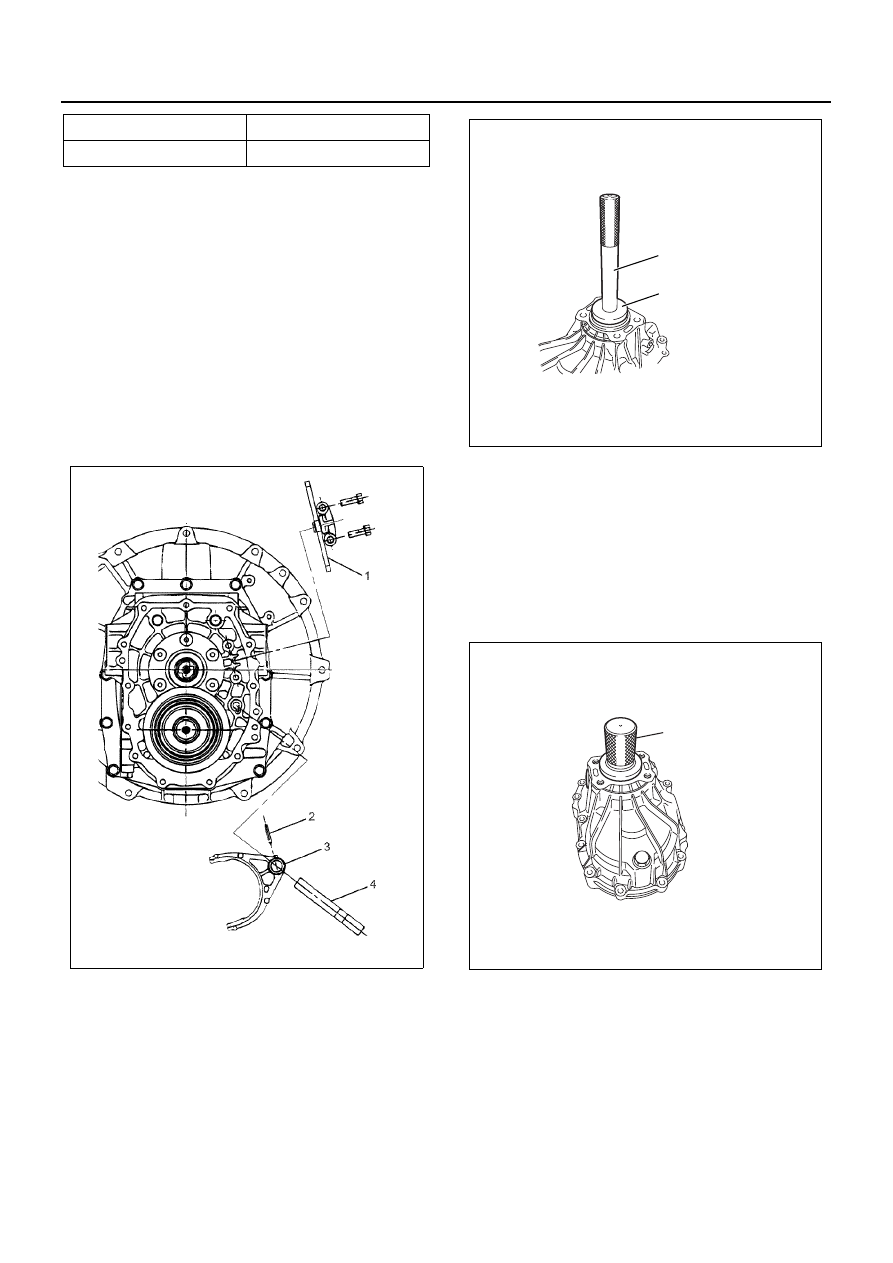

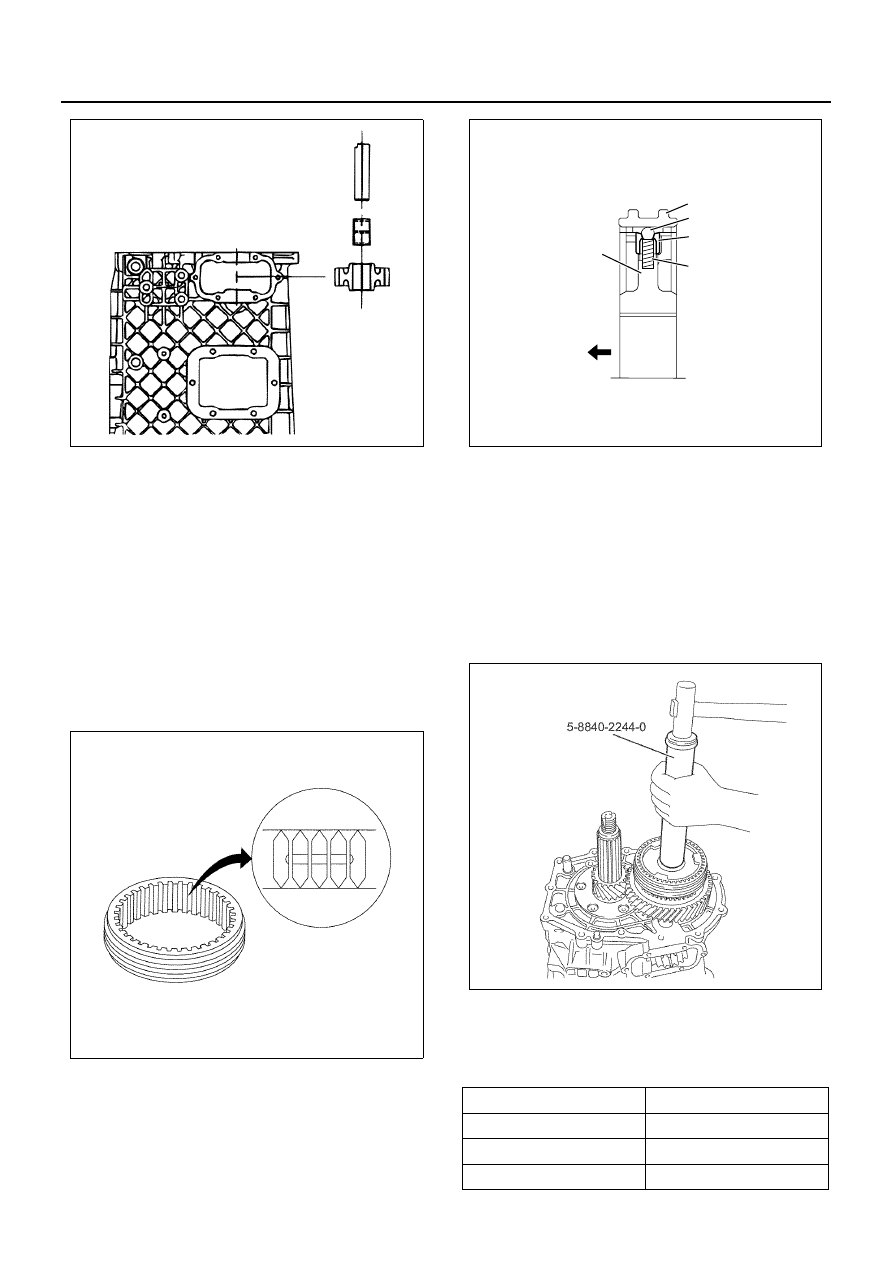

7B1-24 MANUAL TRANSMISSION (MZZ) 34. Install the retainer to the transmission case. Tighten the bolts to the specified torque. Tighten: ⋅m (2.7 kg⋅m / 20 lb⋅ft) Notice: 35. Install the speedometer gear. three ball grooves inside the sleeve. 38. Insert the sleeve (1) into the clutch hub (5) until re- sistance is felt. 39. Insert the ball (2), the block (3), and the spring (4) into the clutch hub. Be sure that the ball enters the • The arrow indicates the front of the transmission. 40. Apply engine oil (5W-30) to the neutral bearing and the inside of the block ring. 41. Assemble the 6th gear the needle bearing, and the 6th gear block ring. 42. Align the above assembly with the clutch hub block ring. 43. Assemble the 6th gear clutch hub assembly and the sleeve. 44. Use the installer (5-8840-2244-0) and a hammer to install the assembled parts. 45. Use a pair of snap ring pliers to install the 6th gear clutch hub snap ring. • From the mountable snap rings, select the thickest one of the three types. N7A1090E N7A1210E Shim thickness mm (in) Discernment color 1.6 (0.063) Pink 1.7 (0.067) Light blue 1.8 (0.071) Orange 1 2 3 5 4 N7A0533E N7A1176E |
