MANUAL TRANSMISSION 7B-25
3. Fix the nut securing the transmission and the frame
(crossmember).
Tighten:
Nut to 40 N
⋅m (4.1 kg⋅m / 30 lb⋅ft)
• For the vehicles with a double wishbone type
suspension, install the mounting bracket on the
transmission after installing the transmission.
Tighten:
Mounting bracket on the transmission to 46 N
⋅m (4.7
kg
⋅m / 34 lb⋅ft)
4. Install the starter motor assembly.
Tighten:
Starter motor assembly to 76 N
⋅m (7.7 kg⋅m / 56 lb⋅ft)
5. Install the starter ground cable.
Tighten:
Starter ground cable to 39 N
⋅m (4.0 kg⋅m / 29 lb⋅ft)
6. Install the clutch slave cylinder assembly.
Tighten:
Clutch slave cylinder assembly 16 N
⋅m (1.6 kg⋅m / 12
lb
⋅ft)
7. Install the select cable.
• For installation, refer to GEAR CONTROL CA-
BLE.
8. Install the shift cable.
• For installation, refer to GEAR CONTROL CA-
BLE.

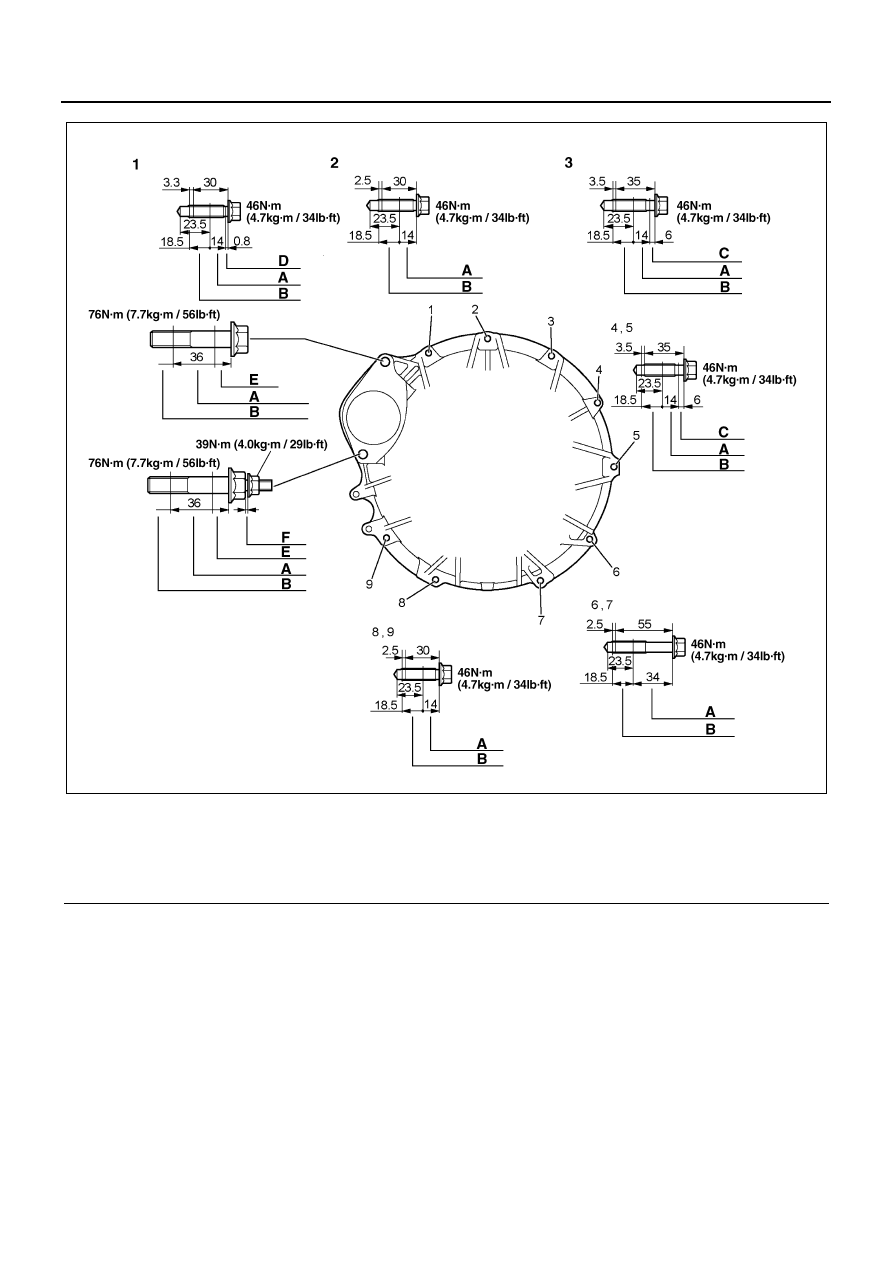

Legend
A: Clutch housing
D: Harness clip
B: Fly wheel housing
E: Starter
C: Gear control bracket
F: Engine ground cable
N7A0308E
