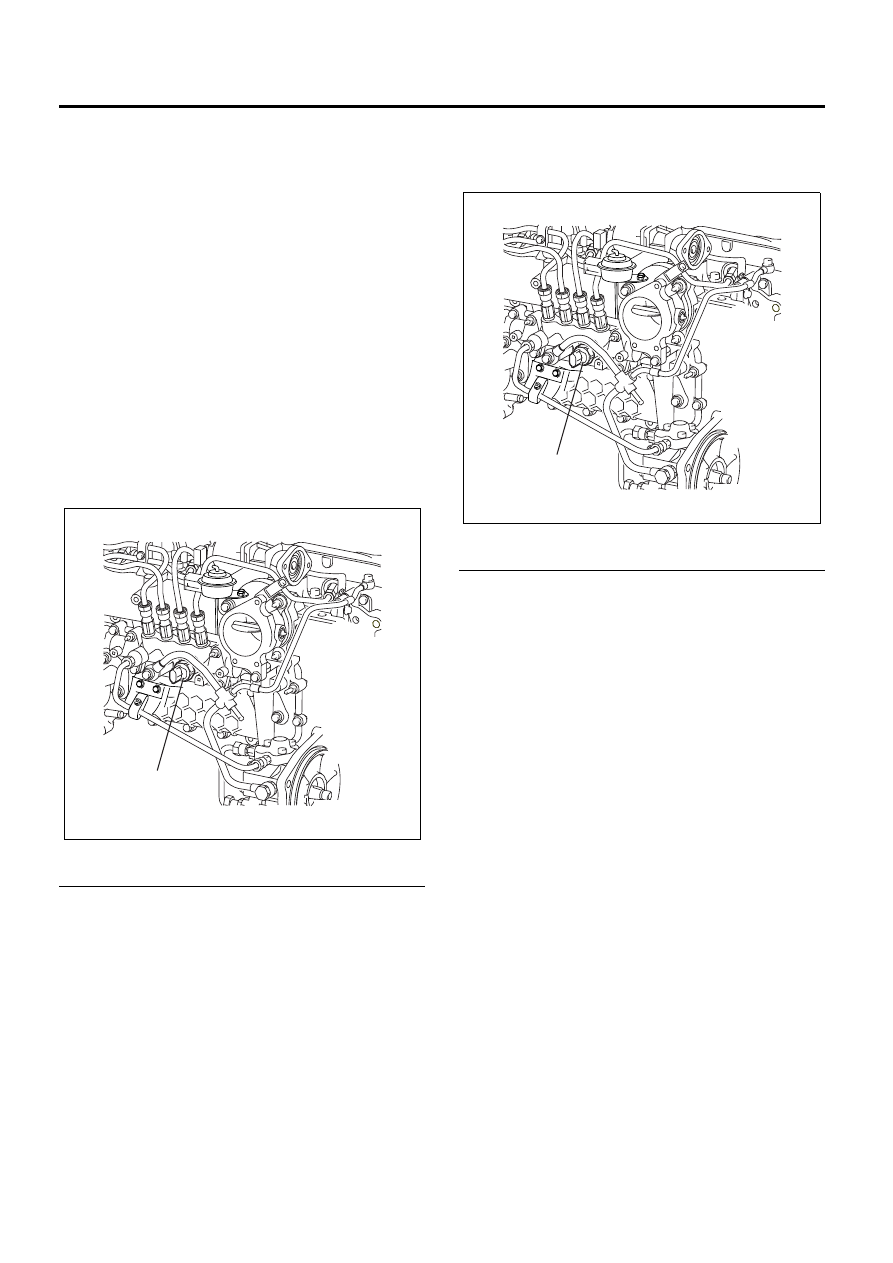

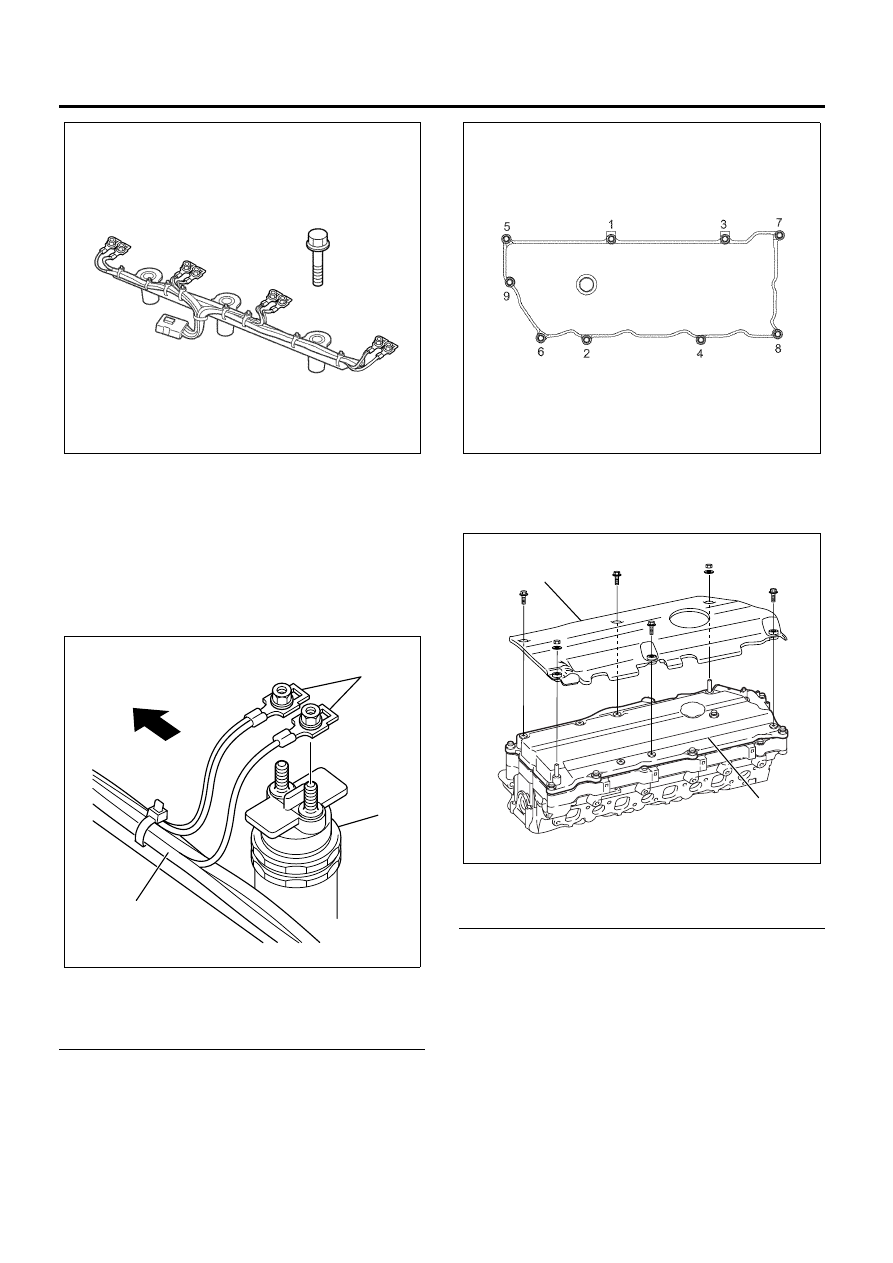

6E-342 Engine Control System (4HK1) 14. Install the fuel injector terminal nuts to the injector. Tighten: ⋅m (0.2 kg⋅m / 17 lb⋅in) Caution: • Do not overtighten the nuts. Damage to the terminal studs will result. • The terminal nut with two wires is engine front side. Legend 1. Fuel Injector
15. Install the gasket to the cylinder head cover. according to the order. Tighten: ⋅m (1.8 kg⋅m / 13 lb⋅ft) 17. Install the sound insulation cover (For Europe) Tighten: ⋅m (0.8 kg⋅m / 6 lb⋅ft) Legend 1. Sound Insulation Cover (For Europe)

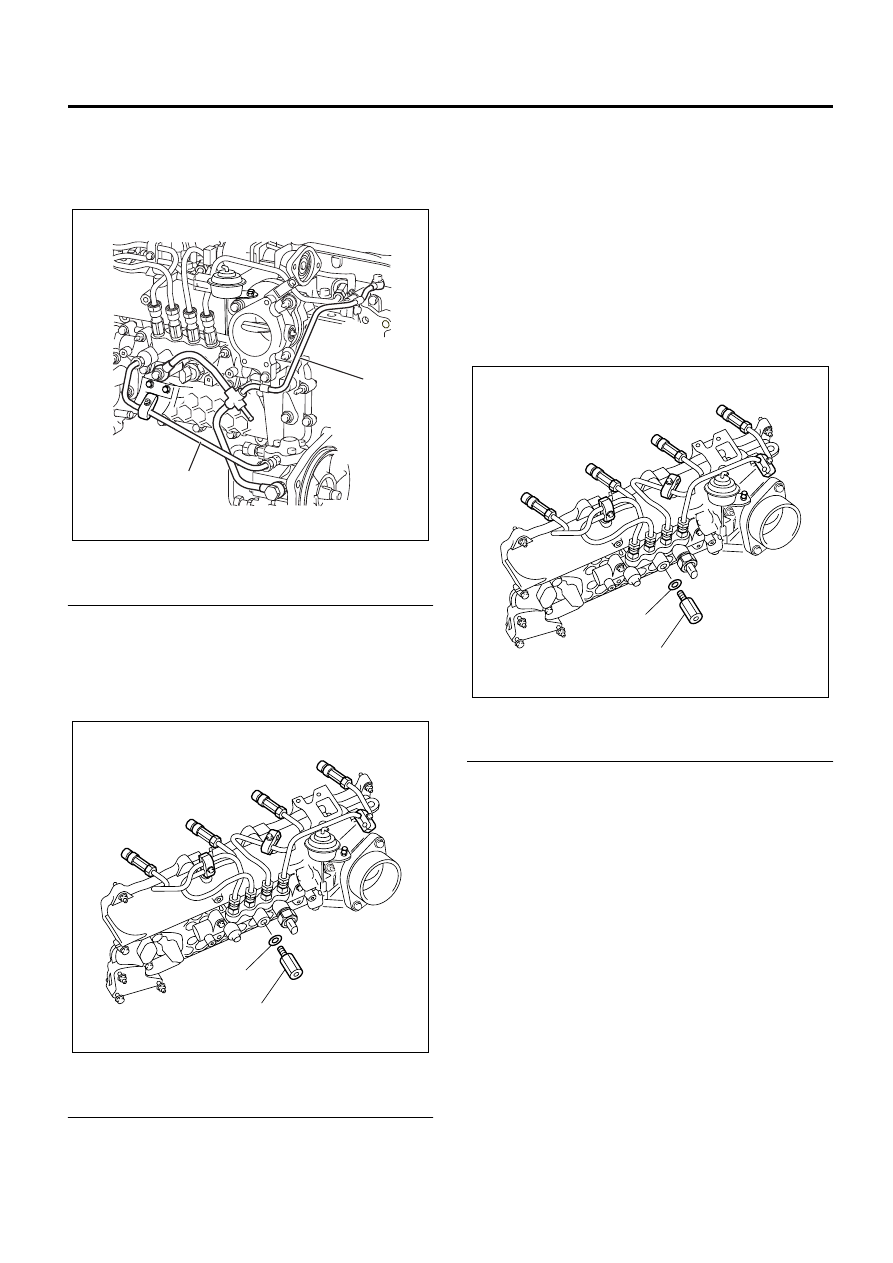

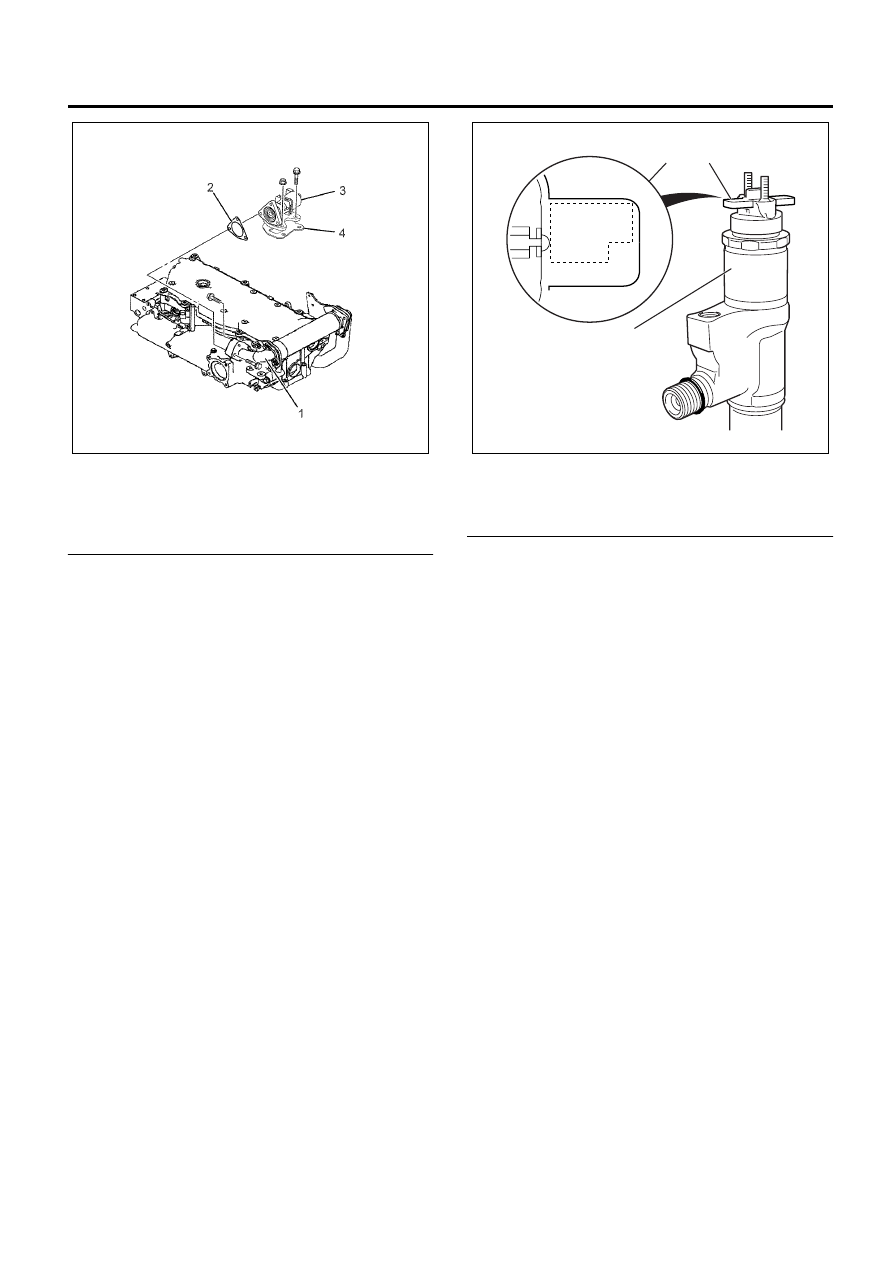

18. Install the gasket to the EGR valve and tighten the bolts to the specified torque. Tighten: ⋅m (2.4 kg⋅m / 17 lb⋅ft) 19. Install the gasket to the EGR adapter and tighten the bolts to the specified torque. Tighten: ⋅m (2.4 kg⋅m / 17 lb⋅ft) N6A6182E N6A6627E 2 1 3 N6A6029E 1 2 N6A6027E |
