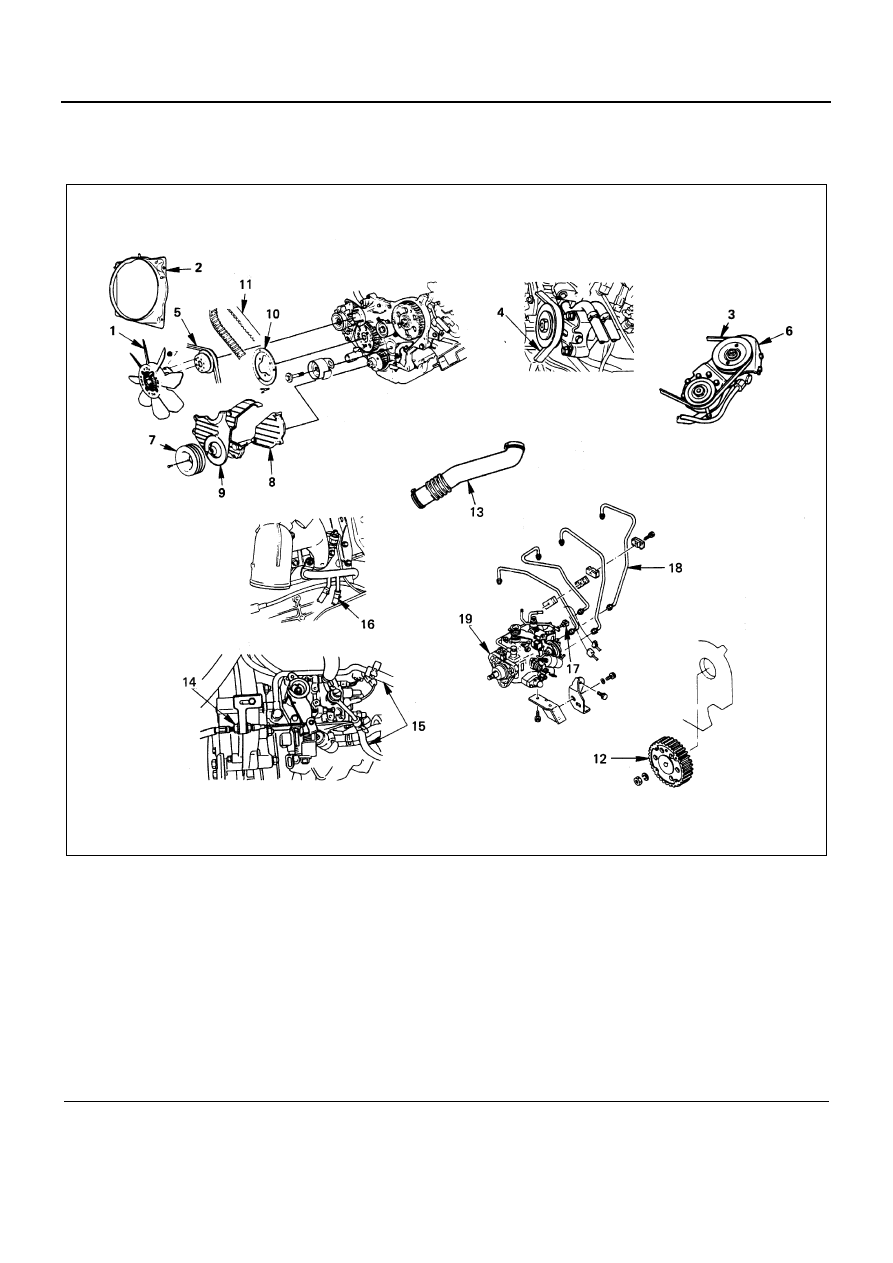

6C-42 ENGINE FUEL INJECTION PUMP ASSEMBLY (4JG2 Belt Drive Type) Component Legend 1. Cooling fan assembly 11. Timing belt 2. Fan shroud 12. Injection pump timing pulley 3. Power steering pump drive belt 13. Air intake duct 4. A/C compressor drive belt 14. Injection pump control cable 5. AC generator drive belt 15. Fuel hose 6. Power steering pump & bracket assembly 16. CSD water hose 7. Crankshaft damper pulley 17. Injection pump harness 8. Timing pulley upper cover 18. Injection pipe 9. Timing pulley lower cover 19. Injection pump assembly 10. Flange; Camshaft pulley N6A3767E |
