Isuzu N-Series. Manual - part 505





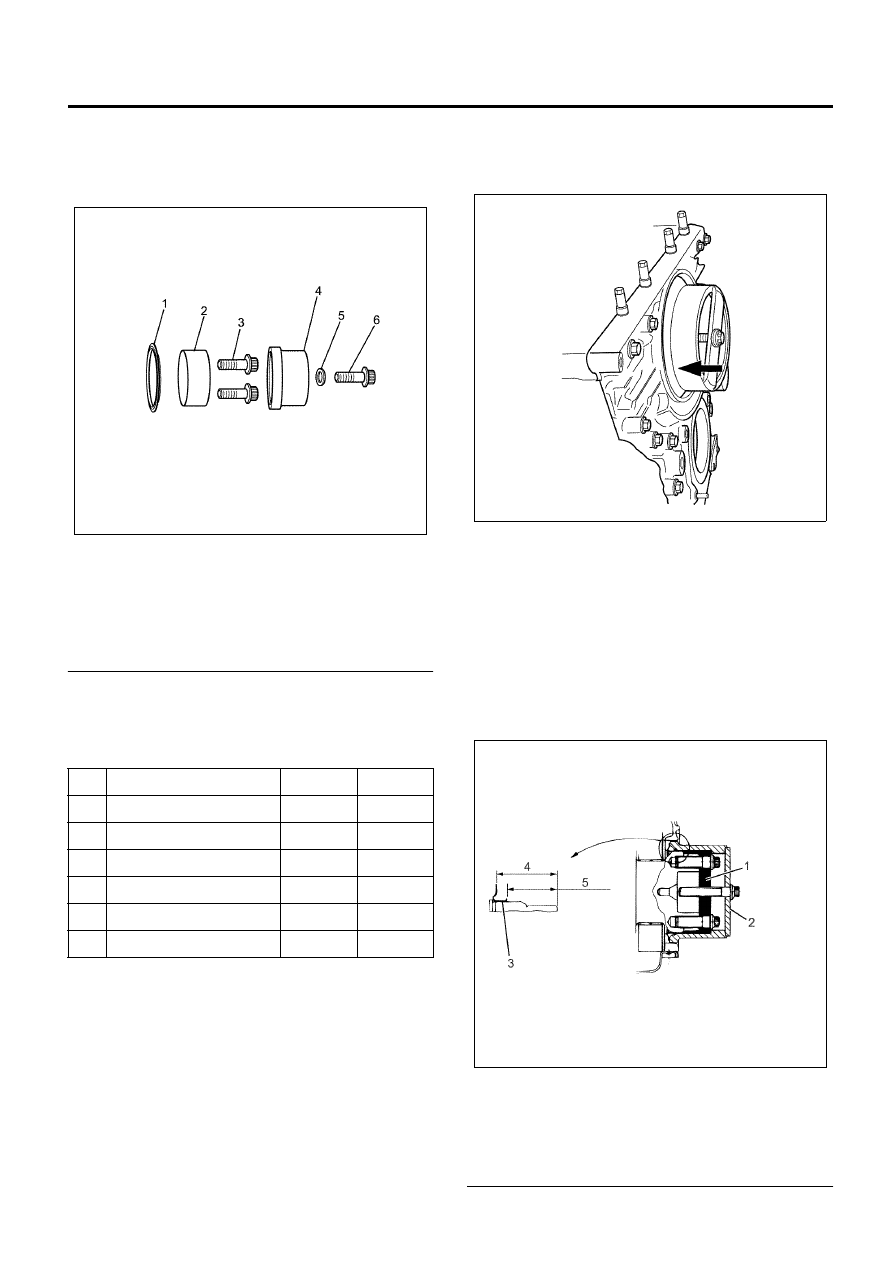

Engine Mechanical (4HK1-TC)   6A-125

Installation

1. Install the crankshaft front slinger.

• Press-fit the slinger using an oil seal installer

kit.

Legend

1. Front Slinger
2. Adapter (Front)
3. Fixing Bolt
4. Sleeve (Front)
5. Washer (Front)
6. Center Bolt



Special tool
Oil seal installer kit: 5-8840-2703-0 (J-43282)
(Use the parts listed below for the front oil seal.)

• Insert the front slinger into the end of the

adapter and fit them on the crankshaft.

• Put the sleeve over the adapter, place a washer

on the center bolt and tighten the bolt until the
sleeve touches the adapter to press fit the front
slinger.

• After you have pressed the front slinger, confirm

the measurement shown (depth from the end
surface of the crankshaft to the flange of the
slinger) and check for deflection of the slinger.

Caution:
Be careful not to put the slinger inside out or mistake
front side slinger for rear one, and vice versa. Rear side
slinger has four right-hand threads on it while front one
has four left-hand threads. Slinger and oil seal should
always be replaced in pairs.

Legend

1. Adapter
2. Sleeve
3. Slinger
4. 40.5

± 0.3 mm (1.594 ± 0.012 in)

5. 34

± 0.1 mm (1.339 ± 0.004 in)

No.

Part Name

Slinger

Oil seal

1

Sleeve (front)

{

{

2

Adapter (front)

{

{

3

Adapter ring (front)

{

4

Washer (front)

{

{

5

Center bolt

{

{

6

Fixing bolt

{

{

N6A6237E

N6A6238E

N6A6239E

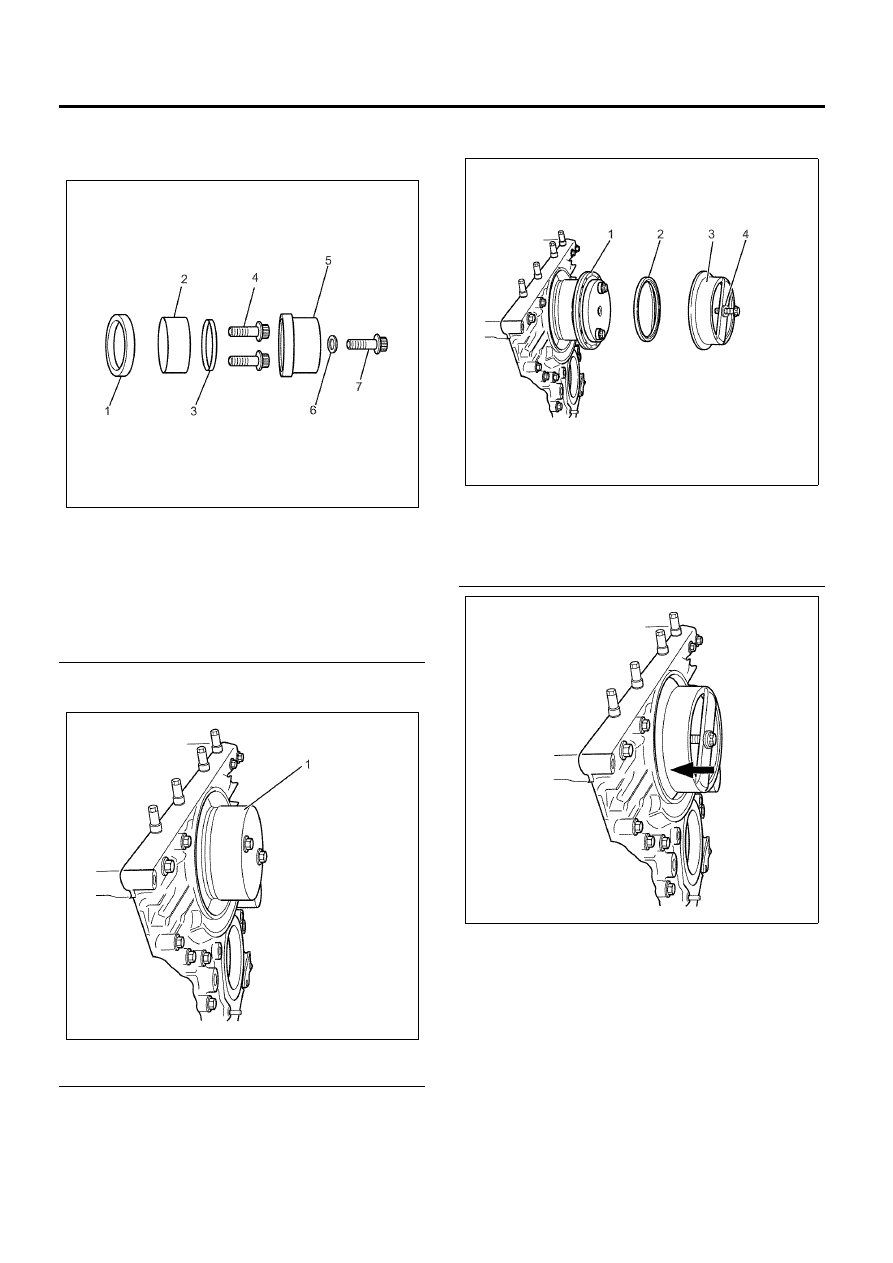

6A-126   Engine Mechanical (4HK1-TC)

2. Install the crankshaft front oil seal.

• Press fit the oil seal using an oil seal installer

kit.

Legend

1. Oil Seal
2. Adapter (Front)
3. Adapter Ring (Front)
4. Fixing Bolt
5. Sleeve (Front)
6. Washer (Front)
7. Center Bolt



• Mount the adapter onto the crankshaft with

fixing bolts.

Legend

1. Adapter



• Apply engine oil to the lip of the oil seal and

place it on the front side adapter.

• Put the front side adapter ring in the sleeve and

fix the sleeve on the adapter with the center bolt
and a washer.

• Tighten the bolt until the sleeve touches the

adapter to press fit the front oil seal.

Legend

1. Oil Seal
2. Adapter Ring
3. Sleeve
4. Bolt and Washer



N6A6240E

N6A6241E

N6A6242E

N6A6238E

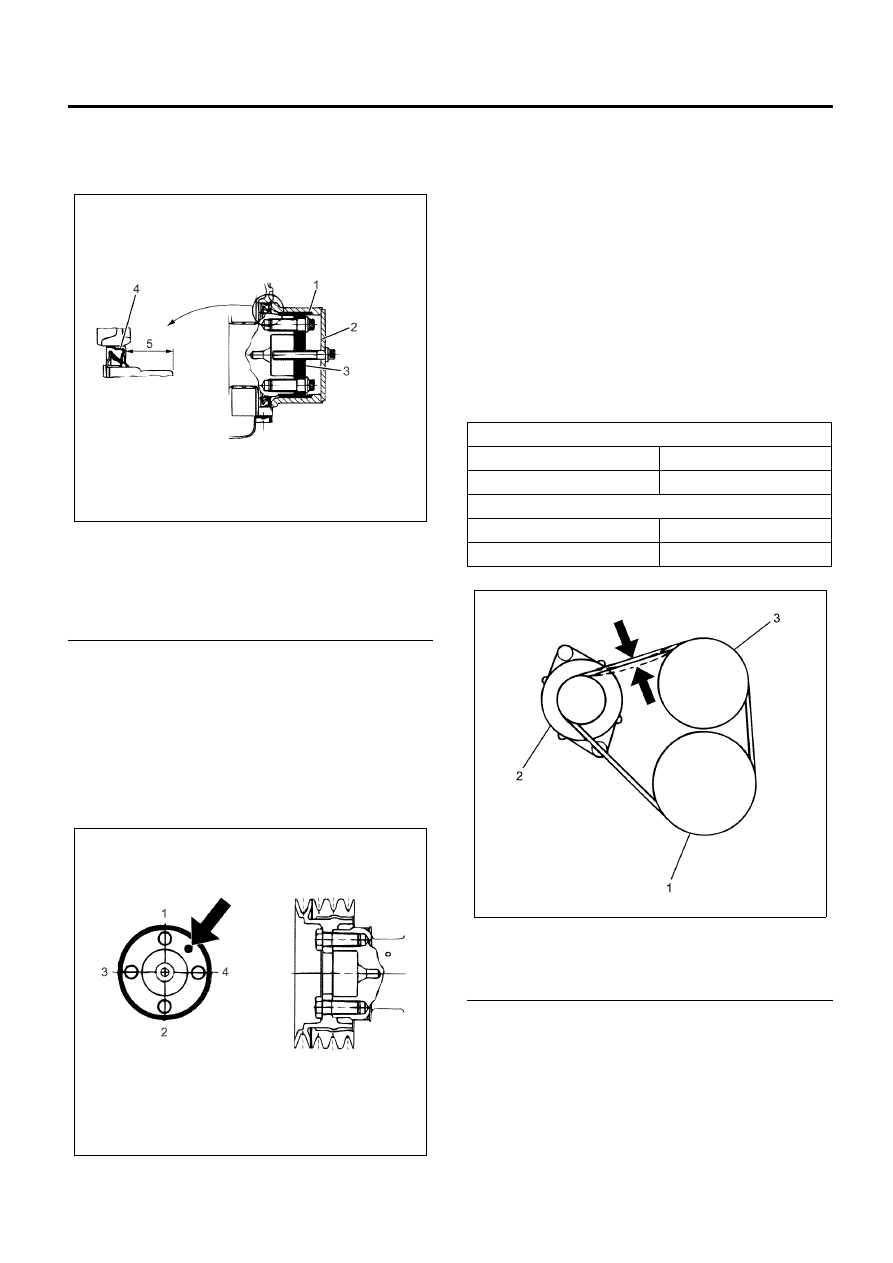

Engine Mechanical (4HK1-TC)   6A-127

• After you have press-fitted the front oil seal,

confirm the measurement shown (depth from
the end surface of the crankshaft to the oil seal)
and check for deflection of the oil seal.

Legend

1. Adapter Ring
2. Sleeve
3. Adapter
4. Oil Seal
5. 31

± 0.3 mm (1.220 ± 0.012 in)

3. Install the crankshaft pulley.

• Apply engine oil to the threads of the fastening

bolts.

• Install the crankshaft pulley aligning with the

dowel pins on the crankshaft.

• Tighten in the sequence shown.

Tighten:
Bolt to 200 N

⋅m (20.4 kg⋅m/148 lb⋅ft)

4. Install the fan belt.

• When adjusting the fan belt, you should also

adjust ACG belt and air conditioner belt at the
same time.

• Fit the fan belt and adjust the tension following

the below procedures.

• Refer to “Drive Belt” in Section 6B for details of

the belt tension adjustment.

a. Inspection of fan belt deflection

• Check with a scale if the belt deflection is

within the specified limits when pressure of
98 N (22 lb) is applied mid-way along the
belt’s longest run. Also check the belt for
damage.

Legend

1. Crankshaft Pulley
2. Generator
3. Fan Pulley



b. Adjustment of the fan belt

• Loosen (2) and (3), adjust the fan belt

moving the generator.

Tighten:
Bolt (2) to 24 N

⋅m (2.4 kg⋅m/18 lb⋅ft)

Bolt (3) to 40 N

⋅m (4.1 kg⋅m/30 lb⋅ft)

N6A6243E

N6A6244E

Fan belt deflection

mm (in)

New belt

8 – 12 (0.31 – 0.47)

Reused belt

10 – 14 (0.39 – 0.55)

A/C belt deflection

mm (in)

New belt

16 – 20 (0.630 – 0.787)

Reused belt

18 – 22 (0.709 – 0.866)

N6A6245E

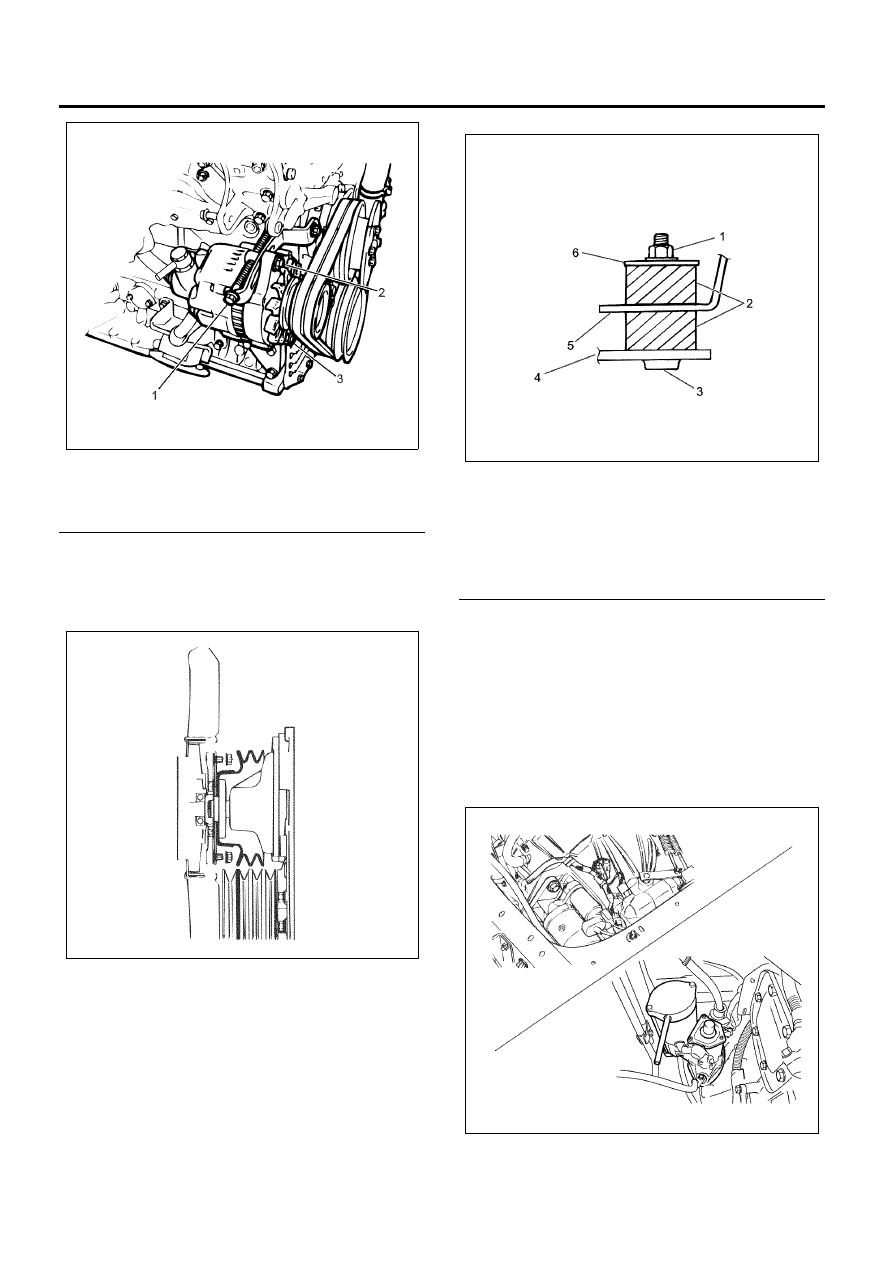

6A-128   Engine Mechanical (4HK1-TC)

Legend

1. Adjustment Bolt
2. Fixing Nut
3. Fixing Bolt



5. Tighten the fan assembly to the specified

tightening torque.

Tighten:
Nuts to 24 N

⋅m (2.4 kg⋅m/18 lb⋅ft)

6. Install the radiator.

• Attach right and left brackets of the radiator to

the brackets on the frame as illustrated.

Tighten:
Brackets to 55 N

⋅m (5.6 kg⋅m/41 lb⋅ft)

Rigid suspension model

Legend

1. Flange Nut
2. Rubber
3. Stud Bolt
4. Frame Side Bracket
5. Radiator Side Bracket
6. Washer



7. Connect the lower radiator hose.
8. Connect the coolant reserve tank hose.
9. Connect the upper radiator hose.

10. Install the starter in the clutch housing with bolts

and tighten to the specified tightening torque.

Tighten:
Bolt to 76 N

⋅m (7.7 kg⋅m/56 lb⋅ft)

• Connect the starter ground cable.
• Connect the front frame harness connector.

11. Refill the radiator with coolant.

N6A6246E

N6A6233E

N6A6247E

N6A6216E
