6E-152 EMISSION AND ELECTRICAL DIAGNOSIS

Troubleshooting

Caution taken in inspecting

1. In inspecting system, write down Diagnostic Trouble Code (DTC) to be indicated.

(especially, when plural self-diagnosis codes are indicated.)

2. Before eliminating the indicated DTC by a memory clear switch, doubly inspect abnormal place as indicated in

DTC.

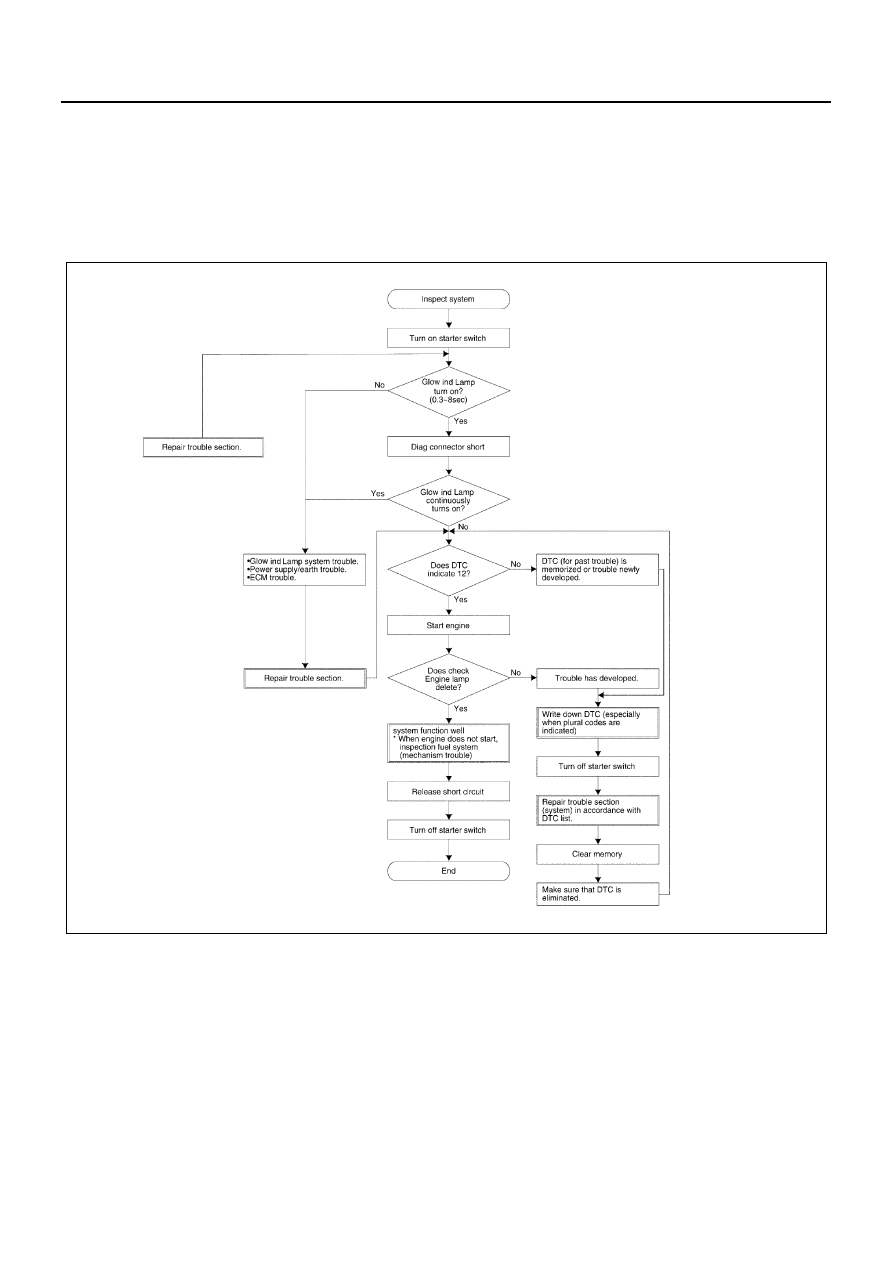

Inspection Procedure Flowchart (Diagnostic System Check)

Notice:
Please note that some items of DTC may not be generated unless the engine is warmed up or unless the vehicle is
driven under load.

Self-diagnosis Functions

Memorization of diagnostic trouble code
The self-diagnosis code indicated will be memorized in
Electronically Erasable Programmable Read Only Mem-
ory (EEPROM) with in the Engine Control Module
(ECM).
Accordingly even if the starter switch turns off or the
ECM is removed from the vehicle, the memorized self-
diagnosis code will not be eliminated.

* Unless an elimination procedure is taken, the diagnos-
tic trouble code (DTC) will remain in memory. (The
memory will be eliminated only by a memory clear
switch.)
Elimination of diagnostic trouble code
The DTC memorized in the EEPROM with in the ECM
can be eliminated only by the operation of the memory
clear switch. The elimination method memory clear
switch will be described below:

N6A1297E

EMISSION AND ELECTRICAL DIAGNOSIS 6E-153

1. Turn OFF ignition switch.
2. Use 4.7k

Ω resistance and make short circuit on

memory clear switch.

3. Turn ON ignition switch. The indication lamp turn

on (lighting) continuously after three seconds
flashing the indication lamp.

4. Turn OFF ignition switch.
5. Remove shortage resistance from memory clear

switch.

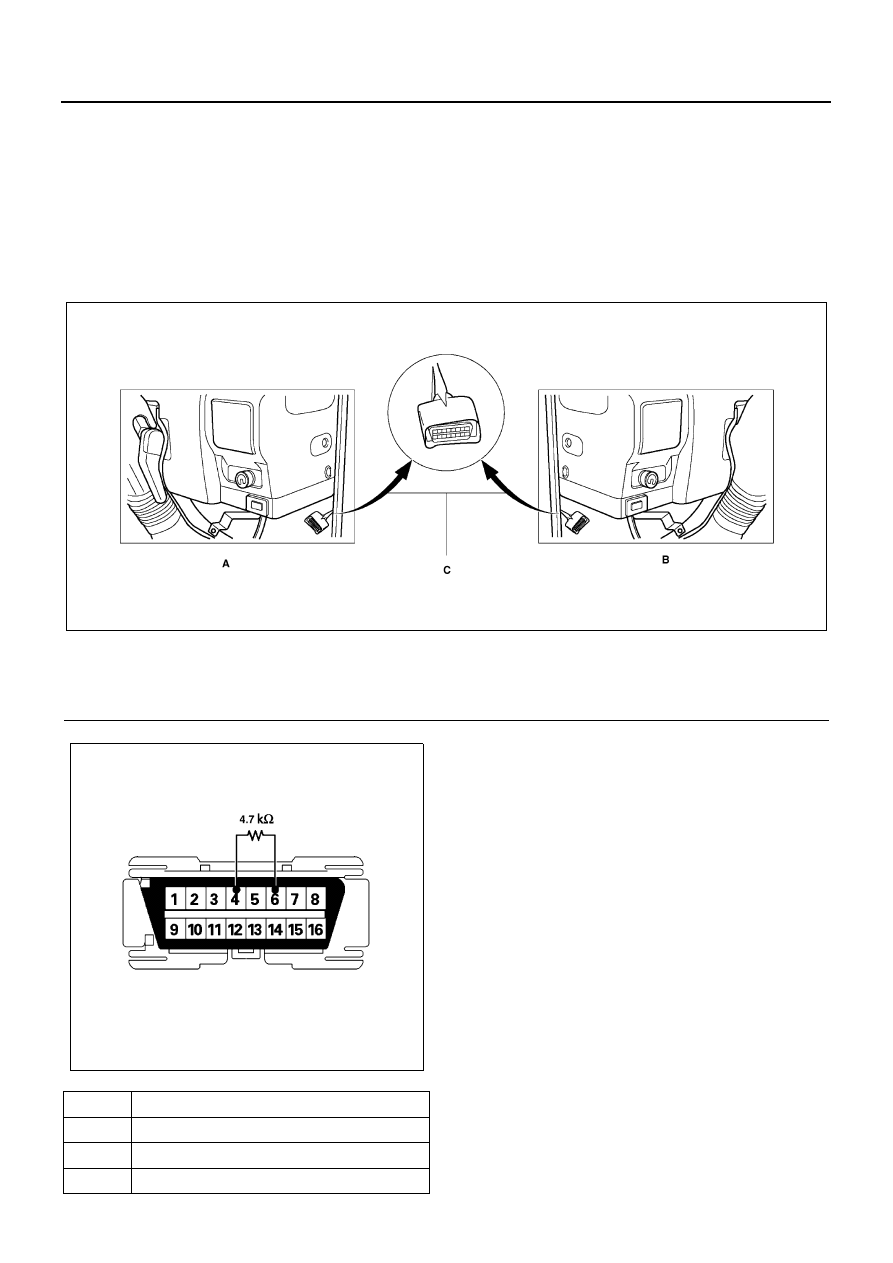

Location of the Memory Clear Switch

Location of the Memory Clear Switch (Diagnosis Connector)

How to read flashing of the indicator lamp:
The two-digit diagnosis code flashes starting from ten’s
figure to indicate the diagnosis code.
Please read the diagnosis code from the flashing.
If the plural diagnosis codes are indicated, the same di-
agnosis code is flashed repeatedly in steps of three
times.
Please read it correctly.

• Diagnostic Trouble Code (DTC) outputting is done

in decreasingly order of DTC number.

• Indication is changed over on completion of output

DTC indication.

• DTC indicator is stopped with diagnostic switch be-

ing off.

• When there is no DTC output, -12+ is outputted in

normal DTC code.

• After indicating 3 times pear 1 DTC, shift is con-

ducted to the next DTC. (After making a round, the
indications are repeated again.)

• In case of the same diagnostic code, it is used 1

DTC (3 times indication.)

Legend

A. Right-hand drive

C. Terminal assignment of diagnosis connector

B. Left-hand drive

N6A1665E

NO

TERMINAL NAME

6

DIAG CONTROL

7

CHECKER SIG

4, 5

CHECKER GND

N6A1666E

6E-154 EMISSION AND ELECTRICAL DIAGNOSIS

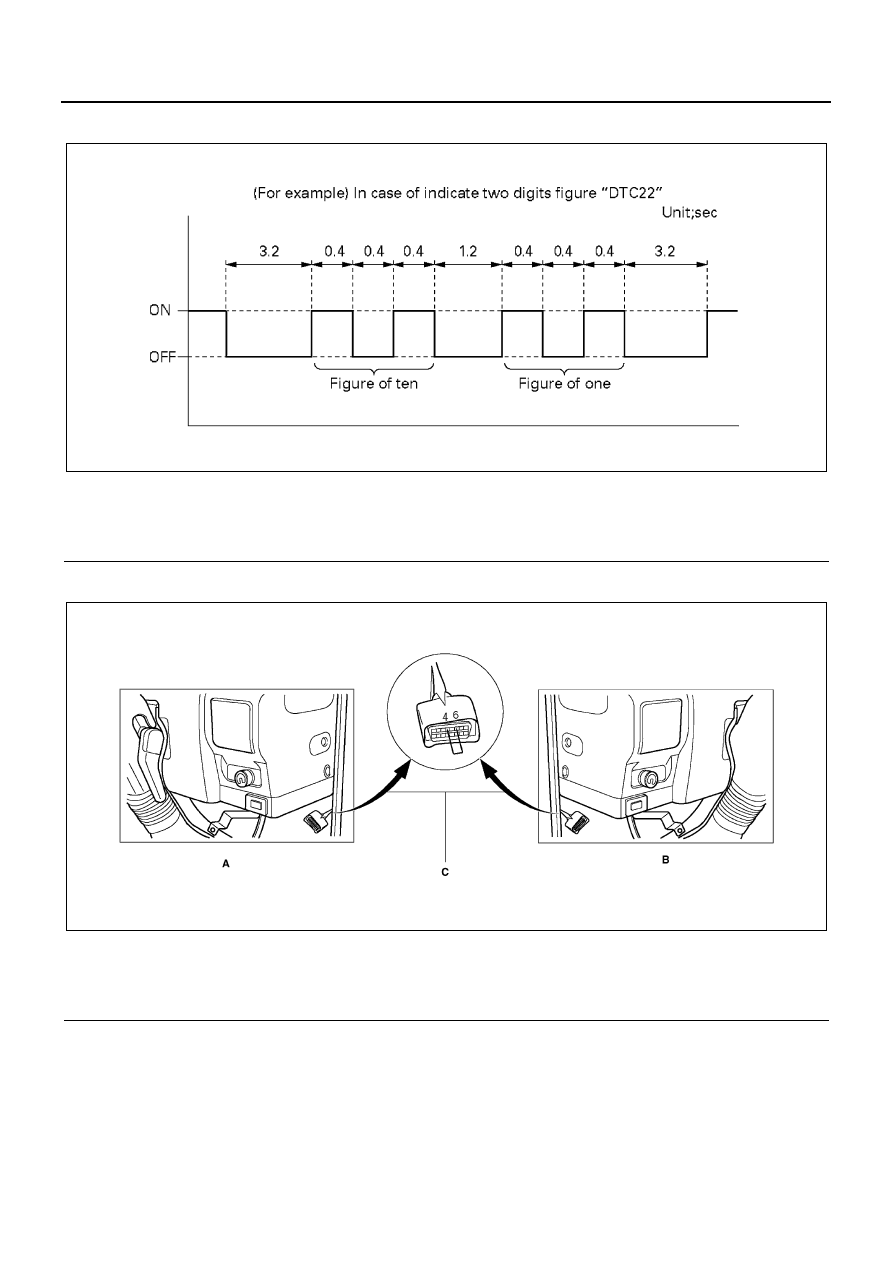

Example Diagnosis Trouble Code Output

Flashing of Indicator Lamp

Legend

1. (For example) In case of indicate two digits figure

“DTC22”

2. Figure of ten
3. Figure of one

Legend

A. Right-hand drive

C. Terminal assignment of diagnosis connector

B. Left-hand drive

N6A1299E

N6A1667E

EMISSION AND ELECTRICAL DIAGNOSIS 6E-155

Diagnosis Trouble Code (DTC) List

DTC#

TECH 2 STRING

21

Rack Sensor Circuit Low Voltage

22

Rack Sensor Circuit High Voltage

13

Engine Coolant Temperature (ECT) Sensor Circuit High Voltage

14

ECT Sensor Circuit Low Voltage

31

Exhaust Gas Recirculation (EGR) Vacuum Switching Valve (VSV) Solenoid Circuit Low Voltage

32

EGR VSV Solenoid Circuit High Voltage

52

Electronically Erasable Programmable Read Only Memory (EEPROM) Error

Error Classified

Trouble

Code

Diagnostic Condition

Return

Condition

Back Up

Judging

Time

Normal

12

No other trouble code.

No history of this diagno-
sis recorded

Rack
Sensor

Harness Open
GND short

21

Rack Voltage 0.3V or
lower, Engine speed
600 — 900rpm, and
water Temp. 0

°C

(32

°F) or higher are

detected for 3 seconds
running.

When
forward
normal

VSV: EGR
Output stop.
Rack Learning valve: 0

3.52 sec

+5V short
Rack Sensor
Power Voltage

22

5V or higher Rack Volt-
age detected.

0.52 sec

Water
Temp
Sensor

Harness Open
+B short

13

-79

°C/-110°F (390kΩ)

or lower, or 120

°C/

248

°F (115kΩ) or

higher detected.

When
forward
normal

VSV: EGR
Output stop.

0.52 sec

GND short

14

VSV:
EGR

Harness Open
GND short

*31

Output TR Monitor

When
forward
normal

VSV: EGR
Output stop.

1.57 sec

+B short

*32

ECM
EEPROM
error

52

Check when ECM is
started and when Trou-
ble Code is written.

When
forward
normal

Trouble Code other than
52 (EEPROM error) not
indicated.
