6B-14 ENGINE COOLING

DRIVE BELT ADJUSTMENT

Component

Inspection

Check drive belts for wear or damage, and replace with
new ones as necessary. Check belts for tension, and
adjust as necessary.

1. Check drive belts tension
2. Push the middle of belts with a force of 98 N (10 kg

/ 22 lb) and check each belt for deflection.

3. Standard deflection

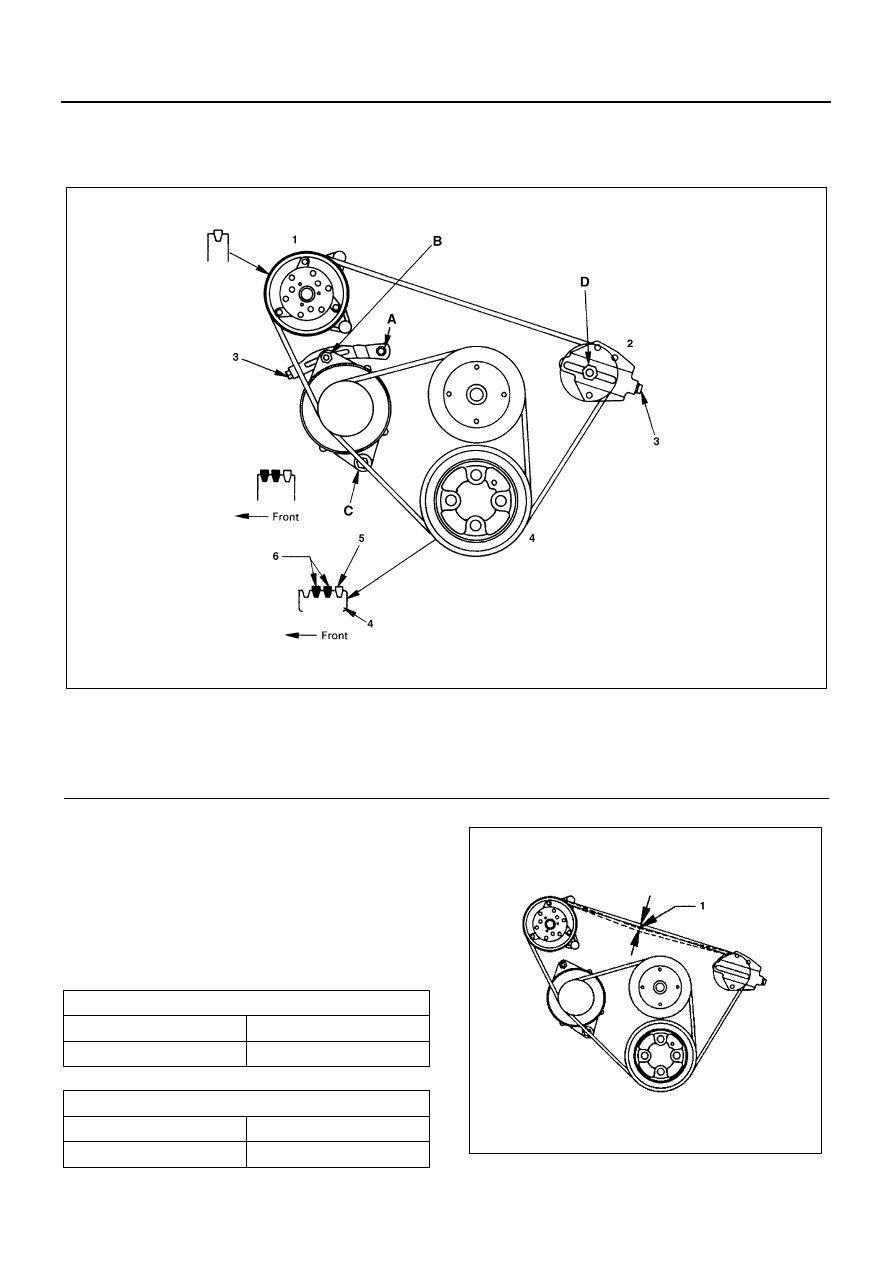

Legend

1. A/C compressor

4. Crank pulley

2. Tension pulley

5. Compressor drive belt

3. Adjust bolt

6. Generator drive belt

N6A1648E

Fan Drive Belt Deflection

mm (in)

New belt

8 — 12 (0.31 — 0.47)

Reuse belt

10 — 14 (0.39 — 0.55)

A/C Drive Belt Deflection

mm (in)

New belt

16 — 20 (0.63 — 0.79)

Reuse belt

18 — 22 (0.71 — 0.87)

N6A0816E

ENGINE COOLING 6B-15

Tension Adjustment

(Refer to the illustration on the previous page.)

1. Generator & Water Pump Pulley Drive Belt

1) Loosen the Air Conditioning (A/C) drive belt

tension pulley adjust bolt and lock nut (D). Then
free the A/C drive belt.

2) Loosen the adjust plate lock nut (B), the fixing

bolt (A), and the fixing bolts (C) on the lower
side of the generator.

3) Rotate the adjust bolt to adjust the belt.
4) After adjustment, tighten each section to the

specified torque.

Tighten:
Bolt and nut to

• (A): 46 N

⋅m (4.7 kg⋅m / 34 lb⋅ft)

• (B): 24 N

⋅m (2.4 kg⋅m / 17 lb⋅ft)

• (C): 40 N

⋅m (4.1 kg⋅m /30 lb⋅ft)

5) Adjust the A/C drive belt tension.

2. A/C Compressor Drive Belt

1) Loosen the tension pulley lock nut (D), and ro-

tate the adjust bolt to adjust the belt.
When finishing the fan drive belt adjustment,
then adjust the A/C drive belt.
After adjustment, tighten the lock nut (D) to the
specified torque.

Tighten:
Lock nut (D) to 27 N

⋅m (2.8 kg⋅m / 20 lb⋅ft).

Legend

1. Belt deflection
