HYDRAULIC BRAKES 5A-7

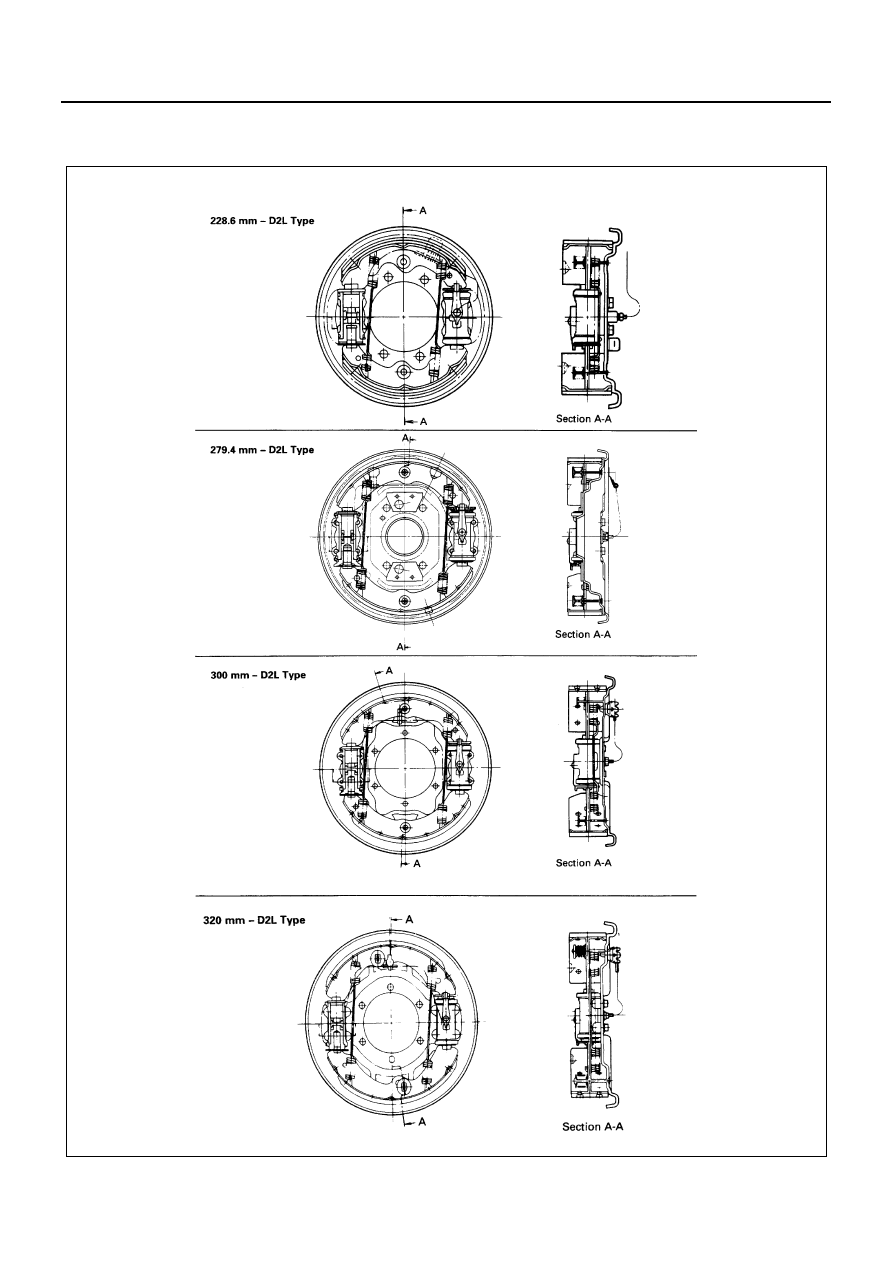

Rear Drum Brake (Manual Adjuster Type)

Drum Inside Diameter

N5A0050E

5A-8 HYDRAULIC BRAKES

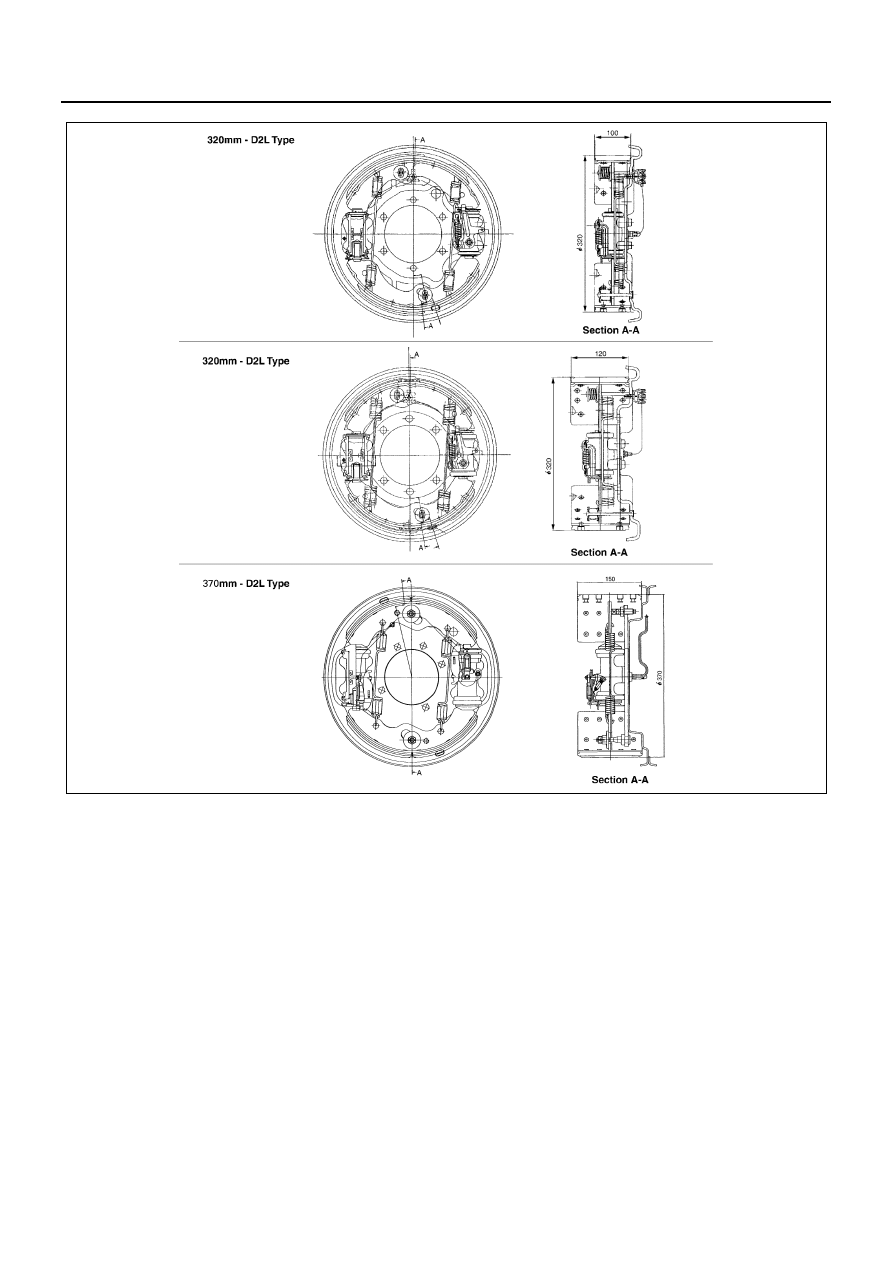

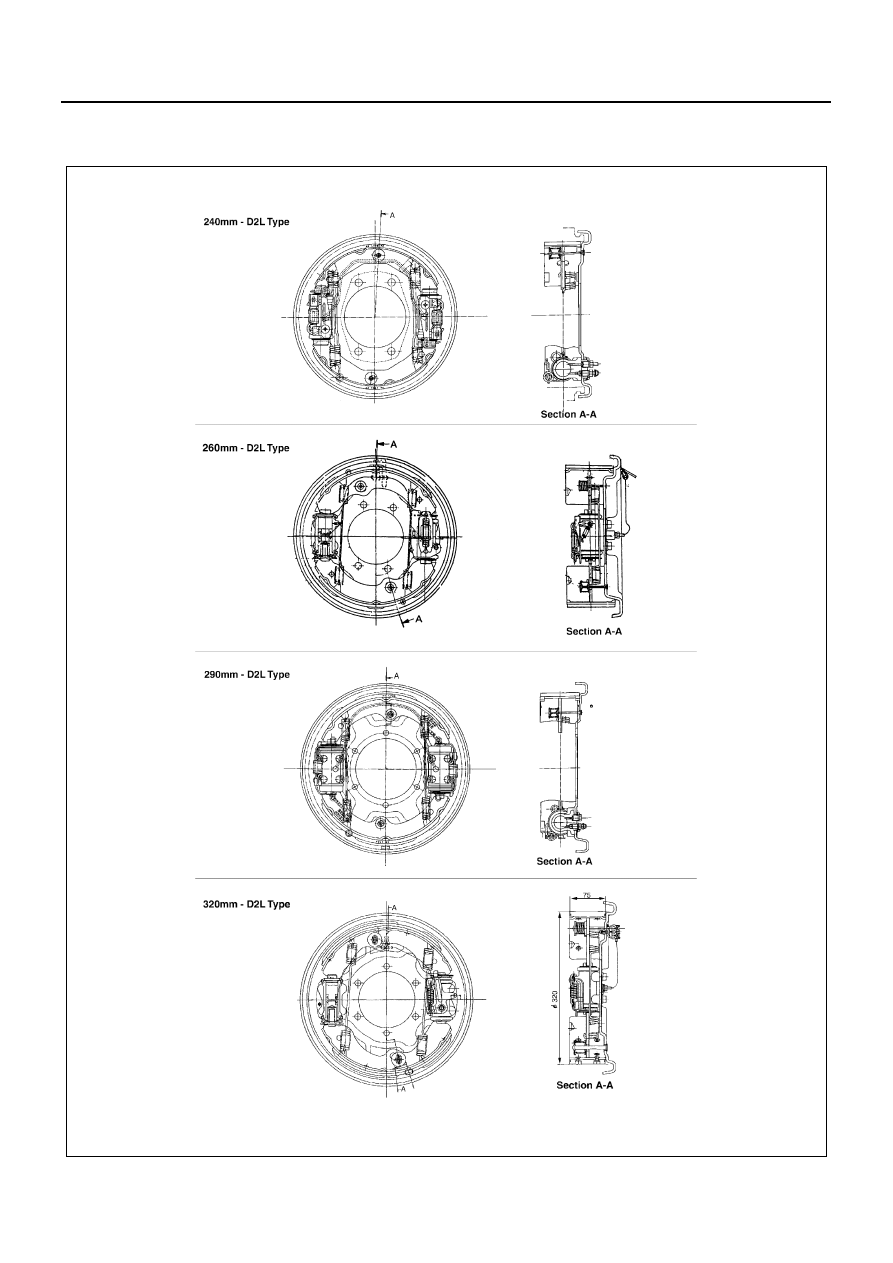

Rear Drum Brake (Auto-Adjuster Type)

Drum Inside Diameter

N5A0053E

HYDRAULIC BRAKES 5A-9

The dual two leading shoe type brake eliminates the
problem of weaker braking force on reverse stops com-
mon to two leading shoe type brakes while maintaining
the many advantages of this type of brake.
This combination of two leading shoes provides nearly
equal braking force. This prevents an uneven load dis-
tribution on the wheel hub bearings.
This type of brakes is widely used on the rear wheels of
many vehicles.

N5A0054E

5A-10 HYDRAULIC BRAKES

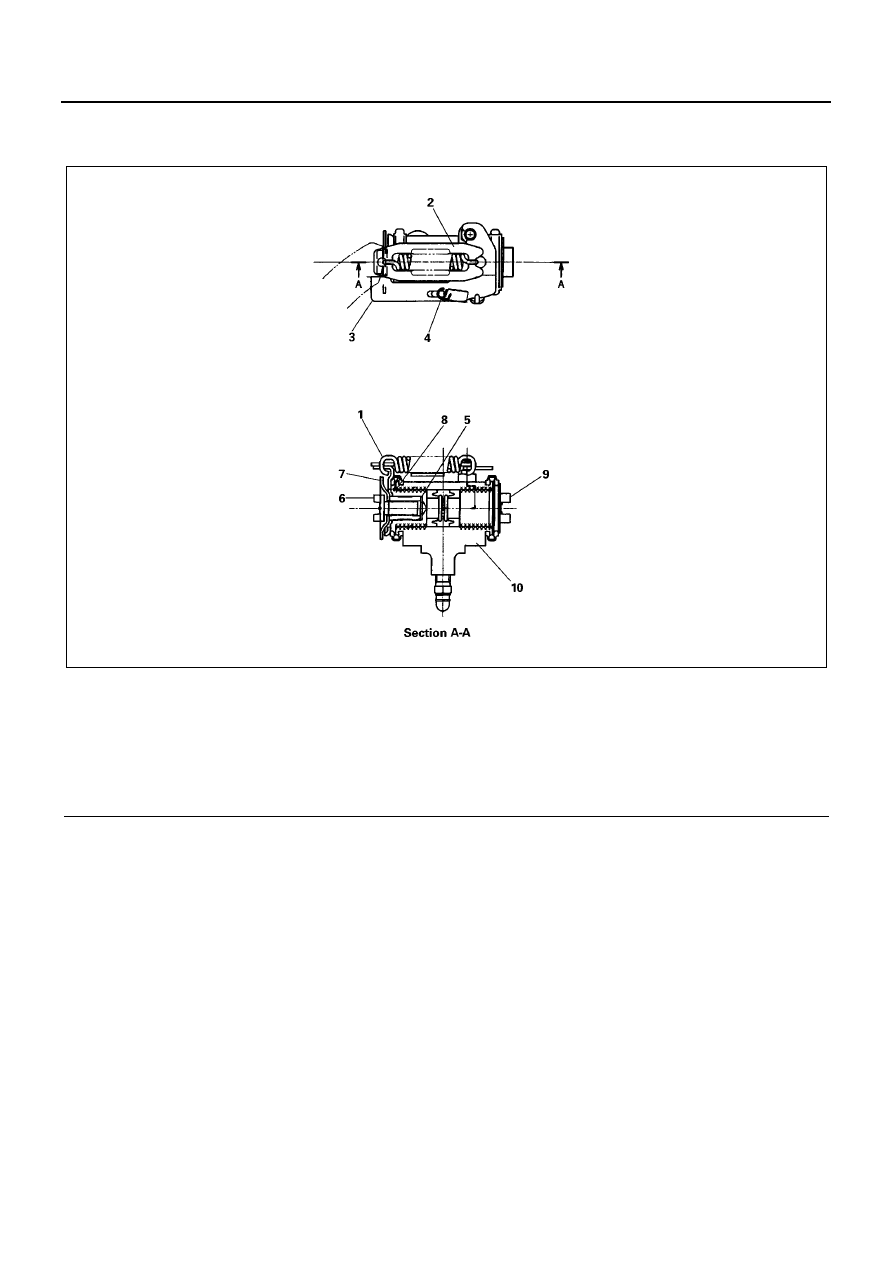

Auto-Adjuster

Drum Inside Diameter 260 mm

Legend

1. Over-travel spring

6. Adjust screw

2. Fitting

7. Adjust gear and nut assembly

3. Adjust lever

8. Piston and bracket assembly

4. Lever return spring

9. Anchor piston

5. Washer

10. Body

N5A0055E
