WHEELS AND TIRES 3E-1

STEERING, SUSPENSION, WHEELS

AND TIRES

SECTION 3E

WHEELS AND TIRES

Contents

GENERAL DESCRIPTION ................................... 3E-2
ON-VEHICLE SERVICE ....................................... 3E-3

Wheel and Tire Assembly.................................. 3E-3

UNIT REPAIR ....................................................... 3E-6

Tires................................................................... 3E-6
Wheels............................................................... 3E-9
Balancing Wheel and Tire ............................... 3E-10

3E-2 WHEELS AND TIRES

GENERAL DESCRIPTION

Replaced wheels or tires must be equivalent to the orig-
inal one in load capacity, specified dimension and
mounting configuration. Improper size or type may af-
fect bearing life, brake performance, speedometer/
odometer calibration, vehicle ground clearance and tire
clearance to the body and chassis.
All models are equipped with metric sized steel belted
radial tires. Correction of tire pressures and driving hab-
its have an important influence on tire life. Heavy corner-
ing, excessively rapid acceleration and unnecessary
sharp braking increase premature and uneven wear.

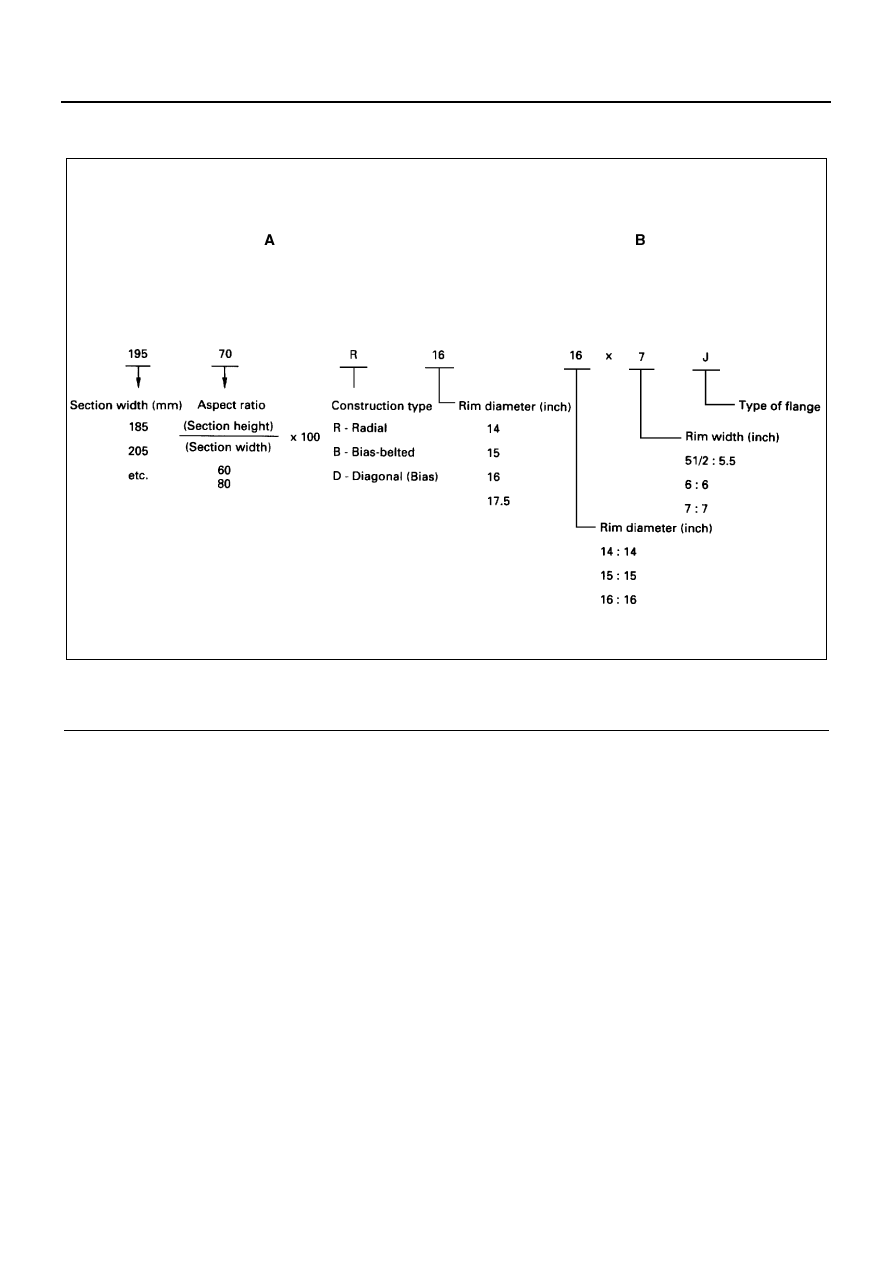

Legend

A. Metric tire size format

B. Rim size format

N3A0429E

WHEELS AND TIRES 3E-3

ON-VEHICLE SERVICE

Wheel and Tire Assembly

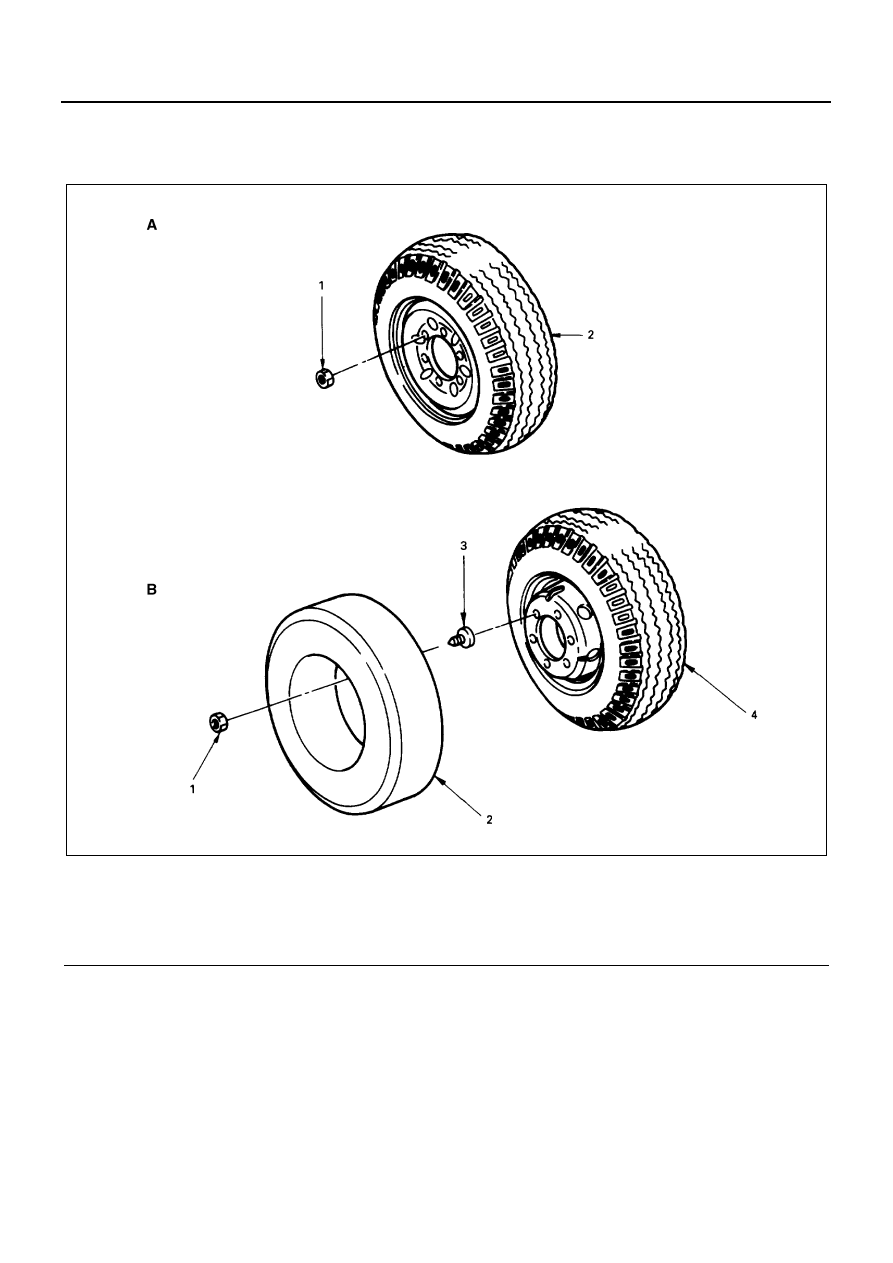

Legend

A. Front tire, Rear single tire

2. Wheel and tire assembly (front or outer)

B. Rear dual tire

3. Wheel nut (inner)

1. Wheel nut (outer)

4. Wheel and tire assembly (inner)

N3A0430E

3E-4 WHEELS AND TIRES

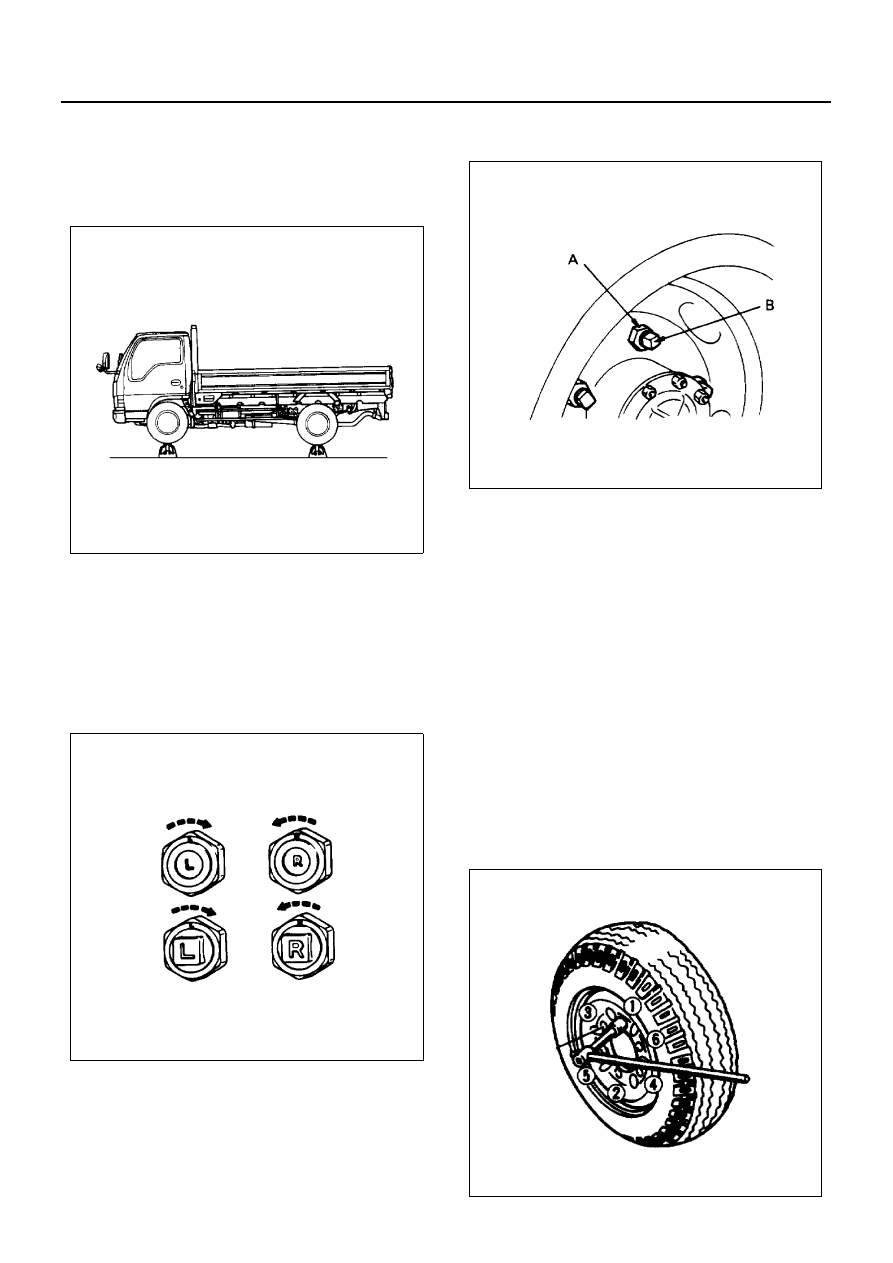

Removal

Preparations

• Raise the vehicle and support jack up point with

suitable safety stands. Refer to “Lifting Instruction”
in Section 0A.

1. Wheel Nut (Outer)
2. Wheel and Tire Assembly (Front or Outer)
3. Wheel Nut (Inner)
4. Wheel and Tire Assembly (Inner)

Loosen the wheel nuts with the wheel nut wrench.
The wheel nuts on the right side wheels have right-
hand threads and the wheel nuts on the left side
wheels have left-hand threads.

To change the inner wheel on either side of the
rear of the vehicle:
1) Completely loosen the six-sided outer wheel

nut (A) with the wheel wrench.

2) Using the opposite side of the wheel wrench,

unscrew the four-sided inner wheel nut (B) ap-
proximately one full turn.

3) Repeat this procedure with the remaining outer

and inner wheel nuts.

Installation

1. Wheel and Tire Assembly (Inner)
2. Wheel Nut (Inner)
3. Wheel and Tire Assembly (Front or Outer)
4. Wheel Nut (Outer)

Tighten wheel nuts in numerical sequence.

Tighten:

• Front wheel nut to

NHR, NKR Single tire, NKR Flat low: 167 N

⋅m (17

kg

⋅m/123 lb⋅ft)

Except above models: 441 N

⋅m (45 kg⋅m/325 lb⋅ft)

• Rear wheel nut to

NHR, NKR Single tire: 167 N

⋅m (17 kg⋅m/123 lb⋅ft)

NHR Dual tire, NKR Flat low: 294 N

⋅m (30 kg⋅m/217

lb

⋅ft)

Except above models: 441 N

⋅m (45 kg⋅m/325 lb⋅ft)

• 6  studs

N3A0431E

N3A0432E

N3A0433E

N3A0434E
