SRS 9B-19

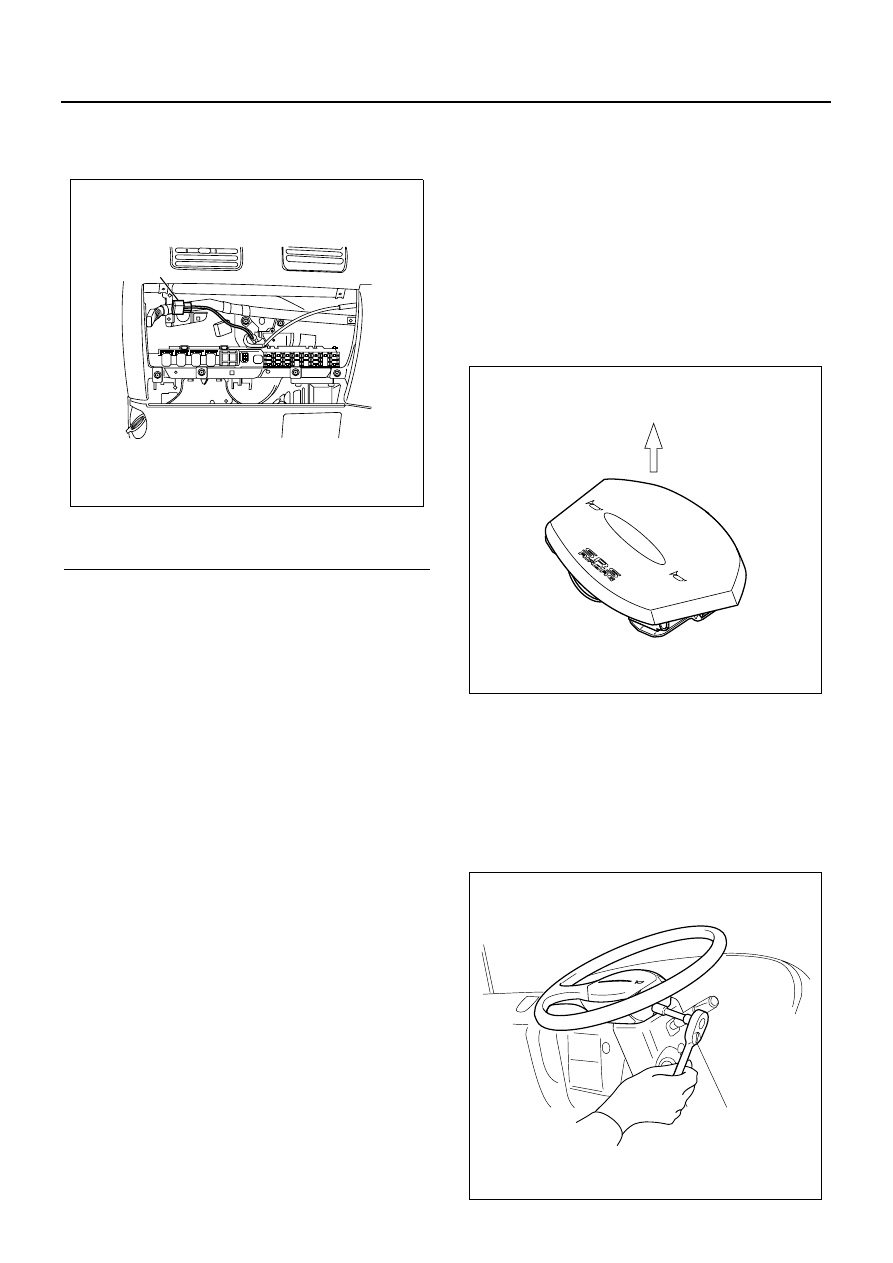

3. Remove the glove box, and connect the SRS air-

bag onboard deployment tool to disposal connec-
tor on vehicle side.

Legend

1. Disposal connector

4. Place SRS airbag onboard deployment tool away

from it.

5. Make sure that there are no personnel, objects or

flammable materials in or around the vehicle.

6. Cover windshield glass and front door glass with

cloth or blanket completely. This reduces possibili-
ty of injury due to glasses or broken pieces of inter-
nal parts.

7. Turn on the SRS airbag onboard deployment tool.

This activates SRS control unit to be ready for de-
ployment.

Caution:

Let nearby personnel know about SRS deployment be-
cause loud bursting sound occurs due to sudden gas ex-
pansion when SRS airbag is deployed.

8. Press the two ignition switches on SRS airbag on-

board deployment tool at the same time to deploy
the airbag. When handling deployed SRS airbag,
wear gloves and safety goggles to protect from
generated irritant and heat.

9. If SRS airbag has not been deployed in these

steps, perform the steps from 10 to 11, then from
13 to 14. If SRS airbag has been deployed, per-
form steps from 10 to 12.

10. Carefully remove the cloth from the vehicle, and re-

move broken pieces from it or dispose itself.

11. Remove the SRS airbag onboard deployment tool

from the vehicle.

12. After deploying SRS airbag, the vehicle can be dis-

posed in the same method as vehicles non-
equipped with SRS airbag.

13. Remove the undeployed SRS airbag from the ve-

hicle. Refer to “Removal” in “SRS Airbag Assem-
bly” for SRS airbag.

WARNING:

WHEN STORING UNDEPLOYED SRS AIRBAG AS-
SEMBLY, OR LEAVE IT UNATTENDED ON WORK-
BENCH OR SOMEWHERE ELSE, BE SURE TO TURN
THE TRIM COVER UPWARD TO REDUCE THE POS-
SIBILITY OF INJURY IN CASE OF AIRBAG DEPLOY-
MENT.

14. Store temporarily the SRS airbag with the trim cov-

er facing upward. Do not pile it up.

Removal

1. Stop the function of SRS. (Refer to “Procedure to

stop the function of SRS” in “SRS System Assem-
bly”.)

2. Loosen the mounting bolt from the back of steering

wheel using TORX

®

 driver or equivalent to remove

SRS airbag.

1

N9A0043E

N9A0039E

N9A0044E

9B-20 SRS

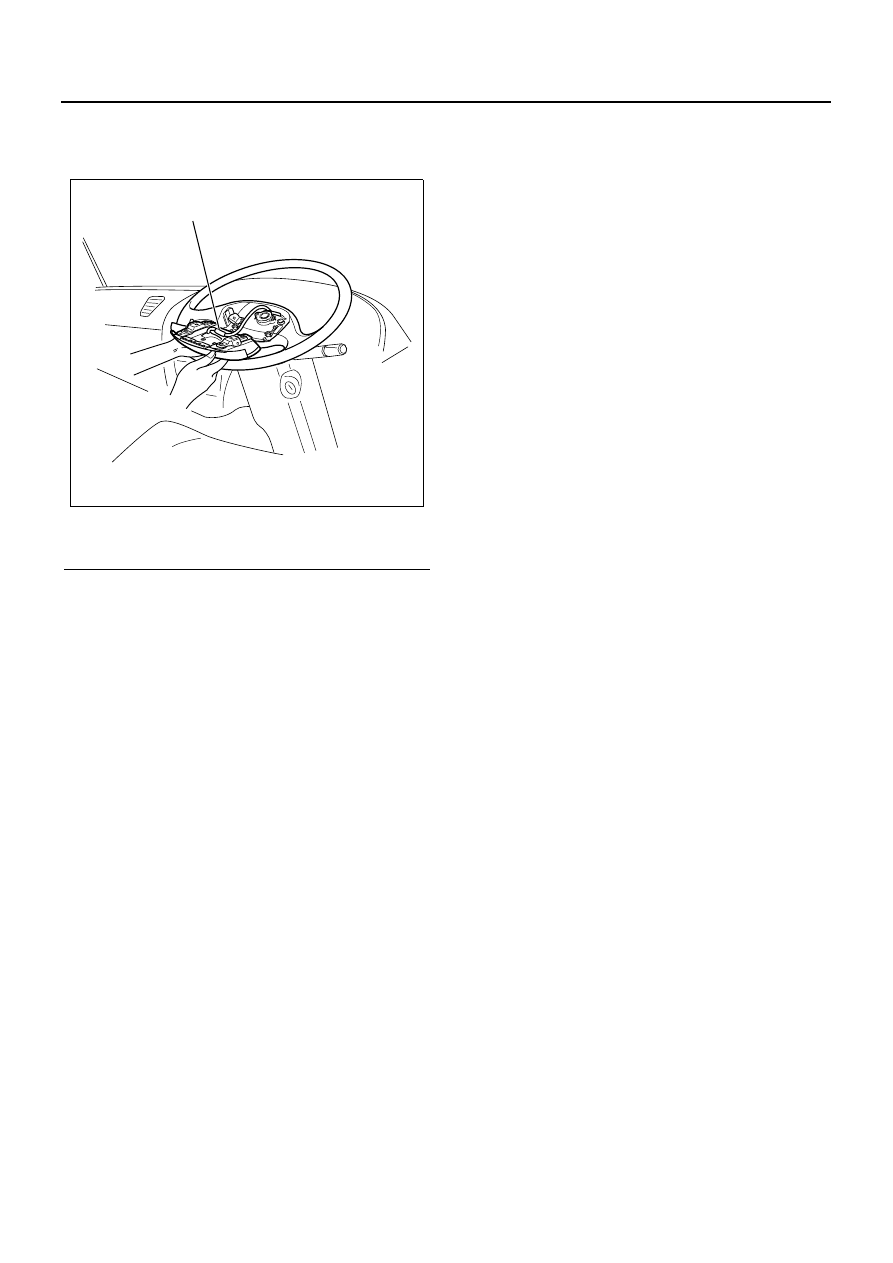

3. Disconnect the 2-pole airbag harness connector

(yellow) and horn harness located in the back of
SRS airbag and remove the airbag.

Legend

1. Airbag harness connector

Installation

1. Connect the 2-pole airbag harness connector (yel-

low) and horn connector located in the back of SRS
airbag.

2. Secure the connector and harness.

1

N9A0045E

SRS 9B-21

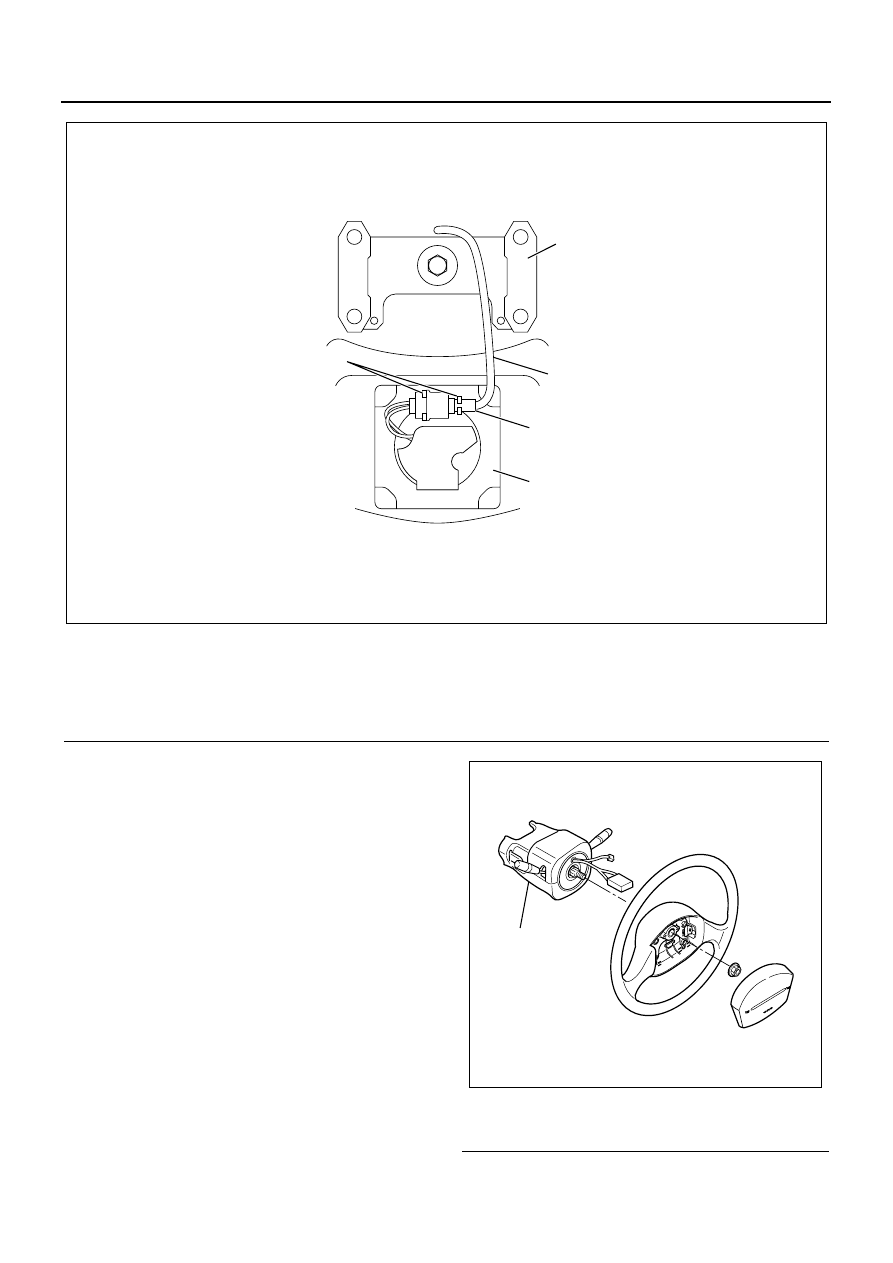

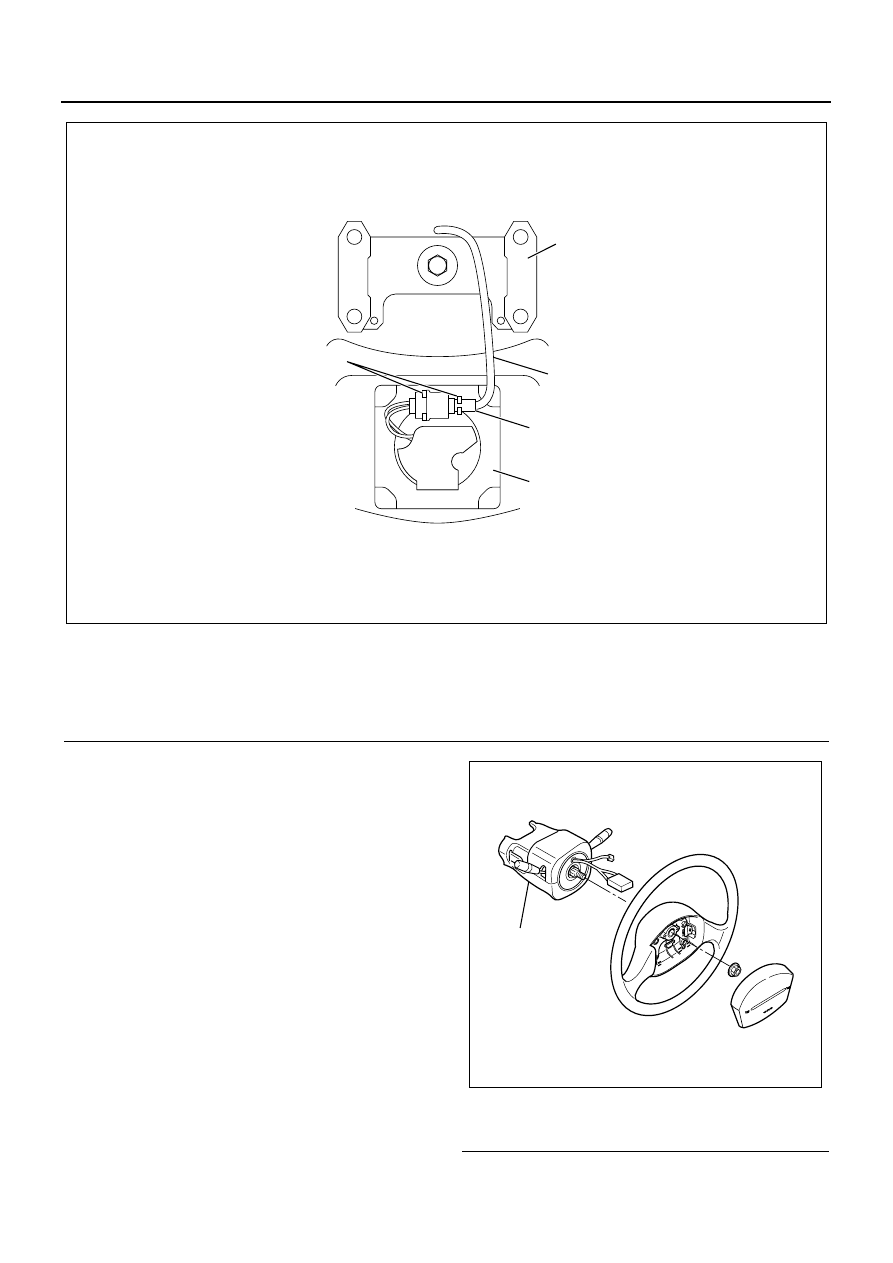

Legend

1. Front of steering wheel
2. Steering wheel
3. Connector holder portion
4. Airbag harness

5. Connector
6. Back side of SRS airbag
7. Forward direction of SRS airbag

3. Install the SRS airbag to steering wheel and tighten

the bolt.

Tighten:
Bolt to 8.0

± 2.0 N⋅m (0.8 ± 0.2 kg⋅m / 5.9 ± 1.5 lb⋅ft)

WARNING:

DO NOT USE SRS AIRBAG OF OTHER VEHICLE OR
MODEL. BE SURE TO CONFIRM THE PART NUM-
BER TO USE APPROPRIATE SRS AIRBAG.

4. Resume the function of SRS. (Refer to “Procedure

to resume the function of SRS” in “SRS System As-
sembly”.)

Legend

1. SRS coil and combination switch

1

2

4

5

6

3

7

N9A0046E

1

N9A0047E

9B-22 SRS

Special Tool

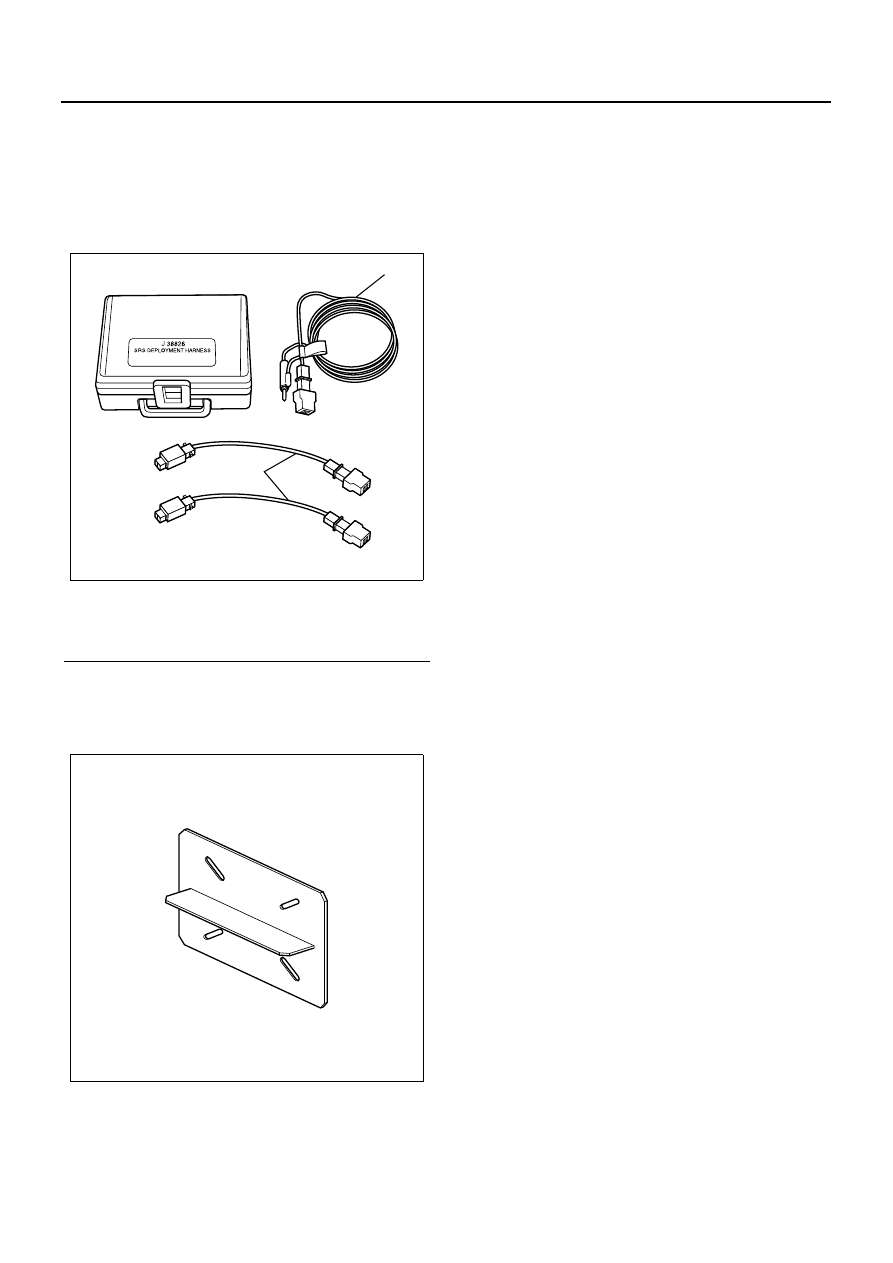

5-8840-2468-0 SRS airbag deployment tool
When deploying undeployed SRS airbag, the following
SRS airbag deployment tool (5-8840-2468-0) must be
used.

Legend

1. SRS airbag deployment harness
2. 2-pole extension cord

5-8840-2420-0 SRS deployment mounting tool
When deploying undeployed SRS airbag, SRS deploy-
ment mounting tool (5-8840-2420-0) must be used.

1

2

N9A0082E

N9A0049E
