SRS 9B-11

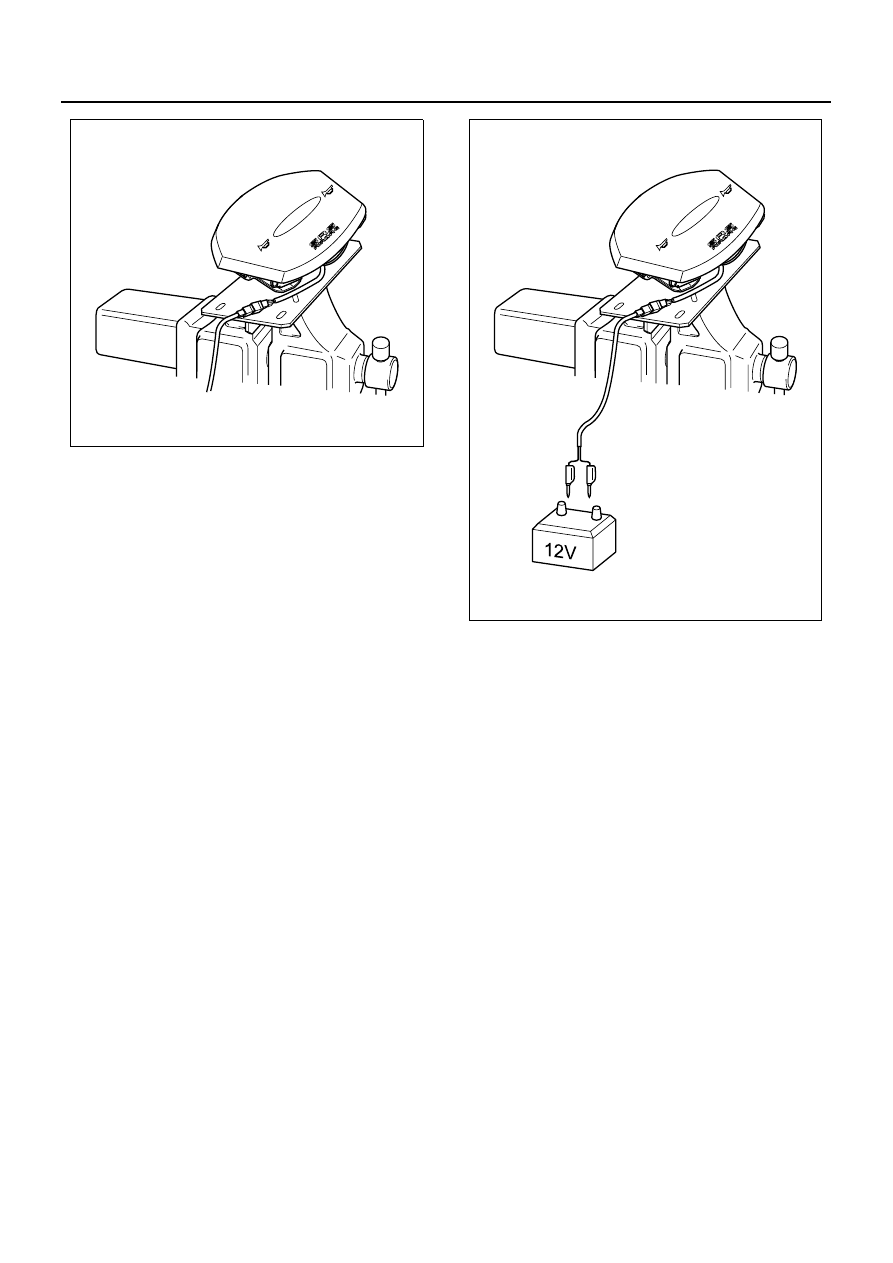

6. Firmly install SRS airbag assembly with trim cover

facing upward to deployment mounting tool (5-
8840-2420-0) using bolt or wire.

7. Extend SRS airbag deployment harness and the 2-

pole extension cord more than 10 m (33 ft) away
from airbag assembly.

8. Insert a banana plug to other banana plug firmly to

short two SRS airbag deployment harnesses. Do
not connect SRS airbag deployment harness to
power supply until the stage of deploying airbag.

9. Place the power supply near the end of extended

SRS airbag deployment harness. (Battery with 12
V and 2 A or more is recommended to use.)

10. Connect the SRS airbag assembly to 2-pole exten-

sion cord of SRS airbag deployment harness. Do
not connect deployment harness to power supply
until the stage of deploying airbag because airbag
deploys immediately after connecting the harness
to power supply.

Caution:

Insert the extension cord to the connector of SRS airbag
assembly firmly. Failure to insert connector firmly may
cause the shorting bar in SRS airbag assembly connec-
tor to remain functional (remains short in deployment cir-
cuit). Therefore, SRS airbag assembly is not deployed.

11. Make sure that there are no personnel, objects or

flammable materials around SRS airbag assembly.

12. Make sure that SRS airbag assembly is installed

correctly and firmly to SRS deployment mounting
tool (5-8840-2420-0).

13. Let nearby personnel know about deployment be-

cause loud bursting sound occurs due to sudden
gas expansion when airbag is deployed.

14. Remove the two banana plugs of SRS airbag de-

ployment harness.

N9A0029E

N9A0030E

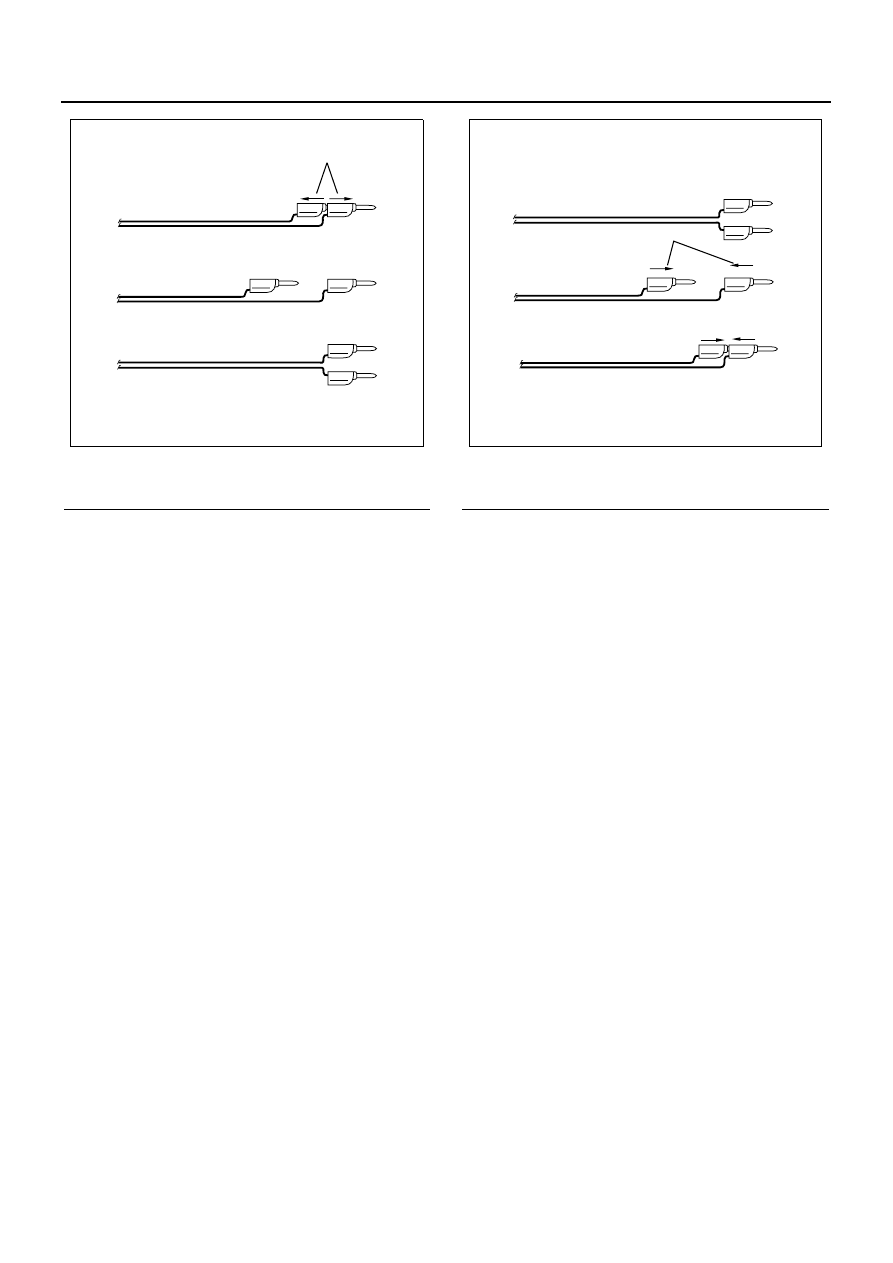

9B-12 SRS

Legend

1. Disconnect the banana plugs.

WARNING:

SRS AIRBAG ASSEMBLY DEPLOYS IMMEDIATELY
AFTER CONNECTING POWER SUPPLY TO SRS DE-
PLOYMENT HARNESS. THEREFORE, BE SURE TO
CONNECT POWER SUPPLY WITH THE HARNESS IN
THE END OF THE DEPLOYMENT PROCEDURE OF
SRS AIRBAG ASSEMBLY. FAILURE TO FOLLOW
THIS MAY CAUSE INJURY. ALSO, ALWAYS WEAR
SAFETY GOGGLES DURING DEPLOYMENT AND
DISPOSAL PROCEDURES.

15. When connecting SRS airbag deployment harness

to power supply, immediately SRS airbag assem-
bly will be deployed. Battery with 12 V and 2 A or
more is recommended to use for deployment.

16. If SRS airbag assembly has not been deployed in

these steps, immediately perform the steps from
22 to 24. If SRS airbag assembly has been de-
ployed, perform steps from 17 to 21.

17. Remove the SRS airbag deployment harness from

power supply.

18. Insert a banana plug to other banana plug firmly to

short two SRS airbag deployment harnesses.

Legend

1. Short the banana plug.

WARNING:

FOLLOW PRECAUTIONS ABOUT SAFETY WHEN
HANDLING DEPLOYED SRS AIRBAG ASSEMBLY.
METAL SURFACE OF SRS AIRBAG ASSEMBLY
WILL BE VERY HOT DIRECTLY AFTER DEPLOY-
MENT. DO NOT TOUCH IT FOR 30 MINUTES AFTER-
WARD. DO NOT PUT THE DEPLOYED SRS AIRBAG
ASSEMBLY NEAR FLAMMABLE MATERIALS. FAIL-
URE TO FOLLOW THIS MAY CAUSE FIRE OR INJU-
RY. IF THE DEPLOYED SRS AIRBAG ASSEMBLY
NEEDS TO BE MOVED BEFORE IT COOLS DOWN,
WEAR GLOVES AND GRASP THE SRS AIRBAG OR
TRIM COVER TO MOVE.

19. Remove the 2-pole extension cord from SRS air-

bag assembly soon after deployment to prevent
the extension cord and SRS airbag deployment
harness from touching the hot metal parts. 2-pole
extension cord and deployment harness are reus-
able. However, inspect them for damage every
time after deployment, and replace them if neces-
sary.

20. Leave the deployed SRS airbag assembly for more

than 30 minutes to cool down, and put it in sturdy
vinyl bag and seal it. Dispose it in the normal dis-
posal procedure.

1

N9A0031E

1

N9A0032E

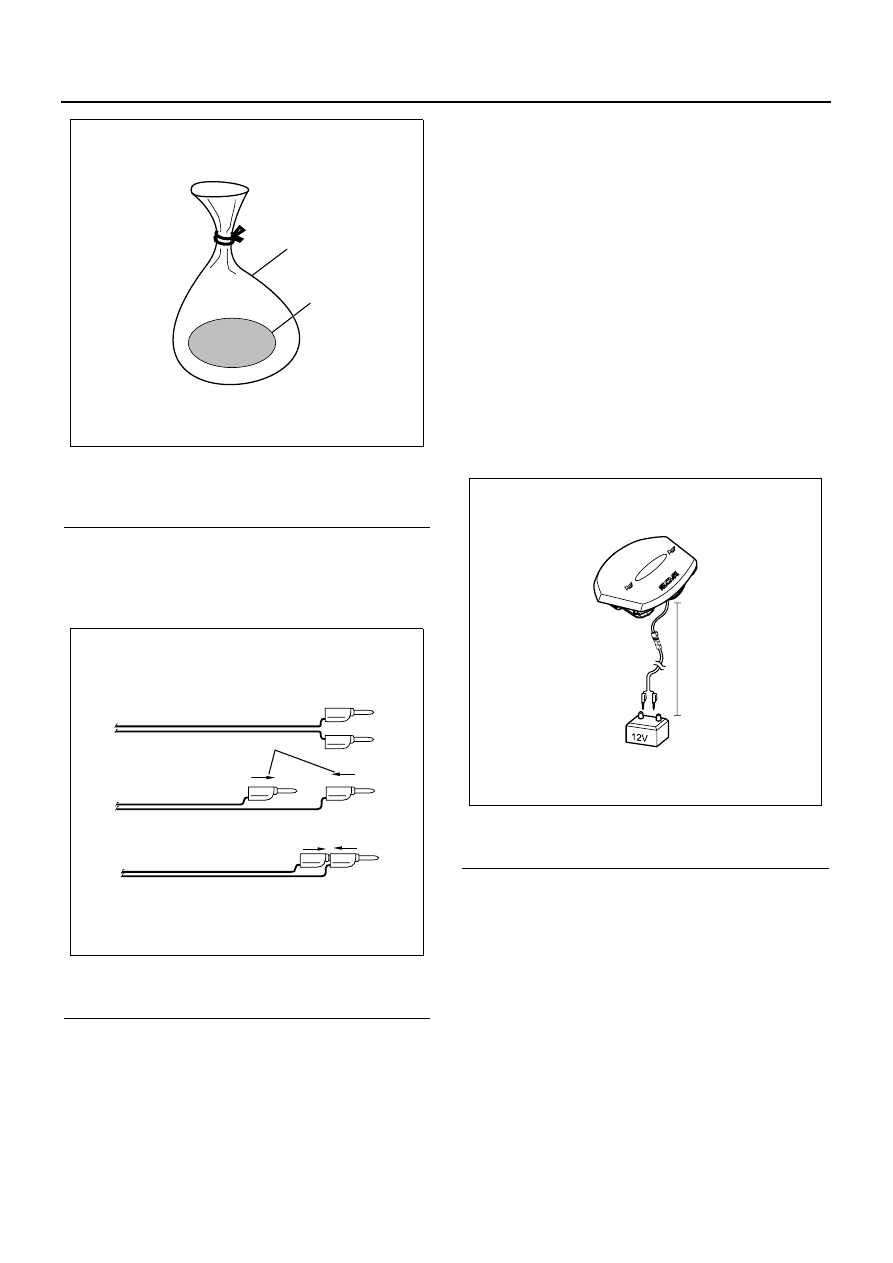

SRS 9B-13

Legend

1. Sturdy vinyl bag
2. Deployed airbag

21. Wash out your hands with soap thoroughly.
22. Remove the SRS airbag deployment harness from

power supply and insert the banana plug to the oth-
er banana plug firmly to short two banana plugs.

Legend

1. Short the banana plug.

23. Disconnect the 2-pole extension cord from SRS

airbag assembly.

WARNING:

WHEN STORING UNDEPLOYED SRS AIRBAG AS-
SEMBLY, OR LEAVE IT UNATTENDED ON WORK-
BENCH OR SOMEWHERE ELSE, BE SURE TO TURN
THE TRIM COVER UPWARD TO REDUCE THE POS-
SIBILITY OF INJURY IN CASE OF AIRBAG DEPLOY-
MENT.

24. Store temporarily the SRS airbag assembly with

the trim cover facing upward. Do not pile it up.

Out-vehicle Deployment (Method of Securing to
Tire)
Thoroughly understand description in “Precautions on
airbag deployment procedure for disposal” and precau-
tions in “How to secure to deployment mounting tool” to
perform safely.

1. Refer to “Removal” in “SRS Airbag Assembly” to

remove SRS airbag assembly from the vehicle.

2. Inspect the 2-pole extension cord of SRS deploy-

ment for damage. If the harness or extension cord
is damaged, use new one.

3. Extend the 2-pole extension cord more than 10 m

(33 ft) away from airbag assembly.

4. Place the power supply near the end of extended

SRS airbag deployment harness. (Battery with 12
V and 2 A or more is recommended to use.)

Legend

1. Keep more than 10 m (33 ft) away.

5. Insert the banana plug on the end of harness to the

other banana plug firmly to short two SRS airbag
deployment harnesses. Do not connect SRS air-
bag deployment harness to power supply until the
stage of deploying airbag.

1

2

N9A0033E

1

N9A0032E

1

N9A0034E

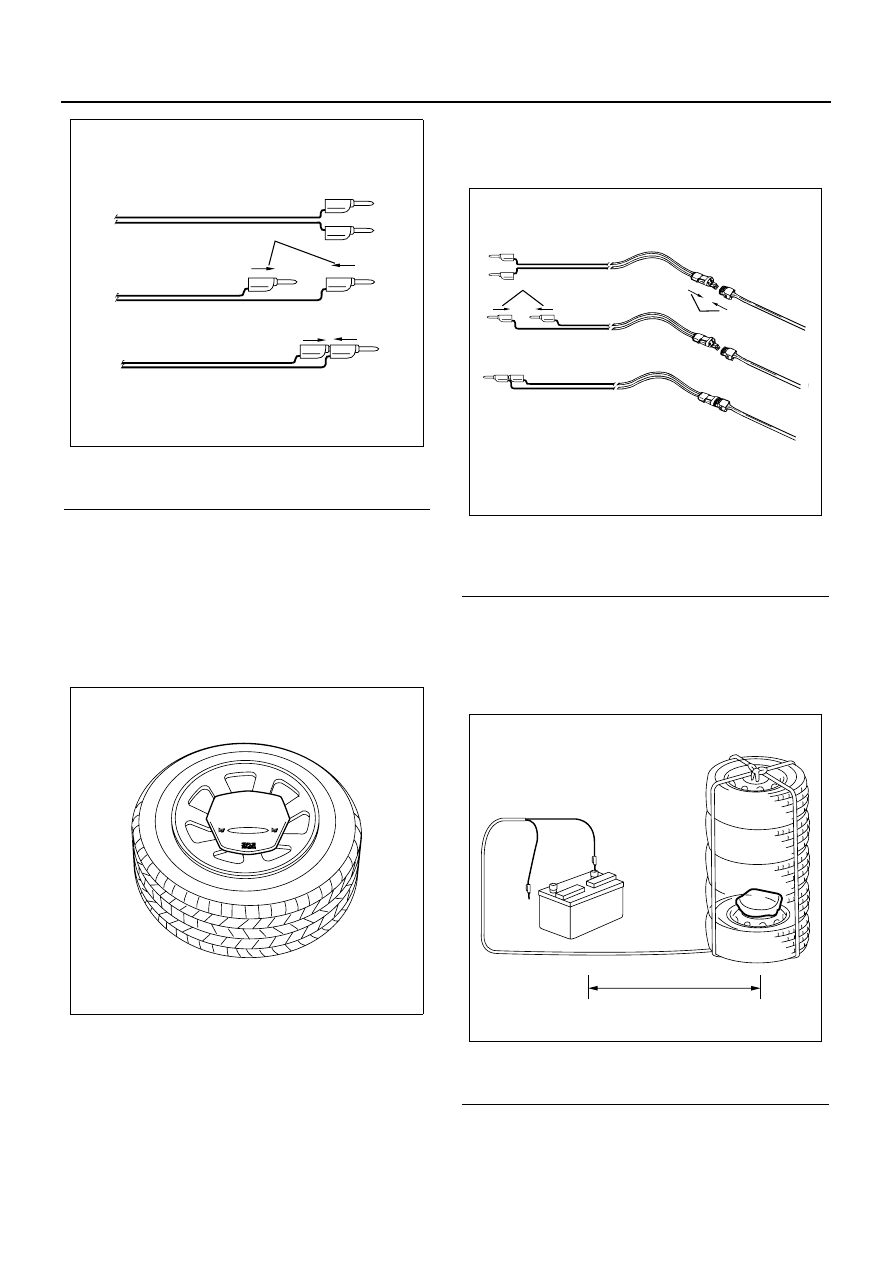

9B-14 SRS

Legend

1. Short the banana plug.

6. Prepare three tires (15-inch or more) without wheel

and two tires (same size) with wheel.

7. How to secure driver’s airbag

a. Secure the airbag with the trim cover facing up-

ward to the tire with wheel. Wind automotive
wire harness (cross-section of 1.25 mm

2

 or

more) or wire in triple-round at two locations to
secure firmly.

b. Connect the SRS airbag assembly to 2-pole ex-

tension cord of airbag deployment harness. Do
not connect deployment harness to power sup-
ply until the stage of deploying airbag because
airbag deploys immediately after connecting
the harness to power supply.

Caution:

Insert the extension cord to the connector of SRS airbag
assembly firmly. Failure to insert connector firmly may

cause the shorting bar in SRS airbag assembly connec-
tor to remain functional (remains short in deployment cir-
cuit). Therefore, SRS airbag assembly is not deployed.

Legend

1. Short the banana plug.
2. Connect the connector.

c. Pile up three tires without wheel onto the tire,

which secures airbag, and pile up a tire with
wheel onto the top of them. Secure them firmly
to prevent tires from tumbling down using ropes
at four locations.

Legend

1. Keep more than 10 m (33 ft) away.

8. Let nearby personnel know about deployment be-

cause loud bursting sound occurs due to sudden
gas expansion when airbag is deployed.

1

N9A0032E

N9A0035E

1

2

N9A0036E

1

N9A0037E
