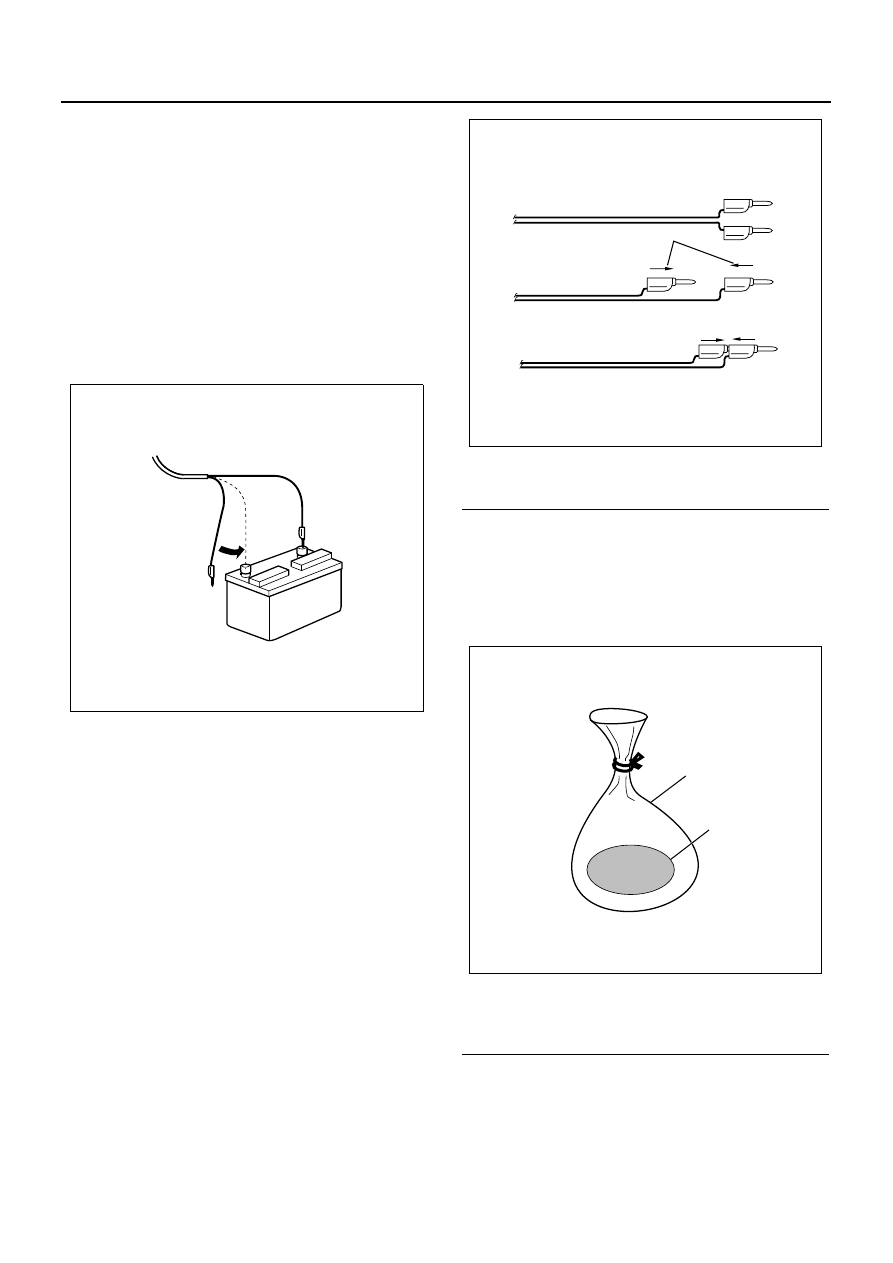

SRS 9B-15

WARNING:

SRS AIRBAG ASSEMBLY DEPLOYS IMMEDIATELY
AFTER CONNECTING POWER SUPPLY TO SRS DE-
PLOYMENT HARNESS. THEREFORE, BE SURE TO
CONNECT POWER SUPPLY WITH THE HARNESS IN
THE END OF THE DEPLOYMENT PROCEDURE OF
SRS AIRBAG ASSEMBLY. FAILURE TO FOLLOW
THIS MAY CAUSE INJURY. ALSO, ALWAYS WEAR
SAFETY GOGGLES DURING DEPLOYMENT AND
DISPOSAL PROCEDURES.

9. Connect the SRS airbag deployment harness to

power supply. Immediately SRS airbag assembly
will be deployed.

WARNING:

FOLLOW PRECAUTIONS ABOUT SAFETY WHEN
HANDLING DEPLOYED SRS AIRBAG ASSEMBLY.
METAL SURFACE OF SRS AIRBAG ASSEMBLY
WILL BE VERY HOT DIRECTLY AFTER DEPLOY-
MENT. DO NOT TOUCH IT FOR 30 MINUTES AFTER-
WARD. DO NOT PUT THE DEPLOYED SRS AIRBAG
ASSEMBLY NEAR FLAMMABLE MATERIALS. FAIL-
URE TO FOLLOW THIS MAY CAUSE FIRE OR INJU-
RY. IF THE DEPLOYED SRS AIRBAG ASSEMBLY
NEEDS TO BE MOVED BEFORE IT COOLS DOWN,
WEAR GLOVES AND GRASP THE SRS AIRBAG OR
TRIM COVER TO MOVE.

10. If SRS airbag assembly has not been deployed in

these steps, immediately perform the steps from
15 to 17. If SRS airbag assembly has been de-
ployed, perform steps from 11 to 14.

11. Remove the SRS airbag deployment harness from

power supply and insert the banana plug to the oth-
er banana plug firmly to short two banana plugs.

Legend

1. Short the banana plug.

12. Disconnect the 2-pole extension cord from SRS

airbag assembly.

13. Leave the deployed SRS airbag assembly for more

than 30 minutes to cool down, and put it in sturdy
vinyl bag and seal it. Dispose it in the normal dis-
posal procedure.

Legend

1. Sturdy vinyl bag
2. Deployed airbag

14. Wash out your hands with soap thoroughly.
15. Remove the SRS airbag deployment harness from

power supply and insert the banana plug to the oth-
er banana plug firmly to short two banana plugs.

N9A0038E

1

N9A0032E

1

2

N9A0033E

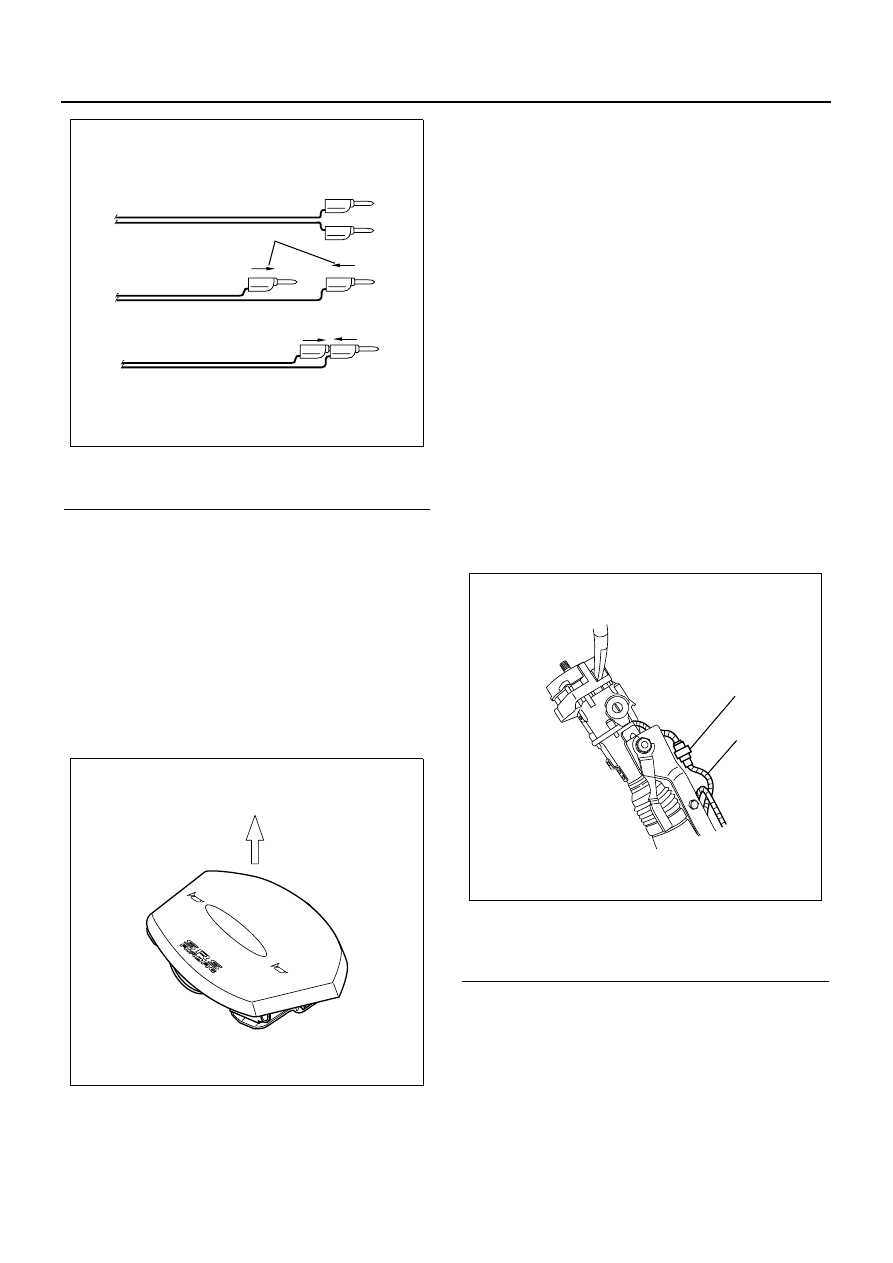

9B-16 SRS

Legend

1. Short the banana plug.

16. Disconnect the 2-pole extension cord from SRS

airbag assembly.

WARNING:

WHEN STORING UNDEPLOYED SRS AIRBAG AS-
SEMBLY, OR LEAVE IT UNATTENDED ON WORK-
BENCH OR SOMEWHERE ELSE, BE SURE TO TURN
THE TRIM COVER UPWARD TO REDUCE THE POS-
SIBILITY OF INJURY IN CASE OF AIRBAG DEPLOY-
MENT.

17. Store temporarily the SRS airbag with the trim cov-

er facing upward. Do not pile it up.

In-vehicle Deployment (Using SRS Deployment Har-
ness)

For discarding vehicle or collecting vehicle parts, in-ve-
hicle deployment is proper. This may be one of the fol-
lowing situations.

• Usable life of vehicle ended.
• Vehicle has got damaged without deployment and

it is impossible to be repaired.

• Vehicle was stolen and it is ripped off or damaged.

Caution:

If collecting the parts from vehicle to reuse for other one,
never reuse SRS parts.

WARNING:

FAILURE TO FOLLOW THE PROPER DISPOSAL
PROCEDURE MAY CAUSE INJURY DUE TO DE-
PLOYMENT OF SRS AIRBAG. UNDEPLOYED AIR-
BAG MUST BE DEPLOYED BEFORE DISPOSAL.

1. Turn the starter switch to “LOCK”, remove the key

and wear safety goggles.

2. Remove all unnecessary objects inside vehicle.
3. Disconnect the 2-pole connector (yellow) of SRS

coil. It is located in the lower portion of steering col-
umn.

Legend

1. Connector (yellow)
2. SRS coil harness (yellow)

4. Insert a banana plug to other banana plug firmly to

short two SRS airbag deployment harnesses.
Do not connect SRS airbag deployment harness to
power supply until the stage of deploying airbag.

WARNING:

SRS AIRBAG ASSEMBLY DEPLOYS IMMEDIATELY
AFTER CONNECTING POWER SUPPLY TO SRS DE-
PLOYMENT HARNESS. THEREFORE, BE SURE TO
CONNECT POWER SUPPLY WITH THE HARNESS IN
THE END OF THE DEPLOYMENT PROCEDURE OF

1

N9A0032E

N9A0039E

1

2

N9A0040E

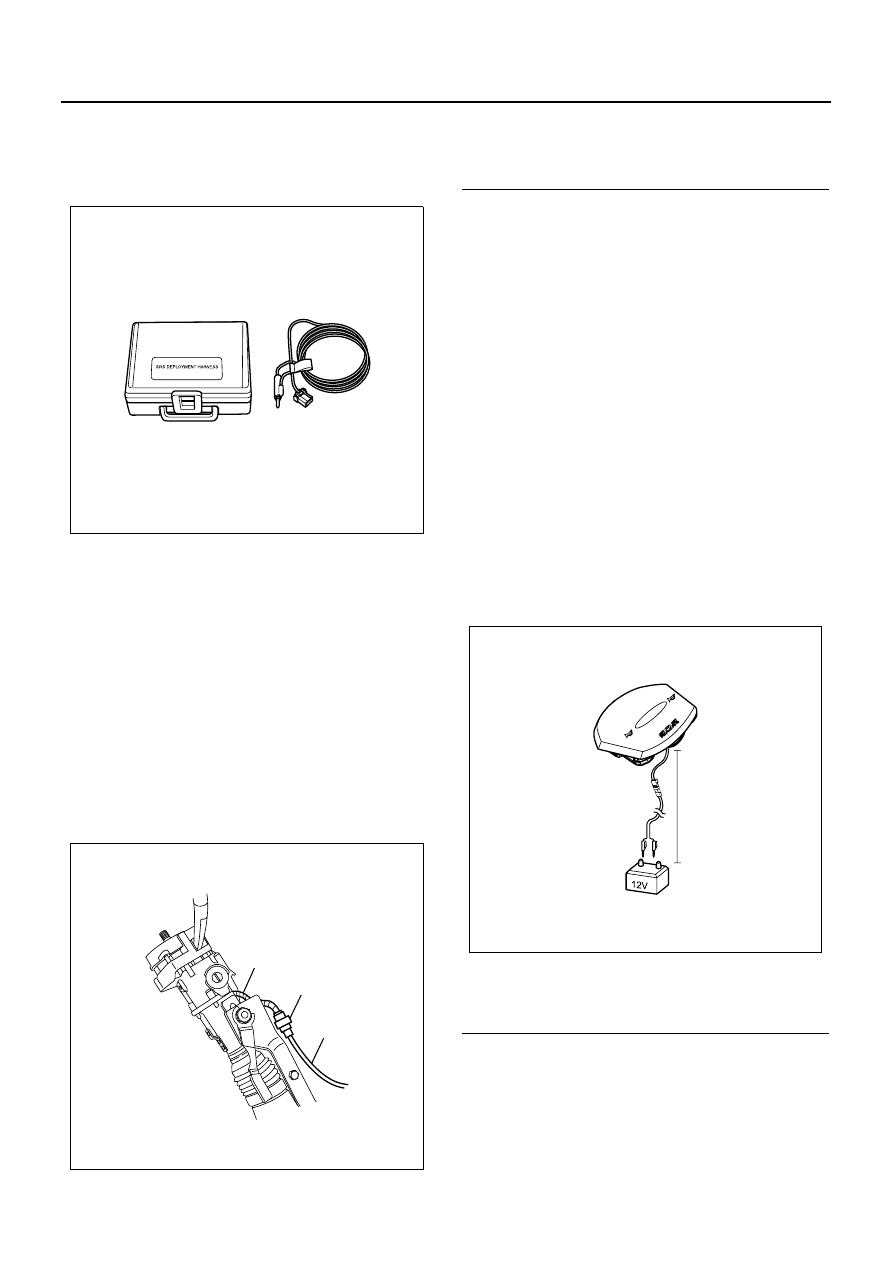

SRS 9B-17

SRS AIRBAG ASSEMBLY. FAILURE TO FOLLOW
THIS MAY CAUSE INJURY. ALSO, ALWAYS WEAR
SAFETY GOGGLES DURING DEPLOYMENT AND
DISPOSAL PROCEDURES.

5. Take the SRS deployment harness out of vehicle

from driver’s side.

6. Make sure that there are no personnel, objects or

flammable materials in or around the vehicle.

7. Extend the SRS deployment harness to keep a

enough distance from it.

8. Cover windshield glass and front door glass with

cloth or blanket completely. (Because personal in-
jury may occur due to vehicle glasses or broken
pieces of internal parts.)

9. Let nearby personnel know about deployment be-

cause loud bursting sound occurs due to sudden
gas expansion when airbag is deployed.

10. Connect the SRS deployment harness to the dis-

connected harness of SRS coil harness side.

Legend

1. SRS coil harness (yellow)
2. Connector (yellow)
3. SRS deployment harness

11. Remove the insertion of banana plug on the end of

SRS deployment harness.

WARNING:

SRS AIRBAG ASSEMBLY DEPLOYS IMMEDIATELY
AFTER CONNECTING POWER SUPPLY TO SRS DE-
PLOYMENT HARNESS. THEREFORE, BE SURE TO
CONNECT POWER SUPPLY WITH THE HARNESS IN
THE END OF THE DEPLOYMENT PROCEDURE OF
SRS AIRBAG ASSEMBLY. FAILURE TO FOLLOW
THIS MAY CAUSE INJURY. ALSO, ALWAYS WEAR
SAFETY GOGGLES DURING DEPLOYMENT AND
DISPOSAL PROCEDURES.

Caution:

Let nearby personnel know about SRS deployment be-
cause loud bursting sound occurs due to sudden gas ex-
pansion when SRS airbag is deployed.

12. When connecting the banana plug of SRS deploy-

ment harness to power supply, immediately SRS
airbag will be deployed. Battery with 12 V and 2 A
or more is recommended to use.

Legend

1. Keep more than 10 m (33 ft) (safe distance)

away.

13. If SRS airbag has not been deployed in these

steps, perform the steps from 18 to 22. If SRS air-
bag has been deployed, perform steps from 14 to
17.

14. Take out the SRS airbag deployment harness from

power supply and insert the banana plug to the oth-
er banana plug firmly to short two banana plugs.

N9A0041E

1

2

3

N9A0042E

1

N9A0034E

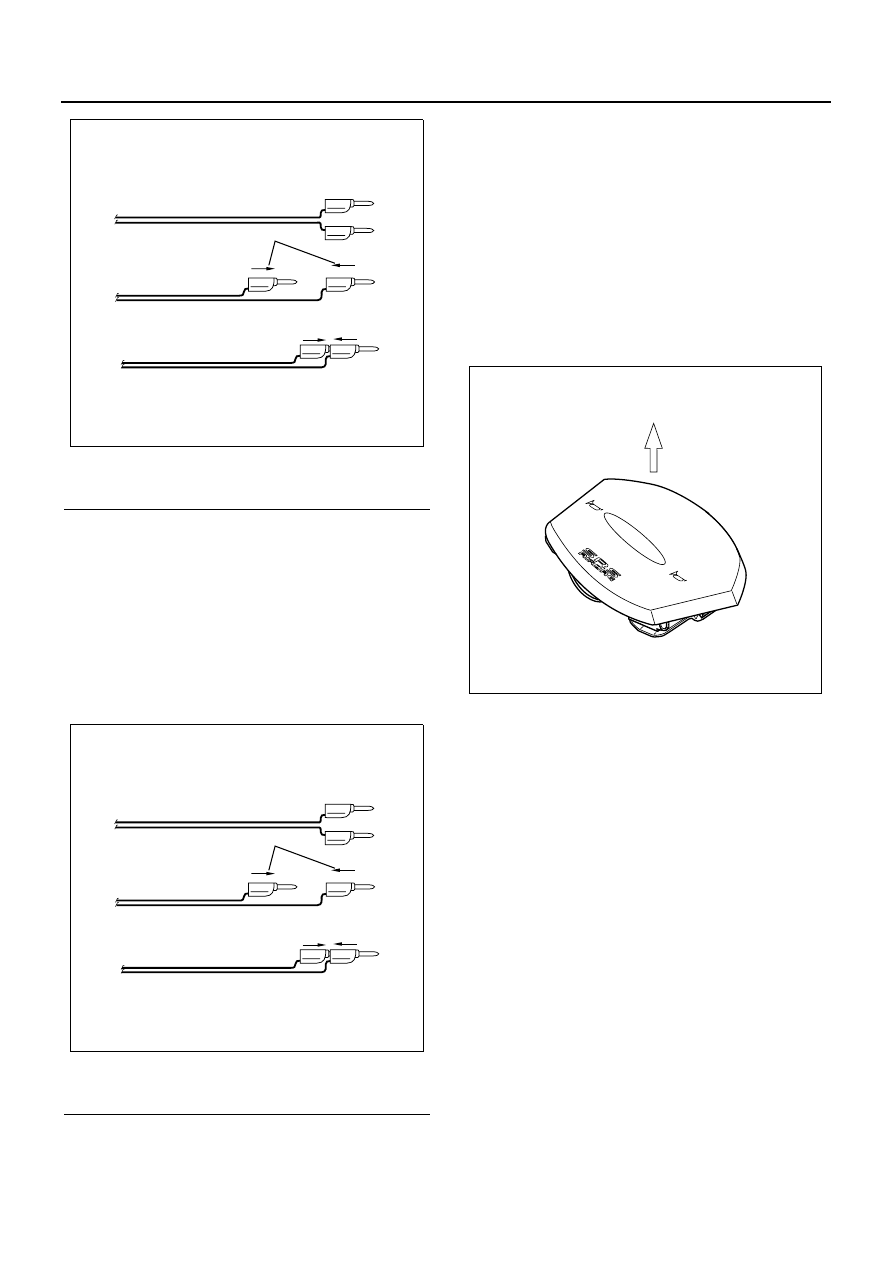

9B-18 SRS

Legend

1. Short the banana plug.

15. Carefully remove the cloth from the vehicle, and re-

move broken pieces from it or dispose itself.

16. Remove the SRS deployment harness from the ve-

hicle.

17. After deploying SRS airbag, the vehicle can be dis-

posed in the same method as vehicles non-
equipped with SRS airbag.

18. Take out the SRS airbag deployment harness from

power supply and insert the banana plug to the oth-
er banana plug firmly to short two banana plugs.

Legend

1. Short the banana plug.

19. Remove the cloth from the vehicle.
20. Remove the SRS deployment harness from the ve-

hicle.

21. Remove the undeployed SRS airbag from the ve-

hicle. Refer to “Removal” in “SRS Airbag Assem-
bly” for SRS airbag.

WARNING:

WHEN STORING UNDEPLOYED SRS AIRBAG AS-
SEMBLY, OR LEAVE IT UNATTENDED ON WORK-
BENCH OR SOMEWHERE ELSE, BE SURE TO TURN
THE TRIM COVER UPWARD TO REDUCE THE POS-
SIBILITY OF INJURY IN CASE OF AIRBAG DEPLOY-
MENT.

22. Store temporarily the SRS airbag with the trim cov-

er facing upward. Do not pile it up.

In-vehicle Deployment (Using SRS Airbag Onboard
Deployment tool)

For discarding vehicle or collecting vehicle parts, in-ve-
hicle deployment is proper. This may be one of the fol-
lowing situations.

• Usable life of vehicle ended.
• Vehicle has got damaged without deployment and

it is impossible to be repaired.

• Vehicle was stolen and it is ripped off or damaged.

Caution:

If collecting the parts from vehicle to reuse for other one,
never reuse SRS parts.

WARNING:

FAILURE TO FOLLOW THE PROPER DISPOSAL
PROCEDURE MAY CAUSE INJURY DUE TO DE-
PLOYMENT OF SRS AIRBAG. UNDEPLOYED AIR-
BAG MUST BE DEPLOYED BEFORE DISPOSAL.

1. Disconnect the battery of disposal vehicle to cut off

power supply to SRS control unit.

2. Remove all objects on the front seats.

1
