SEAT BELT 9A-11

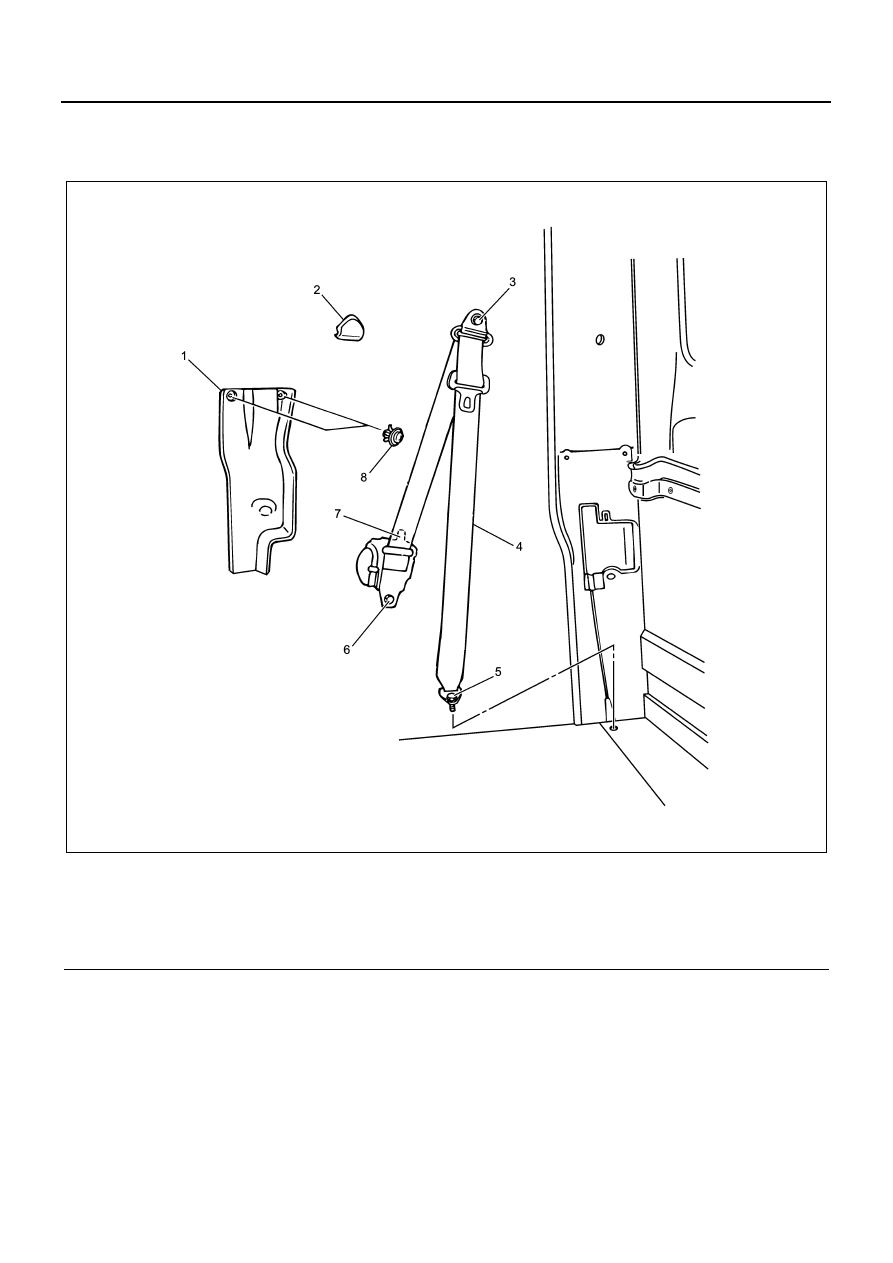

Rear Seat Belt (Crew Cab Model)

Components

Legend

1. Rear pillar lower trim cover
2. Through anchor cover
3. Seat belt upper anchor bolt
4. Rear seat belt assembly

5. Seat belt lower anchor bolt
6. Retractor fixing bolt
7. Bracket
8. Clip

Removal

1. Remove the seat belt lower anchor bolt.
2. Remove the rear pillar lower trim cover.

• Remove the 2 clips and pull it upward.

3. Remove the through anchor cover.
4. Remove the seat belt upper anchor bolt.
5. Remove the retractor fixing bolt.

• Remove the bolt and pull the retractor upper

bracket from panel to remove.

Installation

For installation, refer to “Tongue Side Seat Belt (Single
Cab Model)” in this section, and reverse the removal
procedure.

N2A0120E

9A-12 SEAT BELT

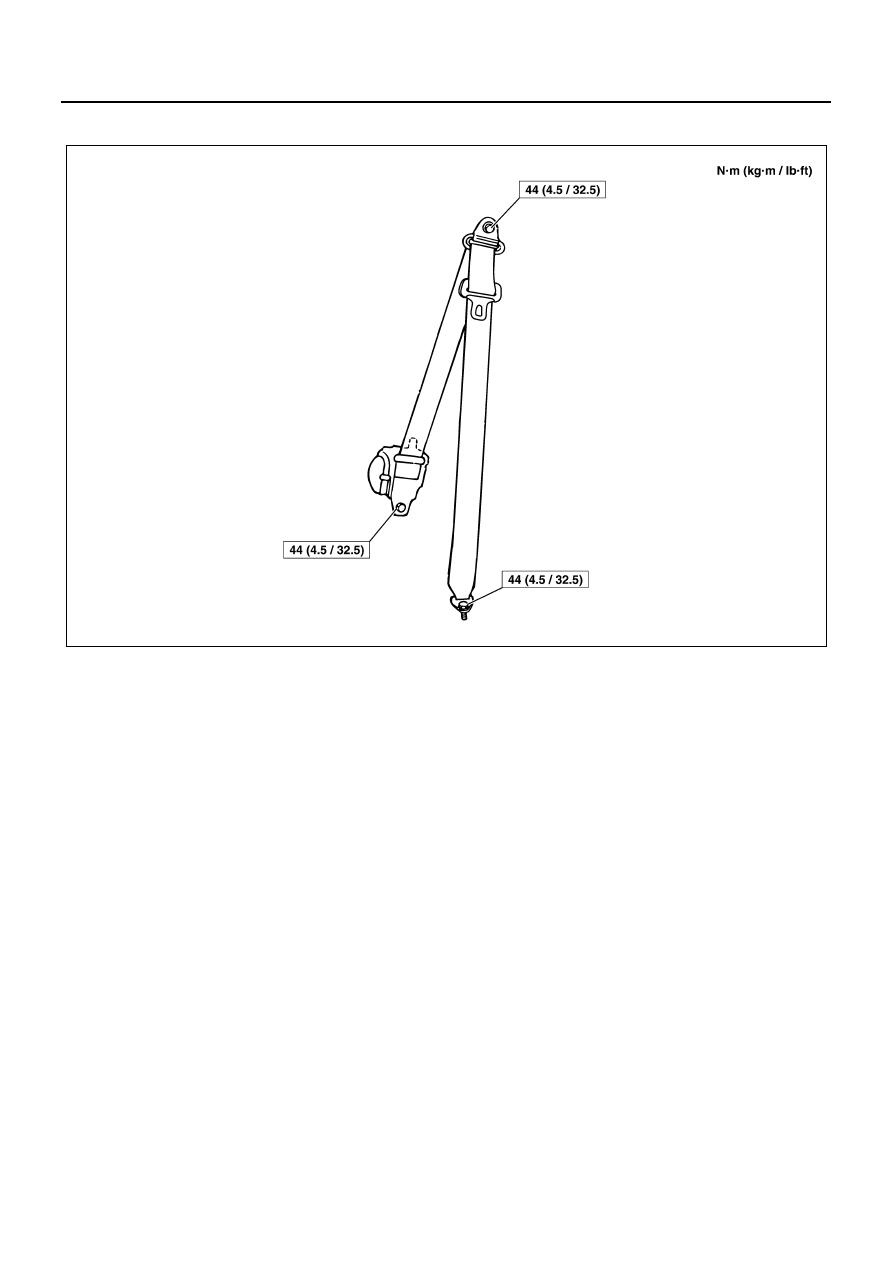

Fixing Torque

N2A0121E

SEAT BELT 9A-13

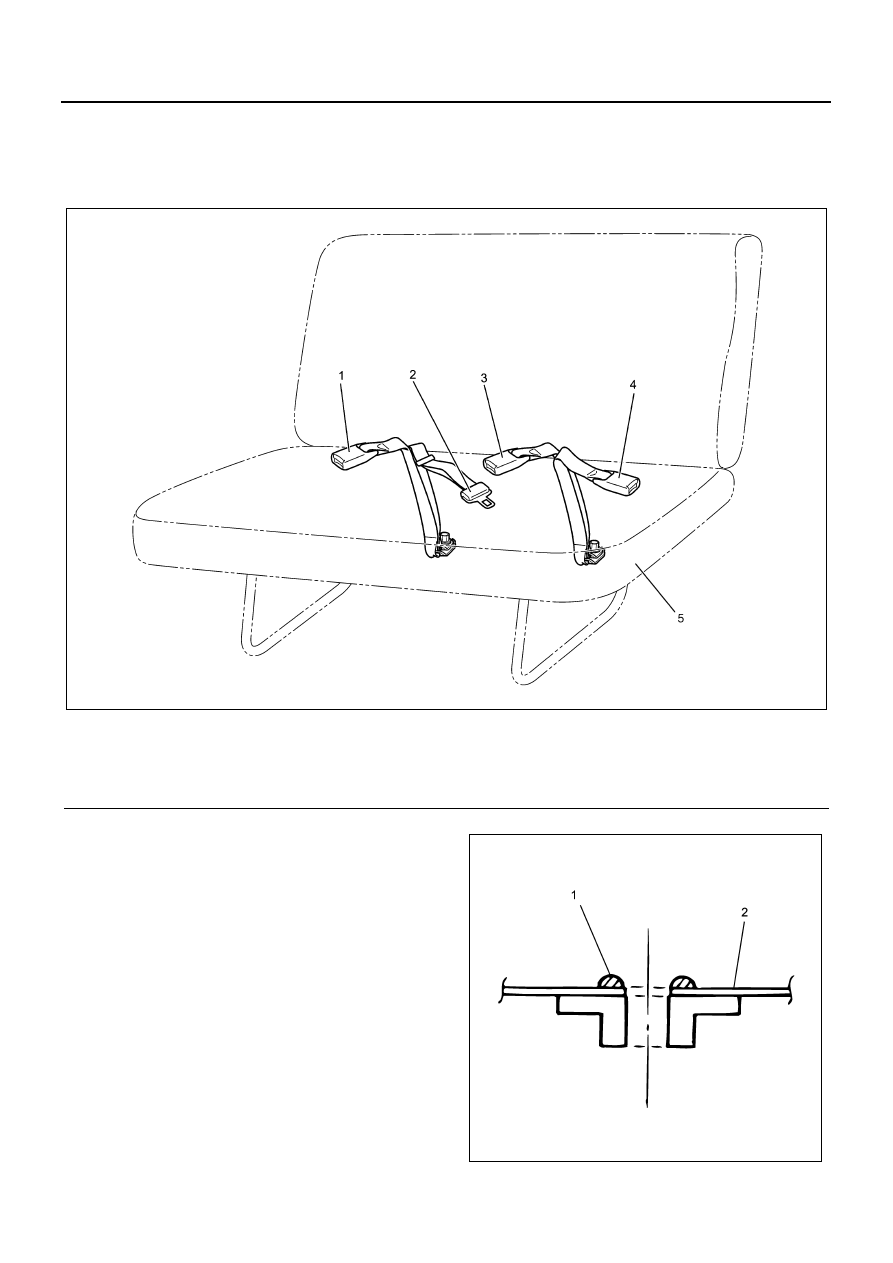

Rear Seat Belt Buckle and Rear Center Seat Belt/Buckle (Narrow Cab

Model)

Components

Legend

1. Rear seat belt buckle (RH)
2. Rear center seat belt
3. Rear center belt buckle

4. Rear seat belt buckle (LH)
5. Rear seat cushion

Removal

1. Fold the rear seat cushion.

• Pull out each seat belt buckle and seat belt from

the interval of the seat cushion and release the
lock lever of rear seat cushion stay to fold it.

2. Remove the fixing bolt of each seat belt.

Installation

For installation, reverse the removal procedure taking
the following points into consideration.

1. Apply the sealant (1) around the fixing bolt mount-

ing hole on the floor part (2).

Sealant TOKIWA CHEMICAL INDUSTRY 770GA or
equivalent

N2A0233E

N2A0109E

9A-14 SEAT BELT

2. Install the anchor parallel to the traveling direction

of vehicle.

3. Tighten the fixing bolts to the specified torque.

Tighten:
Fixing bolts to 44 N

⋅m (4.5 kg⋅m / 32.5 lb⋅ft)

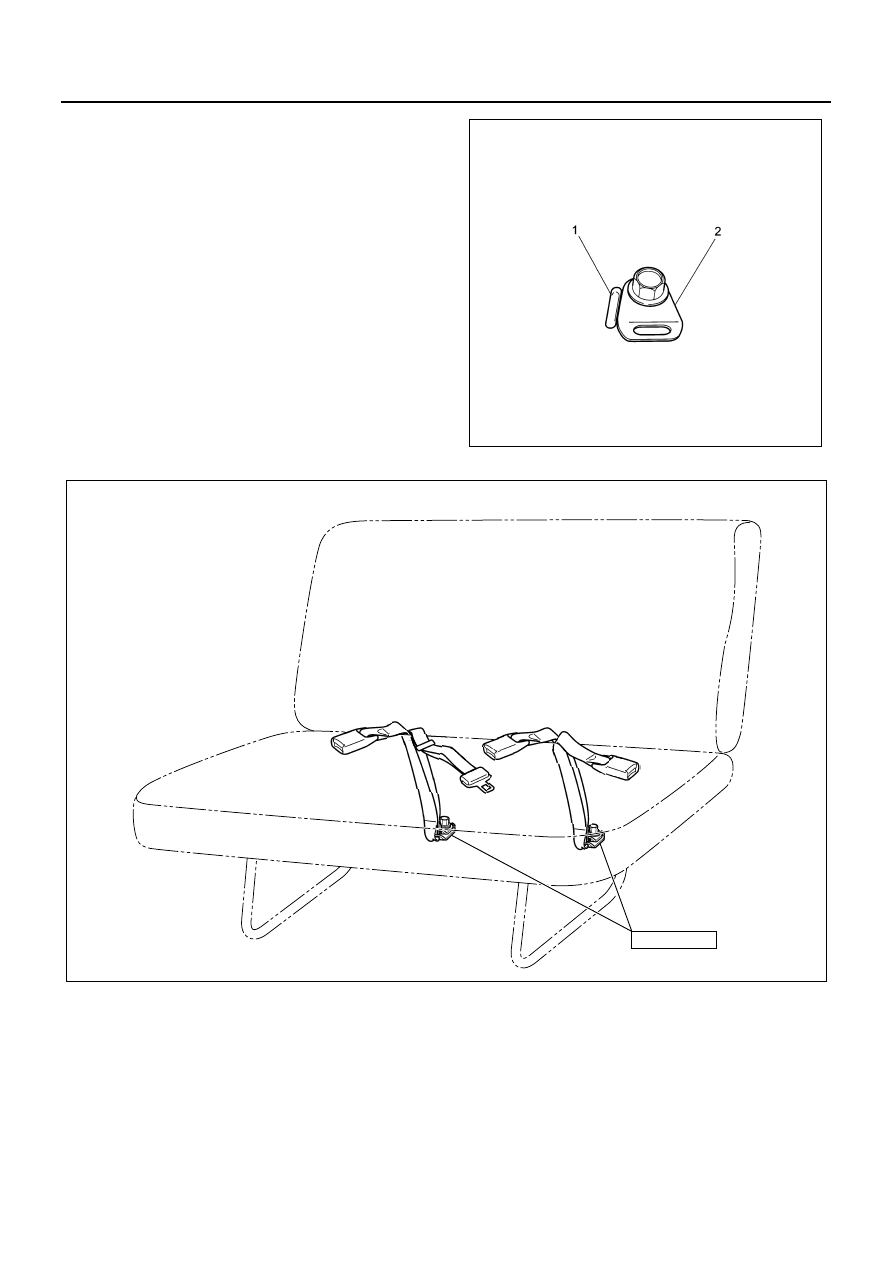

Caution:

Install the anchor bracket (2) so that it may not run on
the anchor detent bead (1).

Fixing Torque

N2A0124E

44 (4.5 / 32.5)

N.m (kg.m / lb.ft)

N2A0234E
