Isuzu N-Series. Manual - part 1176

SEAT BELT 9A-3

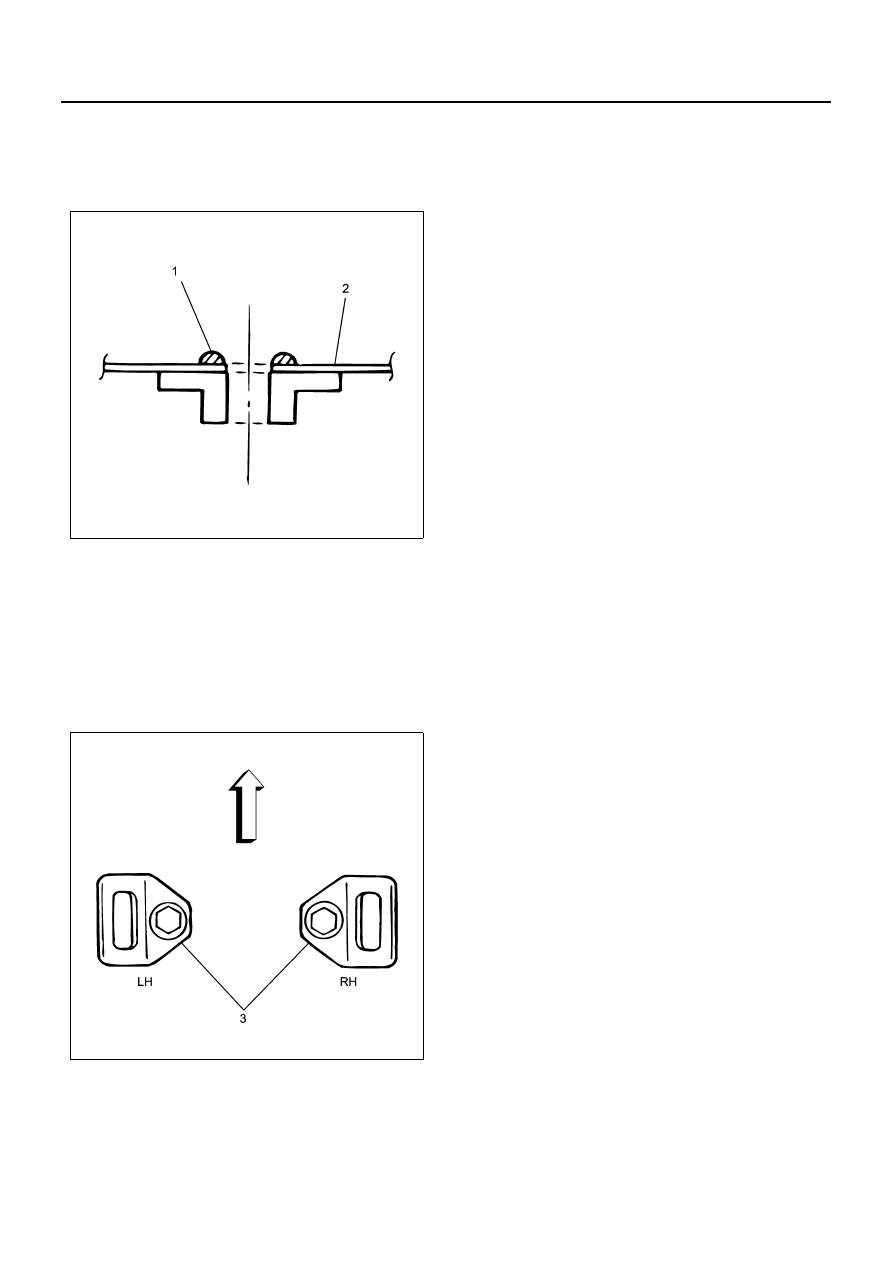

2. Apply the sealant (1) around the seat belt lower an-

chor bolt mounting hole on the floor part (2).

Sealant TOKIWA CHEMICAL INDUSTRY 770GA or
equivalent

3. Install the seat belt lower anchor (3) in the specified

direction, and tighten it to the specified torque.

Tighten:
Anchor bolt to 44 N

⋅m (4.5 kg⋅m / 32.5 lb⋅ft)

Caution:

Install the seat belt lower anchor so that it may not run
on the anchor detent bead.

N2A0109E

N2A0110E

9A-4 SEAT BELT

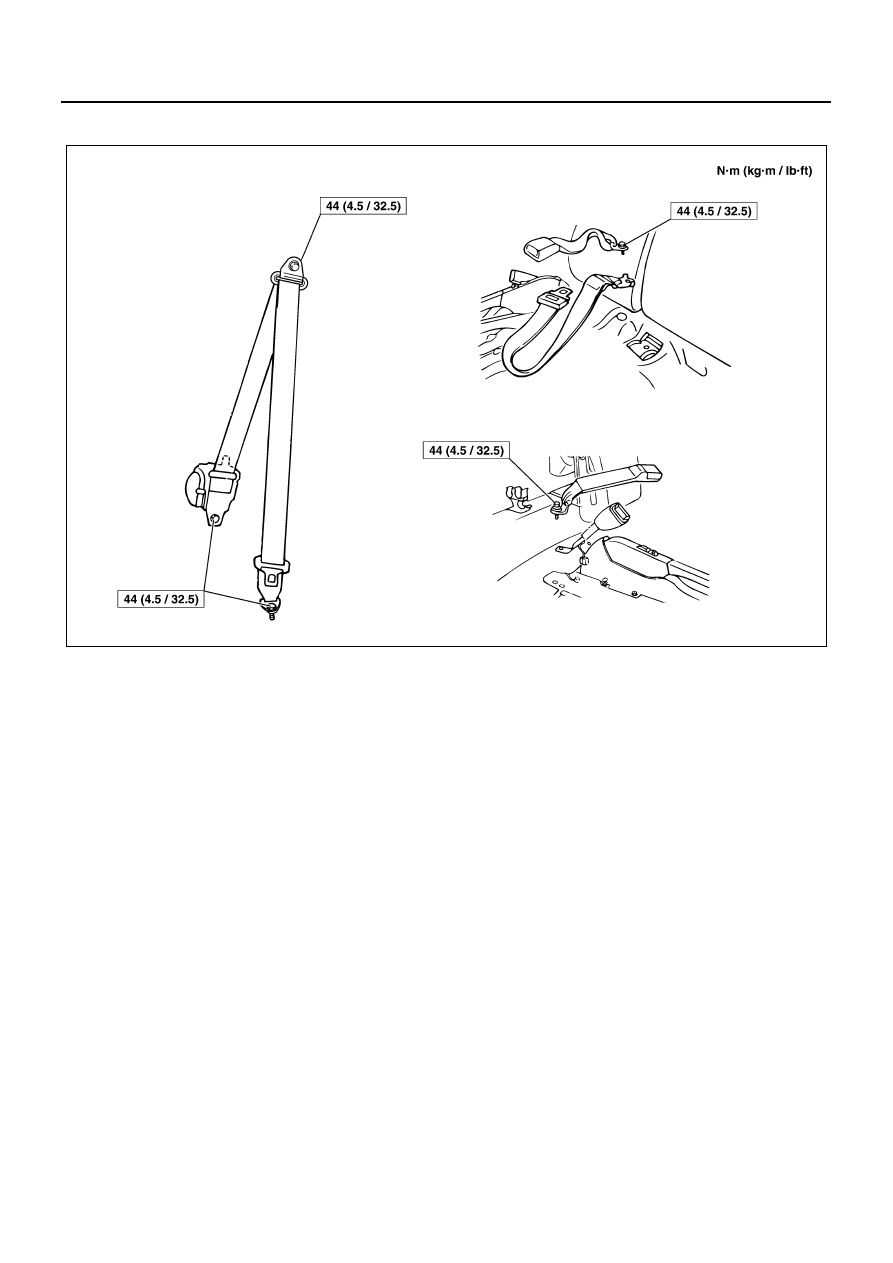

Fixing Torque

N2A0111E

SEAT BELT 9A-5

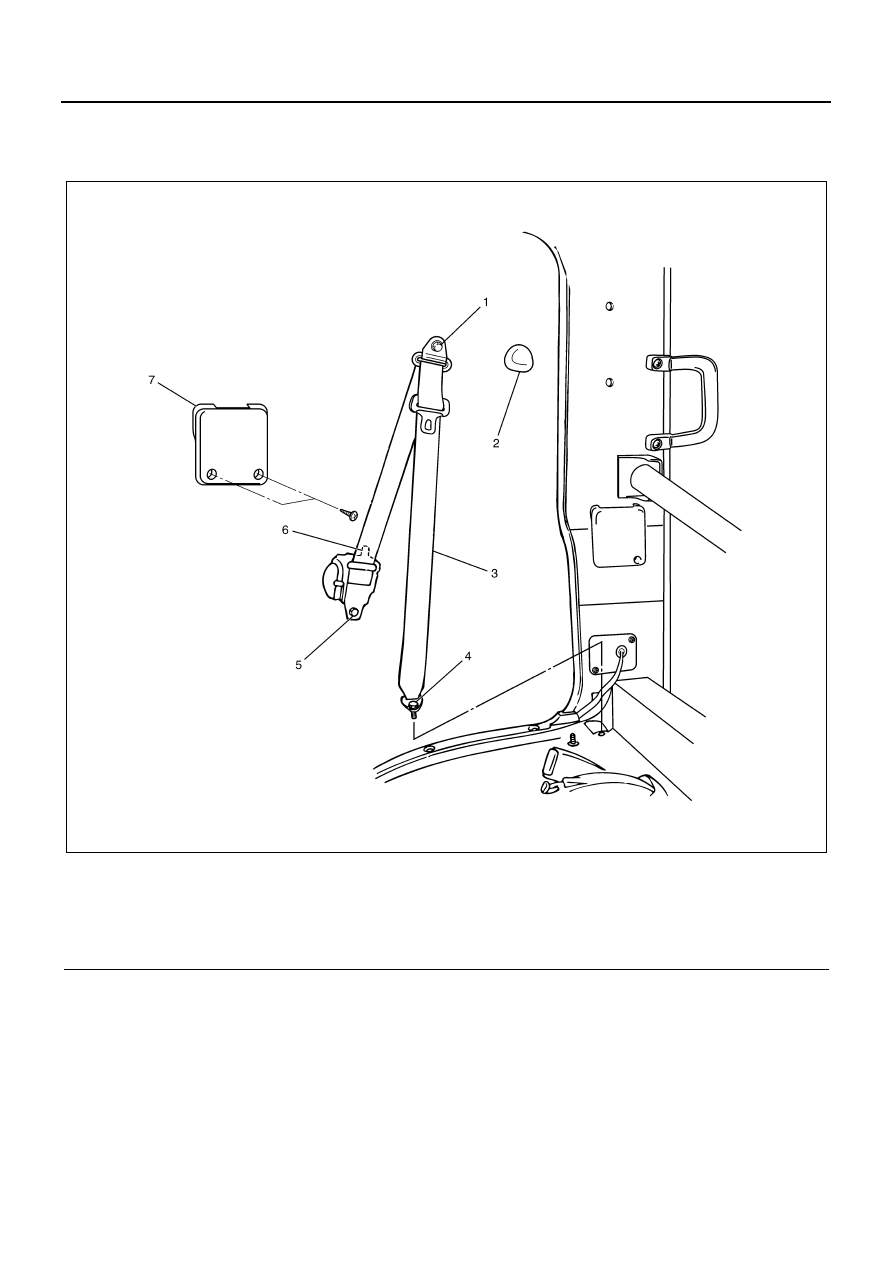

Tongue Side Seat Belt (Crew Cab Model)

Components

Legend

1. Seat belt upper anchor bolt
2. Through anchor cover
3. Tongue side seat belt assembly
4. Seat belt lower anchor bolt

5. Retractor fixing bolt
6. Bracket
7. Retractor cover

Removal

1. Remove the seat belt lower anchor bolt.
2. Remove the retractor cover.

• Remove the 2 fixing screws.

3. Remove the through anchor cover.
4. Remove the seat belt upper anchor bolt.
5. Remove the retractor fixing bolt.

• Remove the bolt and pull the retractor upper

bracket from panel to remove.

6. Remove the adjuster cover.

Installation

For installation, refer to “Tongue Side Seat Belt (Single
Cab Model)” in this section, and reverse the removal
procedure.

N2A0238E

9A-6 SEAT BELT

Fixing Torque

N2A0111E
