SEAT BELT 9A-7

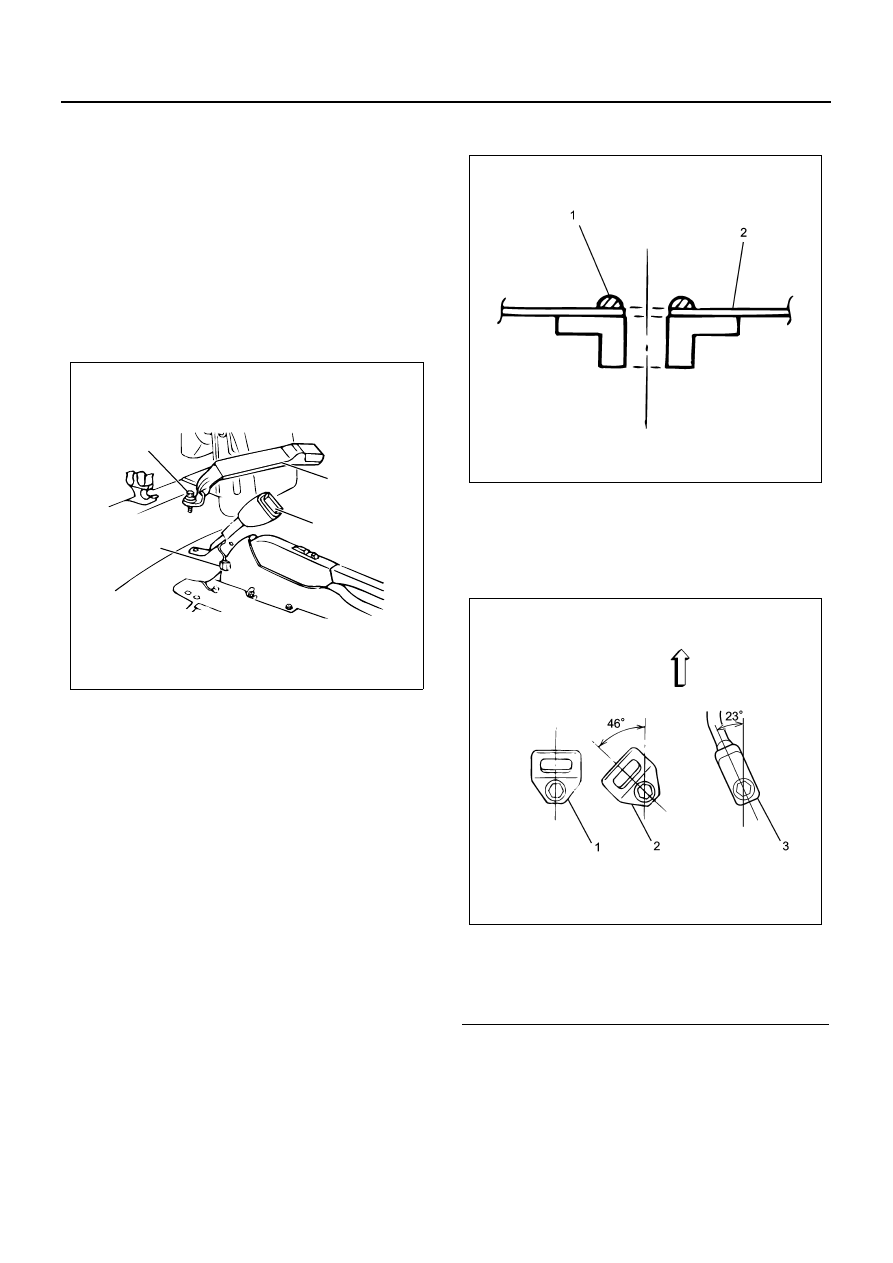

Front Center and Driver’s Side Seat Belt Buckle

Removal

1. Disconnect the battery ground cable.
2. Remove the fixing bolt (1).
3. Remove the center seat belt buckle (2).
4. Disconnect the seat belt warning connector (4).
5. Remove the driver’s seat belt belt buckle (3).

Caution:

For wide cab model, perform the steps 1 and 2 (Center),
or the steps 1, 3 and 4 (Driver’s side).

Installation

For installation, reverse the removal procedure taking
the following points into consideration.

1. Apply the sealant (1) around the fixing bolt mount-

ing hole on the floor part (2).

Sealant TOKIWA CHEMICAL INDUSTRY 770GA or
equivalent

2. Install the anchor in the specified direction, and

tighten it to the specified torque.

Tighten:
Fixing bolt to 44 N

⋅m (4.5 kg⋅m / 32.5 lb⋅ft)

Legend

1. Center seat belt buckle (Wide cab model)
2. Center seat belt buckle (Except wide cab model)
3. Driver’s side seat belt buckle

3. Pass the center seat belt buckle through the band

on the end of seat cushion.

Caution:

Install it so that it may not run on the anchor detent bead.

1

4

2

3

N9A0006E

N2A0109E

N2A0116E

9A-8 SEAT BELT

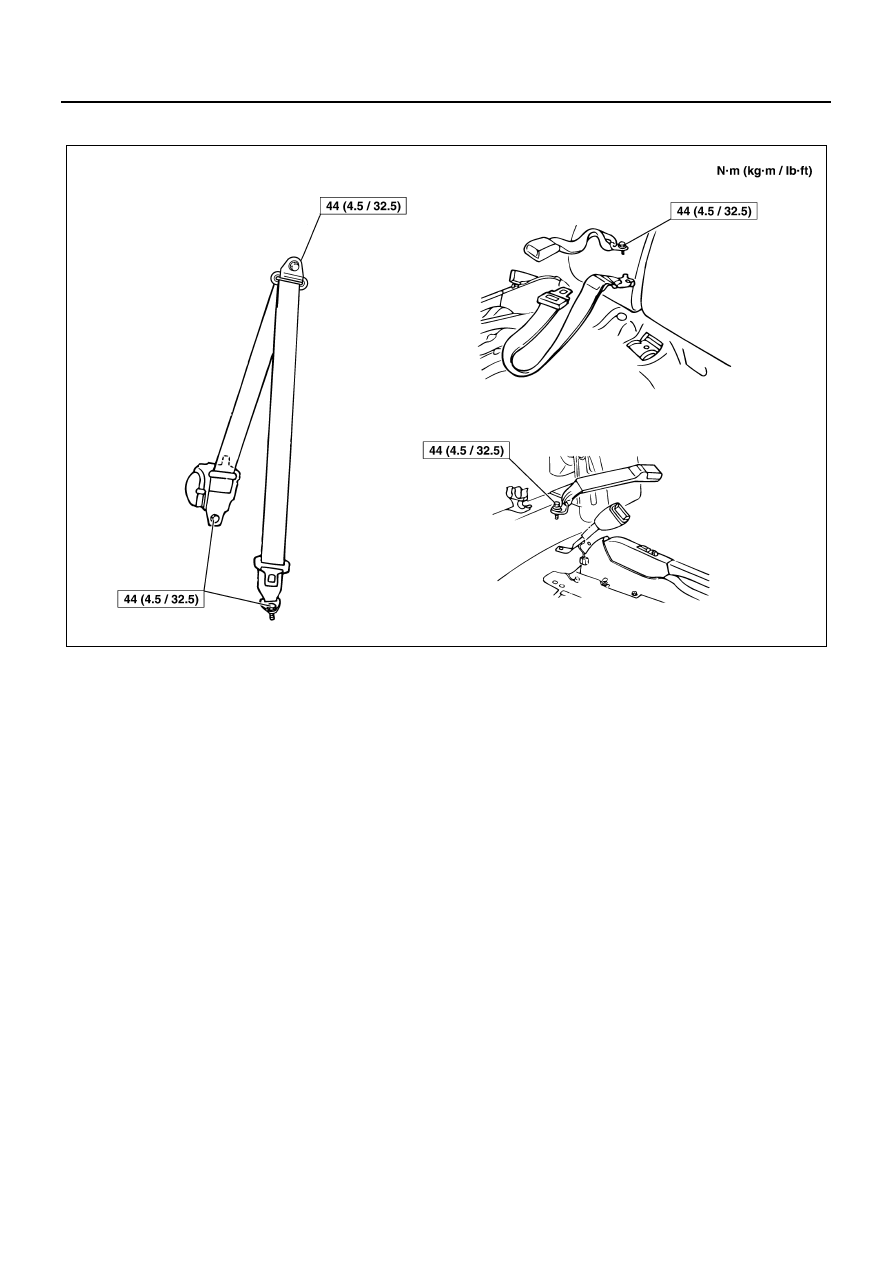

Fixing Torque

N2A0111E

SEAT BELT 9A-9

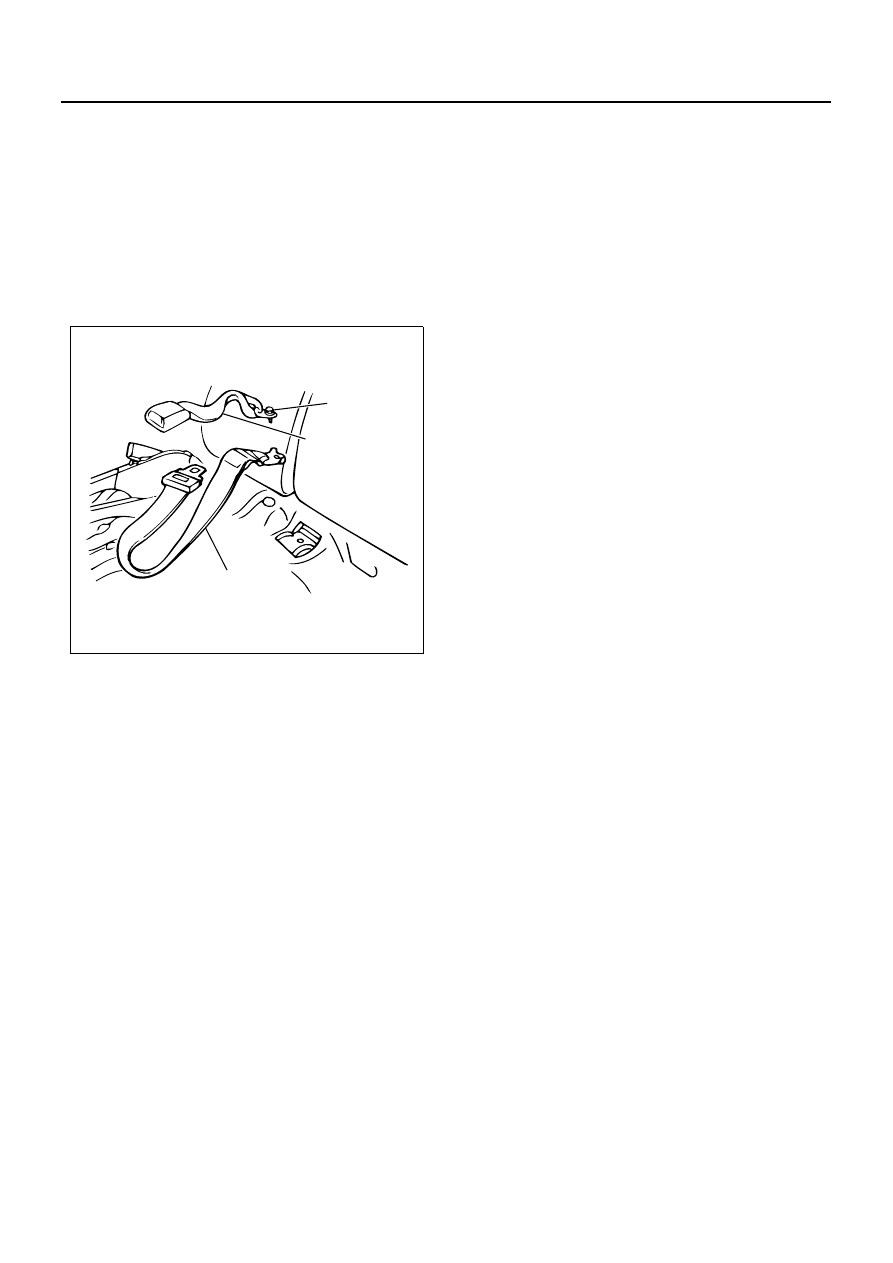

Front Center Seat Belt and Assistant’s Side Seat Belt Buckle

Removal

1. Remove the assistant’s seat cushion (three-pas-

senger vehicle).

• Refer to “Center and Assistant’s Side Seat” in

Seat Section of Cab Repair Manual.

2. Remove the fixing bolt (1).
3. Remove the assistant’s seat belt buckle (2).
4. Remove the center seat belt (3).

Installation

For installation, reverse the removal procedure taking
the following points into consideration.

1. Apply the sealant around the fixing bolt mounting

hole.

Sealant TOKIWA CHEMICAL INDUSTRY 770GA or
equivalent

2. Install the anchor parallel to the traveling direction

of vehicle.

3. Tighten the fixing bolts to the specified torque.

Tighten:
Fixing bolt to 44 N

⋅m (4.5 kg⋅m / 32.5 lb⋅ft)

1

2

3

N9A0008E

9A-10 SEAT BELT

Fixing Torque

N2A0111E
