CAB AND CHASSIS ELECTRICAL 8-217

Inspection of The Buzzer Circuit
Disconnect the key remind buzzer connector, measure the continuity and voltage between the harness side connec-
tor terminals.

Termi-

Item

Connect-

Wire

nal

Connected to

to be

ing

Checking conditions

Standard

color

No.

checked

terminal

2

B

Ground

Continuity 2-Ground

-

Continuity

Starter key inserted

Approx. battery
voltage

1

P/L

Ground

Voltage

1-Ground

Starter key removed

0V

Front driver·s side door
"OPEN"

Continuity

3

GR/R

Ground

Continuity 3-Ground

Front driver·s side door
"CLOSE"

No Continuity

6

B/Y

Fuse F-12 (10A)

Voltage

6-Ground • Starter SW ON

Approx. battery
voltage

Harness side

1

2

3

4

5

6

B-83

N8A0209E

8-218 CAB AND CHASSIS ELECTRICAL

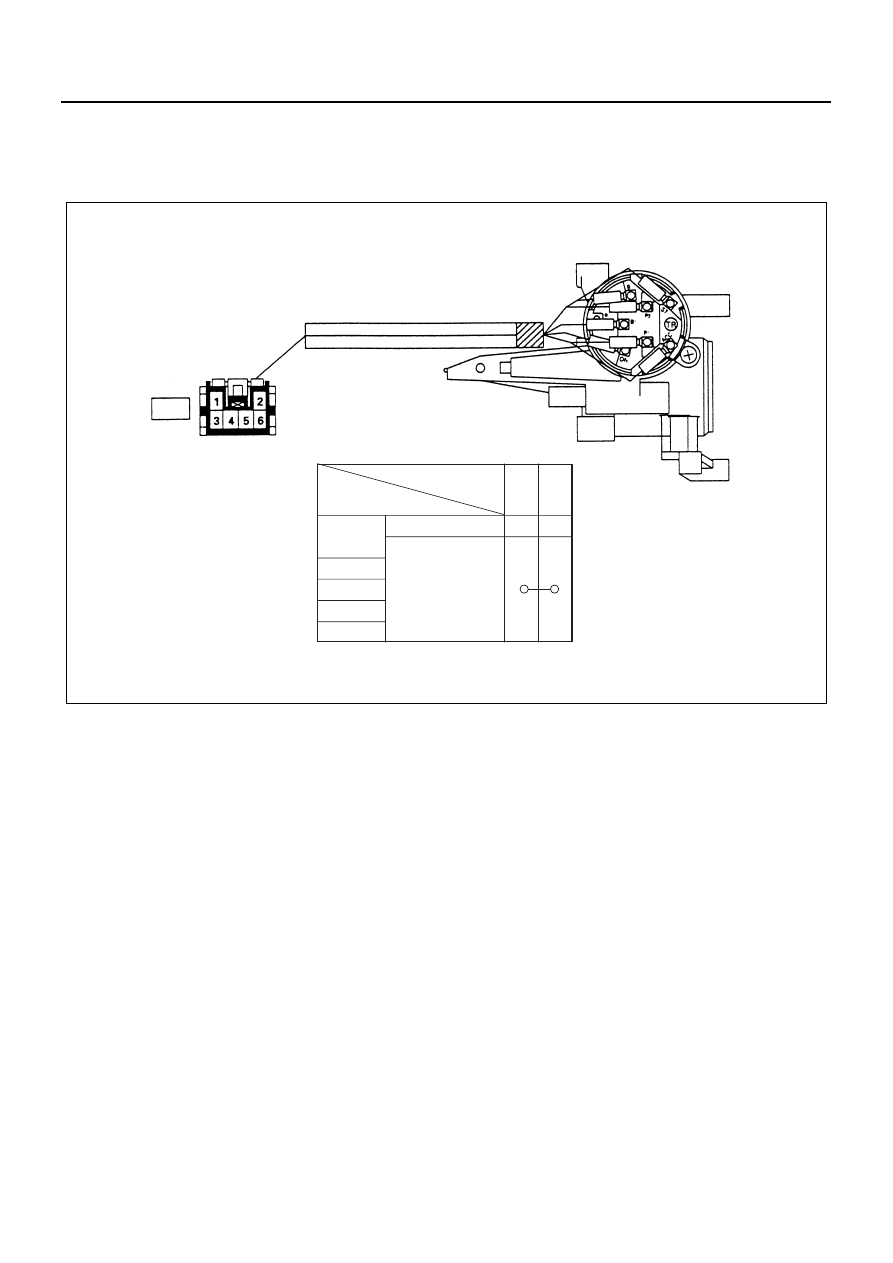

Key Cylinder Switch (Starter Switch)

Inspection
Check to see if there is any continuity between the connector terminals of the key cylinder switch.
Repair or replace the switch when the result of inspection is found abnormal.

B-68

Switch side

5

6

Key removed

LOCK

OFF

ACC

Key inserted

ON

START

Terminal No.

Starter key
position

N8A0210E

CAB AND CHASSIS ELECTRICAL 8-219

Power Door Lock

General Description

The circuit consists of the door lock switch, actuator for the front passenger door, rear doors and the door lock con-
troller.
The door lock controller is always provided with battery voltage. The key or the inside lock knob on the driver’s door
can activate the lock mechanism of all the doors.
When the driver’s door lock switch is turned on, current flows for about one second to the door lock actuator of each
door connected in parallel with the controller to activate the actuator to lock and unlock the doors.

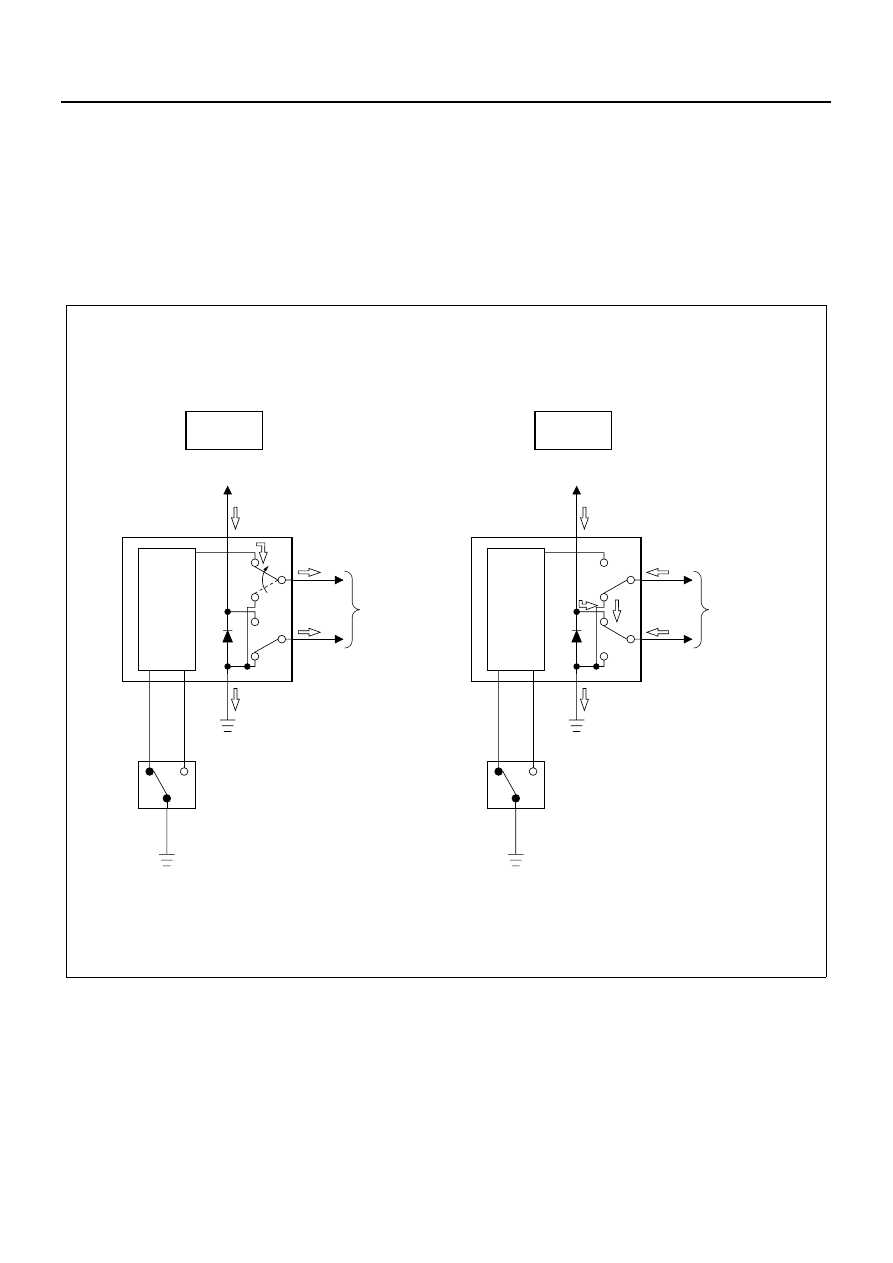

Operation of Door Lock Controller

Notice:
Arrow marks indicate the direction of current.

When locking

the door.

Battery(+)

Relay;Door lock

Door lock sw.
(Lock position)

To actuator
(Actuator
operate
to lock side)

When locking

the door.

Battery(+)

Relay;Door lock

Door lock sw.
(Unlock position)

To actuator
(Actuator
operates to
unlock
position)

N8A0211E

8-220 CAB AND CHASSIS ELECTRICAL

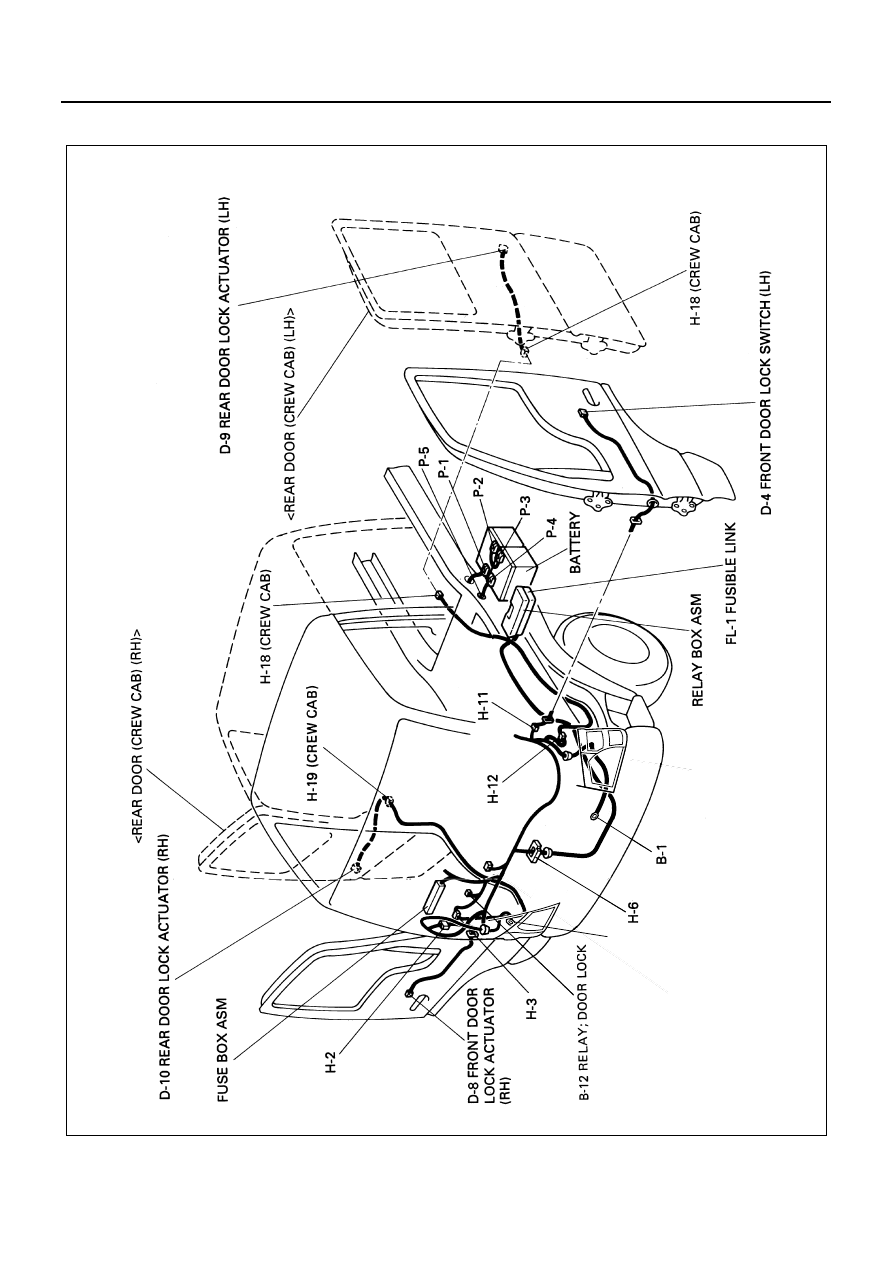

Parts Location

F-4

B-7

N8A0212E
