8-214 CAB AND CHASSIS ELECTRICAL

H-5

H-7

Starter Switch

Refer to “START AND CHARGING” in this section.

Key Cylinder Switch

Refer to “START AND CHARGING” in this section.

Backup Light Switch

Refer to “HORN, BACKUP LIGHT AND BACKUP
BUZZER” in this section.

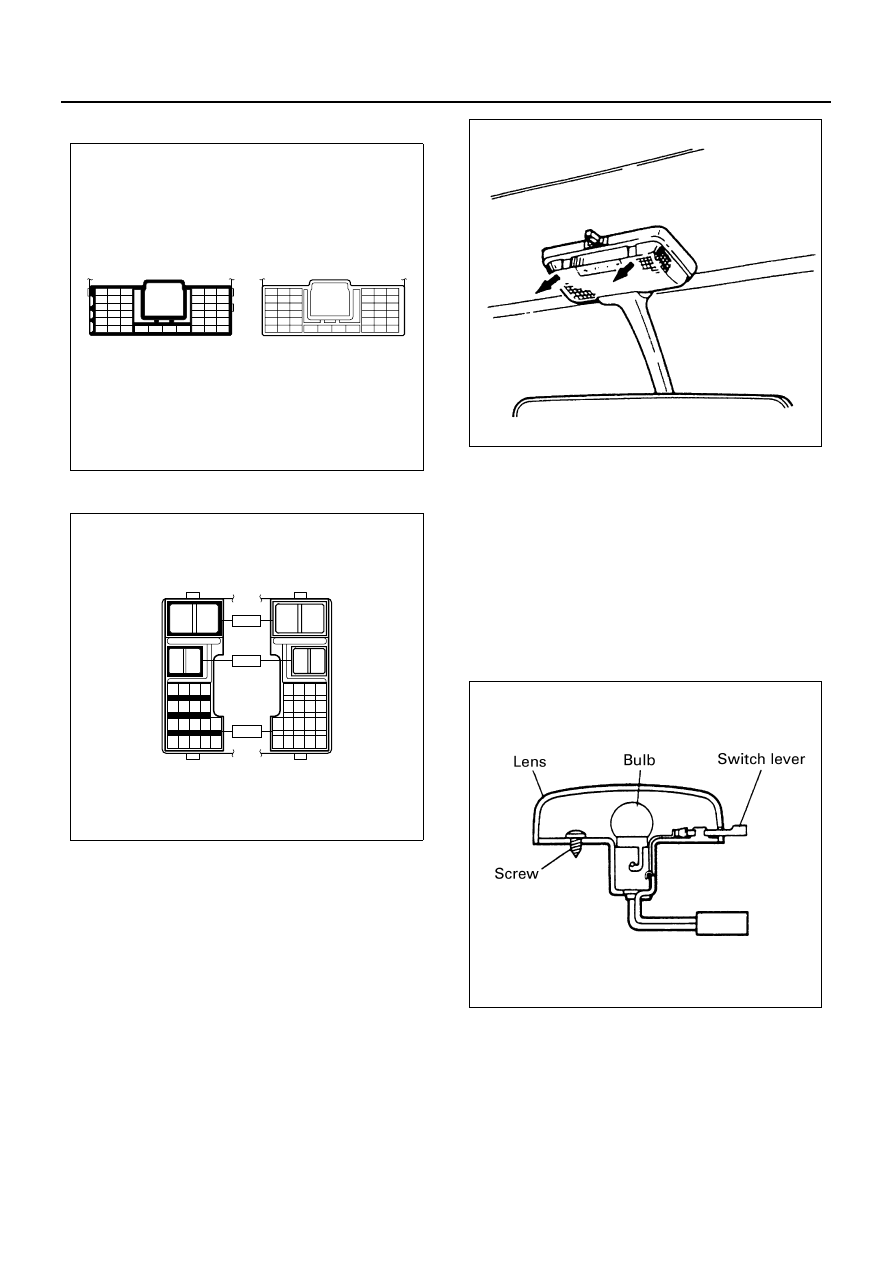

Dome Light Bulb

Removal
Preparation:
Disconnect the battery ground cable.

1. Lens

Hold the lens and pull it downward.

2. Bulb

Installation
To install, follow the removal steps in the reverse order.

Dome Light Bulb (for Crew Cab)

Removal
Preparation:
Disconnect the battery ground cable.

1. Lens

Hold the lens and pull it down.

2. Bulb

Installation
To install, follow the removal steps in the reverse order.

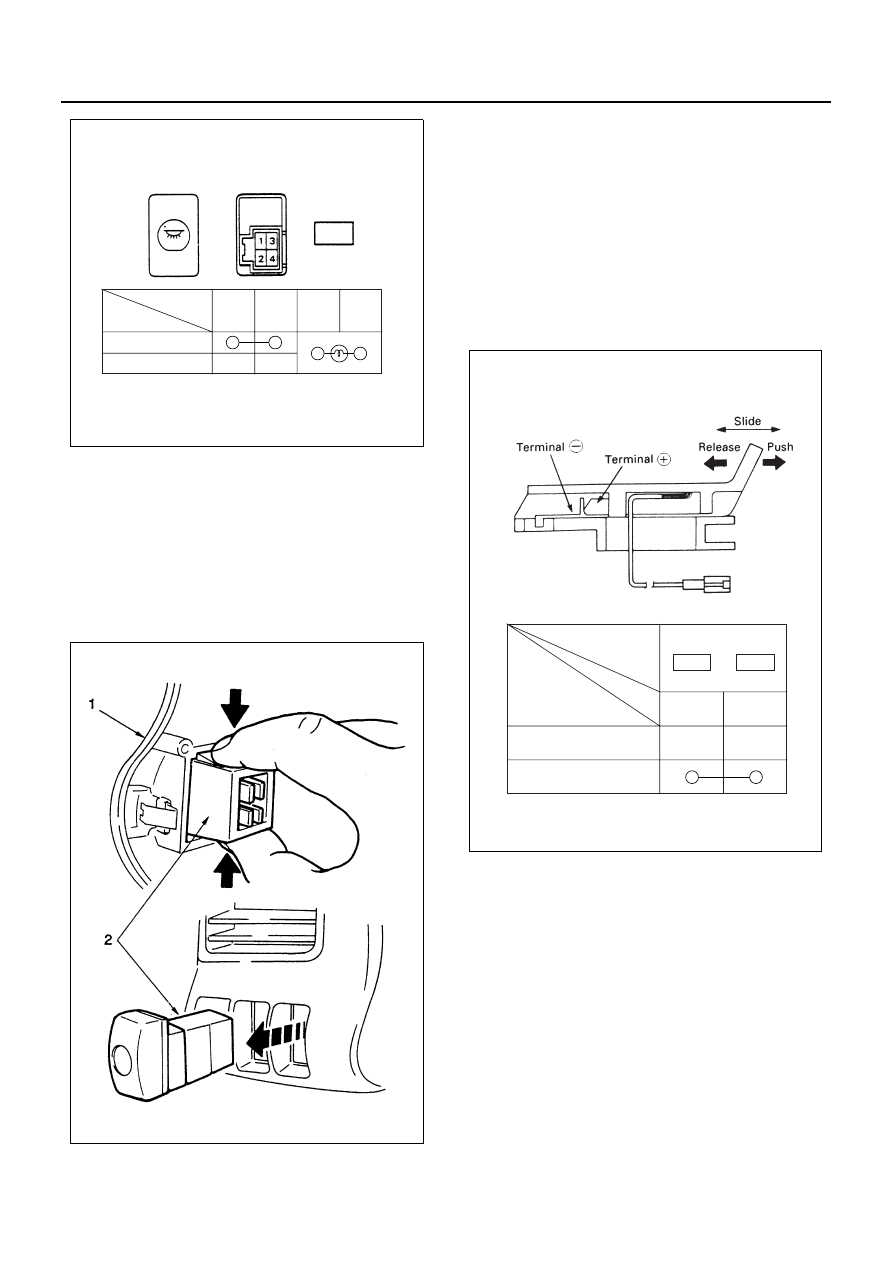

Dome Light Switch

Inspection
Check the continuity between the dome light switch con-
nector terminals.
Repair or replace the switch when the result of inspec-
tion is found abnormal.

1

2

3

7

8

9

13

14 15

19

20 21

25

26 27

31

32 33

34

35

36

37

4

5

6

10

11 12

16

17 18

22

23 24

28

29 30

38

39 40

6

5

4

12

11 10

18

17 16

24

23 22

30

29 28

40

39 38

3

2

1

9

8

7

15

14 13

21

20 19

27

26 25

33

32 31

34

35

36

37

N8A5488E

1

2

1

2

1 2 3 4

5 6 7 8

9 10 11 12 13

14 15 16 17 18

2

1

2

1

4 3 2 1

8 7 6 5

13 12 11 10 9

18 17 16 15 14

H - 6

H - 7

H - 8

N8A5489E

N8A5243E

N8A0203E

CAB AND CHASSIS ELECTRICAL 8-215

Removal
Preparation:
Disconnect the battery ground cable.

1. Meter cluster

Refer to the “METER AND WARNING/INDICA-
TOR LIGHT” in this section.

2. Dome Light Switch

Release the lock pushing the switch from the back
side of the meter cluster.

Installation
To install, follow the removal steps in the reverse order
noting the following point.

1. Push the switch with your fingers until locks se-

curely.

Door Switch

Inspection
Check to see if there is any continuity between the ter-
minals and the body while operating the door switch.
Repair or replace the switch, when the result of inspec-
tion is found abnormal.

Removal
Preparation:
Disconnect the battery ground cable.

1. Door Switch

1) Remove the screw.
2) Disconnect the connector of the switch.

B-86

2

4

1

3

ON

OFF

Terminal

No.

SW
position

N8A0204E

N8A5160E

1

Body

Push

Release

Connector

No.

Terminal No.

SW
operation

N-2

N-7

N8A0206E

8-216 CAB AND CHASSIS ELECTRICAL

Installation
To install, follow the removal steps in the reverse order.

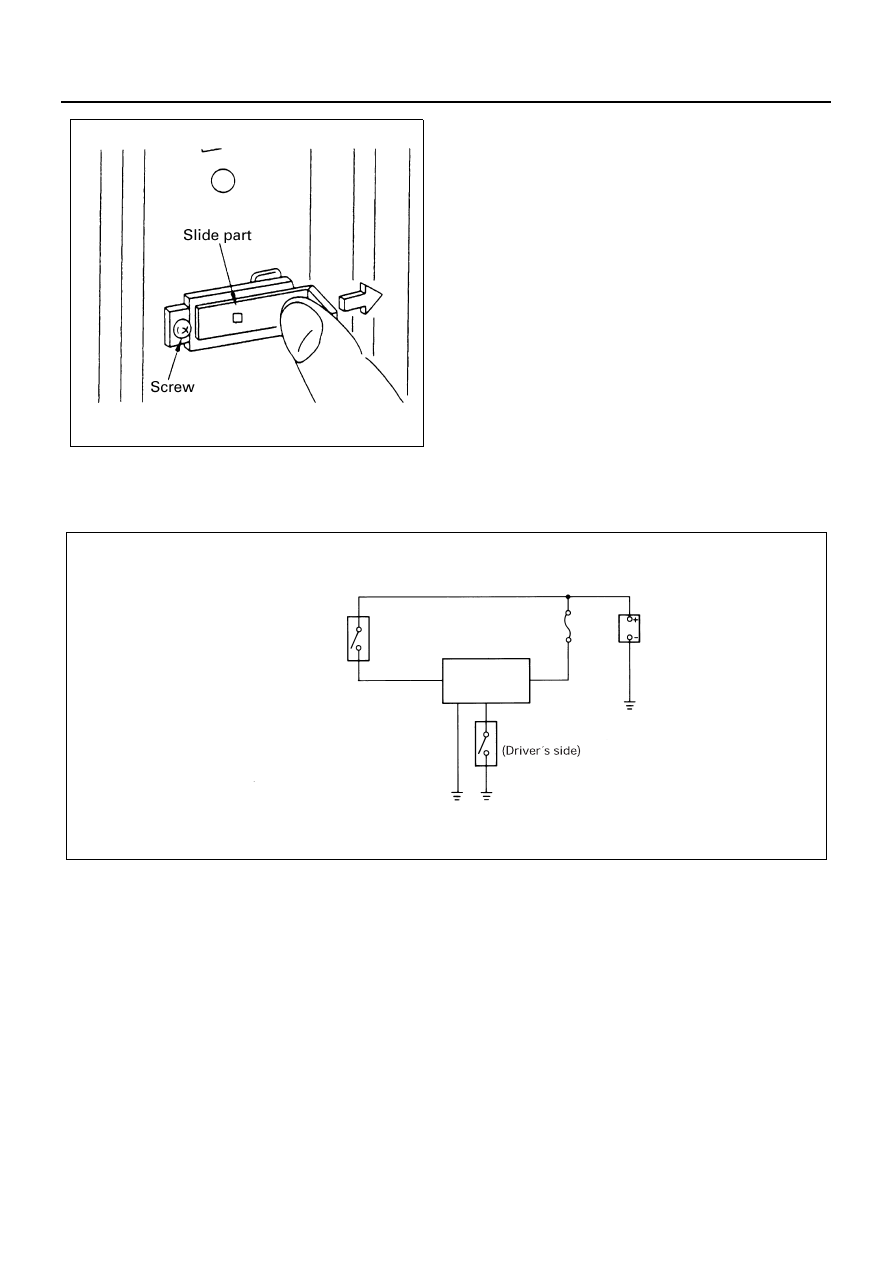

Key Remind Buzzer
The key remind buzzer sounds to remind the driver to remove the starter key from the starter switch when front driver
side door is opened (Front driver side door switch is on).

N8A0207E

Key cylinder SW
(Starter SW)

Key remind buzzer

F-16
(10A)

Front door SW

N8A0208E
