2-74 CAB AND FRAME

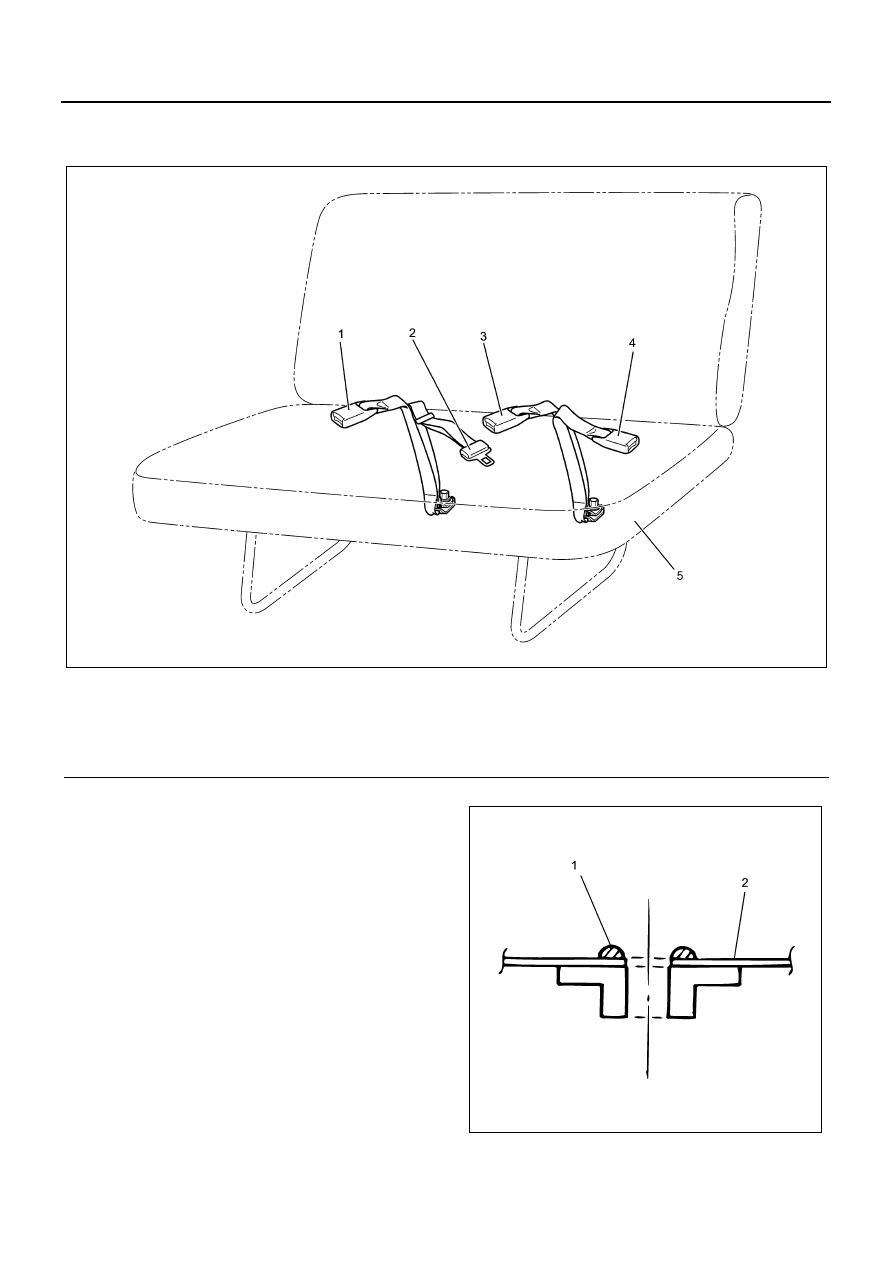

Rear Seat Belt Buckle and Rear Center Seat Belt/Buckle (Narrow Cab Model)

Component

Removal

1. Fold the rear seat cushion.

• Pull out each seat belt buckle and seat belt

from the interval of the seat cushion and re-
lease the lock lever of rear seat cushion stay to
fold it.

2. Fixing bolt of each seat belt

Installation

For installation, reverse the removal procedure taking
the following points into consideration.

1. Apply the sealant (1) around the fixing bolt mount-

ing hole on the floor part (2).

Sealant: TOKIWA CHEMICAL INDUSTRY 770GA
or equivalent

2. Install the anchor parallel to the traveling direction

of vehicle.

3. Tighten the fixing bolts to the specified torque.

Legend

1. Rear seat belt buckle (RH)

4. Rear seat belt buckle (LH)

2. Rear center seat belt

5. Rear seat cushion

3. Rear center belt buckle

N2A0233E

N2A0123E

CAB AND FRAME 2-75

Tighten:
Fixing bolts to 44 N

⋅m (4.5 kg⋅m/32.5 lb⋅ft)

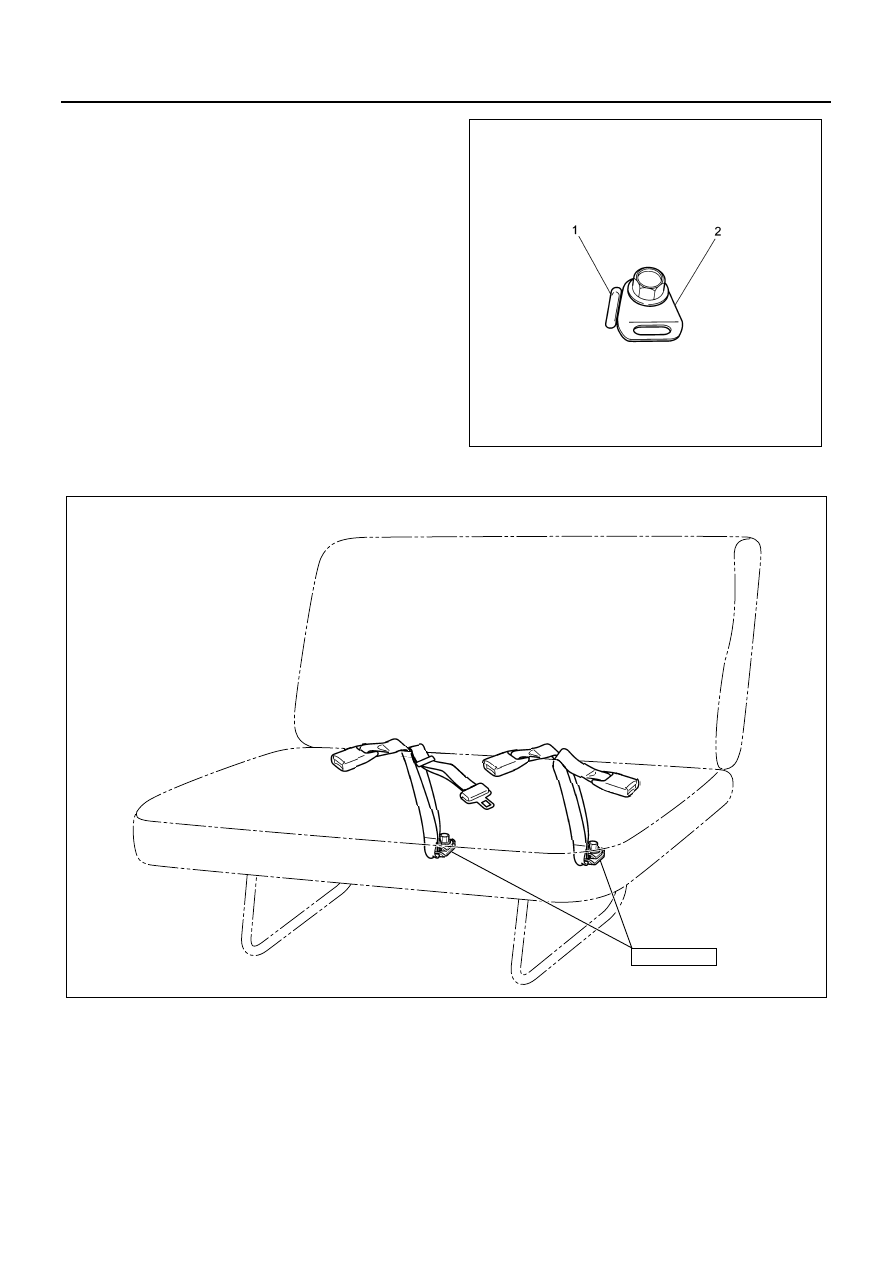

Caution:
Install the anchor bracket (2) so that it may not run on
the anchor detent bead (1).

Fixing Torque

N2A0124E

44 (4.5 / 32.5)

N.m (kg.m / lb.ft)

N2A0234E

2-76 CAB AND FRAME

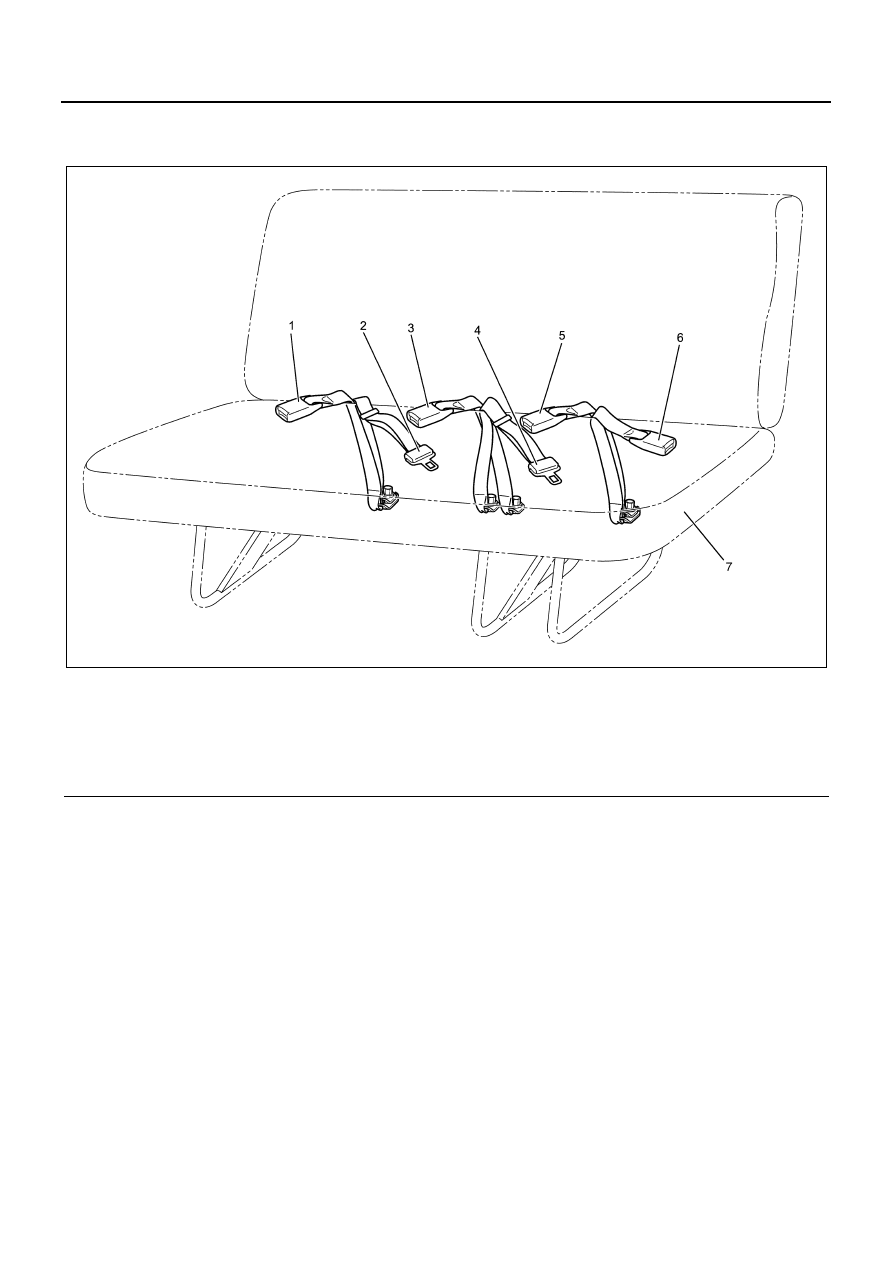

Rear Seat Belt Buckle and Rear Center Seat Belt/Buckle (Wide Cab Model)

Component

Removal

Refer to “Rear Seat Belt Buckle and Rear Center Seat
Belt/Buckle (Narrow Cab Model)” in this section for re-
moval.

Installation

Refer to “Rear Seat Belt Buckle and Rear Center Seat
Belt/Buckle (Narrow Cab Model)” in this section for in-
stallation.

Legend

1. Rear seat belt buckle (RH)

5. Rear center seat belt buckle (LH)

2. Rear center seat belt (RH)

6. Rear seat belt buckle (LH)

3. Rear center seat belt buckle (RH)

7. Rear seat cushion

4. Rear center seat belt (LH)

N2A0235E

CAB AND FRAME 2-77

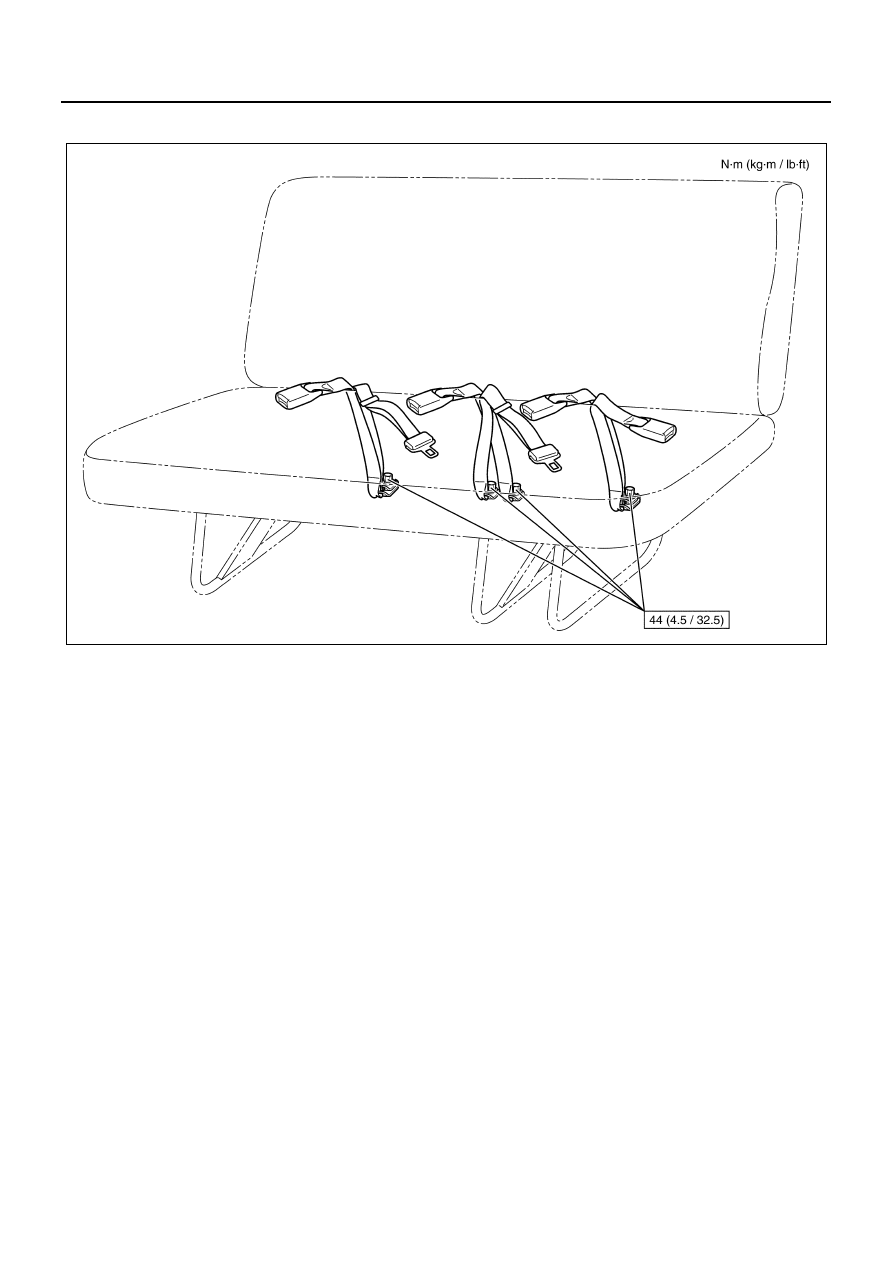

Fixing Torque

N2A0236E
