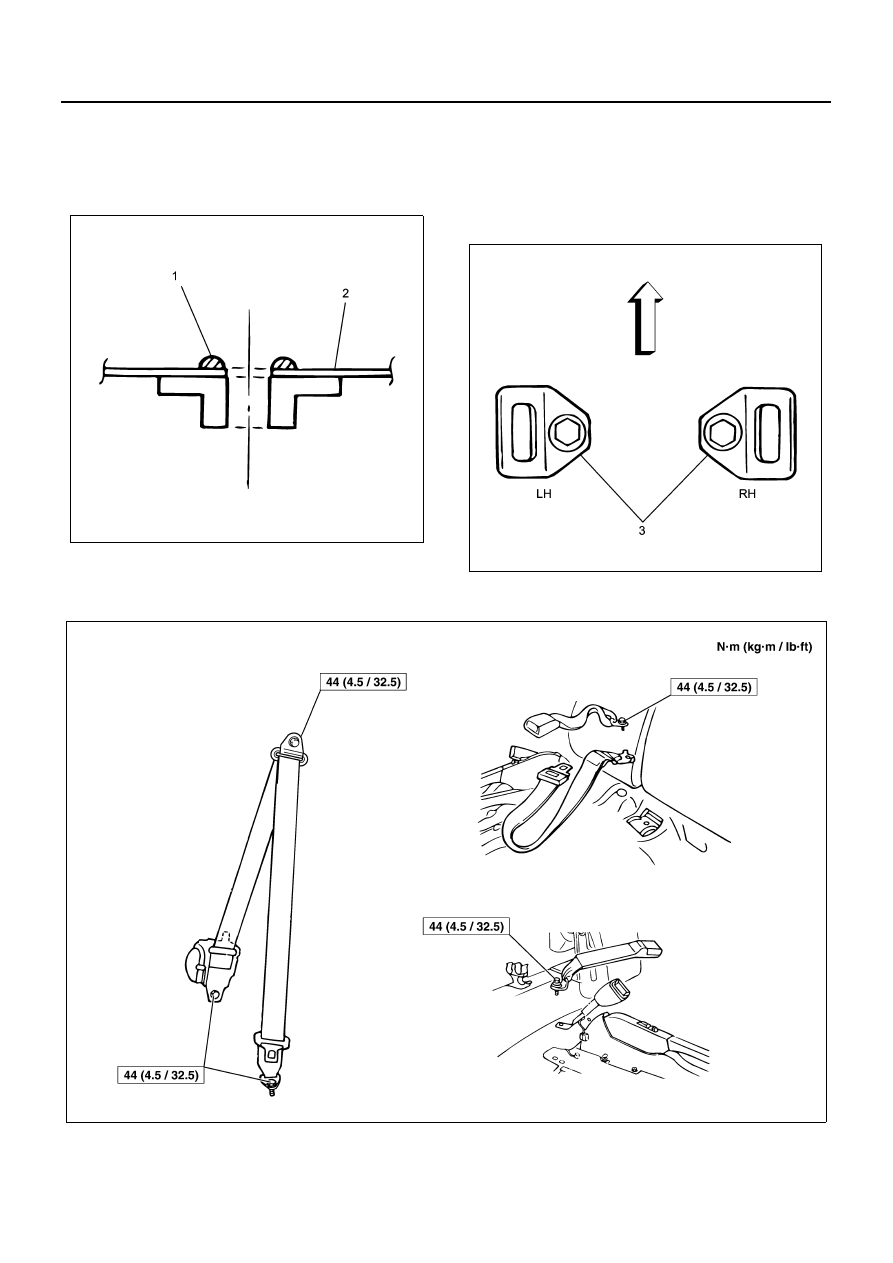

2-66 CAB AND FRAME

2. Apply the sealant (1) around the seat belt lower an-

chor bolt mounting hole on the floor part (2).

Sealant: TOKIWA CHEMICAL INDUSTRY 770GA or
equivalent

3. Install the seat belt lower anchor (3) in the specified

direction, and tighten it to the specified torque.

Tighten:
Anchor bolt to 44 N

⋅m (4.5 kg⋅m/32.5 lb⋅ft)

Caution:
Install the seat belt lower anchor so that it may not run
on the anchor detent bead.

Fixing Torque

N2A0109E

N2A0110E

N2A0111E

CAB AND FRAME 2-67

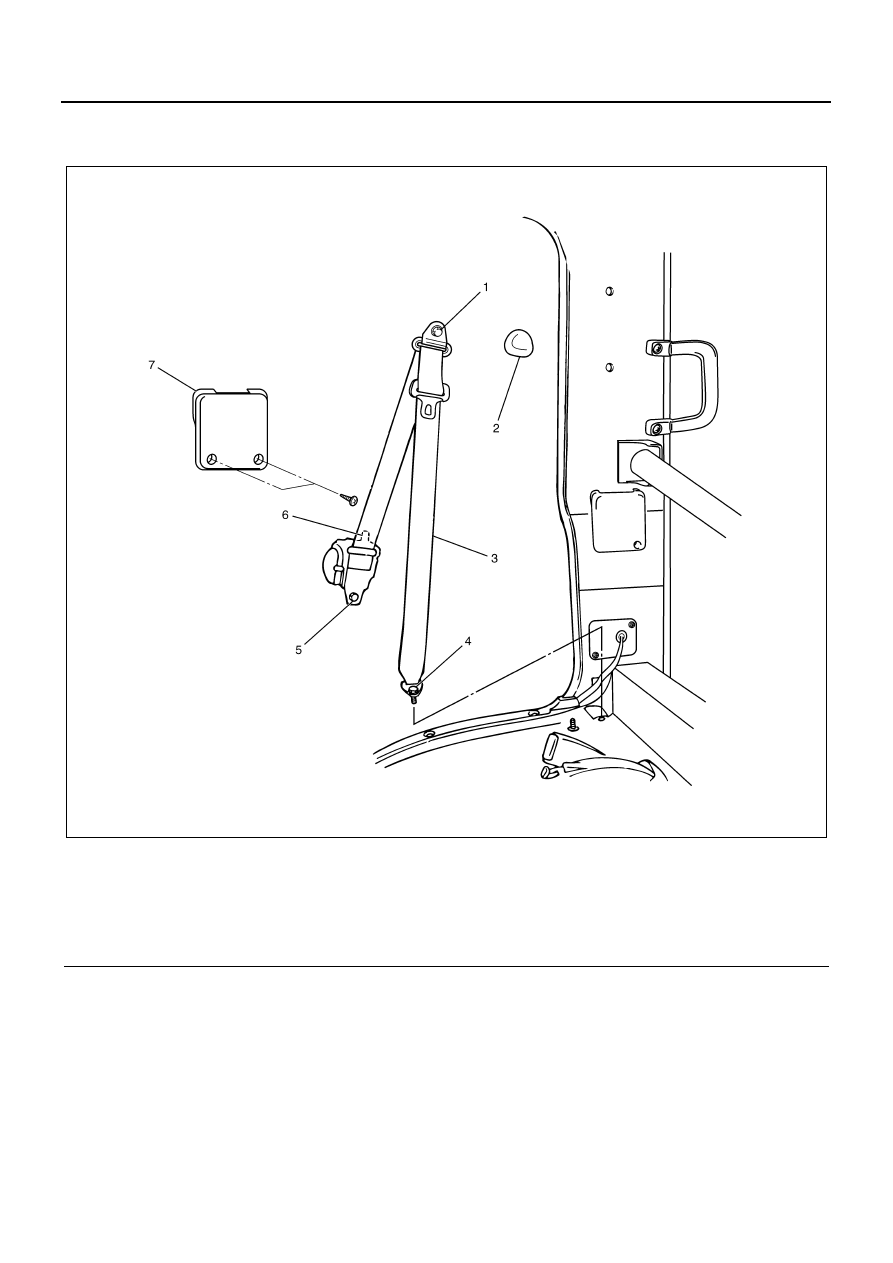

Tongue Side Seat Belt (Crew Cab Model)

Component

Removal

1. Seat belt lower anchor bolt
2. Retractor cover

• Remove the 2 fixing screws.

3. Through anchor cover
4. Seat belt upper anchor bolt
5. Retractor fixing bolt

• Remove the bolt and pull the retractor upper

bracket from panel to remove.

6. Adjuster cover

Installation

For installation, refer to “Tongue Side Seat Belt (Single
Cab Model)” in this section, and reverse the removal
procedure.

Legend

1. Seat belt upper anchor bolt

5. Retractor fixing bolt

2. Through anchor cover

6. Bracket

3. Tongue side seat belt assembly

7. Retractor cover

4. Seat belt lower anchor bolt

N2A0238E

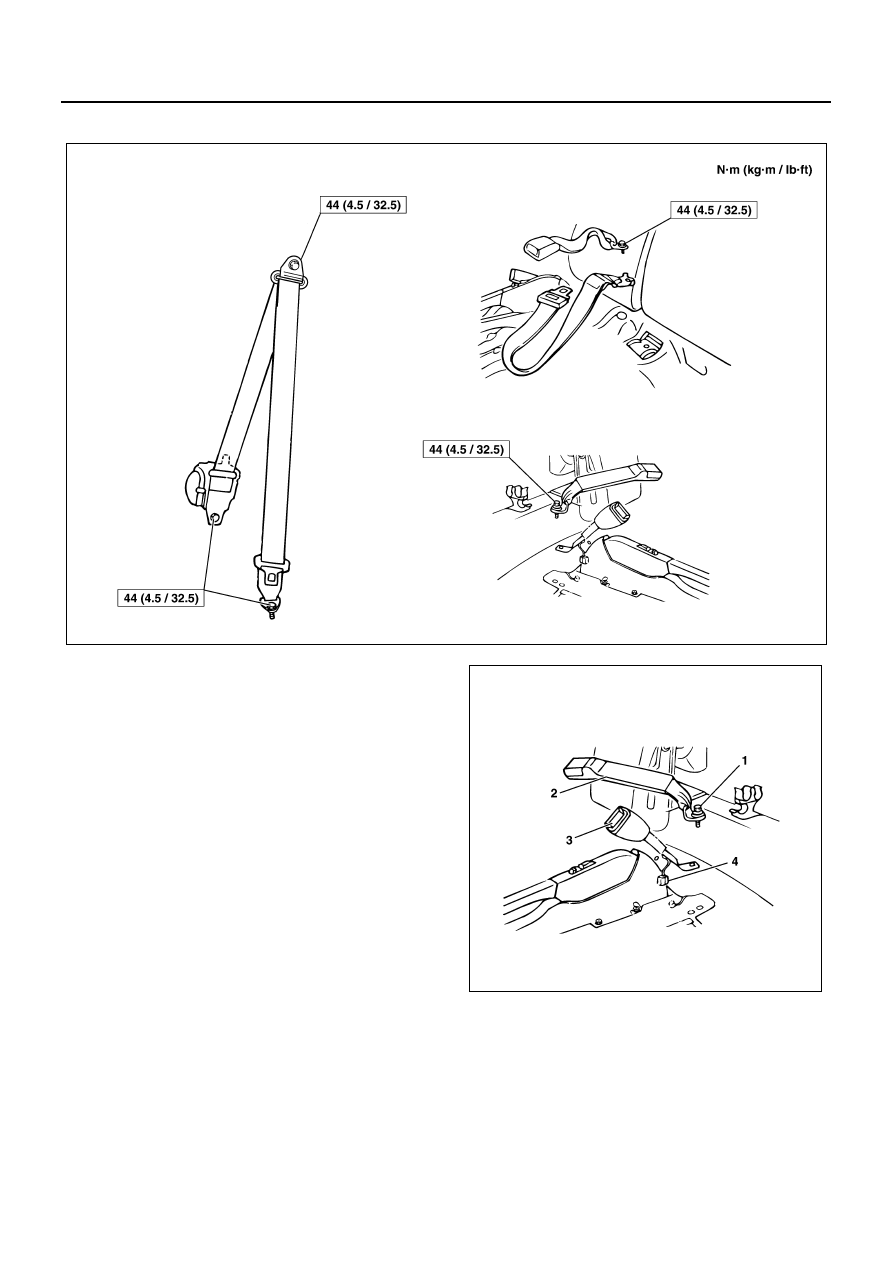

2-68 CAB AND FRAME

Fixing Torque

Front Center and Driver’s Side Seat Belt
Buckle

Removal

1. Disconnect the battery ground cable.
2. Fixing bolt (1)
3. Center seat belt buckle (2)
4. Disconnect the seat belt warning connector (4).
5. Driver’s side seat belt buckle (3)

Caution:
For wide cab model, perform the steps 1 and 2 (Center),
or the steps 1, 3 and 4 (Driver’s side).

Installation

For installation, reverse the removal procedure taking
the following points into consideration.

1. Apply the sealant (1) around the fixing bolt mount-

ing hole on the floor part (2).

Sealant: TOKIWA CHEMICAL INDUSTRY 770GA or
equivalent

N2A0111E

N2A0114E

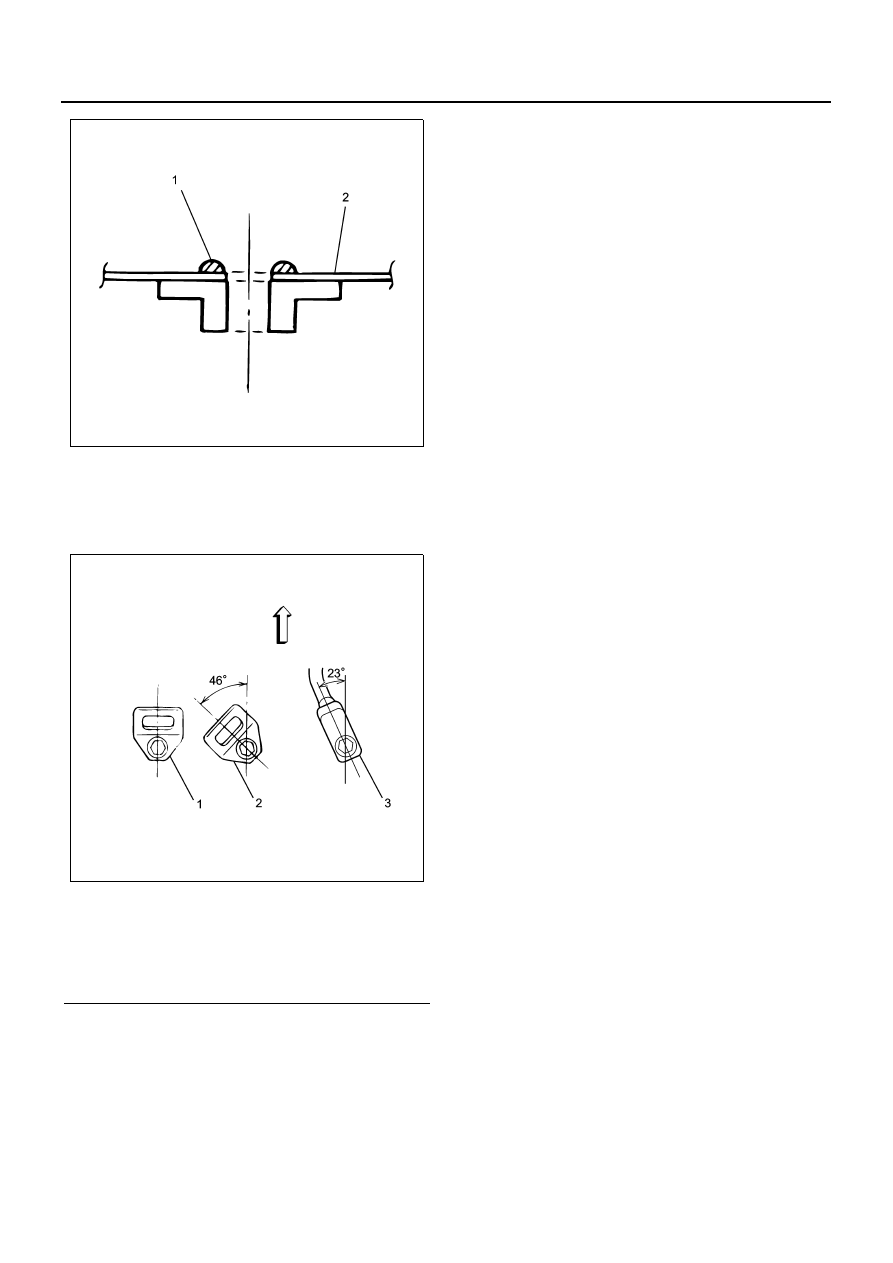

CAB AND FRAME 2-69

2. Install the anchor in the specified direction, and

tighten it to the specified torque.

Tighten:
Fixing bolt to 44 N

⋅m (4.5 kg⋅m/32.5 lb⋅ft)

3. Pass the center seat belt buckle through the band

on the end of seat cushion.

Caution:
Install the anchor so that it may not run on the anchor
detent bead.

Legend

1. Center seat belt buckle (Wide cab model)
2. Center seat belt buckle (Except wide cab

model)

3. Driver’s side seat belt buckle

N2A0115E

N2A0116E
