2-58 CAB AND FRAME

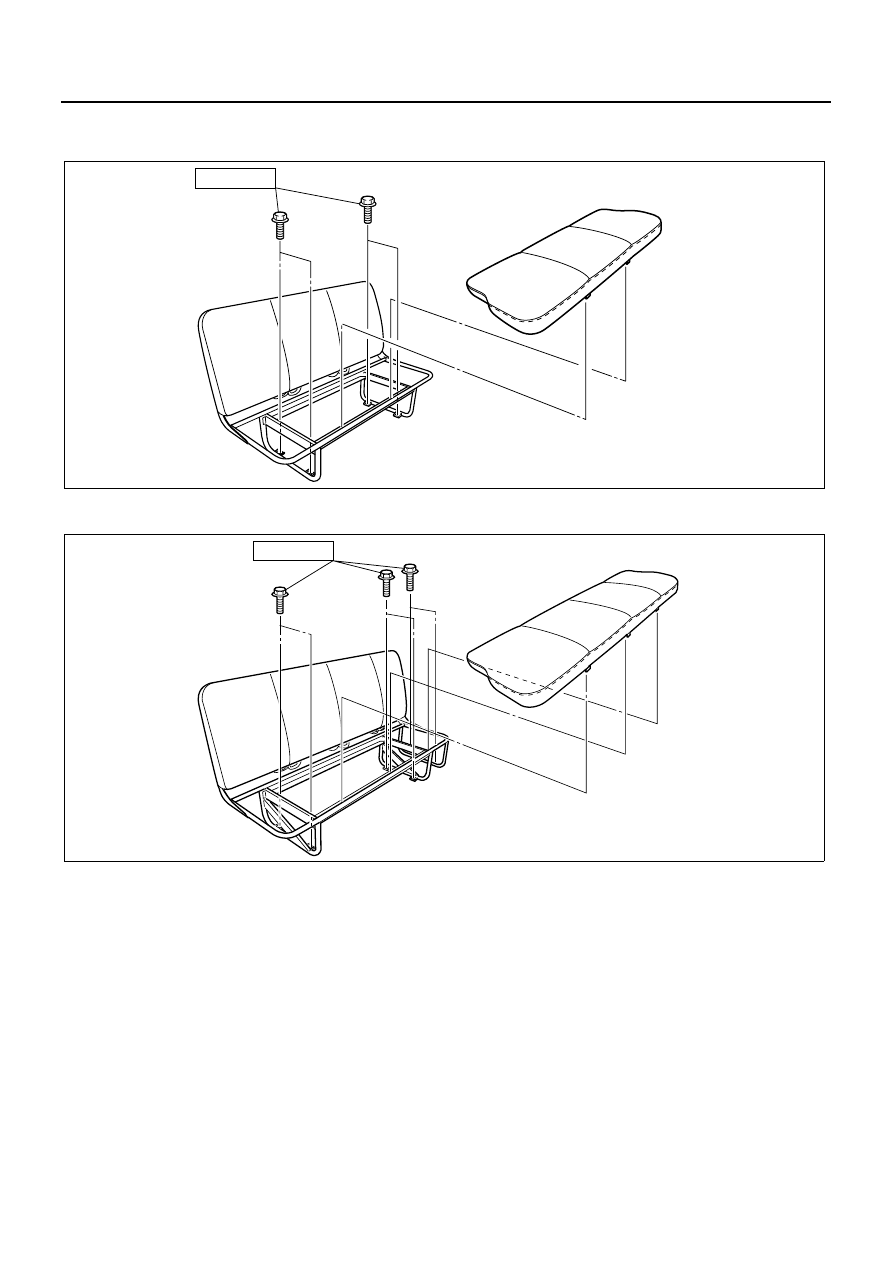

Fixing Torque
NKR

NPR, NQR

13 (1.3 / 9.6)

N.m (kg.m / lb.ft)

N2A0096E

13 (1.3 / 9.6)

N.m (kg.m / lb.ft)

N2A0228E

CAB AND FRAME 2-59

INTERIOR TRIM

Front Pillar Trim Cover

Removal

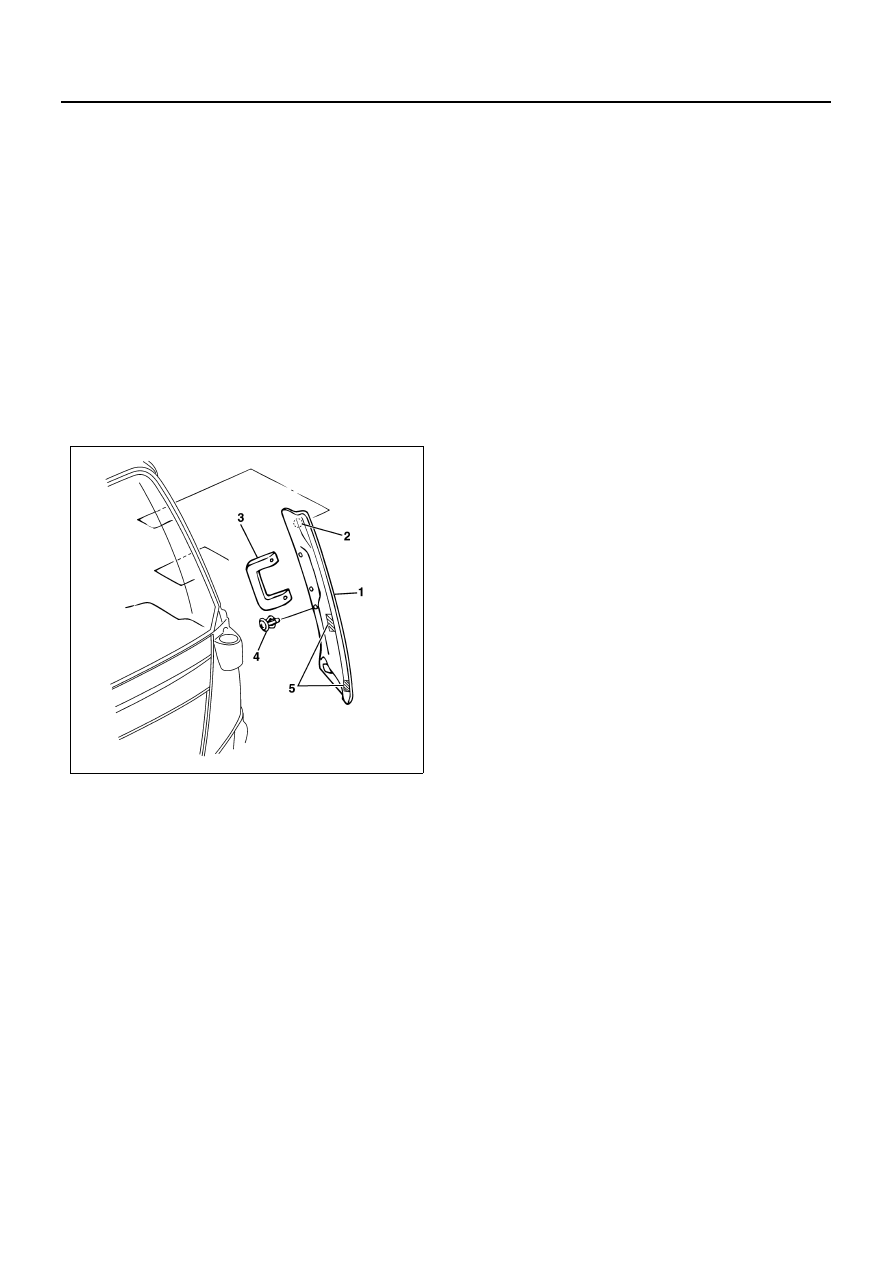

1. Front grip (3)

• Remove the 2 mounting screws.

Caution:
These screws are coated with Loctite. When removing
them, take care not to damage their heads.

2. Front pillar trim cover (1)

• Remove the one clip at the position (2) and peel

off the two-sided adhesive tape at the position
(5) shown in the figure.
For the high cab or wide cab, remove the clip
(4).

Installation

For installation, reverse the removal procedure taking
the following point into consideration.

• Use a new two-sided adhesive tape and stick it se-

curely by press at installation.

N2A0097E

2-60 CAB AND FRAME

Header Shelf

Removal

1. Battery ground cable
2. Room lamp/mirror

• Remove the lens and remove 2 mounting

screws and connector.

3. Sun visor/grommet

• Remove the 2 mounting screws. For a custom

vehicle, a sun visor is mounted on each of the
left and right sides.

4. Mounting screw

• Slide the left-hand 1 screws and right-hand 1

screws and the roof ventilator cover backward,
then pull them out. Remove the one screw in
the center of the rear side.

5. Header shelf assembly
6. Center bracket

• Remove the 2 mounting screws and 1 nut.

(With roof ventilation)

• Remove the 2 clips. (Without roof ventilation)

7. Side bracket

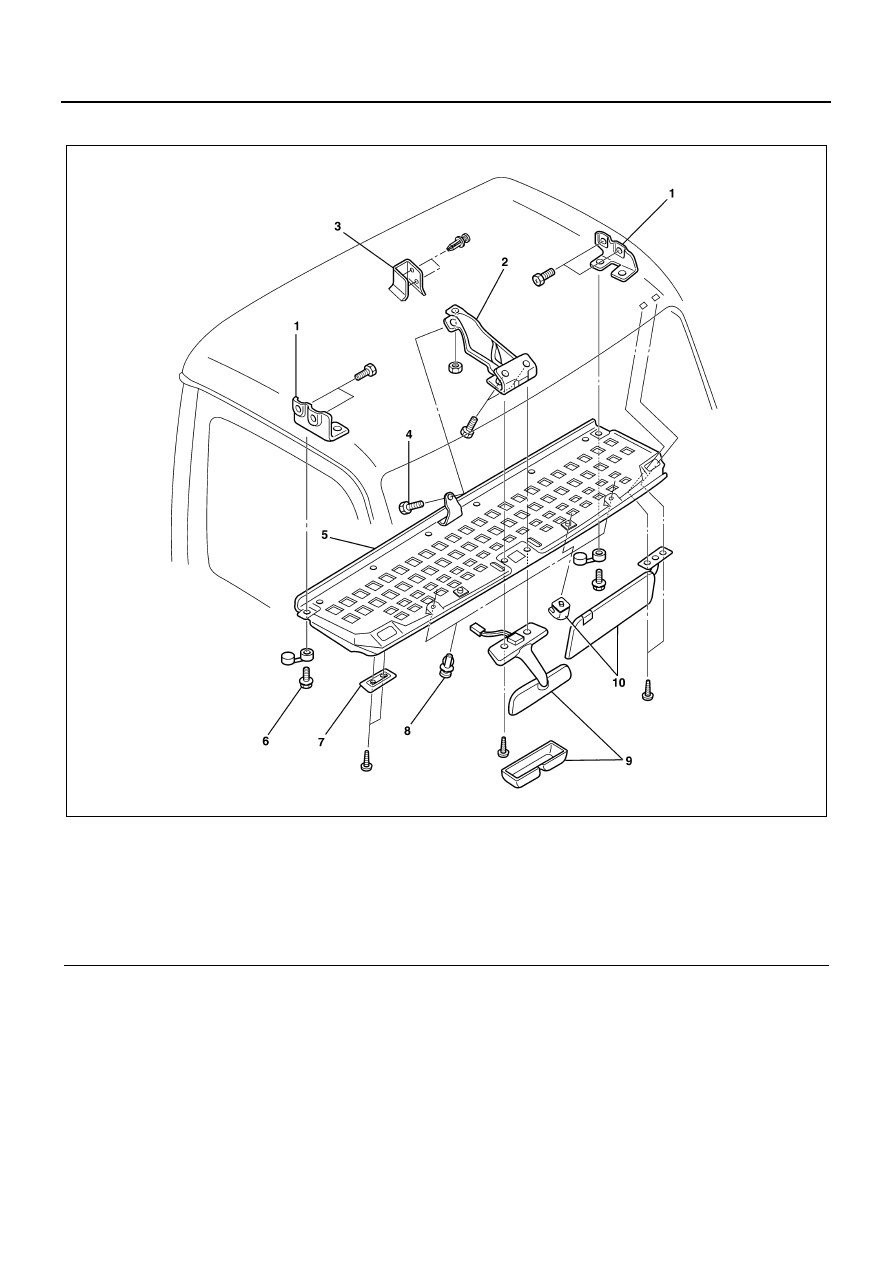

Legend

1. Side bracket

6. Screw

2. Center bracket

7. Grommet

3. Bracket cover (without roof ventilation)

8. Clip

4. Screw

9. Room lamp/mirror

5. Header shelf assembly

10. Sun visor/holder

N2A0100E

CAB AND FRAME 2-61

• Remove the 2 mounting screws each.

Installation

For installation, reverse the removal procedure.

Head Lining (Single Cab Model)

Component

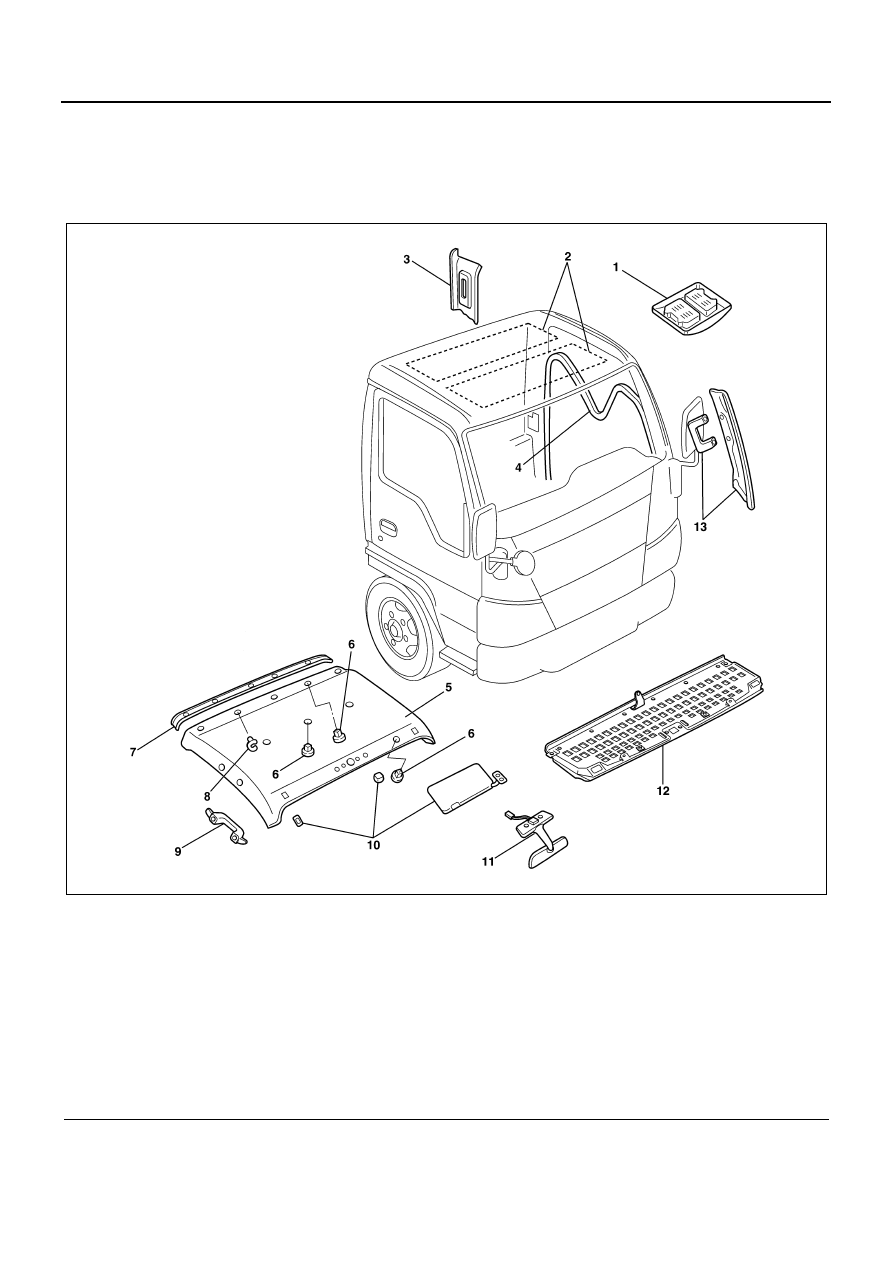

Legend

1. Roof ventilator grille (High cab, wide cab; Option

equipment)

8. Coat hanger
9. Assist grip

2. Insulator

10. Sun visor/holder/grommet (Standard cab)

3. Rear pillar upper trim cover (Option equipment)

11. Room lamp/mirror (Standard cab)

4. Body side finisher (Option equipment)

12. Header shelf (High cab, wide cab except limited

model)

5. Head lining (Option equipment)
6. Clip

13. Front grip/front pillar trim cover

7. Rear retainer/clip (High cab, wide cab option

equipment)

N2A0101E
