2-54 CAB AND FRAME

Center and Passenger Side

Removal

1. Seat cushion assembly

• Raise the cushion and remove the clips and

peel off the magic fasteners at 5 positions and
pull out the seat belt from the band.

2. Center seat back assembly (Wide cab model)

• Remove the 2 hinge fixing bolts.
• Remove the 2 fixing bolts and remove the hinge

assembly.

• Remove the fixing screw and remove the seat

back tray.

3. Passenger seat back assembly

• Remove the 2 hinge fixing bolts.
• Remove the 2 fixing bolts and remove the hinge

assembly.

4. Hinge bracket

• Remove 2 fixing bolts.

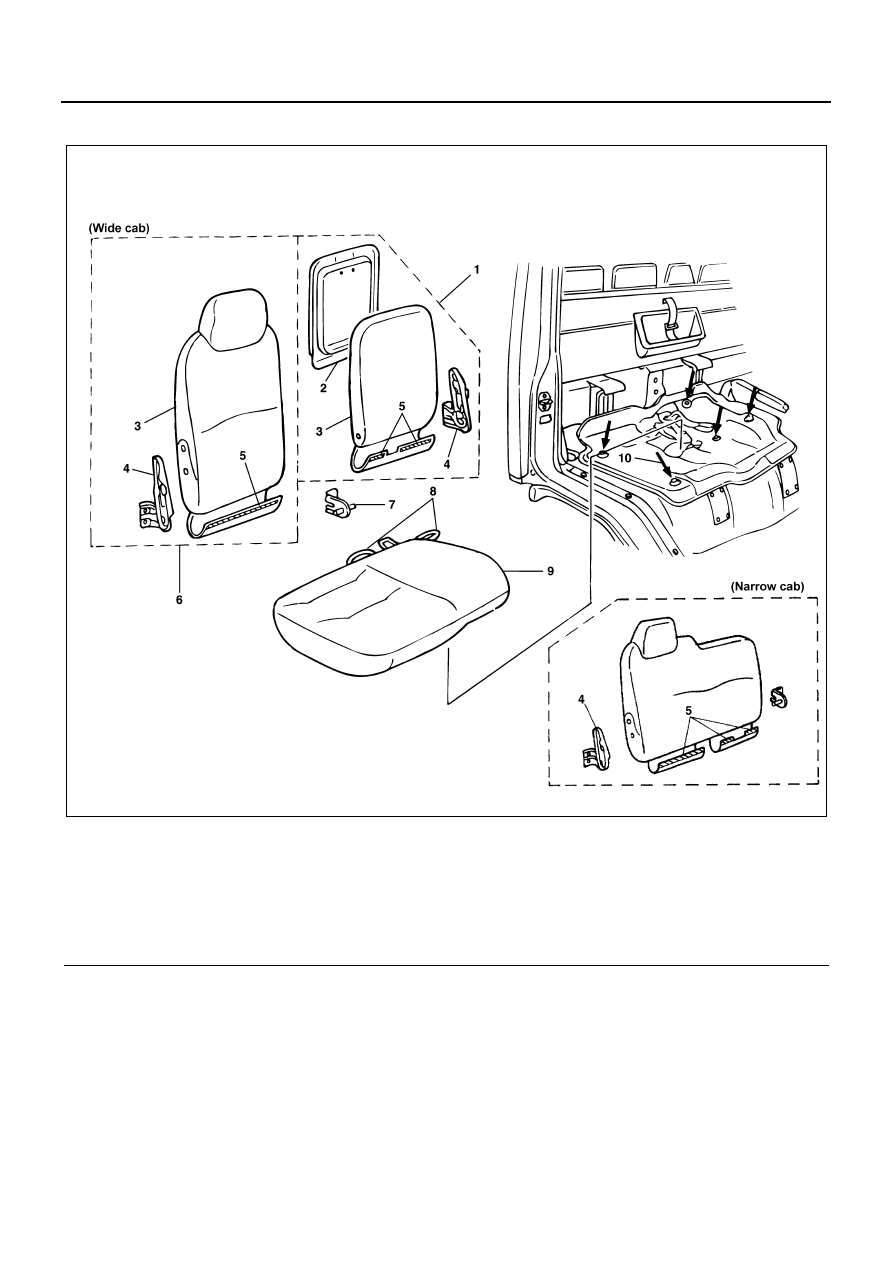

Legend

1. Center seat back assembly (if equipped)

6. Passenger seat back assembly

2. Seat back tray

7. Hinge bracket

3. Seat back

8. Seat belt band

4. Hinge assembly

9. Seat cushion assembly

5. Magic fastener

10. Clip positions (five)

N2A0092E

CAB AND FRAME 2-55

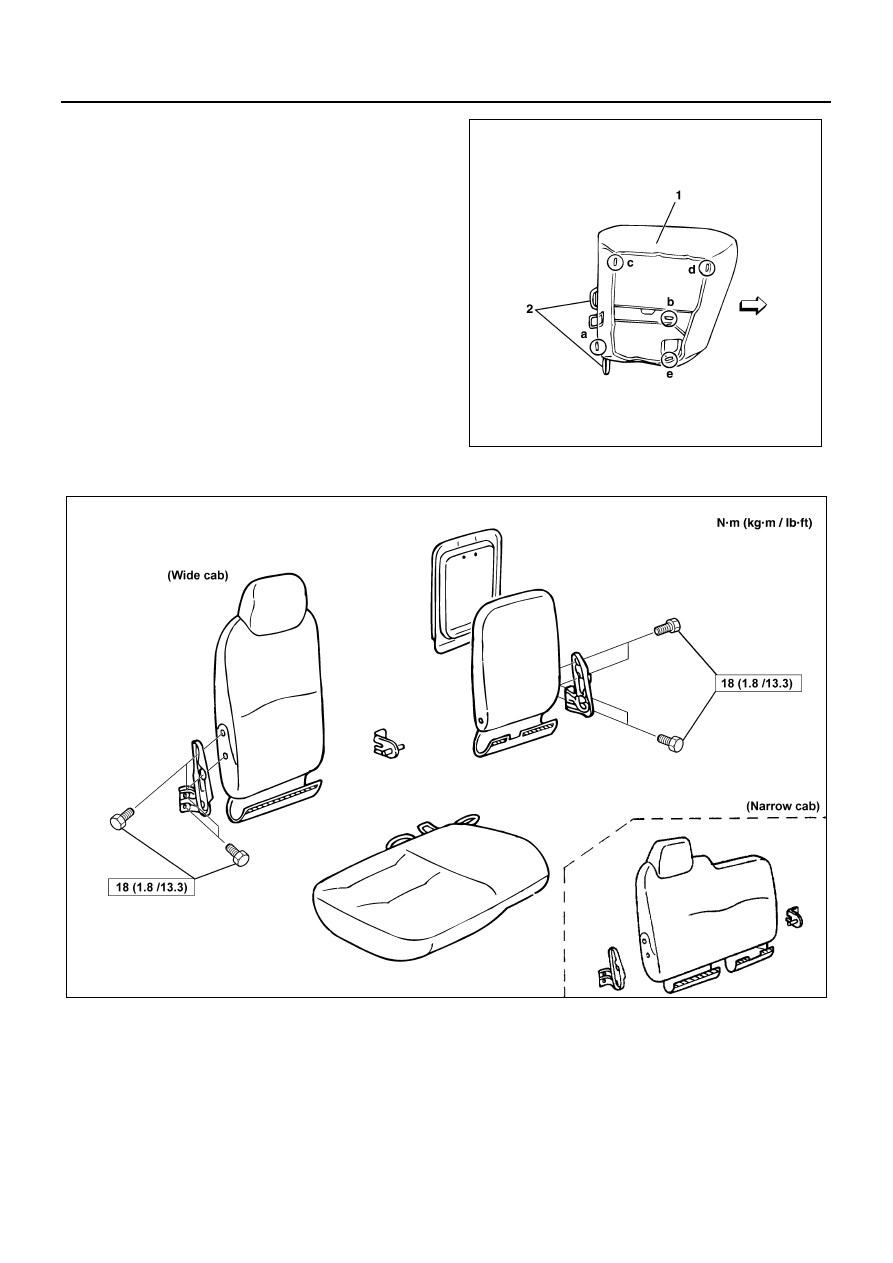

Installation

For installation, reverse the removal procedure taking
the following point into consideration.

1. Tighten each hinge of the seat back with the spec-

ified bolts (with Loctite) securely.

Tighten:
18 N

⋅m (1.8 kg⋅m/13.3 lb⋅ft)

2. Check the direction of seat cushion fixing clip and

set its mate clip on the engine cover.

3. Pass the seat belt through the seat cushion band

(2).

4. Install the seat cushion (1) in the following order:

a

→ b → c → d → e

Fixing Torque

N2A0093E

N2A0094E

2-56 CAB AND FRAME

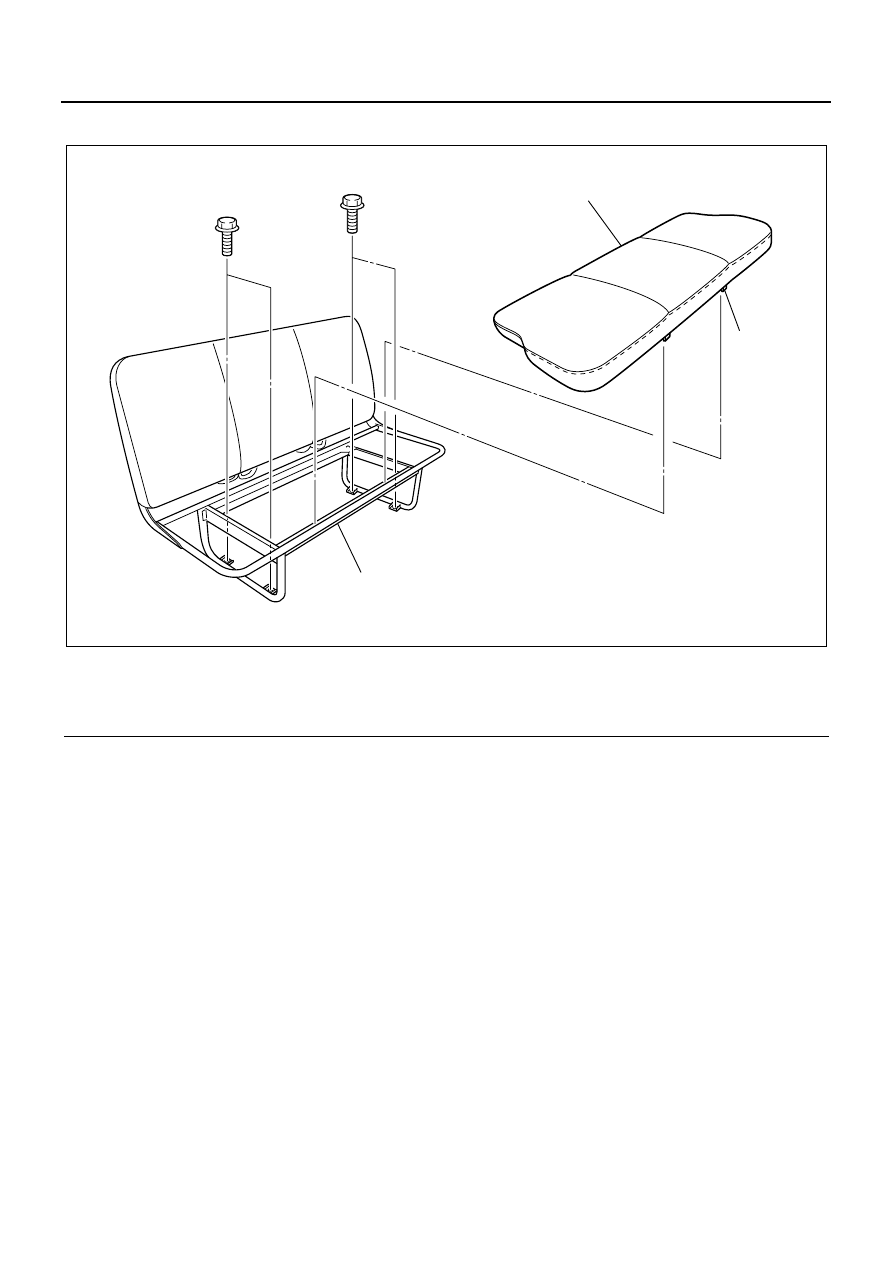

Rear Seat (NKR)

Removal

1. Pull the seat cushion at the three clip positions

from the seat frame and remove the rear seat
cushion.

2. Remove the 4 bolts and remove the rear seat

frame.

Installation

To install, follow removal steps in the reverse order, not-
ing the following point.

1. Tighten the rear seat frame mounting bolts to the

specified torque.

Tighten:
Rear seat frame bolts to 13 N

⋅m (1.3 kg⋅m/9.6 lb⋅ft)

Legend

1. Rear Seat Cushion

3. Rear Seat Frame

2. Clip

2

3

1

N2A0227E

CAB AND FRAME 2-57

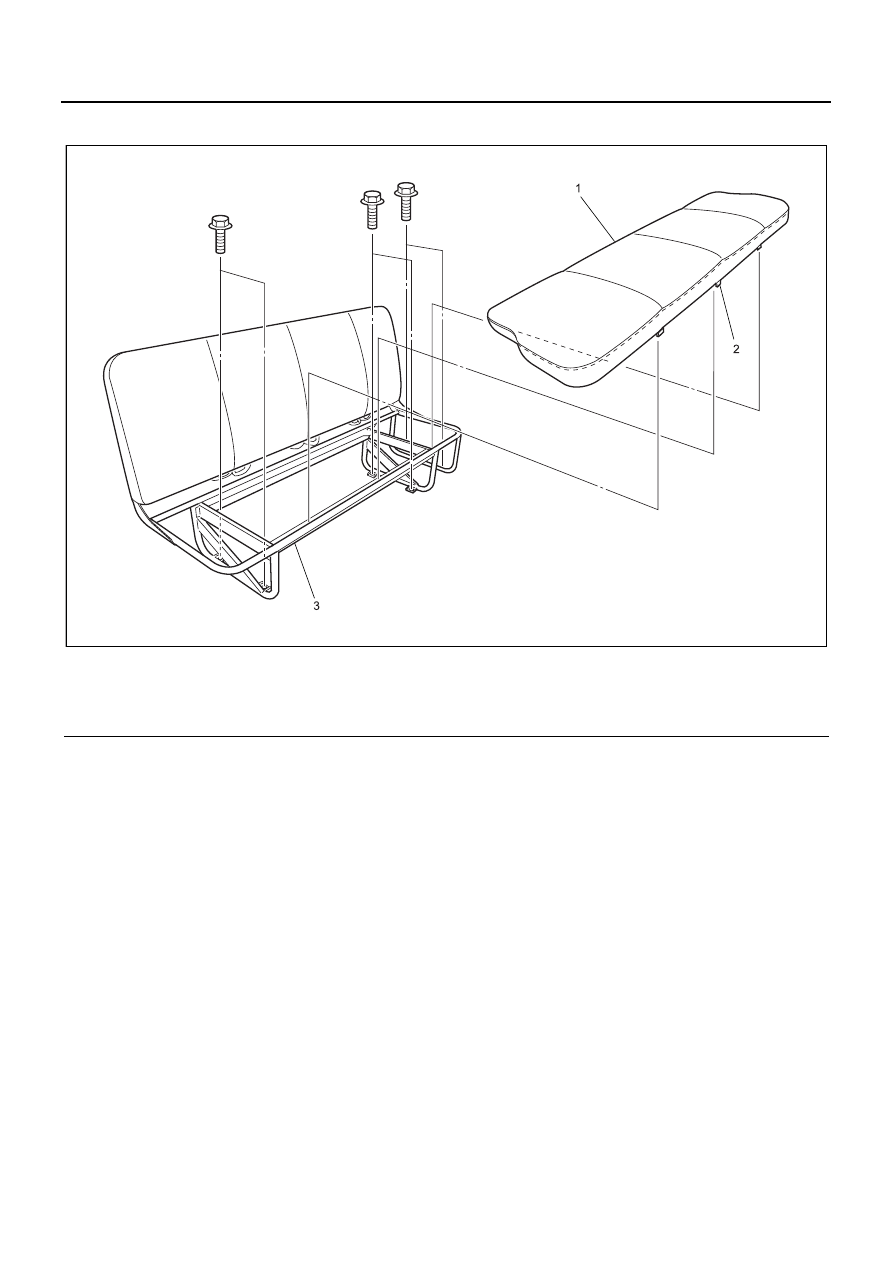

Rear Seat (NPR, NQR)

Removal

1. Pull the seat cushion at the three clip positions

from the seat frame and remove the rear seat
cushion.

2. Remove the 6 bolts and remove the rear seat

frame.

Installation

To install, follow removal steps in the reverse order, not-
ing the following point.

1. Tighten the rear seat frame mounting bolts to the

specified torque.

Tighten:
Rear seat frame bolts to 13 N

⋅m (1.3 kg⋅m/9.6 lb⋅ft)

Legend

1. Rear Seat Cushion

3. Rear Seat Frame

2. Clip

N2A0095E
