2-70 CAB AND FRAME

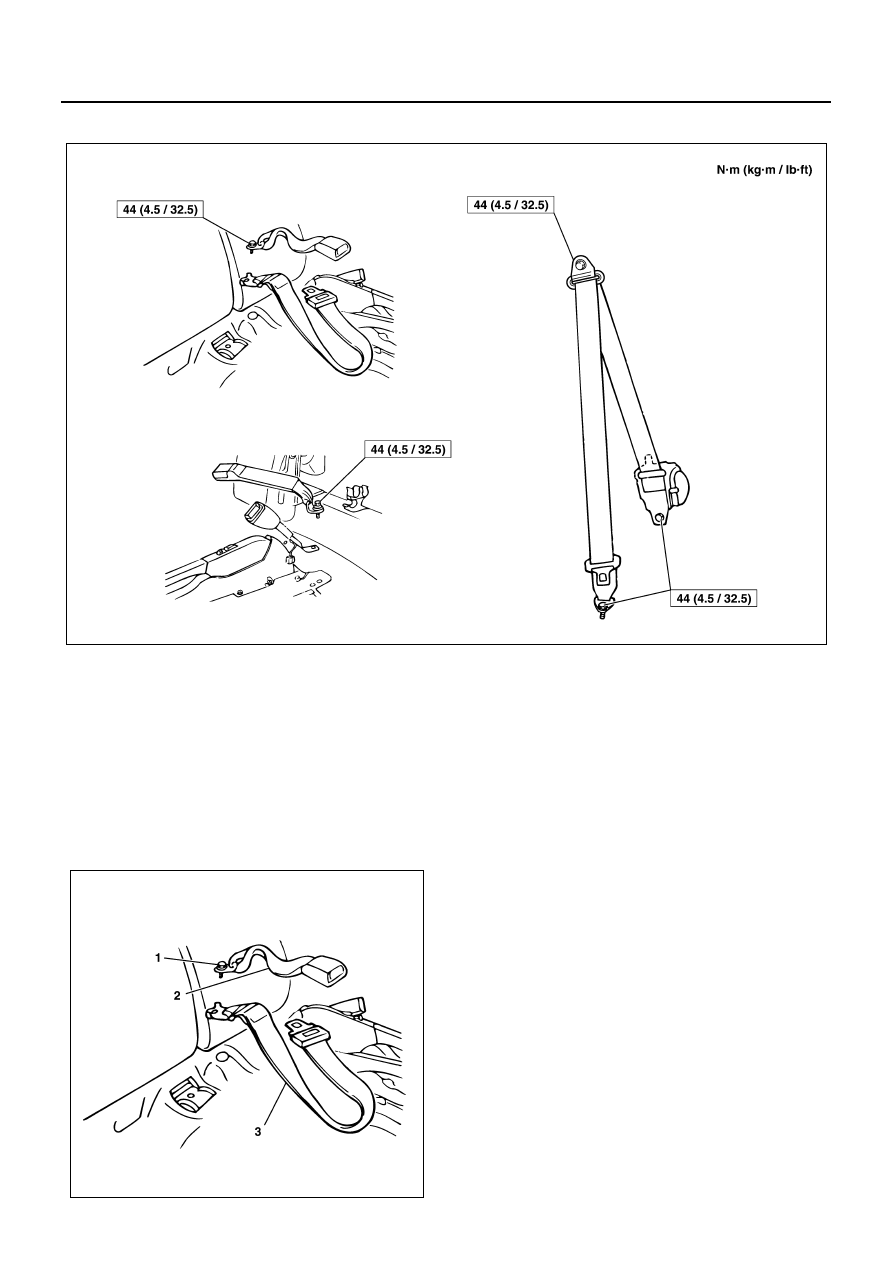

Fixing Torque

Front Center Seat Belt and Assistant’s side
Seat Belt Buckle

Removal

1. Assistant’s seat cushion (three-passenger vehicle)

• Refer to “Center and Passenger Side” in Seat

Section of Cab Repair Manual.

2. Fixing bolt (1)
3. Passenger side seat belt buckle (2)
4. Center seat belt (3)

Installation

For installation, reverse the removal procedure taking
the following points into consideration.

1. Apply the sealant (1) around the fixing bolt mount-

ing hole.

Sealant: TOKIWA CHEMICAL INDUSTRY 770GA or
equivalent

2. Install the anchor parallel to the traveling direction

of vehicle.

3. Tighten the fixing bolts to the specified torque.

Tighten:
Fixing bolt to 44 N

⋅m (4.5 kg⋅m/32.5 lb⋅ft)

N2A0117E

N2A0118E

CAB AND FRAME 2-71

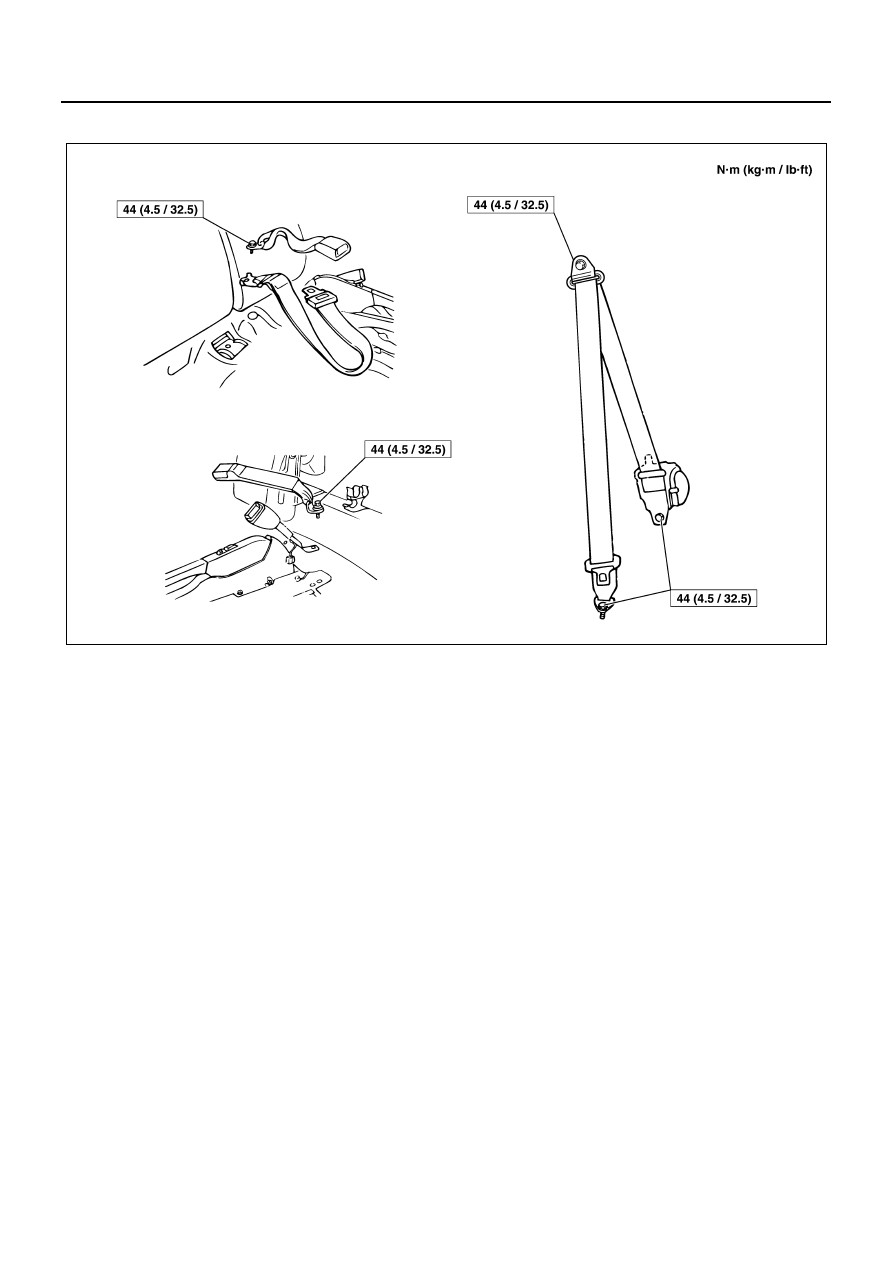

Fixing Torque

N2A0117E

2-72 CAB AND FRAME

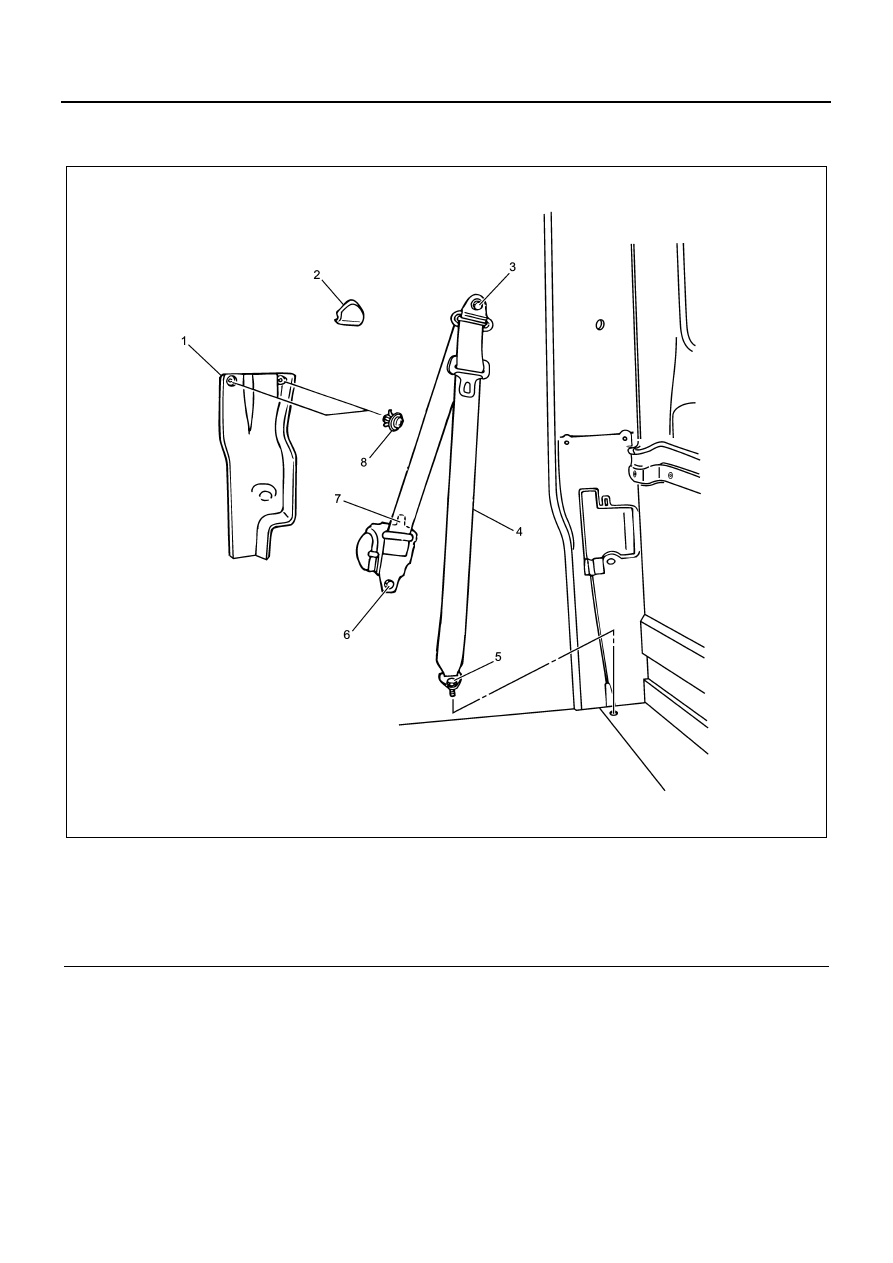

Rear Seat Belt (Crew Cab Model)

Component

Removal

1. Seat belt lower anchor bolt
2. Rear pillar lower trim cover

• Remove the 2 clips and pull it upward.

3. Through anchor cover
4. Seat belt upper anchor bolt
5. Retractor fixing bolt

• Remove the bolt, and pull the retractor upper

bracket from panel to remove it.

Installation

For installation, refer to “Tongue Side Seat Belt (Single
Cab Model)” in this Section, and reverse the removal
procedure.

Legend

1. Rear pillar lower trim cover

5. Seat belt lower anchor bolt

2. Through anchor cover

6. Retractor fixing bolt

3. Seat belt upper anchor bolt

7. Bracket

4. Rear seat belt assembly

8. Clip

N2A0120E

CAB AND FRAME 2-73

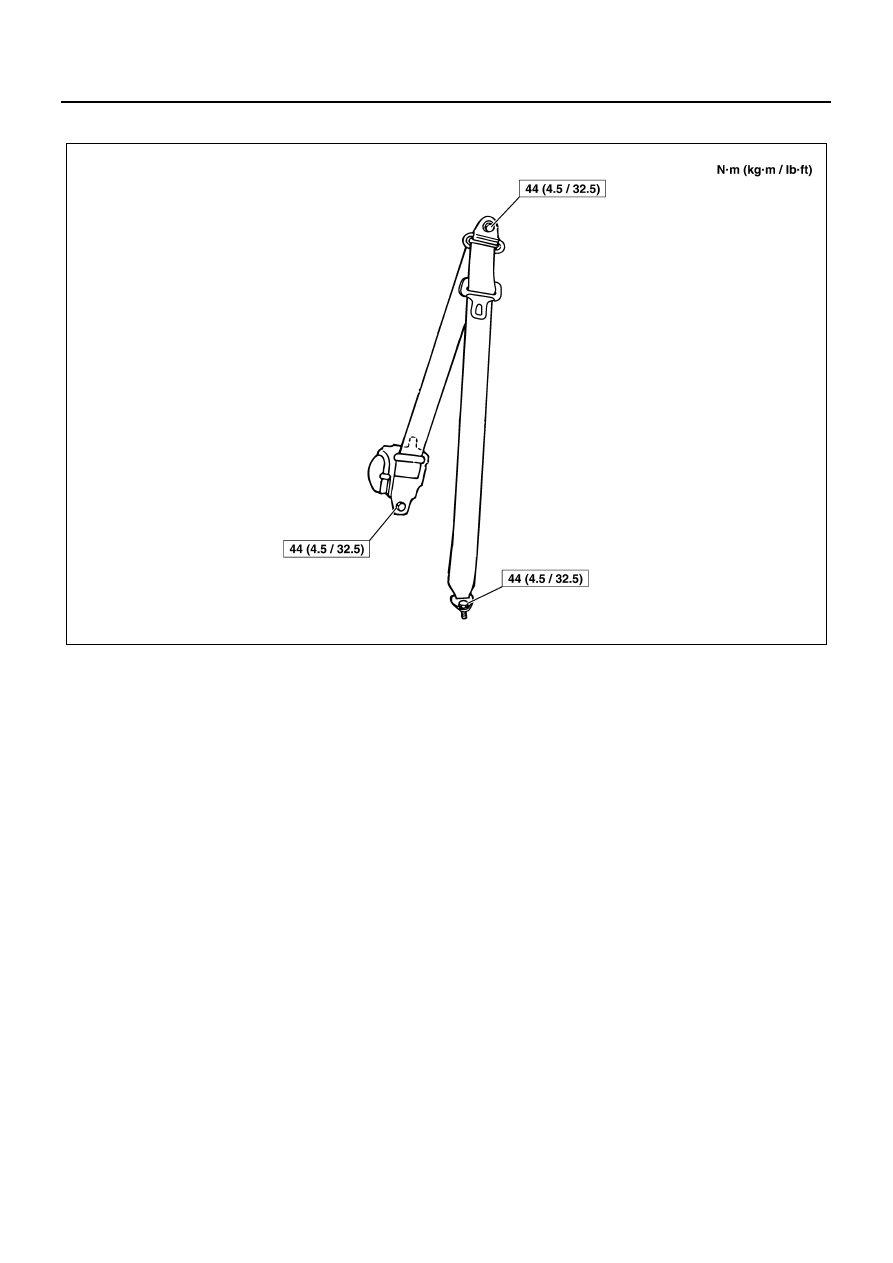

Fixing Torque

N2A0121E
