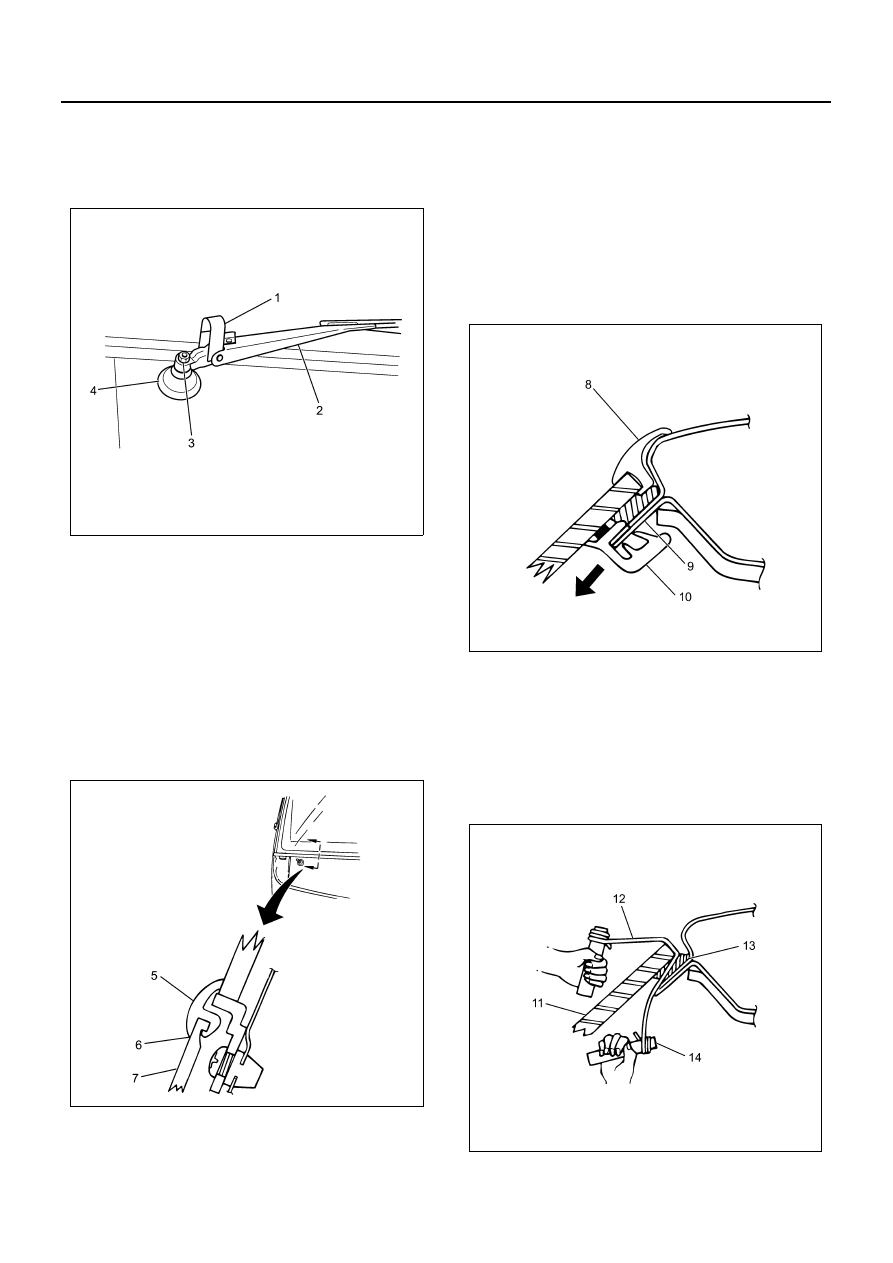

2-6 CAB AND FRAME Removal 1. Front wiper arm (2) • Open the cover (1) and remove the fixing nut (3). 2. Clearance lamp • Refer to “Lighting System”. 3. Outside mirror stay cap/front panel side/sub cover ment/molding • Refer to “Outside Mirror Assembly” in this Sec- tion. 5. Ornament grille upper molding (5) • Remove the lower part (6) of upper molding from ornament grille (7) with a bladed screw- 6. Front window molding (8) • Remove it according to the same procedure as step 3. Don’t reuse it. Caution: 7. Room mirror stopper rubber • Refer to “Front Side Trim Cover” in Interior & Exterior Trim Section. 9. Front window finisher (10) • Pull it from body flange. 10. Front window glass (11) • Pass the piano wire (12) of φ0.5 mm or so to the room inside through the adhesive part (13) of N2A0013E N2A0014E N2A0015E N2A0016E |
