1D2-8 COMPRESSOR OVERHAUL FOR TAIWAN

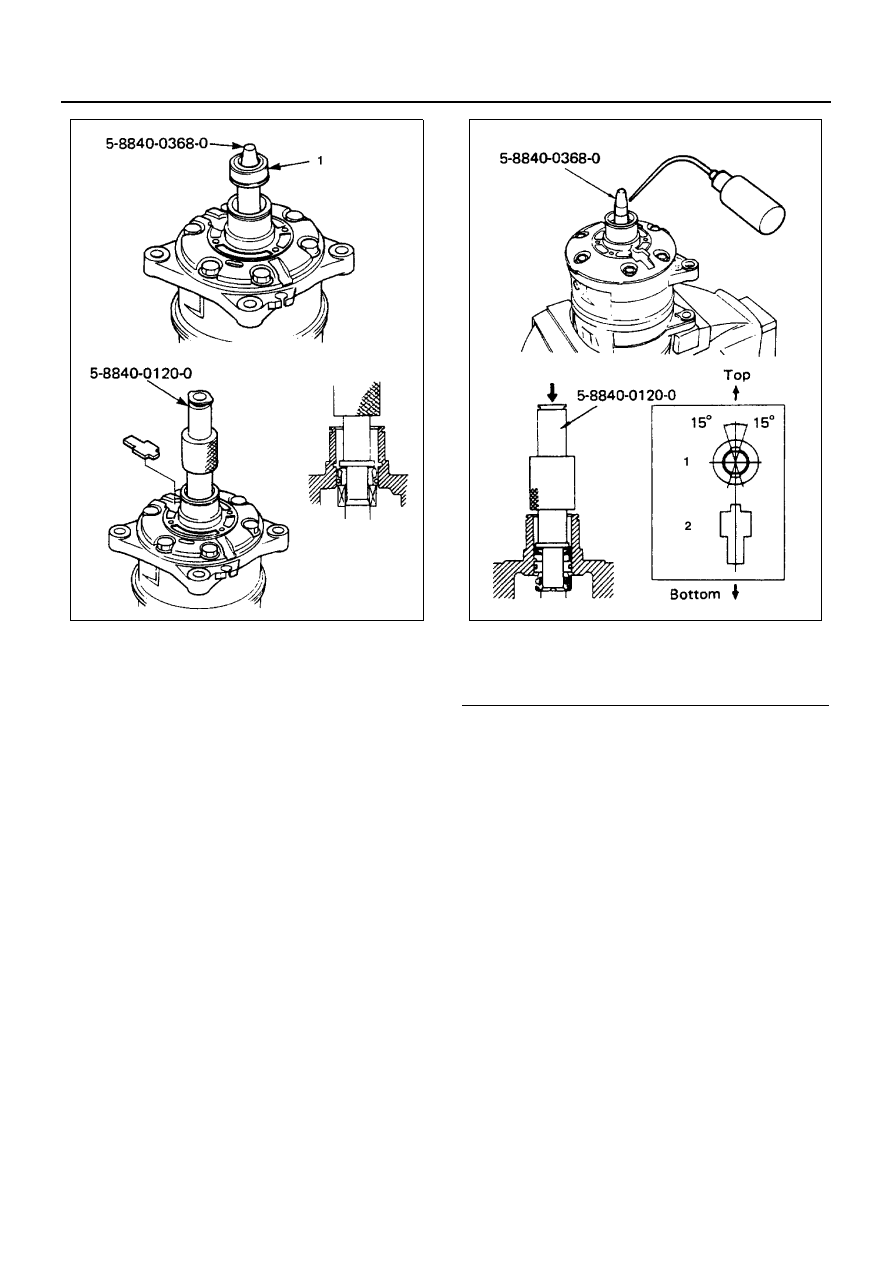

12. Shaft Seal Assembly

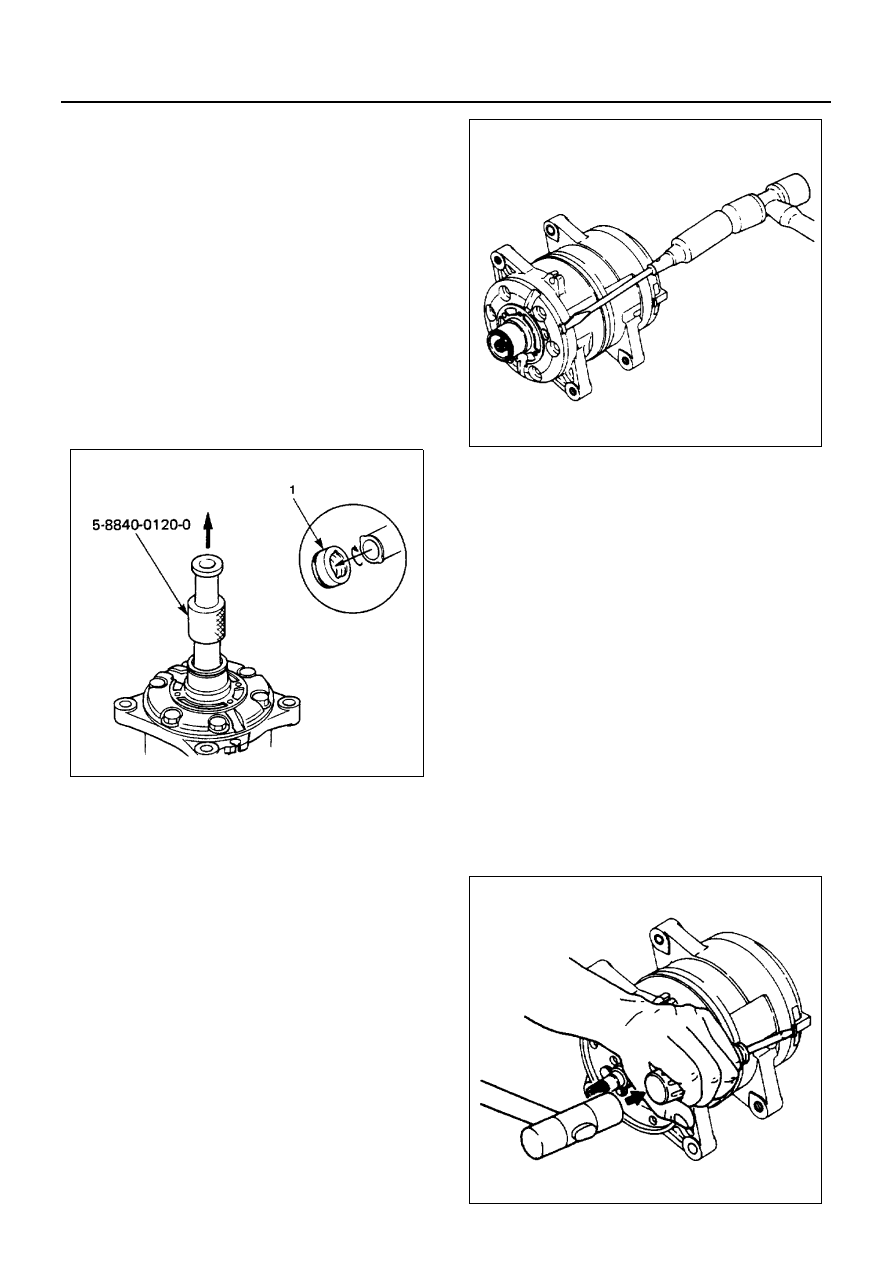

Using shaft seal remover to remove the shaft seal
assembly.
Engage the remover hook with the shaft seal as-
sembly groove and slowly draw the shaft seal as-
sembly out.
Shaft Seal Remover: 5-8840-0120-0 (J-33942)
The shaft seal (1) is precision-machined and its
critical parts are finished to extremely close toler-
ances. The assembly must be handled with great
care, it slips face demanding particularly careful
handling.
The shaft seal can not be reused. Install a new
shaft seal at reassembly.
Take care not to scratch or otherwise damage the
shaft seal face.
Keep the shaft seal free from lint and dirt.
13. Through Bolt with Gasket
14. Front Cylinder Head
15. O-ring

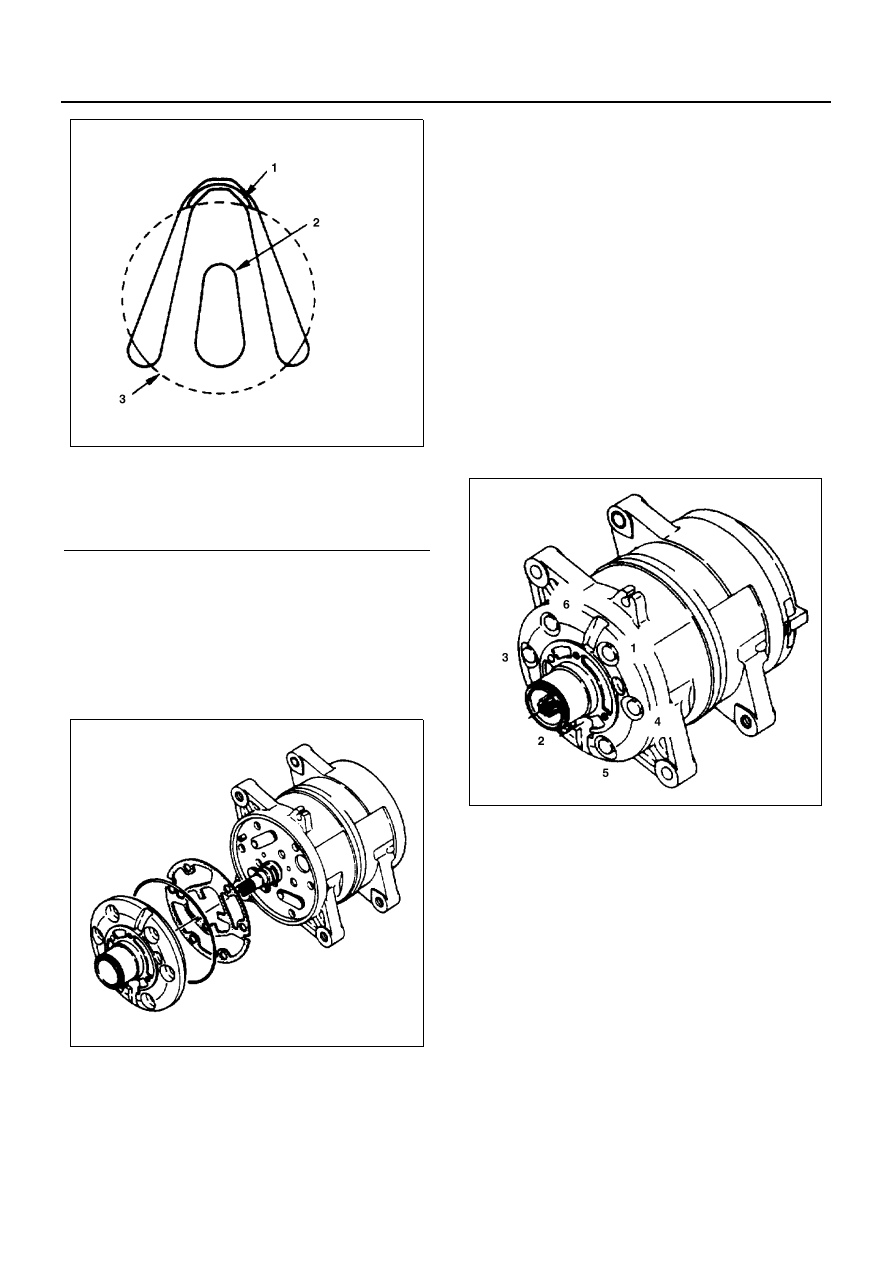

Alternately tap the projections on the circumfer-
ence of the front cylinder head with a screwdriver
and a plastic hammer to remove the front cylinder
head.
16. Gasket
17. Front Valve Plate
18. Front Suction Valve

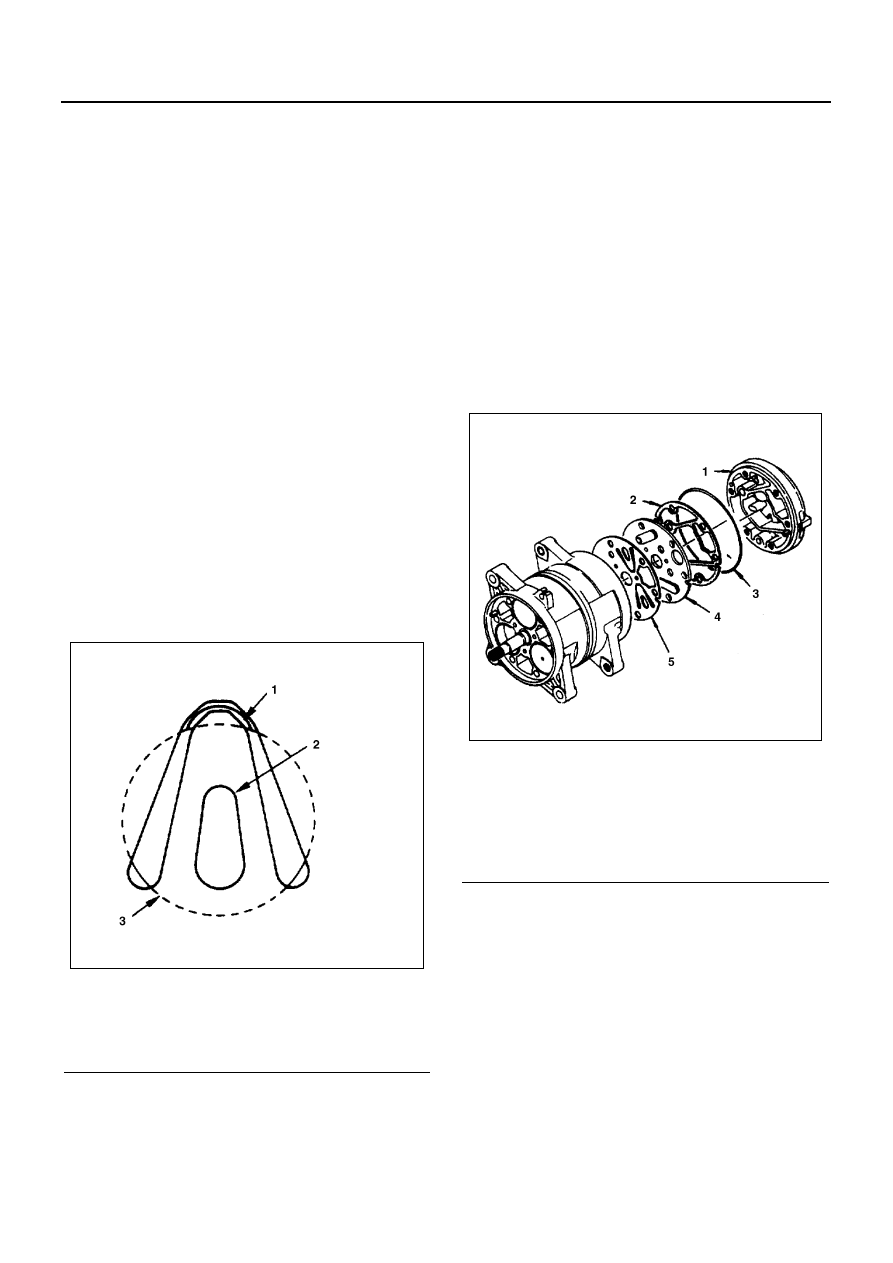

Check the front valve plate for scratching and
bending.
Check the front valve plate and the front cylinder
head for nicks and burrs on the sealing surface.
Buff or replace the valve plate and cylinder head if
nicks and burrs are present.
Check that the front valve plate passage is free
from obstructions.
Check the front valve plate and the cylinder head
for cracks.
Replace the valve plate and cylinder head if cracks
are present.
19. Rear Cylinder Head
20. O-ring
Alternately tap the projections on the circumfer-
ence of the rear cylinder head with a screwdriver
and a plastic hammer to remove the rear cylinder
head.
